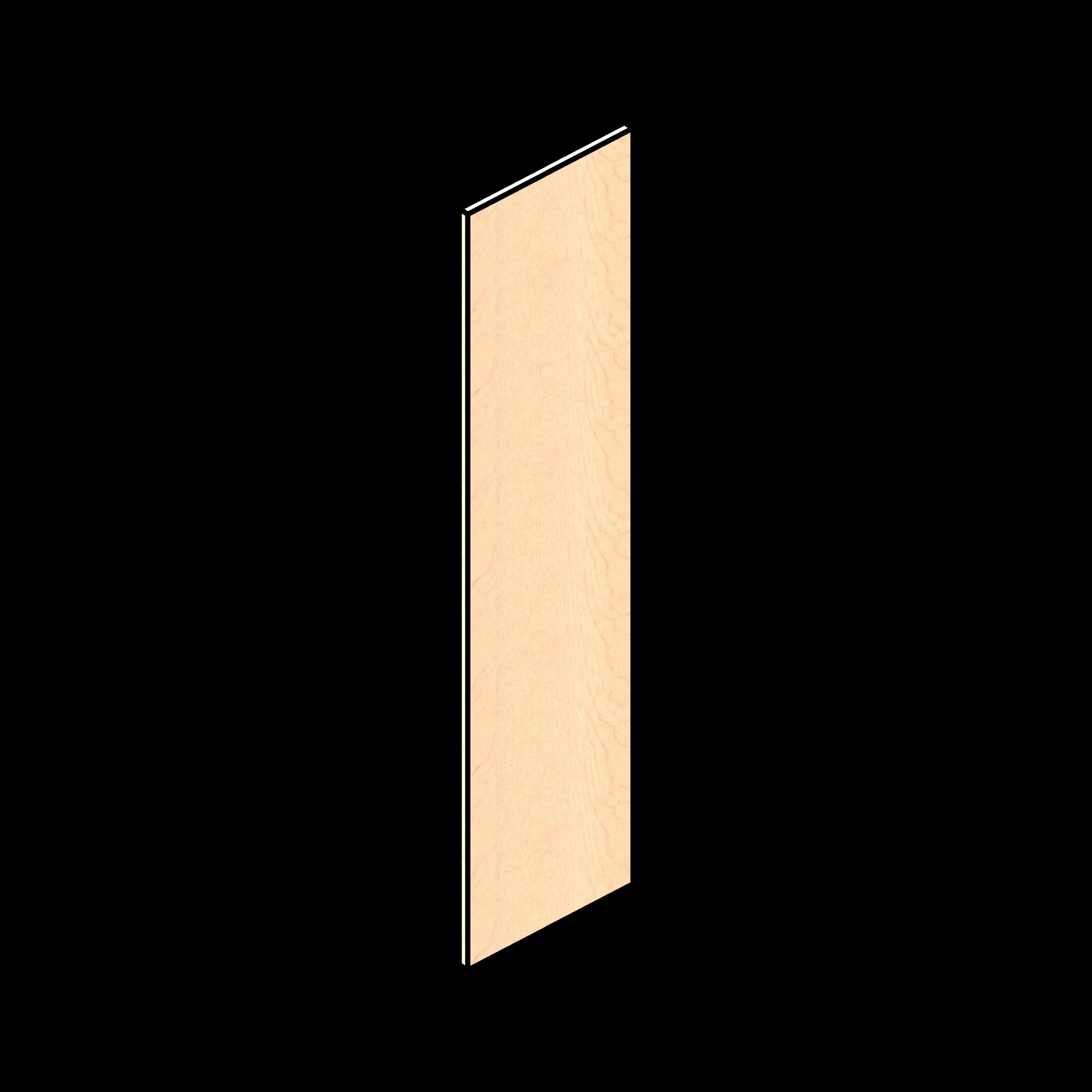

Locker Laminate End Panel

Pricing included in model

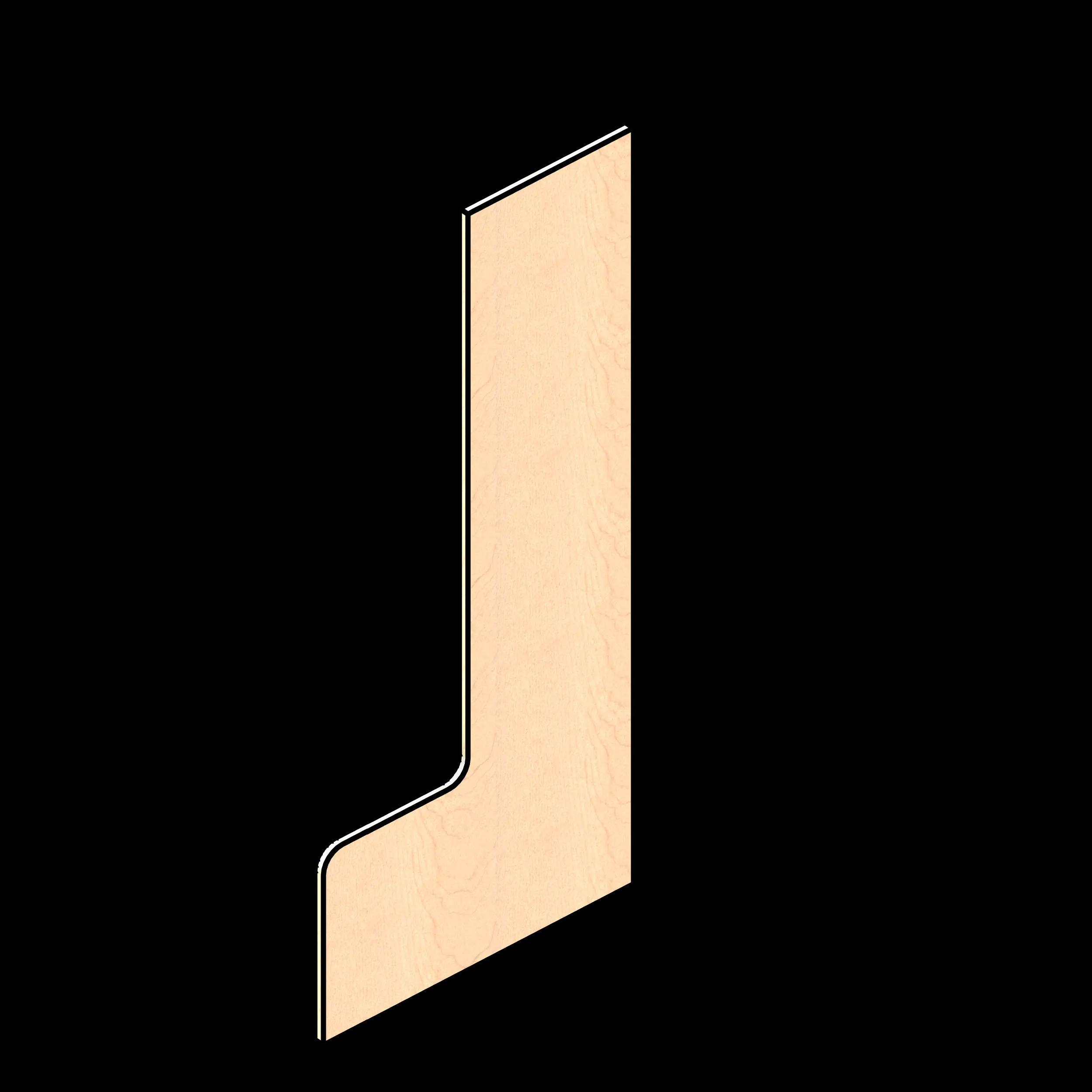

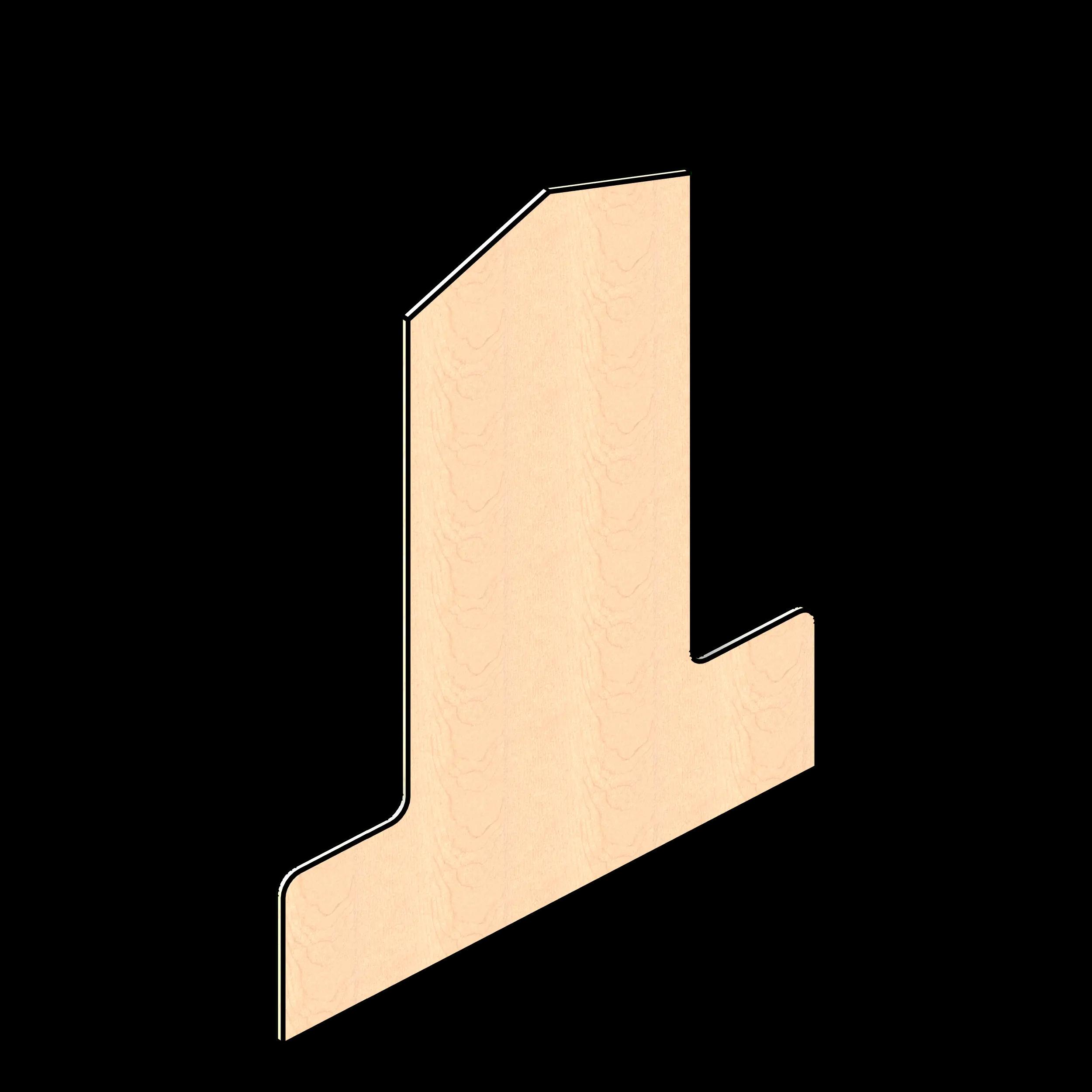

Panel can accomodate integrated benches
Ideal for workspaces and smart office design

Family

Pricing

Revit 2018 (0.45 MB)

Revit 2019 (0.45 MB)

Revit 2020 (0.45 MB)

Revit 2021 (0.45 MB)

Revit 2022 (0.45 MB)

Revit 2023 (0.45 MB)

Revit 2024 (0.45 MB)

Revit 2025 (0.45 MB)

Questions

Need some help? Send us a message if you have any sales or model related questions.

Plastic Laminate Locker End Panel

The Southwest Solutions Group laminate locker line is designed to be highly flexible and adaptable with every Revit model built to reflect its real world counterpart. Once loaded, each model has a variety of parameters which allow you to easily manipulate and customize various aspects of the casework design without ever needing to load a type catalog ever again. Such features include:

Quickly Manipulate Sizes
Toe Kick Options
Door Styles
Handle Types
Lock Options
Angled Top Options
Material Options

In addition, each model comes with a high level of information built in, including a worst-case budget price that dynamically updates as you manipulate the model within Revit. This allows the designer and client to quickly understand where the money is being spent. Also, within each model type, there are links to more detailed information should you need it. Having this level of flexibility combined with a high level of information is truly what BIM is meant to be.

Parameter	Value
Standard Widths	3/4"
Minimum Width	0' 0 3/4" (0 3/4")
Maximum Width	0' 0 3/4" (0 3/4")
Standard Depths	16", 19", 21", 25", 32", 38", 42", 50"
Minimum Depth	1' 0" (12")
Maximum Depth	4' 2" (50")
Standard Heights	40", 44", 58", 72", 76", 94"
Minimum Height	3' 4" (39")
Maximum Height	7' 10" (93")
Manufacturer	Southwest Solutions Group_HAM
Lead Time	4-6 Weeks
Construction Type	Frameless cabinet construction w/ flush overlay fronts
Model	MCLX
Keynote	12 32 16
Assembly Code	E2020
Author	kbruxvoort
Toll Free Number	1-800-803-1083

Property	Value
Includes Pricing	Yes
ADA Compliant	Yes
Has MEP Connectors	No
Primary Material	Laminate
BIMobject Category	Furniture: Shelving & Storage
IFC	Furniture
Omniclass	23-21 19 11 13
Omnia	No
Sourcewell	No
Equalis	No
Vizient	Yes
Systec	Yes

Model	Width	Depth	Height	Weight
SSG-MCLX1640	1' 4" (15")	0' 1" (0")	3' 4" (39")	16
SSG-MCLX1644	1' 4" (15")	0' 1" (0")	3' 8" (44")	18
SSG-MCLX1658	1' 4" (15")	0' 1" (0")	4' 10" (57")	24
SSG-MCLX1672	1' 4" (15")	0' 1" (0")	6' 0" (72")	29
SSG-MCLX1676	1' 4" (15")	0' 1" (0")	6' 4" (75")	31
SSG-MCLX1694	1' 4" (15")	0' 1" (0")	7' 10" (93")	38
SSG-MCLX1696	1' 4" (15")	0' 1" (0")	8' 0" (96")	38
SSG-MCLX1940	1' 7" (18")	0' 1" (0")	3' 4" (39")	19
SSG-MCLX1944	1' 7" (18")	0' 1" (0")	3' 8" (44")	21
SSG-MCLX1958	1' 7" (18")	0' 1" (0")	4' 10" (57")	28
SSG-MCLX1972	1' 7" (18")	0' 1" (0")	6' 0" (72")	35
SSG-MCLX1976	1' 7" (18")	0' 1" (0")	6' 4" (75")	37
SSG-MCLX1994	1' 7" (18")	0' 1" (0")	7' 10" (93")	45
SSG-MCLX1996	1' 7" (18")	0' 1" (0")	8' 0" (96")	45
SSG-MCLX2140	1' 9" (21")	0' 1" (0")	3' 4" (39")	21
SSG-MCLX2144	1' 9" (21")	0' 1" (0")	3' 8" (44")	23
SSG-MCLX2158	1' 9" (21")	0' 1" (0")	4' 10" (57")	31
SSG-MCLX2172	1' 9" (21")	0' 1" (0")	6' 0" (72")	38
SSG-MCLX2176	1' 9" (21")	0' 1" (0")	6' 4" (75")	40
SSG-MCLX2194	1' 9" (21")	0' 1" (0")	7' 10" (93")	50
SSG-MCLX2196	1' 9" (21")	0' 1" (0")	8' 0" (96")	50
SSG-MCLX2540	2' 1" (24")	0' 1" (0")	3' 4" (39")	25
SSG-MCLX2544	2' 1" (24")	0' 1" (0")	3' 8" (44")	28
SSG-MCLX2558	2' 1" (24")	0' 1" (0")	4' 10" (57")	37
SSG-MCLX2572	2' 1" (24")	0' 1" (0")	6' 0" (72")	46
SSG-MCLX2576	2' 1" (24")	0' 1" (0")	6' 4" (75")	48
SSG-MCLX2594	2' 1" (24")	0' 1" (0")	7' 10" (93")	60
SSG-MCLX2596	2' 1" (24")	0' 1" (0")	8' 0" (96")	60
SSG-MCLX3240	2' 8" (32")	0' 1" (0")	3' 4" (39")	32
SSG-MCLX3244	2' 8" (32")	0' 1" (0")	3' 8" (44")	36
SSG-MCLX3258	2' 8" (32")	0' 1" (0")	4' 10" (57")	47
SSG-MCLX3272	2' 8" (32")	0' 1" (0")	6' 0" (72")	58
SSG-MCLX3276	2' 8" (32")	0' 1" (0")	6' 4" (75")	62
SSG-MCLX3294	2' 8" (32")	0' 1" (0")	7' 10" (93")	78
SSG-MCLX3296	2' 8" (32")	0' 1" (0")	8' 0" (96")	78
SSG-MCLX3840	3' 2" (38")	0' 1" (0")	3' 4" (39")	39
SSG-MCLX3844	3' 2" (38")	0' 1" (0")	3' 8" (44")	42
SSG-MCLX3858	3' 2" (38")	0' 1" (0")	4' 10" (57")	56
SSG-MCLX3872	3' 2" (38")	0' 1" (0")	6' 0" (72")	69
SSG-MCLX3876	3' 2" (38")	0' 1" (0")	6' 4" (75")	73
SSG-MCLX3894	3' 2" (38")	0' 1" (0")	7' 10" (93")	93
SSG-MCLX3896	3' 2" (38")	0' 1" (0")	8' 0" (96")	93
SSG-MCLX4240	3' 6" (42")	0' 1" (0")	3' 4" (39")	43
SSG-MCLX4244	3' 6" (42")	0' 1" (0")	3' 8" (44")	47
SSG-MCLX4258	3' 6" (42")	0' 1" (0")	4' 10" (57")	62
SSG-MCLX4272	3' 6" (42")	0' 1" (0")	6' 0" (72")	77
SSG-MCLX4276	3' 6" (42")	0' 1" (0")	6' 4" (75")	81
SSG-MCLX4294	3' 6" (42")	0' 1" (0")	7' 10" (93")	102
SSG-MCLX4296	3' 6" (42")	0' 1" (0")	8' 0" (96")	102
SSG-MCLX5040	4' 2" (50")	0' 1" (0")	3' 4" (39")	51
SSG-MCLX5044	4' 2" (50")	0' 1" (0")	3' 8" (44")	56
SSG-MCLX5058	4' 2" (50")	0' 1" (0")	4' 10" (57")	74
SSG-MCLX5072	4' 2" (50")	0' 1" (0")	6' 0" (72")	91
SSG-MCLX5076	4' 2" (50")	0' 1" (0")	6' 4" (75")	96
SSG-MCLX5094	4' 2" (50")	0' 1" (0")	7' 10" (93")	122
SSG-MCLX5096	4' 2" (50")	0' 1" (0")	8' 0" (96")	122

Locker Laminate End Panel

Product SKU

Description

Plastic Laminate Locker End Panel
