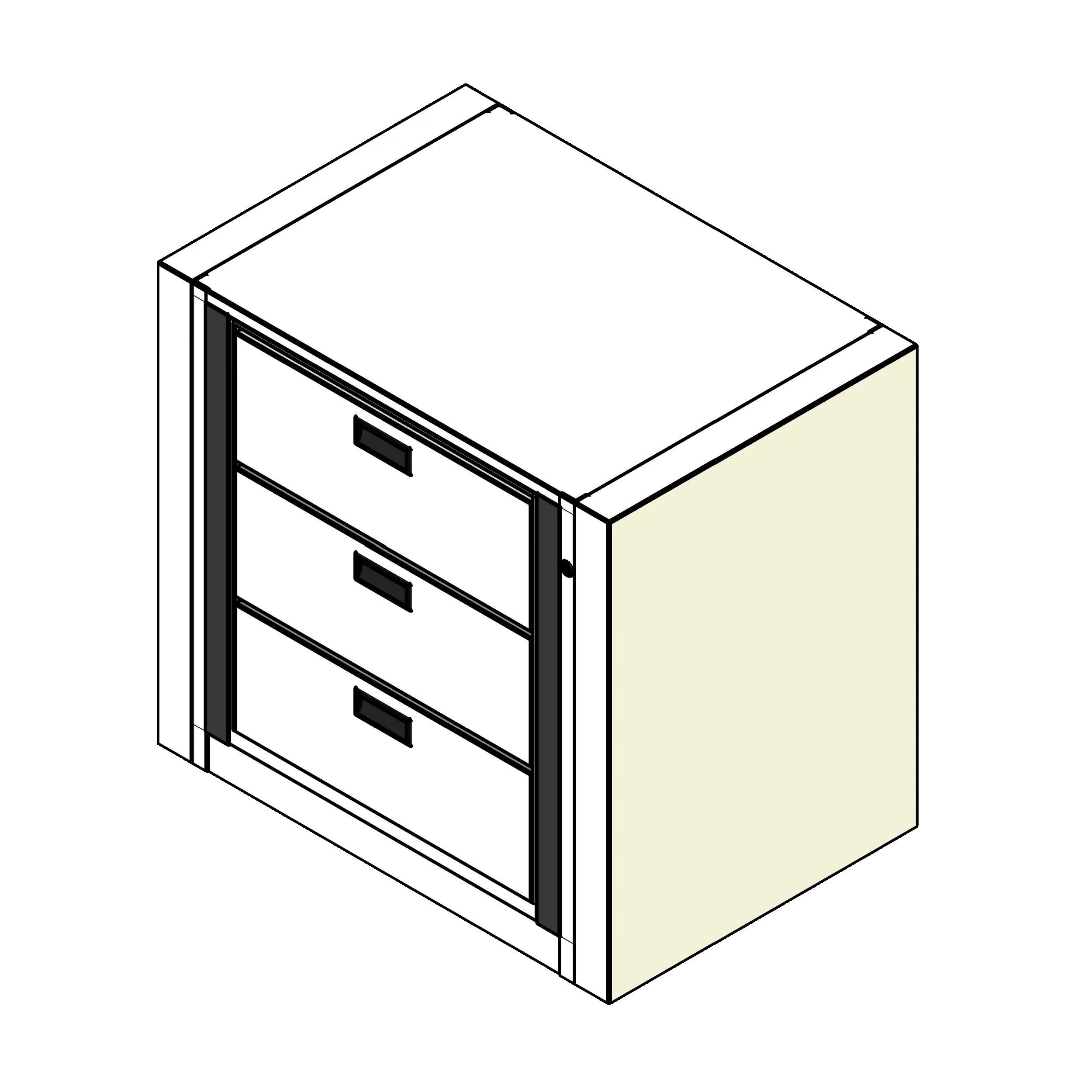

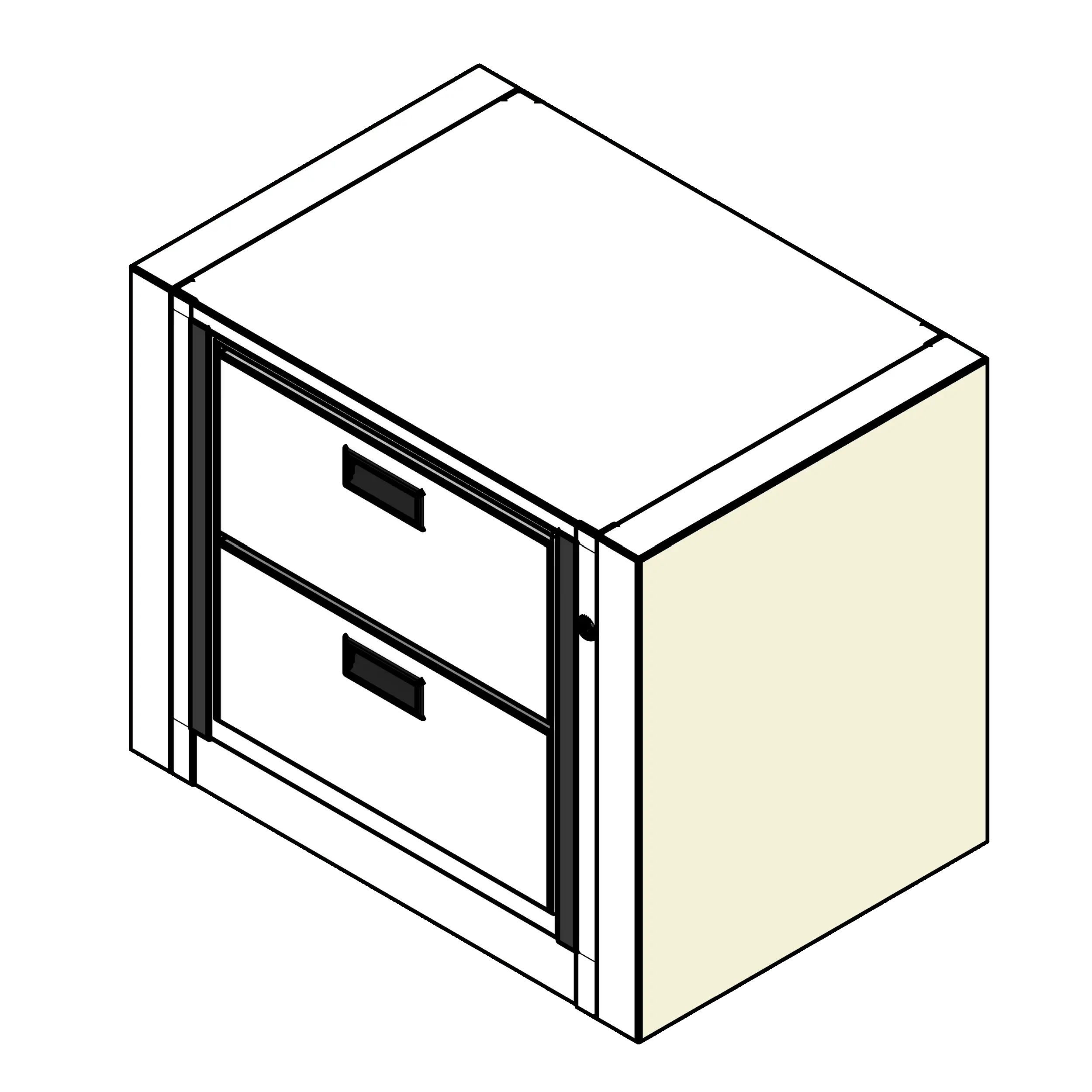

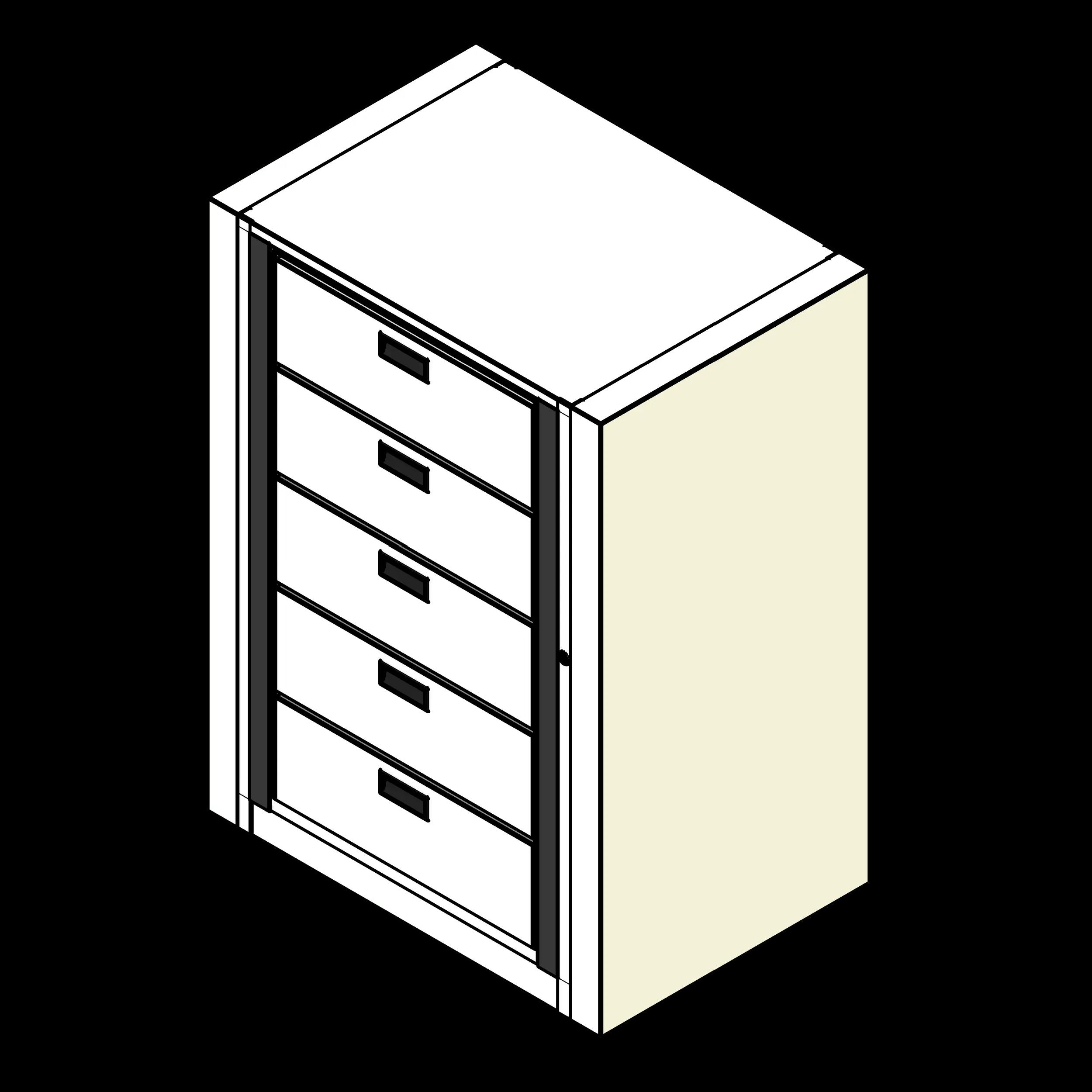

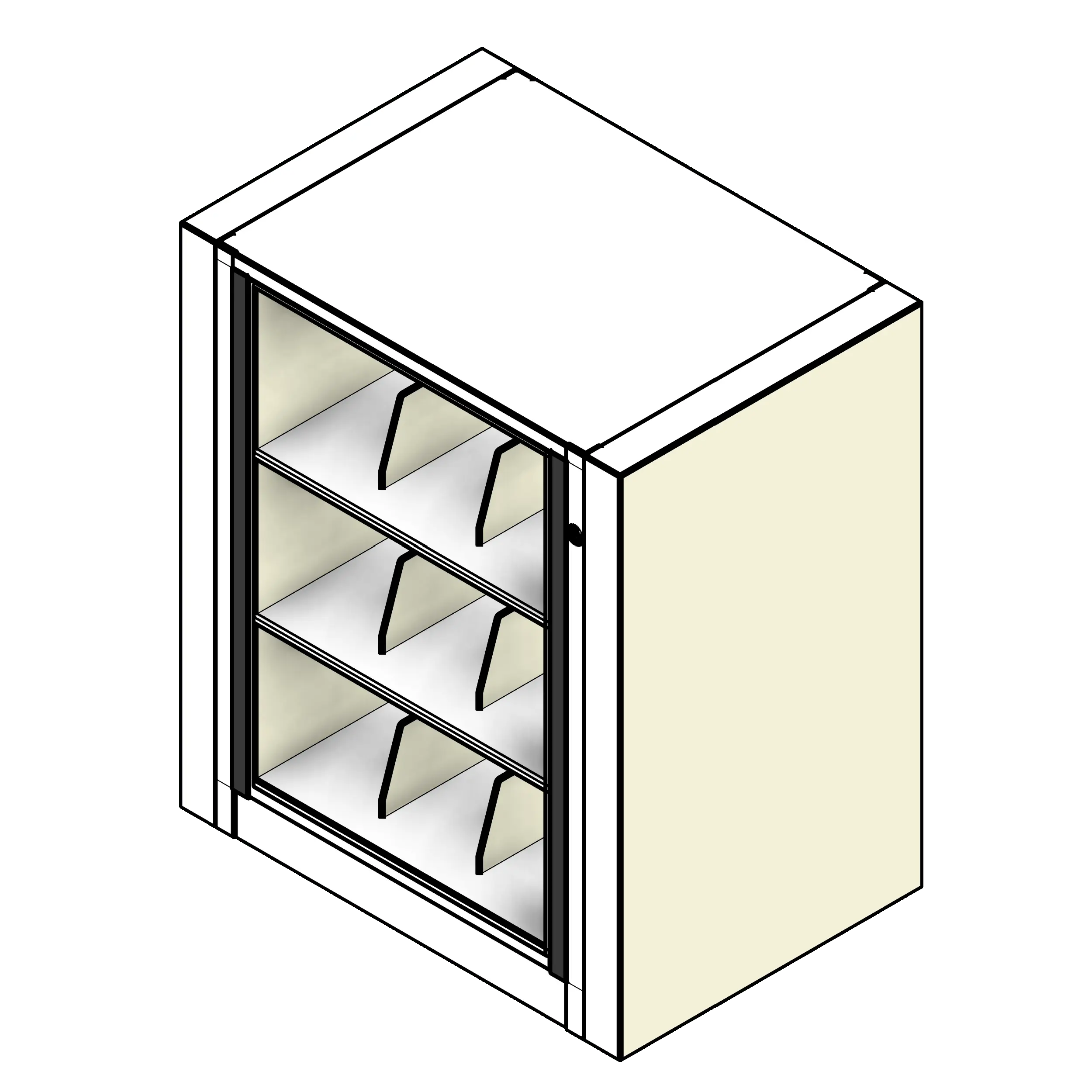

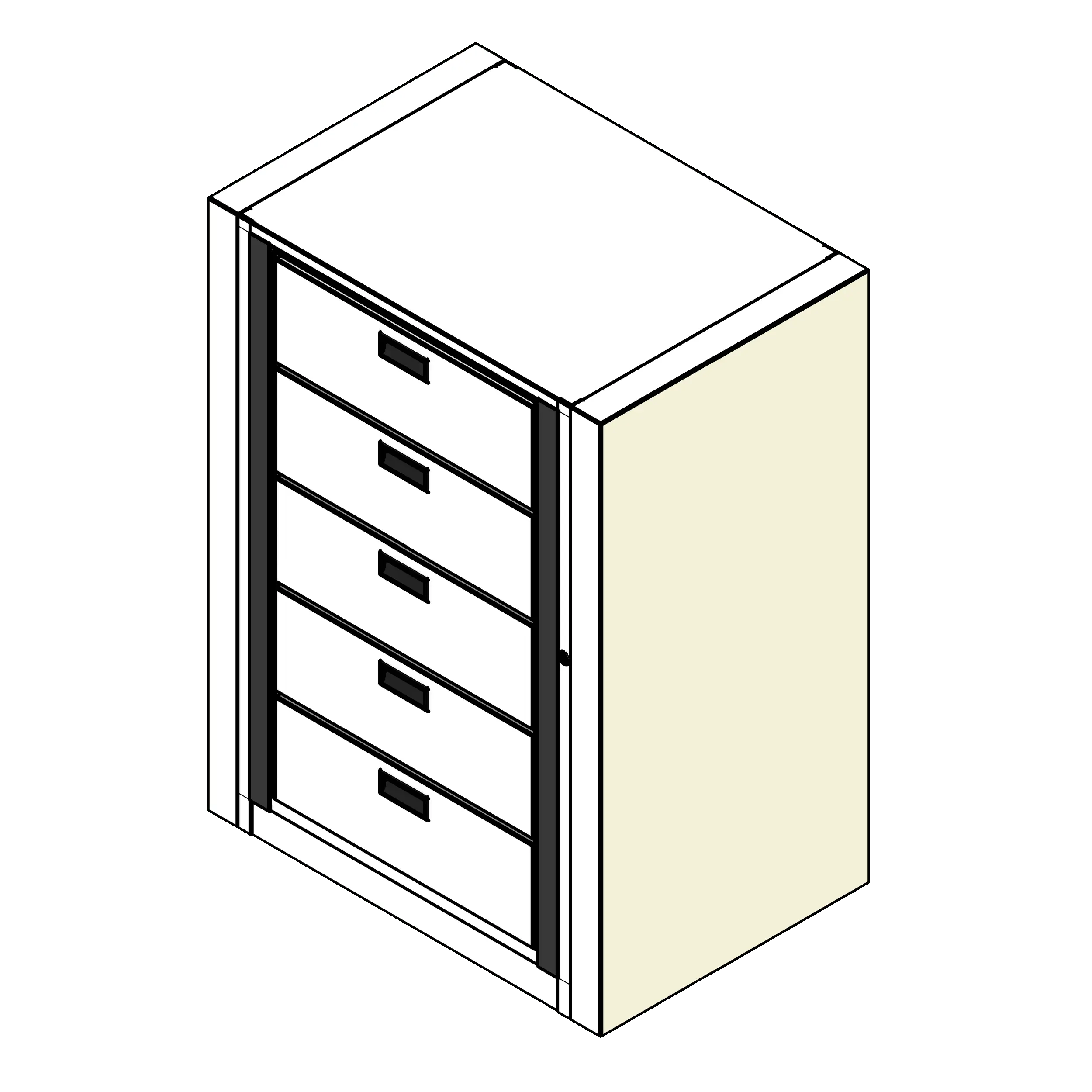

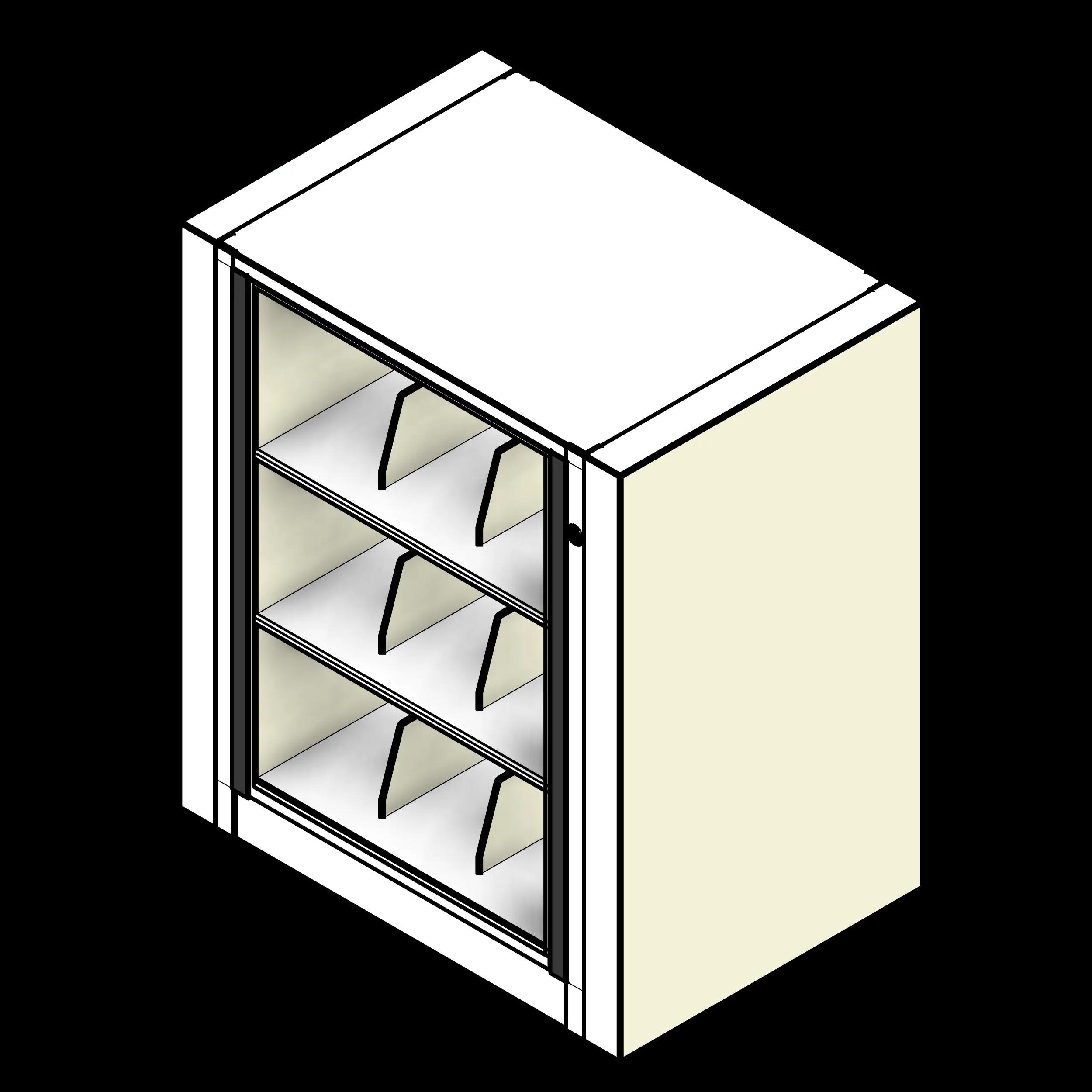

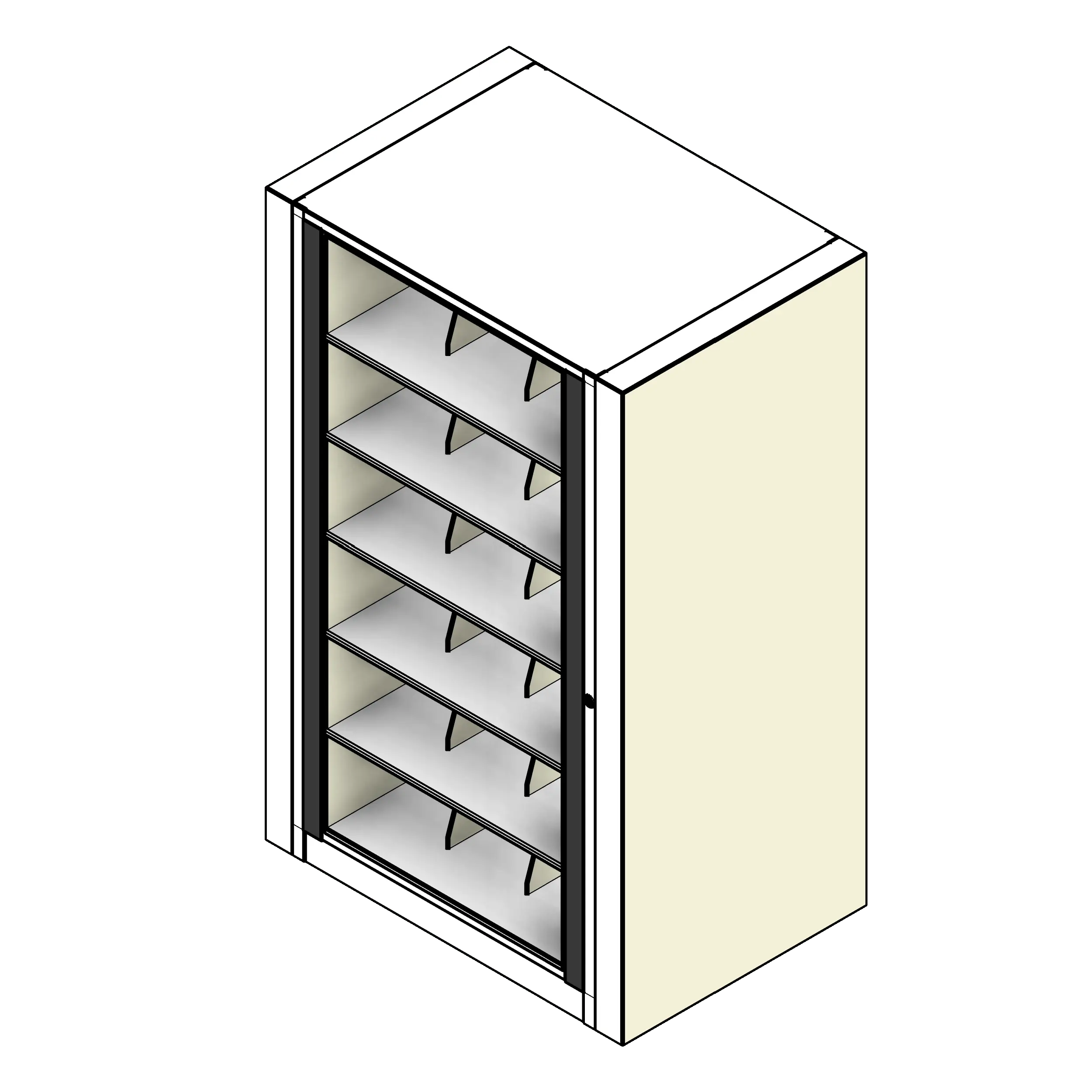

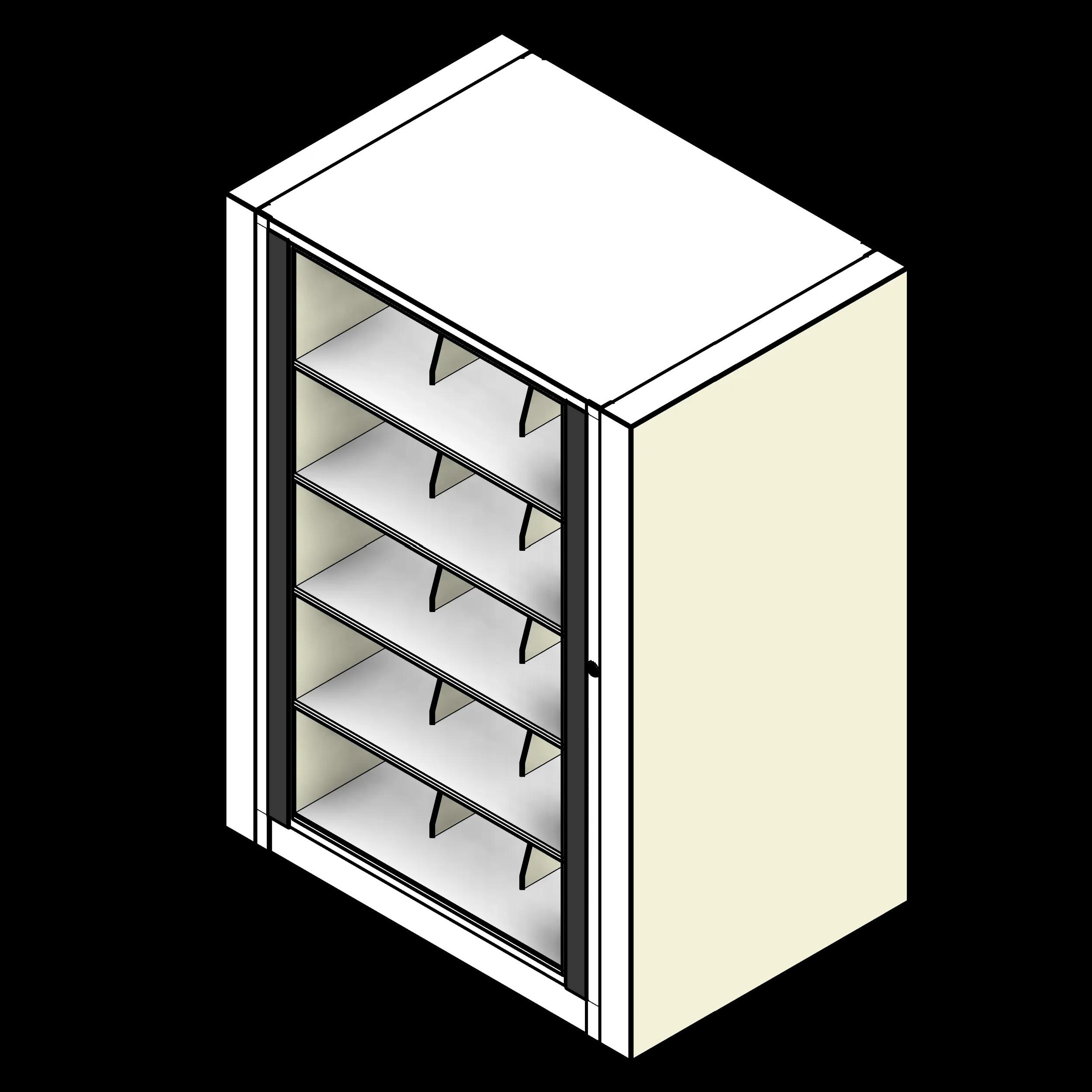

Rotary Metal Filing Cabinet Revit family

Rotary Metal Filing Cabinet Revit family, view 2

Rotary Metal Filing Cabinet Revit family, view 3

Rotary Metal Filing Cabinet Revit family, view 4

Rotary Metal Filing Cabinet Revit family, view 5

Rotary Metal Filing Cabinet Revit family, view 6

Rotary Metal Filing Cabinet Revit family, view 7

Rotary Metal Filing Cabinet Revit family, view 8

Rotary Metal Filing Cabinet Revit family, view 9

Rotary Metal Filing Cabinet Revit family, view 10

Rotary Metal Filing Cabinet Revit family, view 11

Rotary Metal Filing Cabinet Revit family, view 12

Rotary Metal Filing Cabinet Revit family, view 13

Rotary Metal Filing Cabinet Revit family, view 14

Rotary Metal Filing Cabinet Revit family, view 15

Rotary Metal Filing Cabinet Revit family, view 16

Rotary Metal Filing Cabinet Revit family, view 17

Rotary Metal Filing Cabinet Revit family, view 18

Rotary Metal Filing Cabinet Revit family, view 19

Rotary Metal Filing Cabinet Revit family, view 20

Updated Aug 13, 2026

Rotary Metal Filing Cabinet

Downloads

Get Fetch to load families straight into Revit →

Family

Pricing

3-7 Tiers High
Great for file storage
Flexible components for adaptable storage
Shelf or Drawer system

Questions about this product?

Rotary Metal Filing Cabinet

Each kit comes with a variety of options that each have a unique price attached to them.

Locking doors and drawers for secure and HIPAA-compliant storage
Additional designs for industrial and weapons storage
Available with two to eight shelf openings
Available either fully assembled or unassembled
Completely customizable to fit your unique needs
Drawers, dividers, reference shelves, laminate end panels, and a wealth of other optional accessories

Design

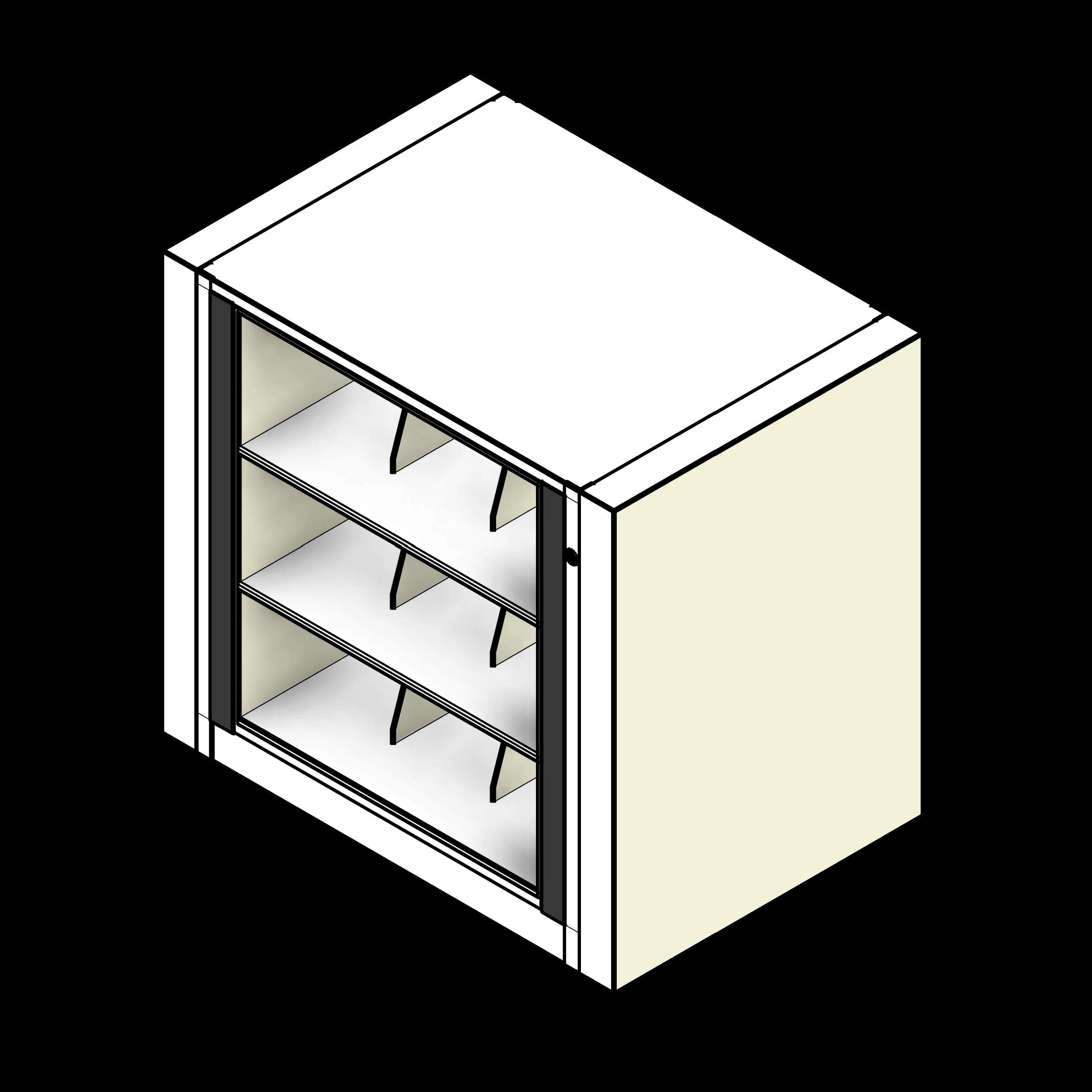

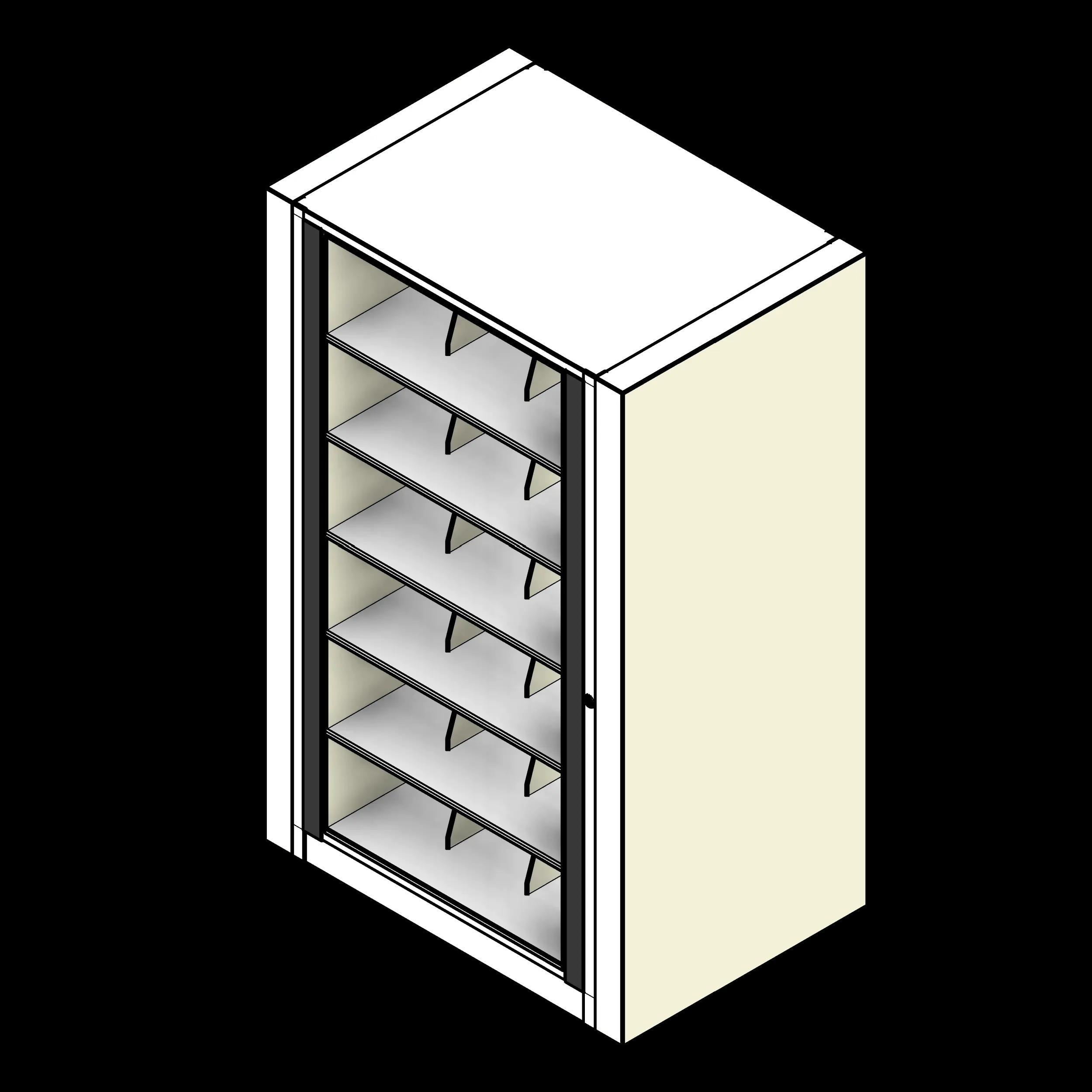

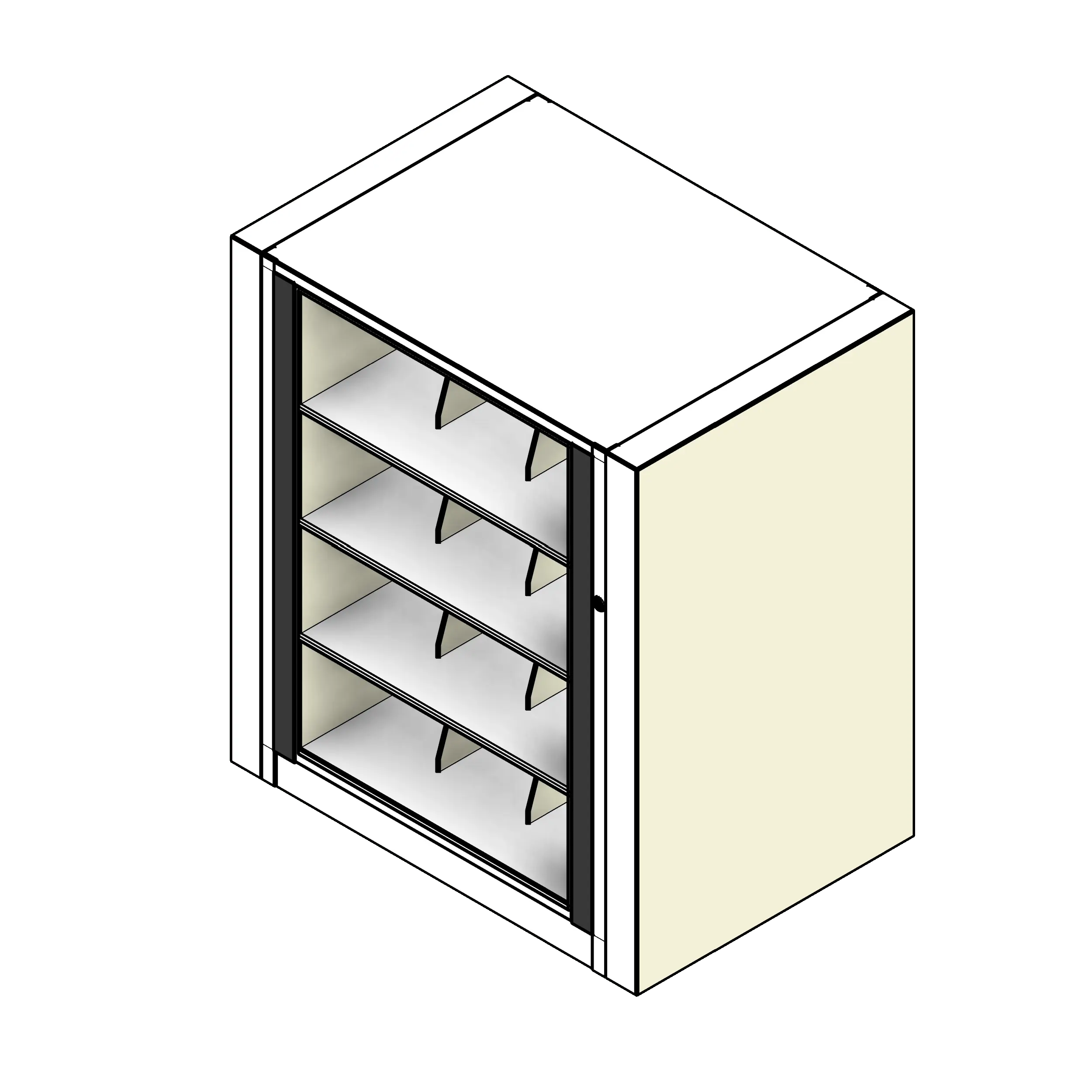

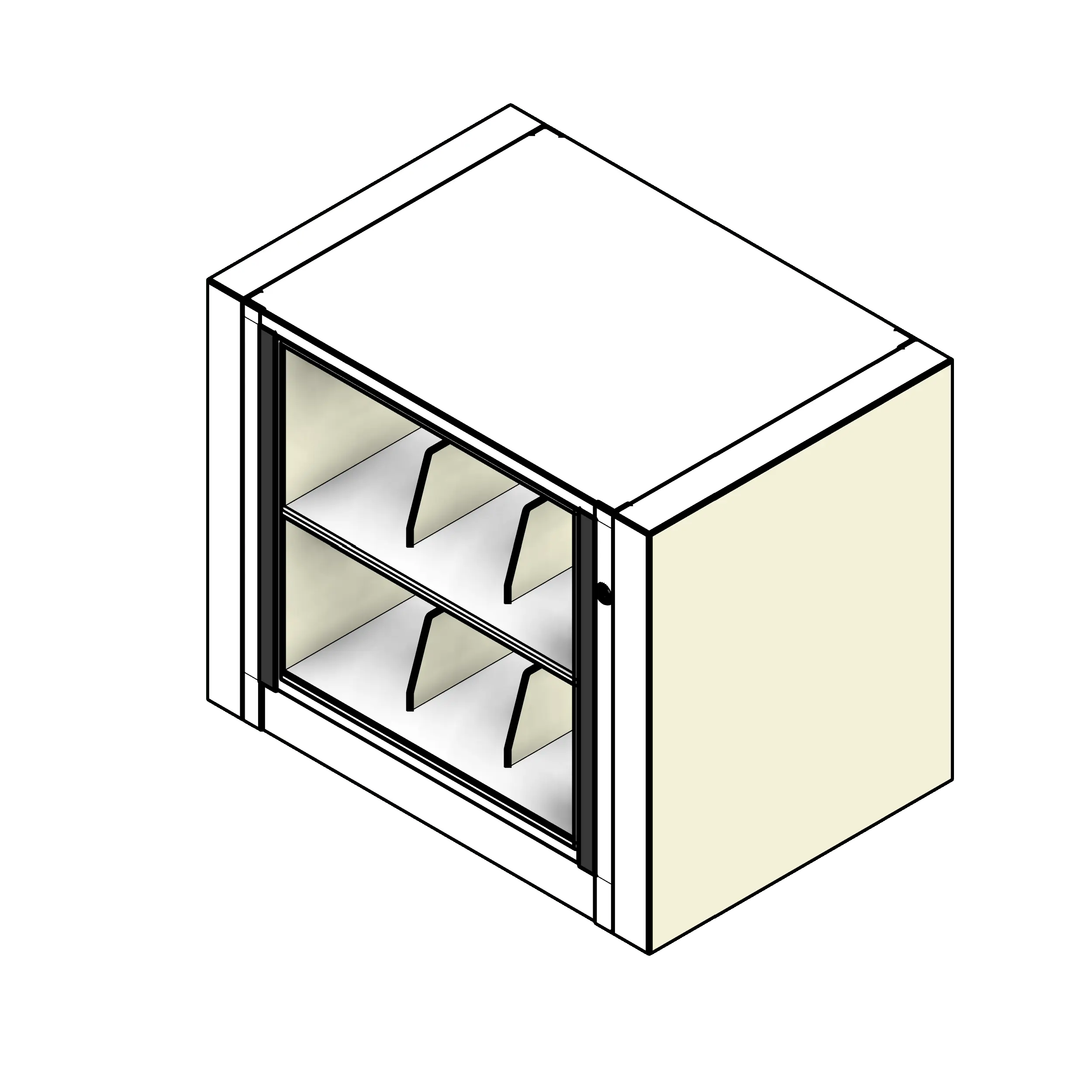

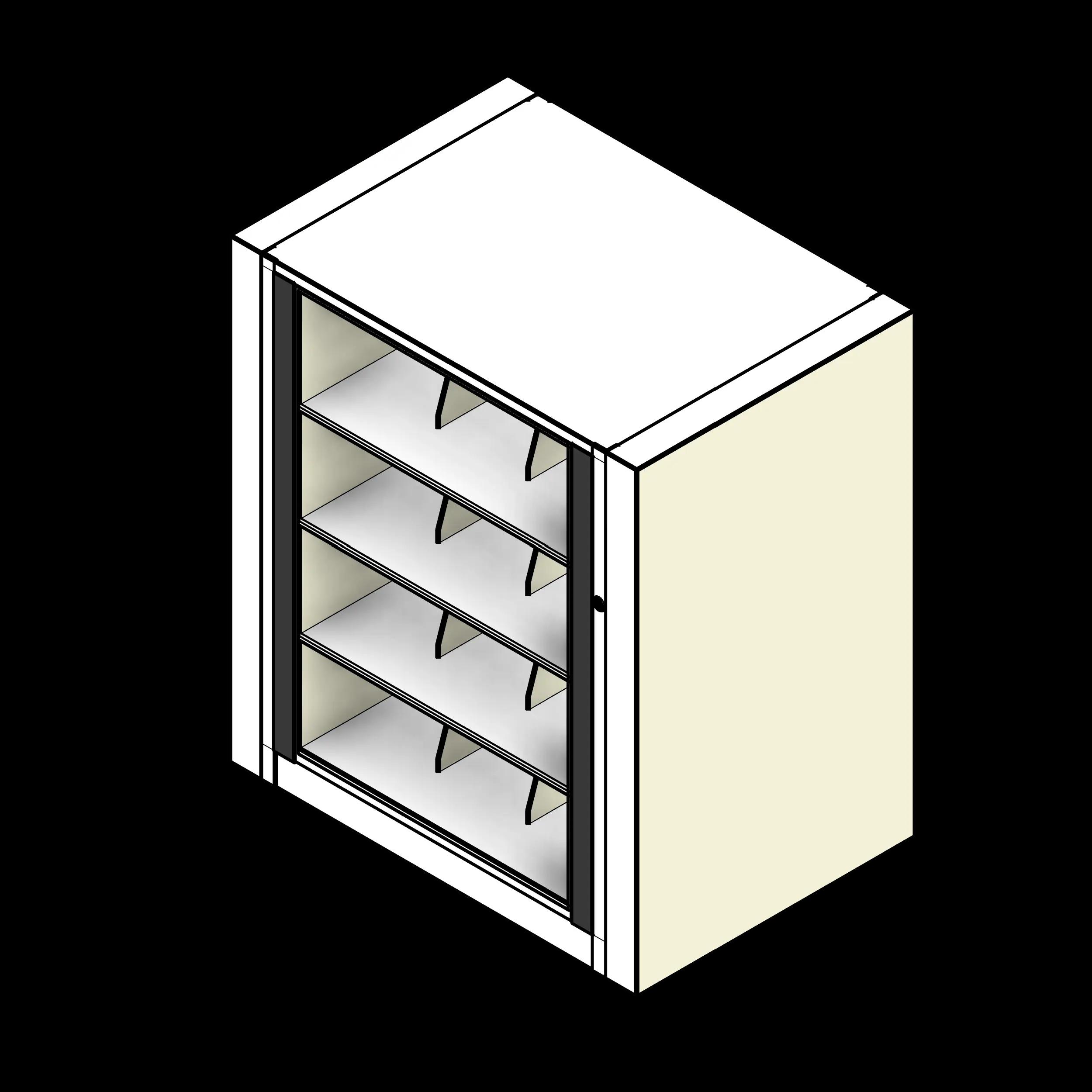

Quickly change the number of tiers to either 3,4,5,6,7,8 high

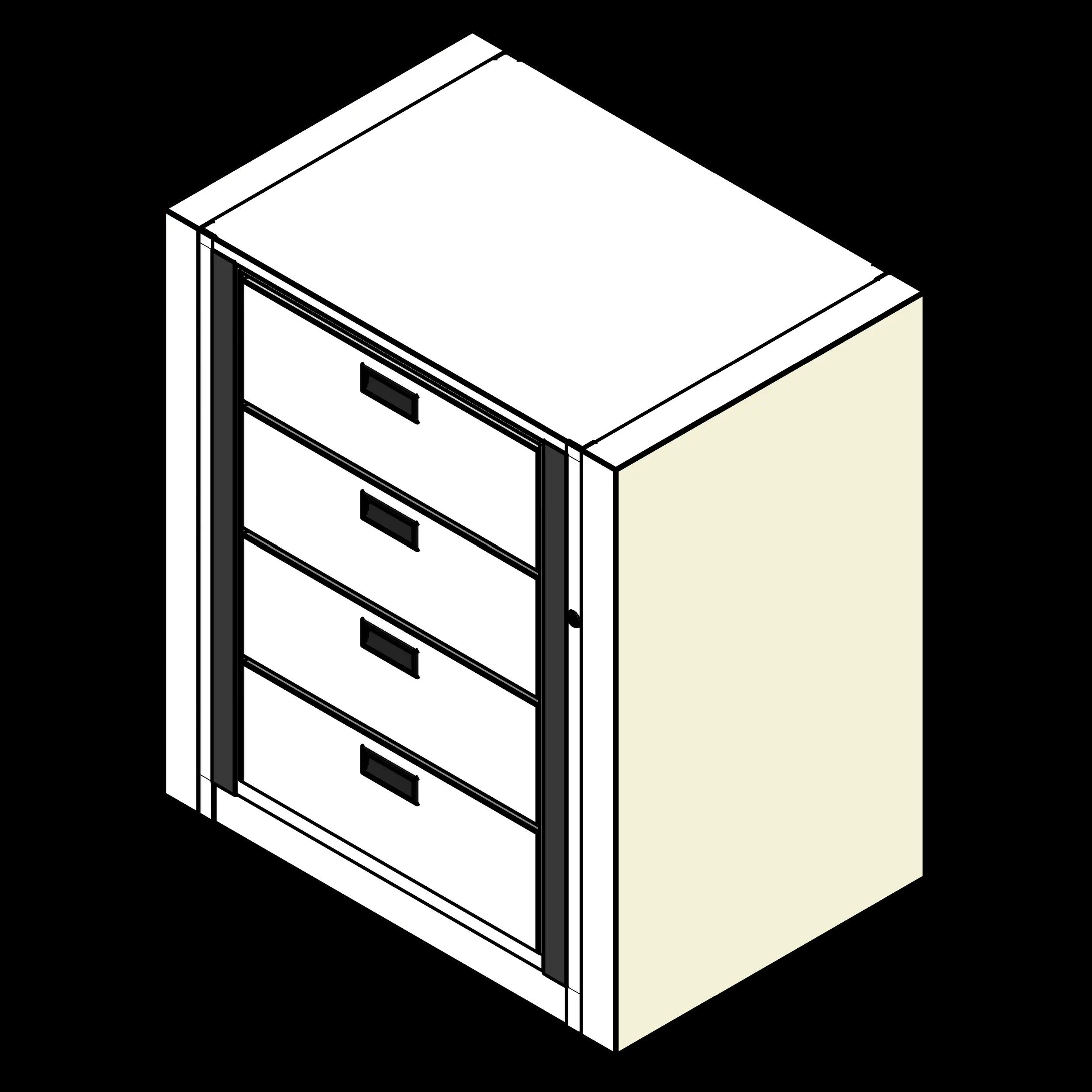

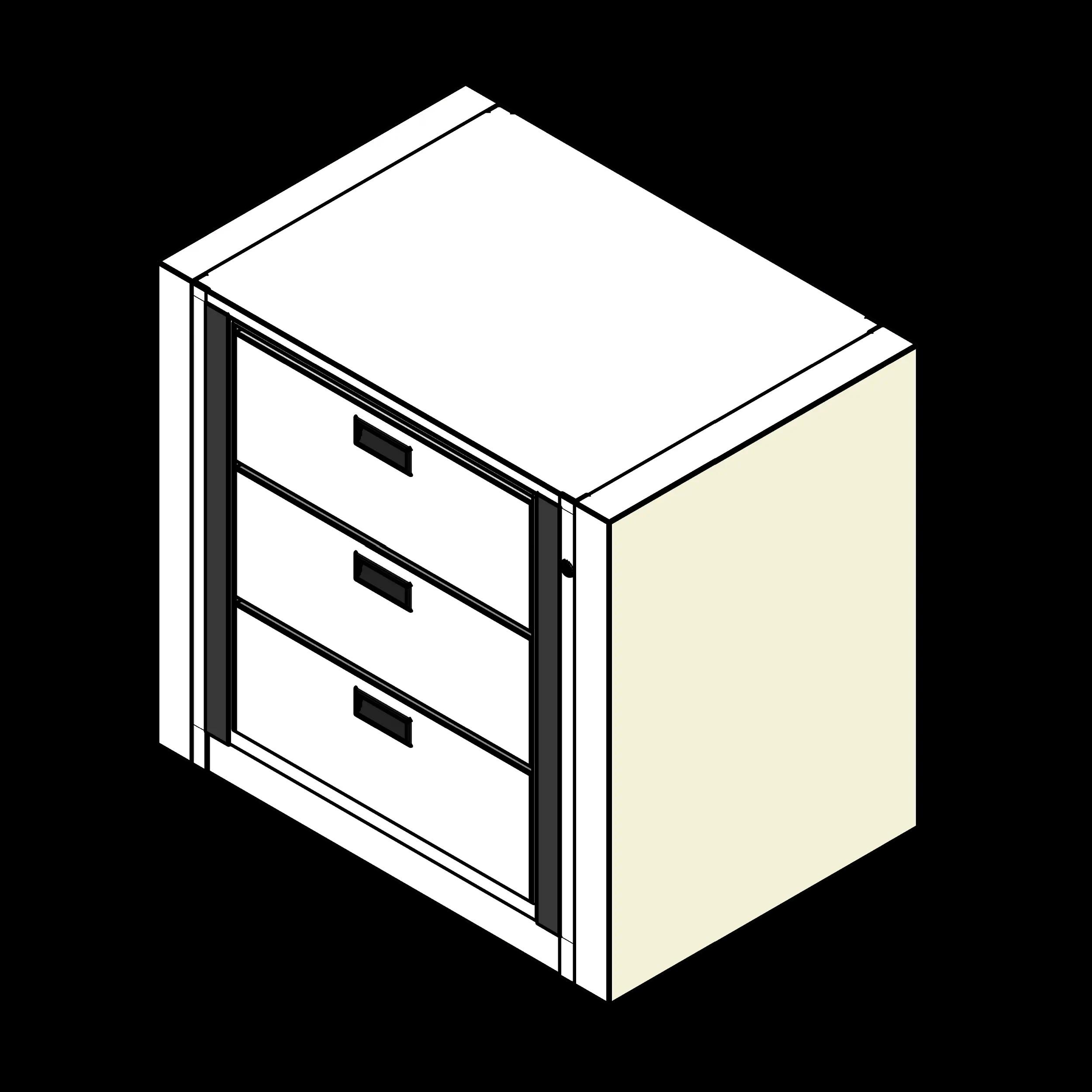

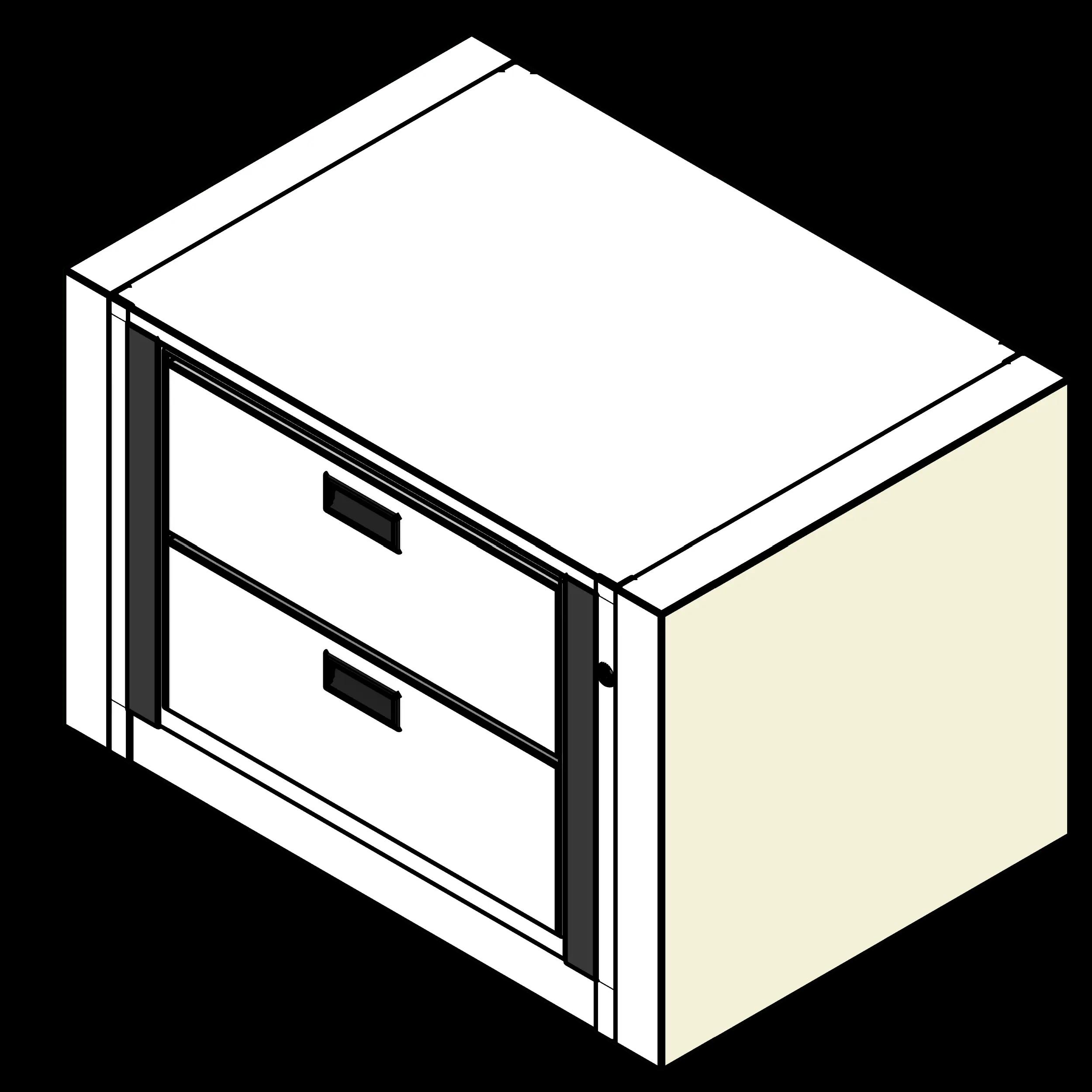

Quickly change from shelves to drawers
Built in end panels and wall panels for ease of design.

Configurations

Letter Unit

Widths: 30-3/4" (adder), 36-1/2" (starter)
Heights: 30", 42", 51", 61 1/2", 72", 82 1/2", 93"
Depths: 25"
Choose from letter or legal size media storage
Available in two (2) to eight (8) shelf openings
Choose from locking or non-locking units

Legal Unit

Widths: 38-3/4" (adder), 45-1/2" (starter)
Heights: 30", 42", 51", 61 1/2", 72", 82 1/2", 93"
Depths: 31"
Choose from letter or legal size media storage
Available in two (2) to eight (8) levels
Choose from locking or non-locking units

Specifications
Dimensions
Width	30 3/4", 33 5/8", 36 1/2", 38 3/4", 42 1/8", 45 1/2"
Depth	25", 31"
Height	30", 42", 51", 61 1/2", 72", 82 1/2", 93"
Product
Manufacturer	Southwest Solutions Group_DAT
Lead Time	Contact SSG for info
Primary Material	Powder coated steel
Classification
MasterFormat	10 56 13 – Metal Storage Shelving
UniFormat	E20 – Furnishings
IFC	Furniture
OmniClass	23-21 11 11 11
Purchasing
Contracts	Sourcewell, Equalis, Vizient
Revit family
Includes Pricing	Yes
ADA Compliant	No
Has MEP Connectors	No

Model	Width	Depth	Height	Weight
SSG-XLT-S2	3' 0 1/2" (36 1/2")	2' 1" (25")	2' 6" (30")	192
SSG-XLT-A2	2' 6 3/4" (30 3/4")	2' 1" (25")	2' 6" (30")	157
SSG-XLT-S3	3' 0 1/2" (36 1/2")	2' 1" (25")	3' 6" (42")	269
SSG-XLT-A3	2' 6 3/4" (30 3/4")	2' 1" (25")	3' 6" (42")	235
SSG-XLT-S4	3' 0 1/2" (36 1/2")	2' 1" (25")	4' 3" (51")	296
SSG-XLT-A4	2' 6 3/4" (30 3/4")	2' 1" (25")	4' 3" (51")	262
SSG-XLT-S5	3' 0 1/2" (36 1/2")	2' 1" (25")	5' 1 1/2" (61 1/2")	351
SSG-XLT-A5	2' 6 3/4" (30 3/4")	2' 1" (25")	5' 1 1/2" (61 1/2")	303
SSG-XLT-S6	3' 0 1/2" (36 1/2")	2' 1" (25")	6' 0" (72")	387
SSG-XLT-A6	2' 6 3/4" (30 3/4")	2' 1" (25")	6' 0" (72")	337
SSG-XLT-S7	3' 0 1/2" (36 1/2")	2' 1" (25")	6' 10 1/2" (82 1/2")	432
SSG-XLT-A7	2' 6 3/4" (30 3/4")	2' 1" (25")	6' 10 1/2" (82 1/2")	369
SSG-XLT-S8	3' 0 1/2" (36 1/2")	2' 1" (25")	7' 9" (93")	469
SSG-XLT-A8	2' 6 3/4" (30 3/4")	2' 1" (25")	7' 9" (93")	402
SSG-XLT-FS1L-S2	3' 0 1/2" (36 1/2")	2' 1" (25")	2' 6" (30")	244
SSG-XLT-FS1L-A2	2' 6 3/4" (30 3/4")	2' 1" (25")	2' 6" (30")	209
SSG-XLT-FS1L-S3	3' 0 1/2" (36 1/2")	2' 1" (25")	3' 6" (42")	295
SSG-XLT-FS1L-A3	2' 6 3/4" (30 3/4")	2' 1" (25")	3' 6" (42")	251
SSG-XLT-FS1L-S4	3' 0 1/2" (36 1/2")	2' 1" (25")	4' 3" (51")	348
SSG-XLT-FS1L-A4	2' 6 3/4" (30 3/4")	2' 1" (25")	4' 3" (51")	295
SSG-XLT-FS1L-S5	3' 0 1/2" (36 1/2")	2' 1" (25")	5' 1 1/2" (61 1/2")	404
SSG-XLT-FS1L-A5	2' 6 3/4" (30 3/4")	2' 1" (25")	5' 1 1/2" (61 1/2")	341
SSG-XLT-FS1L-S6	3' 0 1/2" (36 1/2")	2' 1" (25")	6' 0" (72")	460
SSG-XLT-FS1L-A6	2' 6 3/4" (30 3/4")	2' 1" (25")	6' 0" (72")	388
SSG-XLT-FS1L-S7	3' 0 1/2" (36 1/2")	2' 1" (25")	6' 10 1/2" (82 1/2")	517
SSG-XLT-FS1L-A7	2' 6 3/4" (30 3/4")	2' 1" (25")	6' 10 1/2" (82 1/2")	434
SSG-XLT-FS1L-S8	3' 0 1/2" (36 1/2")	2' 1" (25")	7' 9" (93")	573
SSG-XLT-FS1L-A8	2' 6 3/4" (30 3/4")	2' 1" (25")	7' 9" (93")	480
SSG-XLG-S2	3' 9 1/2" (45 1/2")	2' 7" (31")	2' 6" (30")	255
SSG-XLG-A2	3' 2 3/4" (38 3/4")	2' 7" (31")	2' 6" (30")	207
SSG-XLG-S3	3' 9 1/2" (45 1/2")	2' 7" (31")	3' 6" (42")	363
SSG-XLG-A3	3' 2 3/4" (38 3/4")	2' 7" (31")	3' 6" (42")	321
SSG-XLG-S4	3' 9 1/2" (45 1/2")	2' 7" (31")	4' 3" (51")	423
SSG-XLG-A4	3' 2 3/4" (38 3/4")	2' 7" (31")	4' 3" (51")	361
SSG-XLG-S5	3' 9 1/2" (45 1/2")	2' 7" (31")	5' 1 1/2" (61 1/2")	471
SSG-XLG-A5	3' 2 3/4" (38 3/4")	2' 7" (31")	5' 1 1/2" (61 1/2")	414
SSG-XLG-S6	3' 9 1/2" (45 1/2")	2' 7" (31")	6' 0" (72")	546
SSG-XLG-A6	3' 2 3/4" (38 3/4")	2' 7" (31")	6' 0" (72")	458
