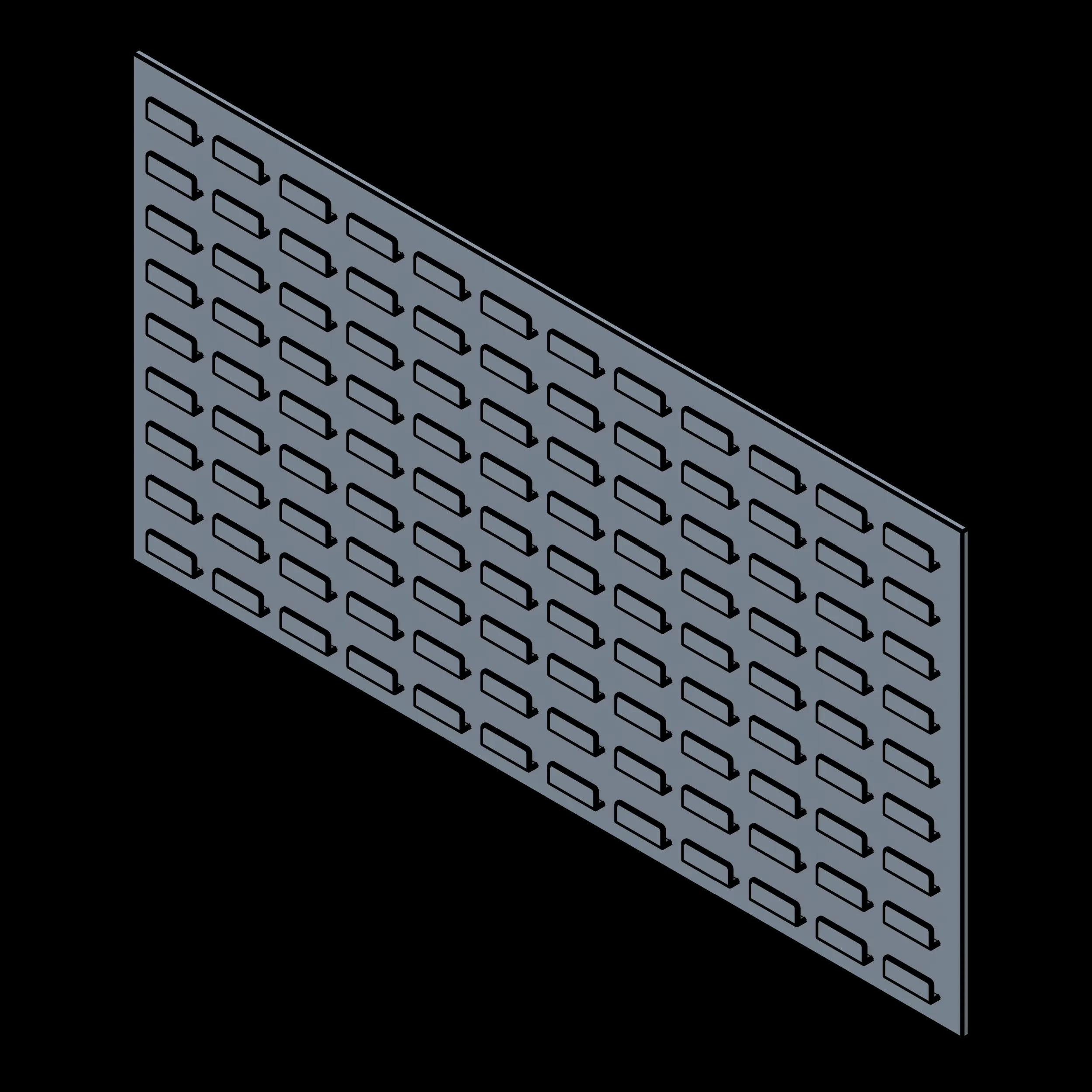

SSG Panel Louver PCS 36x19

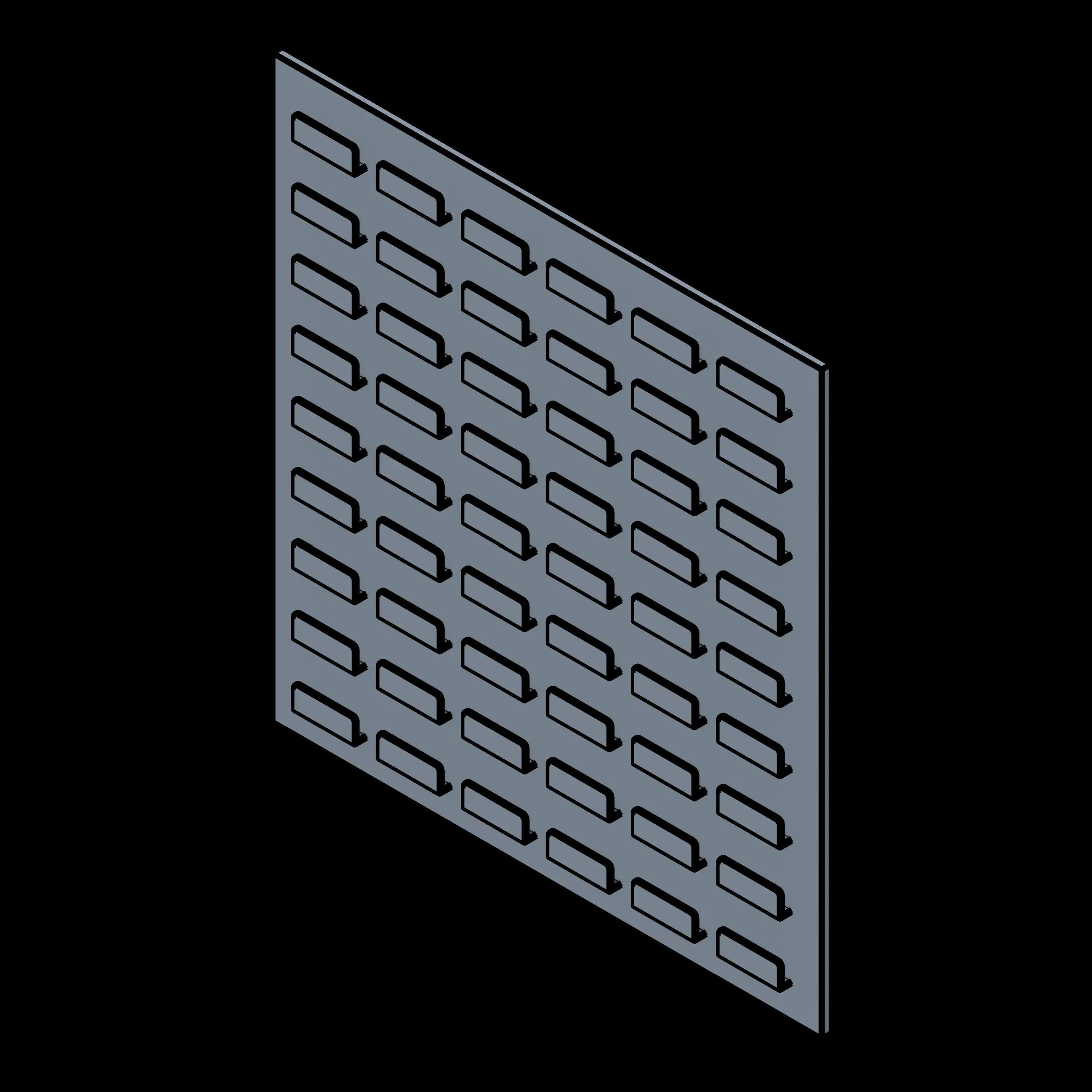

SSG Panel Louver PCS 18x19

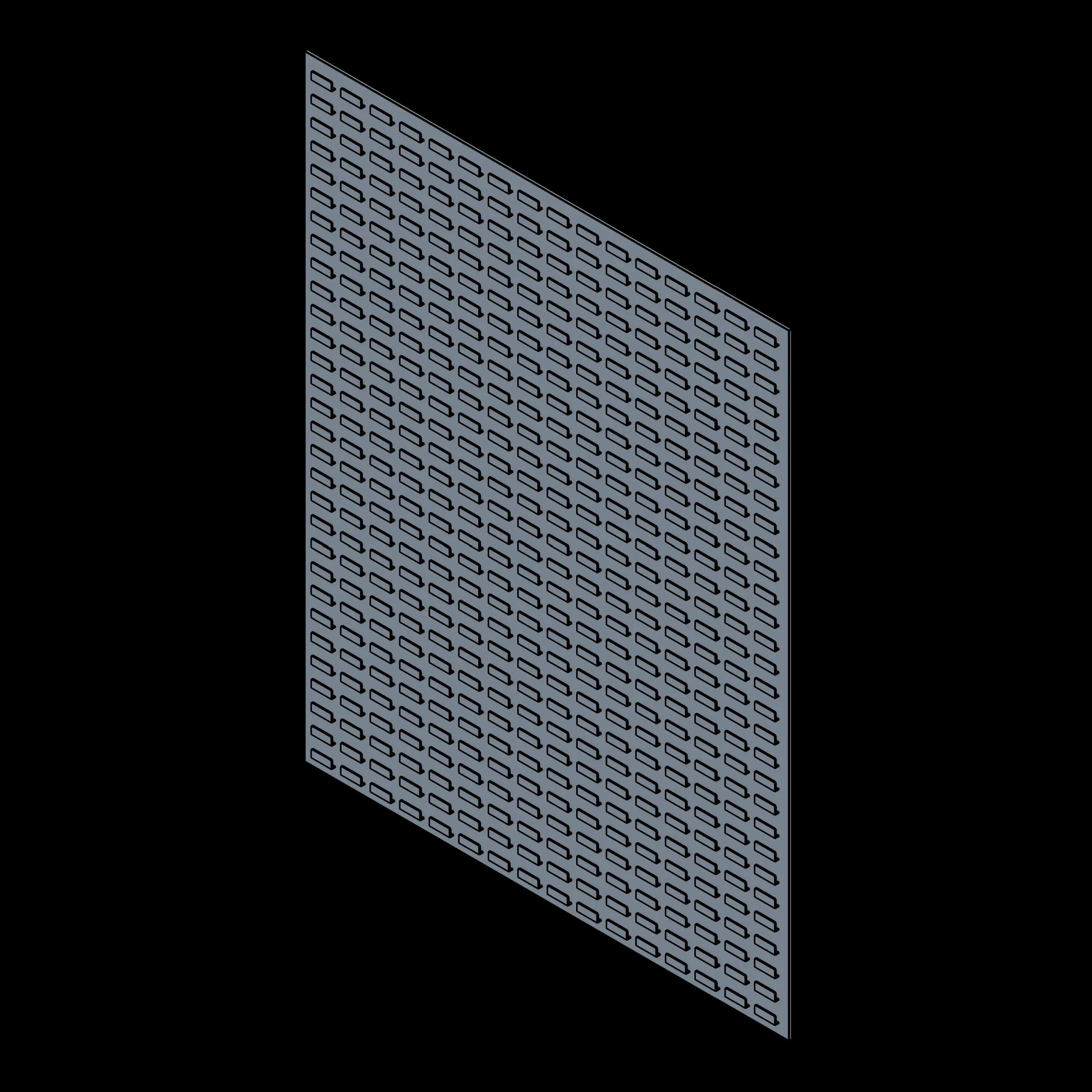

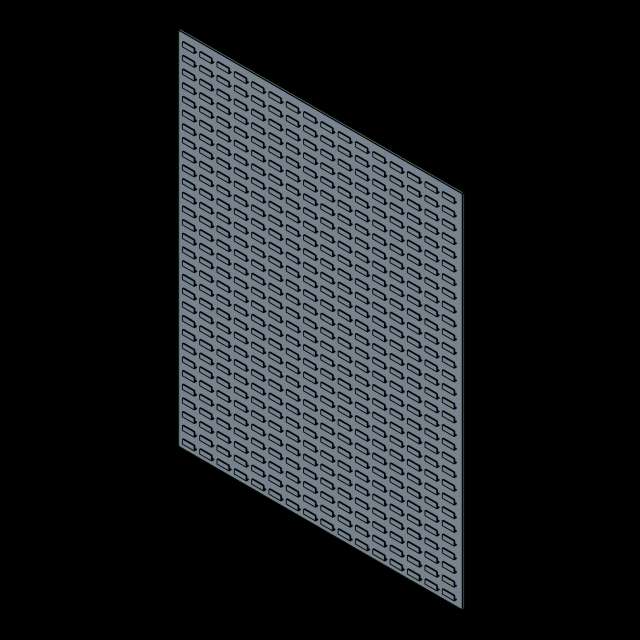

SSG Panel Louver PCS 48x61
SSG Panel Louver PCS 36x19
SSG Panel Louver PCS 18x19
SSG Panel Louver PCS 48x61
2024.10.4.0

Bins Wall-Mounted Storage

Product SKU

Description

  • Louvered panels can be used to create flexible storage solutions for virtually any space.
  • Hangs plastic or mesh bins within reach for fast parts and tools selection
  • Available in gray or oyster white
a square with short lines outside the corner
Family
icon of a person with gears next to its head
Pricing
Revit file icon
Revit 2020 (0.57 MB)
Revit file icon
Revit 2021 (0.57 MB)
Revit file icon
Revit 2022 (0.57 MB)
Revit file icon
Revit 2023 (0.57 MB)
Revit file icon
Revit 2024 (0.57 MB)
Revit file icon
Revit 2025 (0.57 MB)
Questions
Need some help? Send us a message if you have any sales or model related questions.

Cantilever Bin Louvered Wall Storage

To use this family, simply insert it into your project and select the desired width and height; the family will automatically adjust and place the correct number of louvers. Use the plastic bin family to place the desired sizes and amounts of bins on the panel.
ParameterValue
Standard Widths18", 36", 48"
Minimum Width1' 6" (18")
Maximum Width4' 0" (48")
Standard Depths7/16"
Minimum Depth0' 0 3/8" (0 3/8")
Maximum Depth0' 0 3/8" (0 3/8")
Standard Heights19", 61"
Minimum Height1' 7" (18")
Maximum Height5' 1" (60")
ManufacturerSouthwest Solutions Group_QUA
Lead Time1-2 Weeks
ModelQLP
Assembly CodeE2020
AuthorAWright
Toll Free Number1-800-803-1083
PropertyValue
Includes PricingYes
ADA CompliantNo
Has MEP ConnectorsNo
BIMobject CategoryFurniture: Shelving & Storage
IFCFurniture
