Utility Panel
Product SKU
Description
- Most commonly used on top of work surfaces in manufacturing and industrial environments
- This perforated panel allows you to hang shelves, hooks, rails, holders to store parts and tools
- These panels are designed for integration with workbenches to provide easier access to utilities

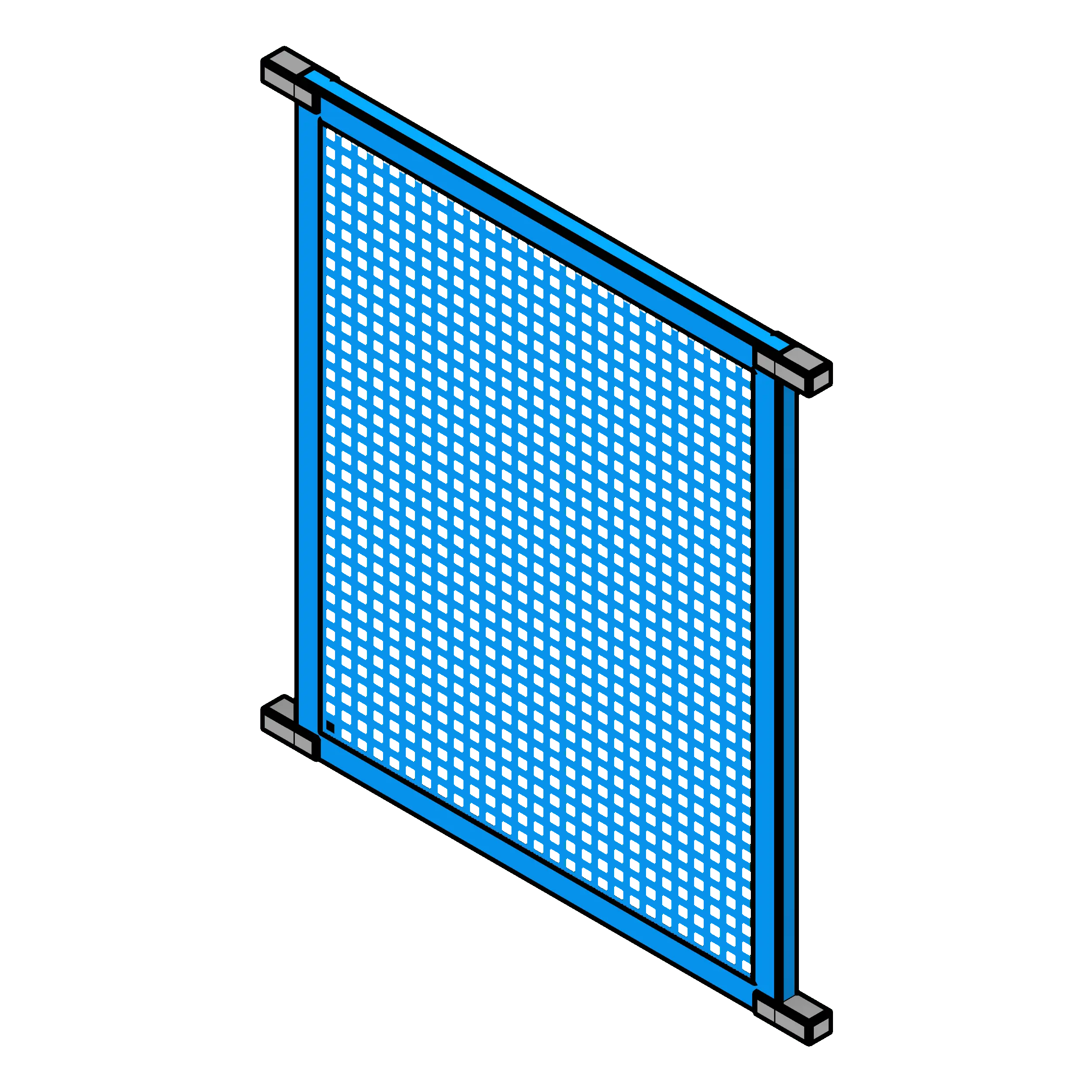

Utility Panel
This utility panel was created to hang accessories, parts, and tools. It is most commonly found above worksurfaces, which are mainly used in workshops, manufacturing, or industrial settings. Many compatible components can be used with this panel, which provides a combination of instrumentation and utility services at workbenches.
This utility panel is mainly used in manufacturing environments to hang tools and accessories. To use this family, insert it into your project from the Fetch app, then click on the model. In the properties browser, under the dimensions category, it contains parameters for adjusting the panel's width and height. CUSTOM_Dimensions allows you to type in any desired dimension.
| Parameter | Value |
|---|---|
| Standard Widths | 24", 30" |
| Minimum Width | 2' 0" (24") |
| Maximum Width | 2' 6" (30") |
| Standard Depths | 1" |
| Minimum Depth | 0' 1" (0") |
| Maximum Depth | 0' 1" (0") |
| Standard Heights | 24", 36" |
| Minimum Height | 2' 0" (24") |
| Maximum Height | 3' 0" (36") |
| Manufacturer | Southwest Solutions Group_ROU |
| Lead Time | 3-4 Weeks |
| Model | WM |
| Keynote | 11 90 00 |
| Assembly Code | E2020 |
| Author | AZuniga |
| Toll Free Number | 1-800-803-1083 |
| Property | Value |
|---|---|
| Includes Pricing | Yes |
| ADA Compliant | No |
| Has MEP Connectors | No |
| Includes Sustainability | Yes |
| Primary Material | Powder coated steel |
| BIMobject Category | Furniture: Shelving & Storage |
| IFC | Furniture |
| Omniclass | 24-40 00 00 |
