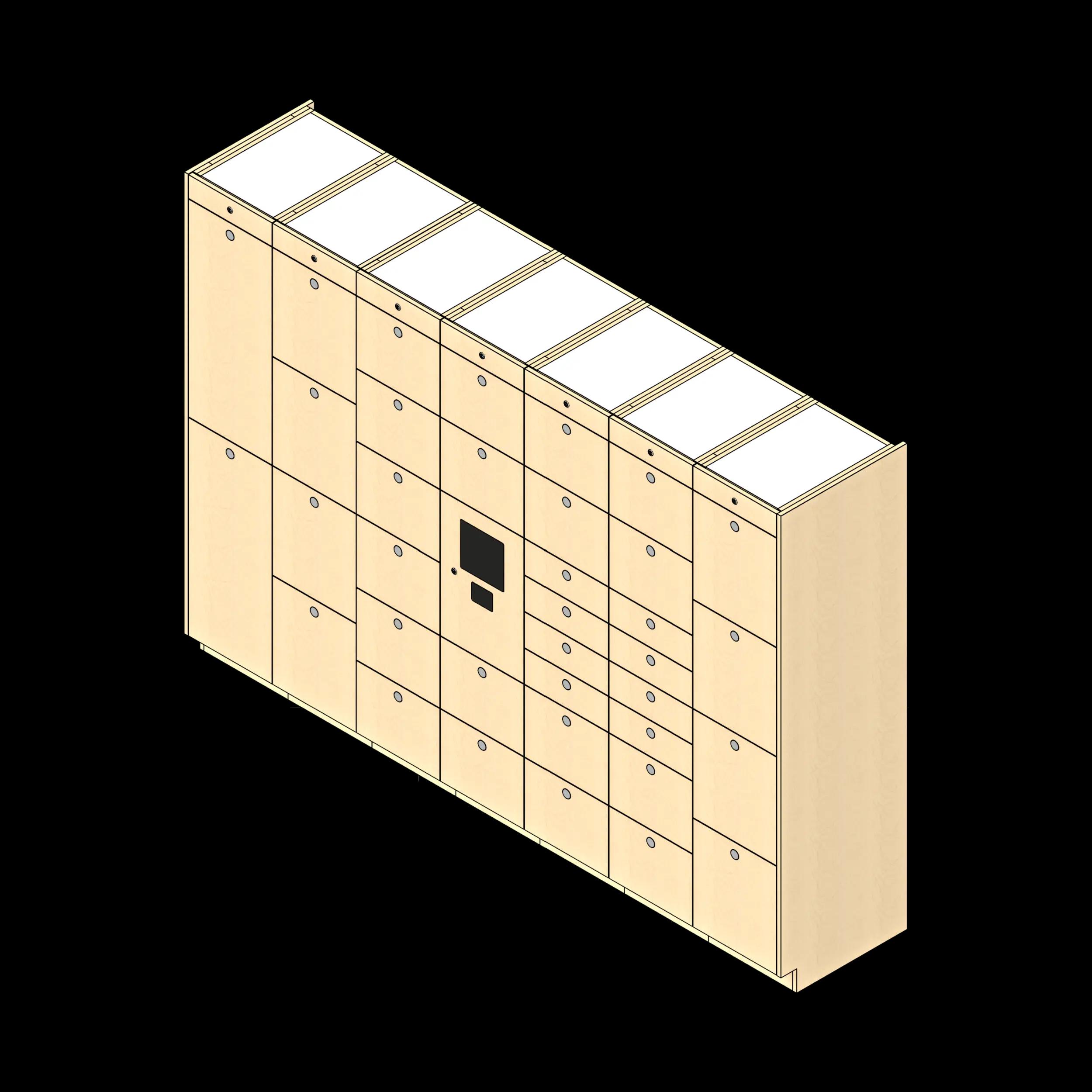

36 Total Openings Laminate Smart Locker
Product SKU
SKU: ssg-36
Downloads
- 360 KB
- 6.5 MB
Description
- Unit includes 15" Touch Screen w/ Wireless Barcode Scanner
- Provides a centralized parcel exchange point that ensures an improved chain of custody
- Recipient instantly receives a Text or Email notification that the package has arrived
Physically, the smart locker systems consist of a bank of modular lockers with one of the lockers dedicated to housing the system hardware and power supply. A typical bank of parcel lockers is comprised of columns, with each column consisting of either six small lockers per column, a mixture of five or six small and medium lockers per column or two large lockers per column. Each column features a proprietary locking raceway that incorporates the required number of smart locking devices for the number of lockers in each column. Electronic locker systems are available in a variety of finishes to complement or match the environments in which they are installed.
Design
- Optional canopy for outdoor units
- 1 Touch Screen is needed for every 120 Openings.
- A soffit above the lockers is Not Recommended for ease of access.
- Minimum of 2" of Clearance is needed between locker bank and wall
| Dimensions | |
|---|---|
| Width | 98" |
| Depth | 24" |
| Height | 80" |
| Product | |
| # of Openings | 36 |
| Qty: Extra Small Doors | 8 |
| Qty: Small Doors | 18 |
| Qty: Medium Doors | 8 |
| Qty: Large Doors | 0 |
| Qty: Oversize Doors | 2 |
| Qty: Full Doors | 0 |
| Qty: Touchscreens | 1 |
| Primary Material | Laminate |
| Classification | |
| IFC | Furniture |
| MasterFormat | 10 55 26 – Parcel Lockers |
| OmniClass | 23-40 70 27 24 17 – Package Transfer Units |
| UniFormat | E1030.70 – Postal, Packaging, and Shipping Equipment |
| Revit family | |
| Includes Pricing | Yes |
| ADA Compliant | Yes |
| Has MEP Connectors | Yes |
