Basic Bin Plastic Storage Bin
Product SKU
Description
- Bin storage can be used in any setting where small parts or tools need to be stored neatly
- Commonly used in workshops, lab, and pharmacies
- Over 20 standard sizes included

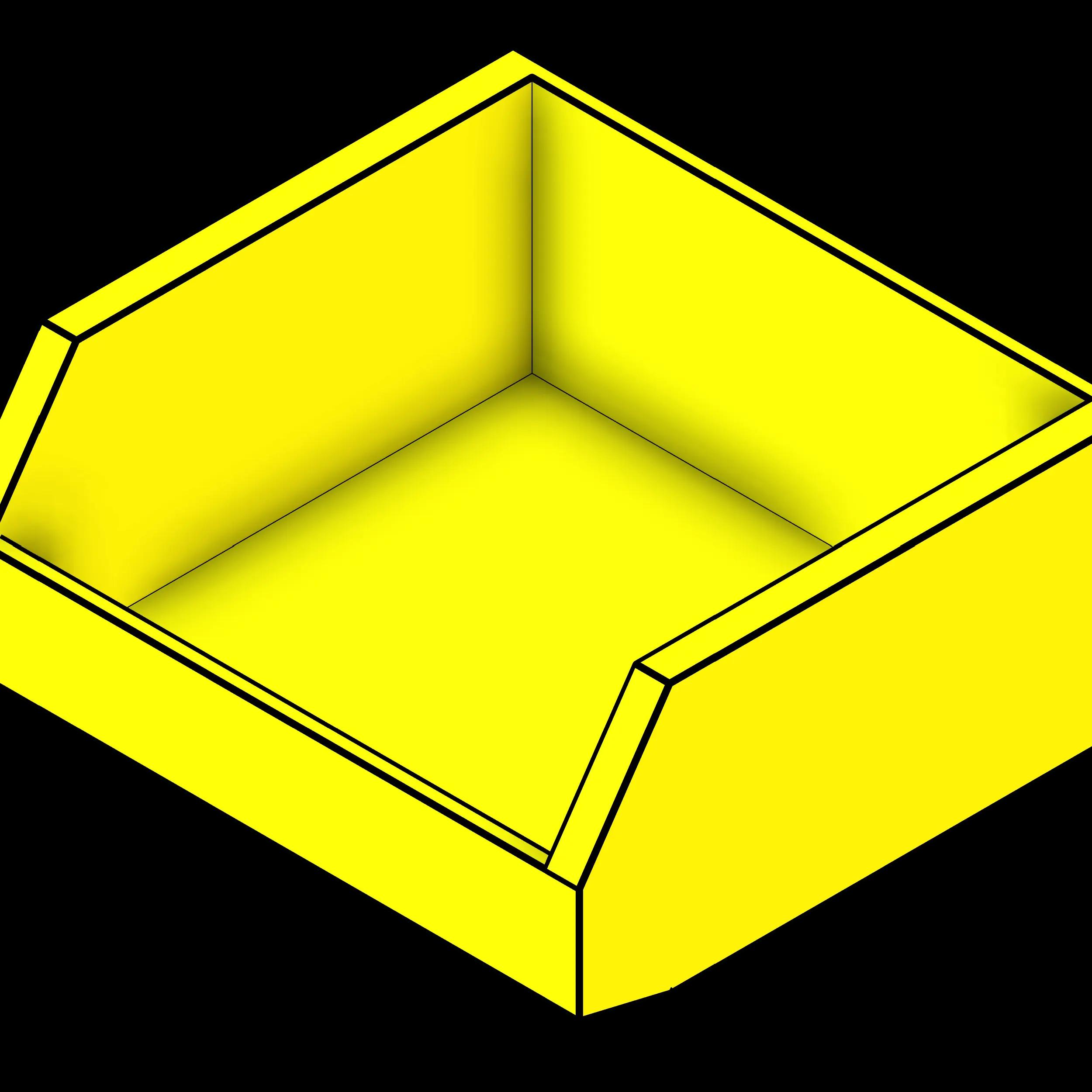

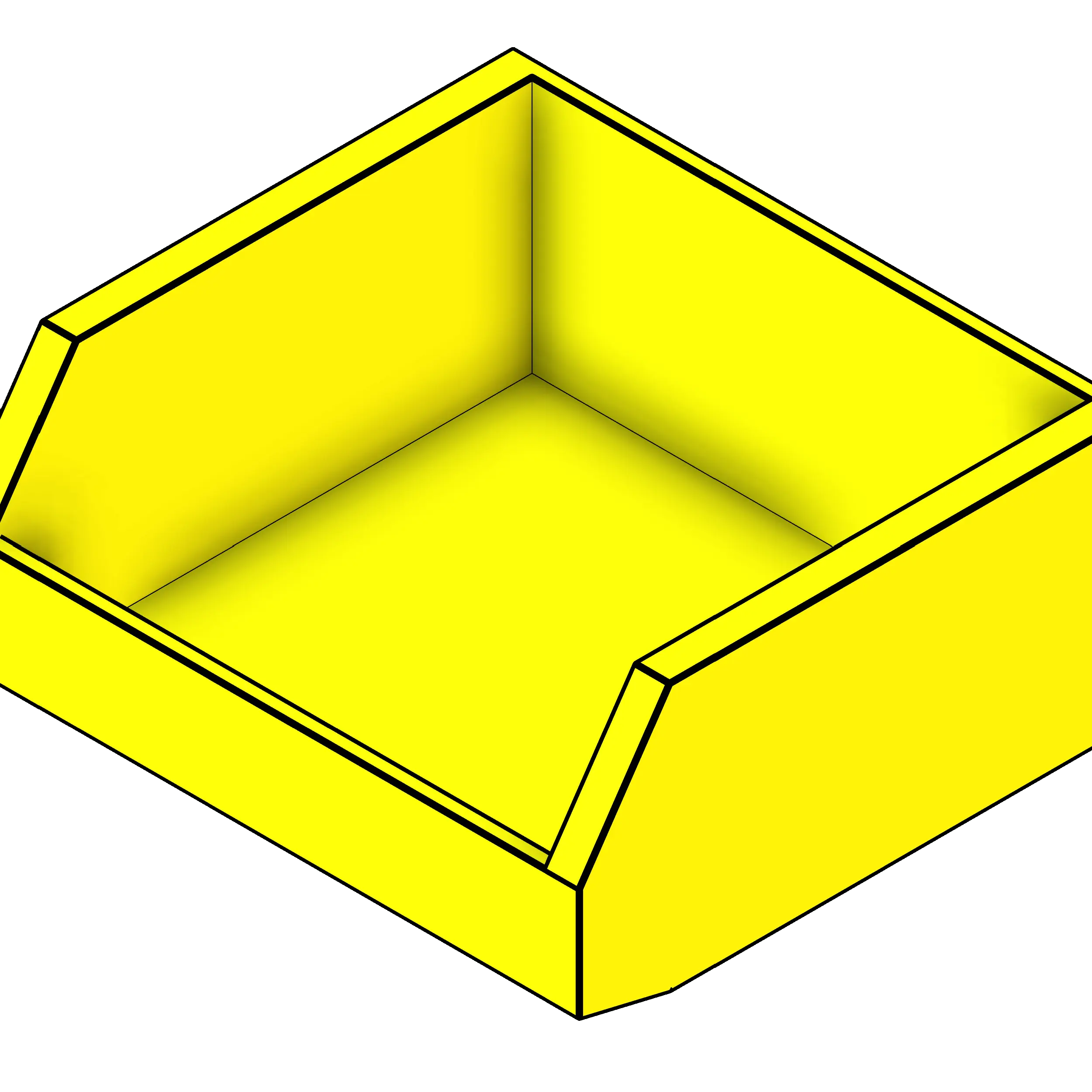

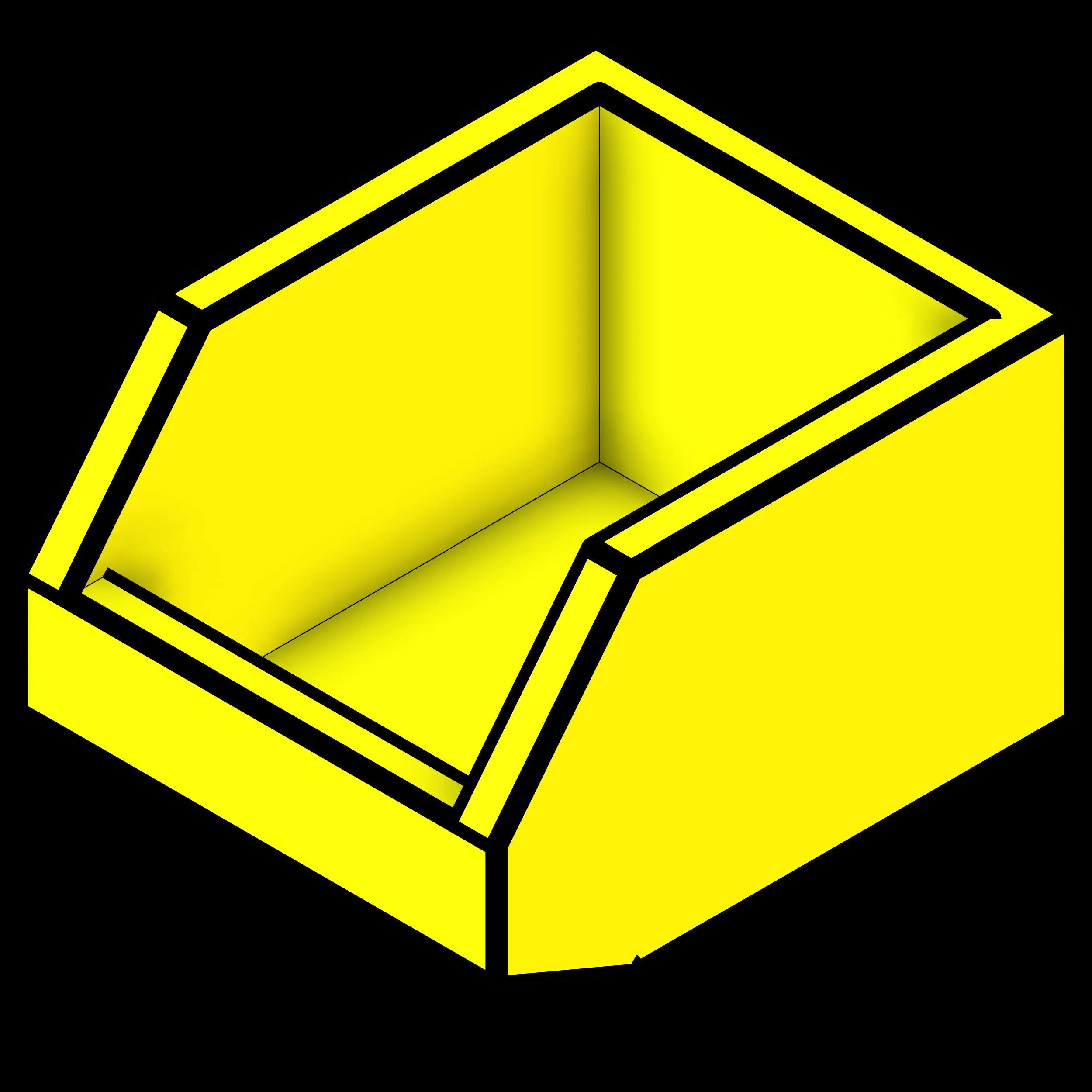

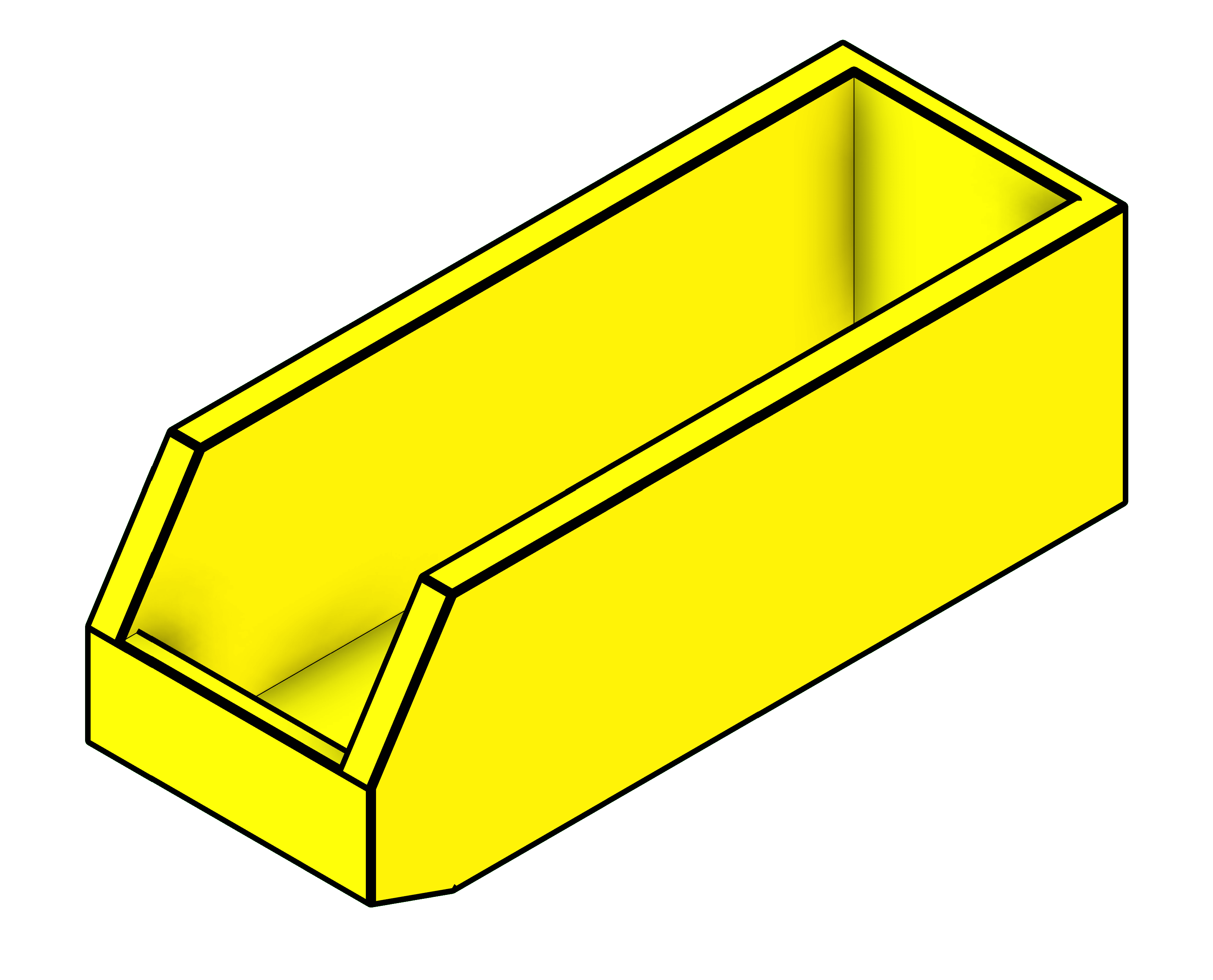

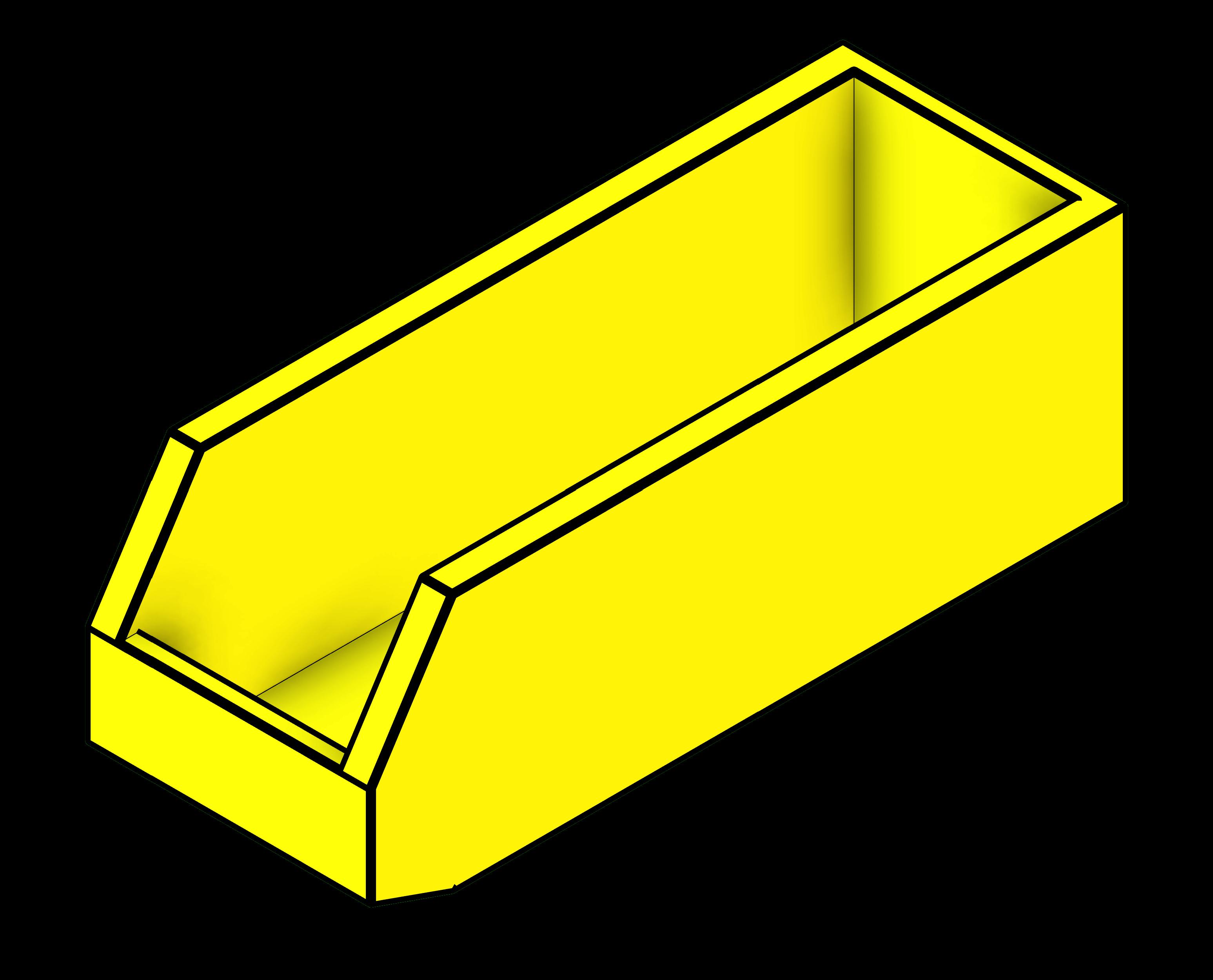

Cantilevered Bin Storage
Cantilevered bins can be used in a variety of storage solutions and can make quick work of part or tool selection. With over 20 standard sizes, the bin to fit your needs is in this family.
To use this family, simply insert it into your project and align it to any louvered panel or other cantilever bin storage solution family. Change the size of the bin by selecting a product code and rough dimension from the type menu. Select the family and open the Type Menu to view the detailed interior and overall dimensions of each bin type.
| Parameter | Value |
|---|---|
| Standard Widths | 4", 5", 8", 11", 16" |
| Minimum Width | 0.333333333333333 |
| Maximum Width | 1.33333333333333 |
| Standard Depths | 5", 7", 9", 10", 13", 14", 18" |
| Minimum Depth | 0.416666666666667 |
| Maximum Depth | 1.5 |
| Standard Heights | 3", 4", 5", 6", 7", 8", 9", 10", 11" |
| Minimum Height | 0.25 |
| Maximum Height | 0.916666666666667 |
| Manufacturer | Southwest Solutions Group_QUA |
| Lead Time | 1-2 Weeks |
| Model | QUS |
| Assembly Code | E2020 |
| Author | AWright |
| Toll Free Number | 1-800-803-1083 |
| Property | Value |
|---|---|
| Includes Pricing | Yes |
| ADA Compliant | No |
| Has MEP Connectors | No |
| BIMobject Category | Furniture: Shelving & Storage |
| IFC | Furniture |
