Vertical Buffer Module Carousels
Product SKU
Description
- Typically used in warehouses and factory assembly environments
- Pick and consolidate orders or retrieve kit parts for assembly quickly and efficiently
- High density storage solution is ideal for buildings with limited storage space

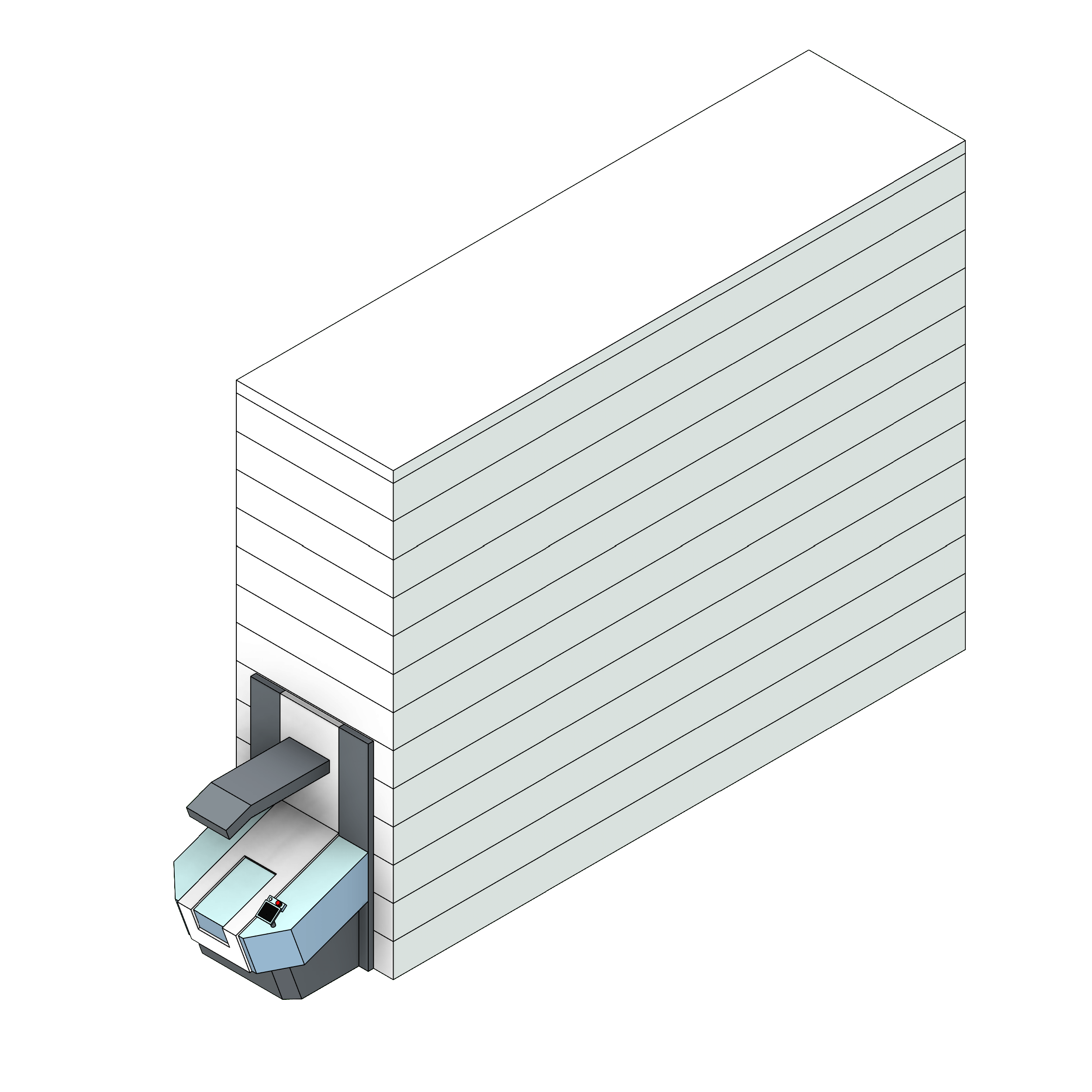

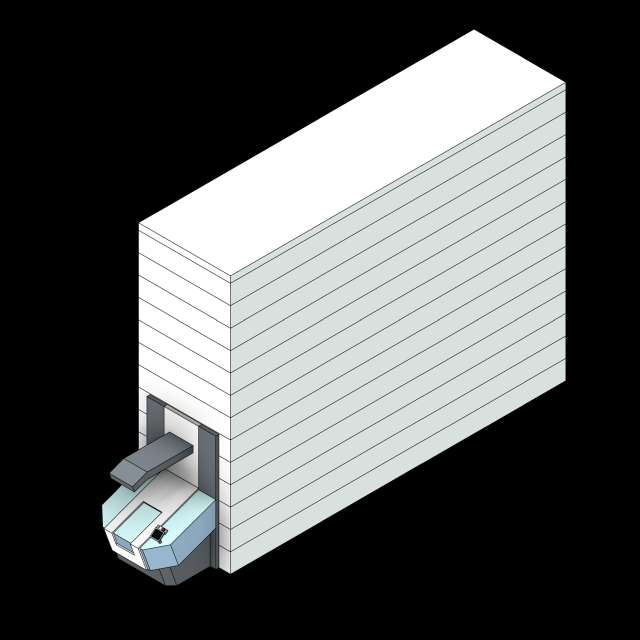

Vertical Buffer Module (VBM)
A Vertical Buffer Module provides a novel storage solution to warehouses and industrial environments with limited space. Pick small parts with ease using this high density storage solution.
This vertical buffer module family is designed to quickly estimate the sizes and options available from the manufacturer. To use, simply place the family in your project and set the desired width and height. The family will esitmate the number of segments based on the width of the storage space. The depth can be altered by changing the bin size. This family also includes an electrical connector to conveniently connect to electrical projects.
| Parameter | Value |
|---|---|
| Standard Widths | 1920 mm - 19970 mm |
| Minimum Width | 6.2992125984252 |
| Maximum Width | 65.5183727034121 |
| Standard Depths | 2350 mm, 2450 mm |
| Minimum Depth | 7.70997375328084 |
| Maximum Depth | 8.03805774278215 |
| Standard Heights | 3000 mm - 12000 mm |
| Minimum Height | 9.84251968503937 |
| Maximum Height | 39.3700787401575 |
| Manufacturer | Southwest Solutions Group_KAR |
| Lead Time | Contact SSG for info |
| Model | LR35 |
| Keynote | 41 51 13 |
| Assembly Code | E10 |
| Author | AWright |
| Toll Free Number | 1-800-803-1083 |
| Property | Value |
|---|---|
| Equalis | No |
| Omnia | No |
| Sourcewell | Yes |
| Systec | No |
| Vizient | Yes |
| Includes Pricing | Yes |
| ADA Compliant | Yes |
| Has MEP Connectors | Yes |
| Primary Material | Powder coated steel |
| BIMobject Category | Furniture: Shelving & Storage |
| IFC | Furniture |
| Omniclass | 23-23 17 00 |
