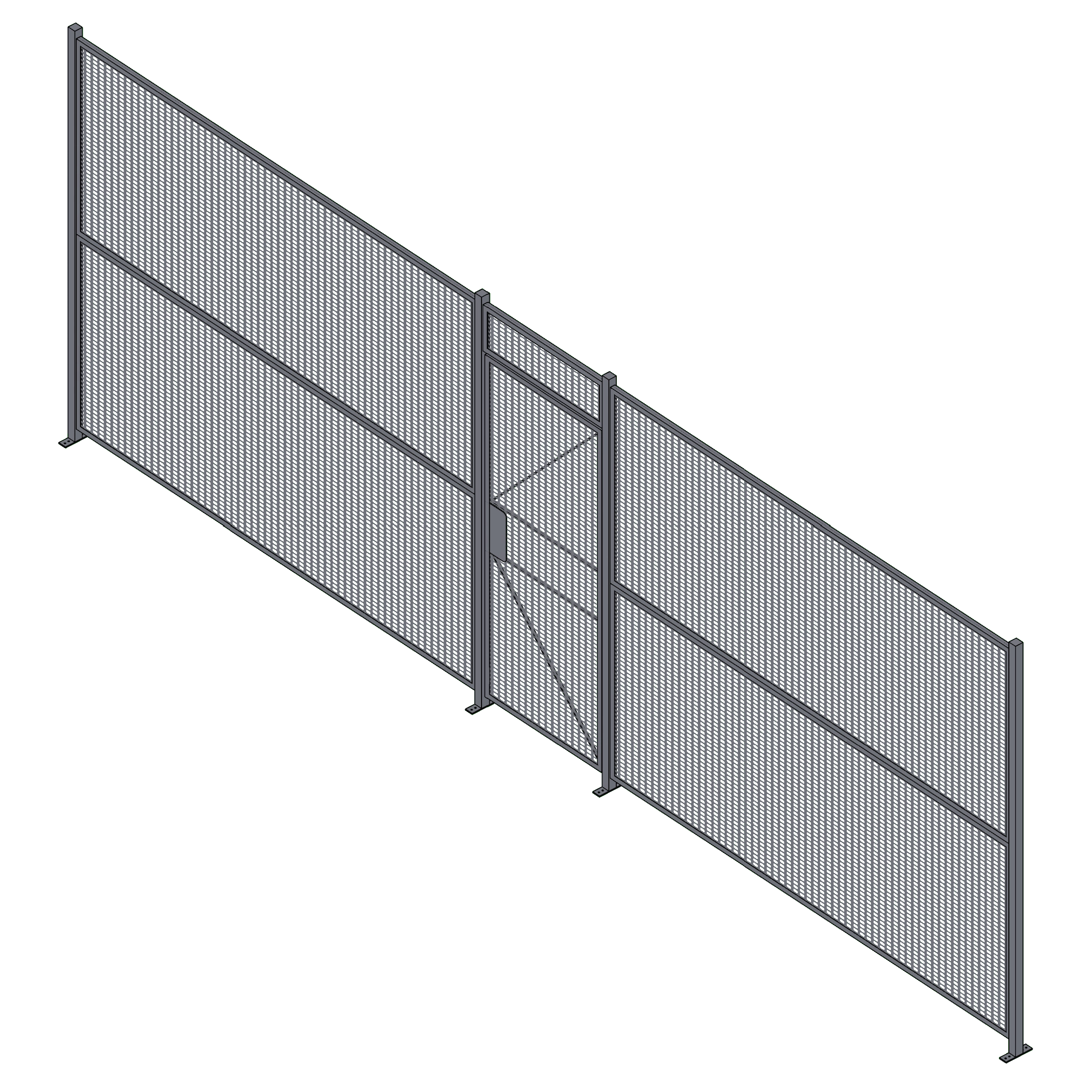

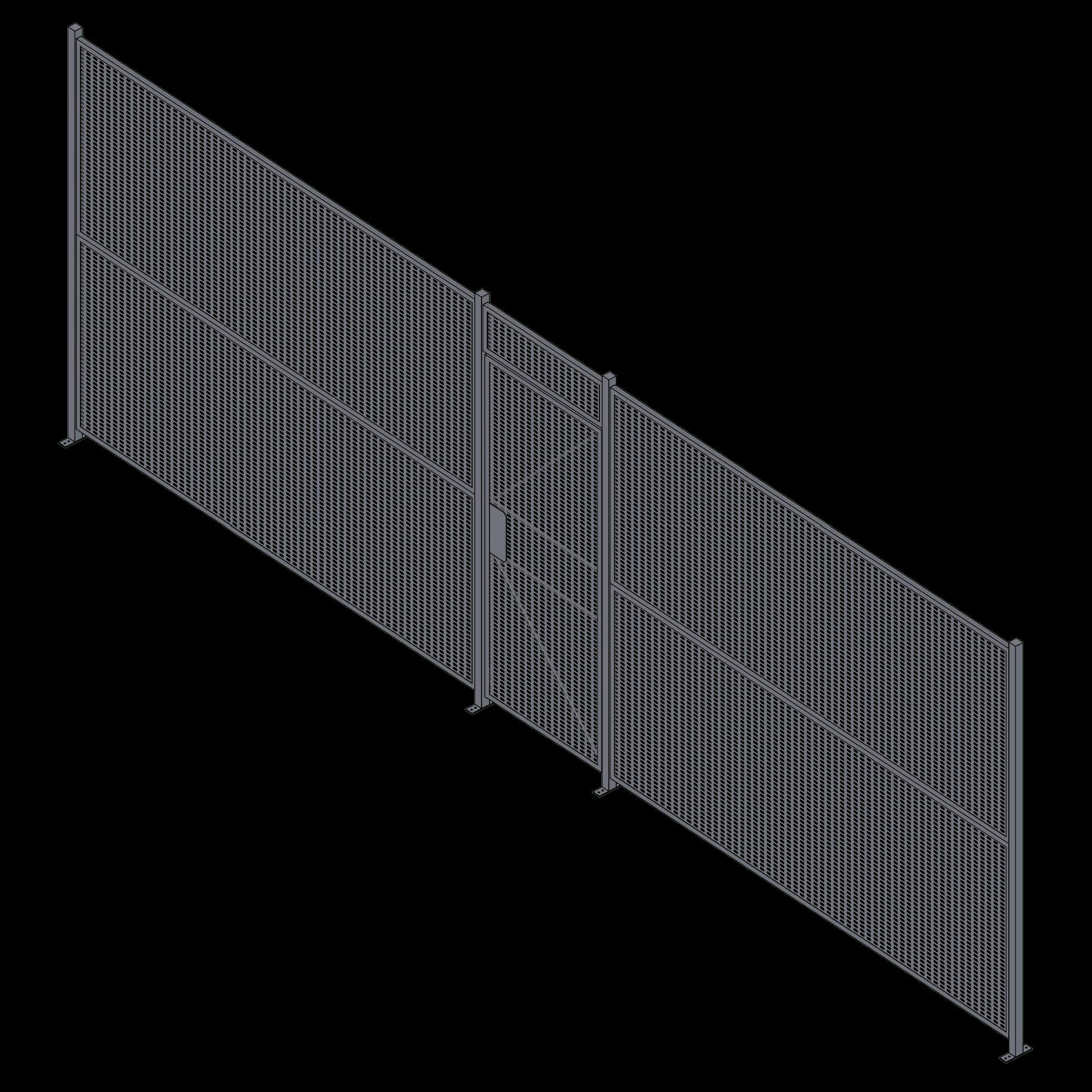

· Updated May 11, 202024LF - 3' Single Hinged Door 1 Sided Wire Partition
Product SKU
SKU: SMS-79-WHD3-1-24-8
Description
Revit Families included in this Model Group:
- Wire Single Hinged Door
- Wire Partition
Great for use as:
- Datacenter cages
- DEA drug storage
- Driver access cages
- Tool cribs to securely store tools and equipment
- Server cages for securing network servers and expensive computer equipment
- Evidence enclosures or holding cells for law enforcement
Revit 2016 (1.46 MB)
Revit 2017 (1.46 MB)
Revit 2018 (1.46 MB)
Revit 2019 (1.46 MB)
Revit 2020 (1.46 MB)
Revit 2021 (1.46 MB)
Revit 2022 (1.46 MB)
Revit 2023 (1.46 MB)
Revit 2024 (1.46 MB)
Revit 2025 (1.46 MB)
Revit 2026 (1.46 MB)
Revit 2027 (1.46 MB)
(0.03 MB)
(0.14 MB)
(0.13 MB)
Style 840 woven wire partitions
The wire partition systems can be applied in various applications and serve a number of purposes. Some of these purposes include:
- Tool cribs to store tools and equipment
- Driver access cages to control access to distribution centers or factory floors
- DEA drug storage for pharmacies and pharmaceutical companies
- Server cages for securing network servers and expensive computer equipment
- Evidence enclosures or holding cells
System Overview
These wire cages are simple to reconfigure as your needs change. They are versatile, adaptable, customizable, and highly secure. Bolts are only accessible from within the cage or partition, and posts can be anchored to the floor for added stability.| Parameter | Value |
|---|---|
| ENTER Post Height | 8' 5 1/4" (101 1/4") |
| MODIFY Flush Bottom | 0 |
| MODIFY Flush Top | 0 |
| Property | Value |
|---|---|
| Includes Pricing | Yes |
| ADA Compliant | No |
| Has MEP Connectors | No |
| Width | 23' 8" (284") |
| Depth | 0' 7" (7") |
| Height | 8' 5 1/4" (102") |
| Number of Walls | 1 Wall |
| Door Type | 3' Hinged |
| Primary Material | Powder coated steel |
| IFC | Furniture |
| OmniClass | 23-15 11 15 17 11 |
