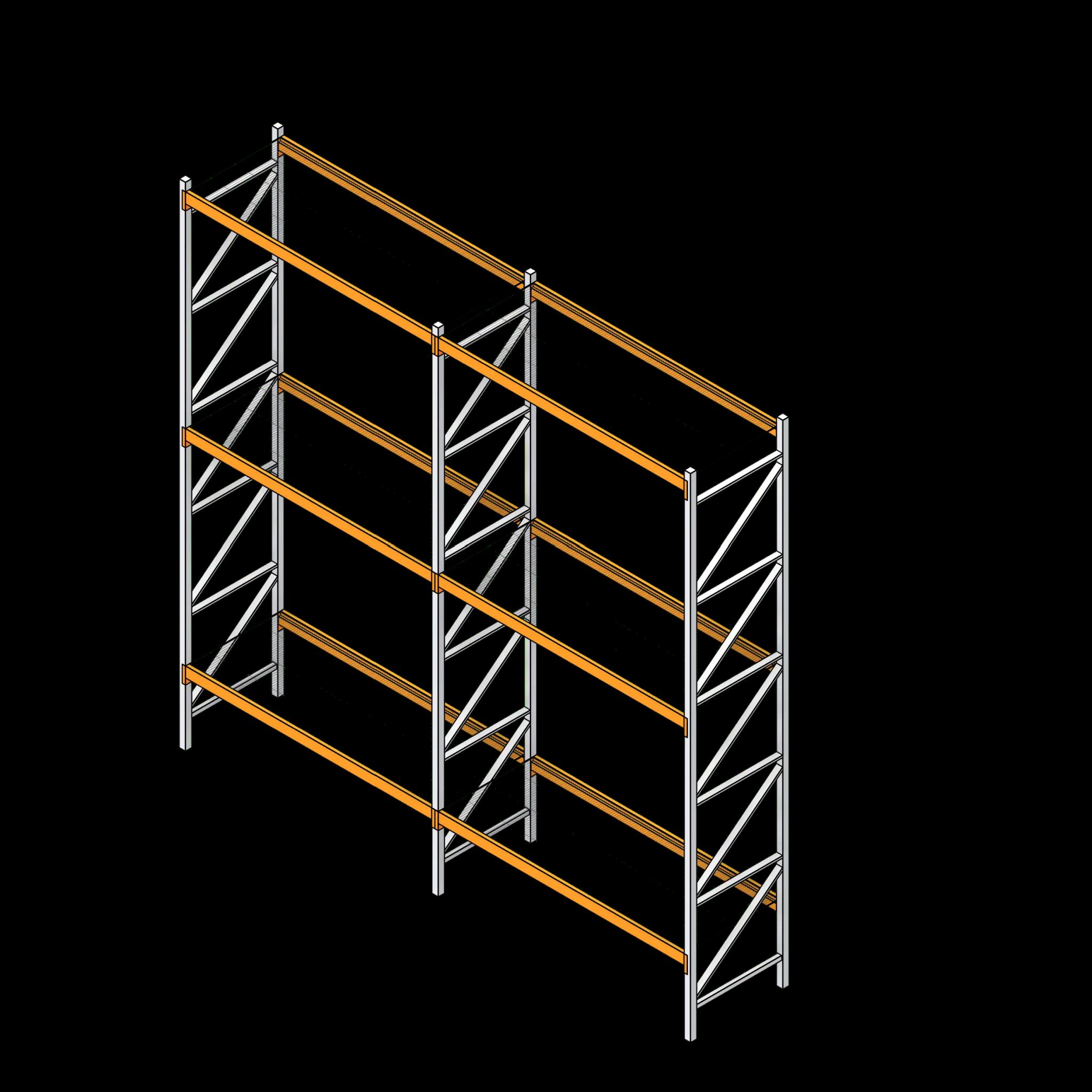

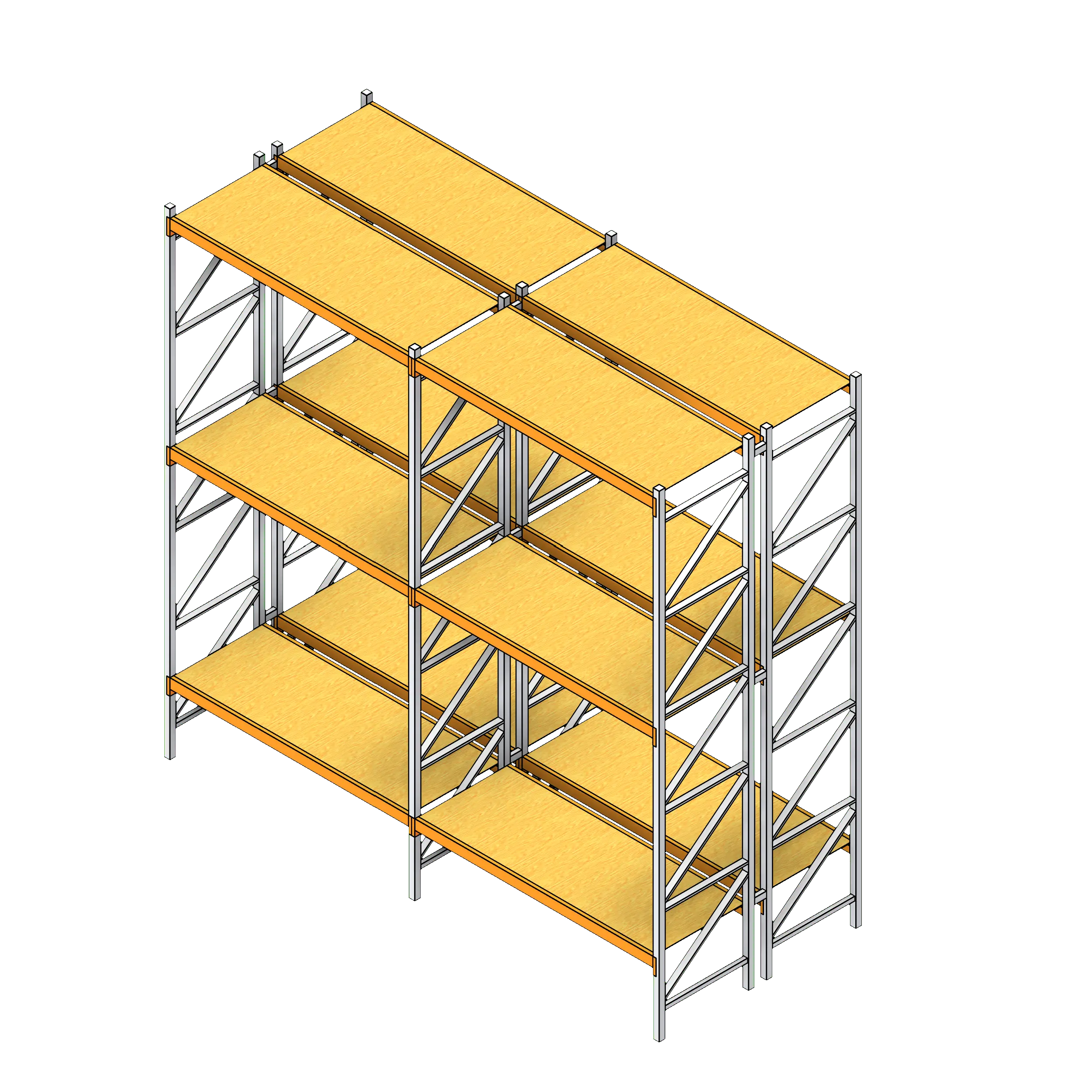

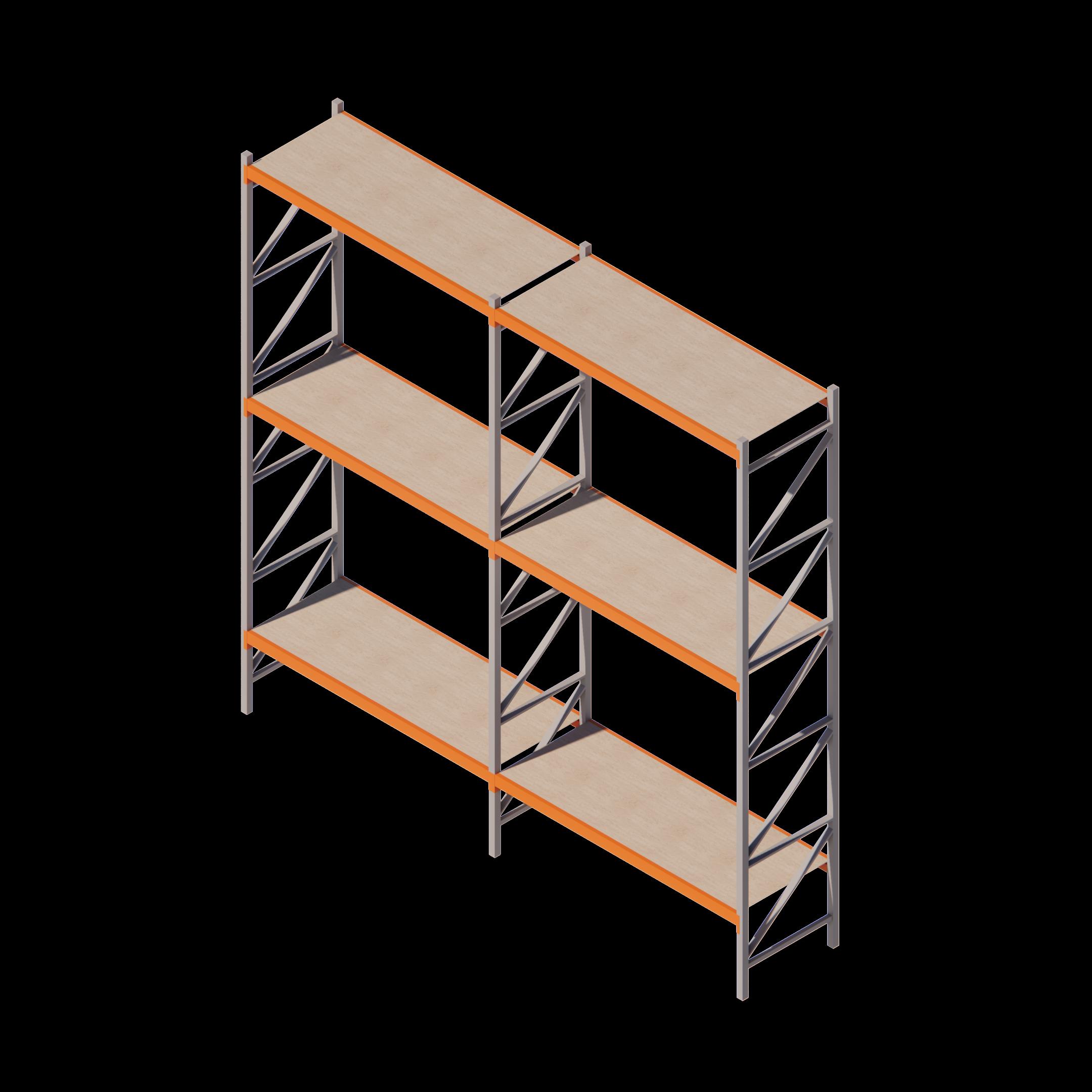

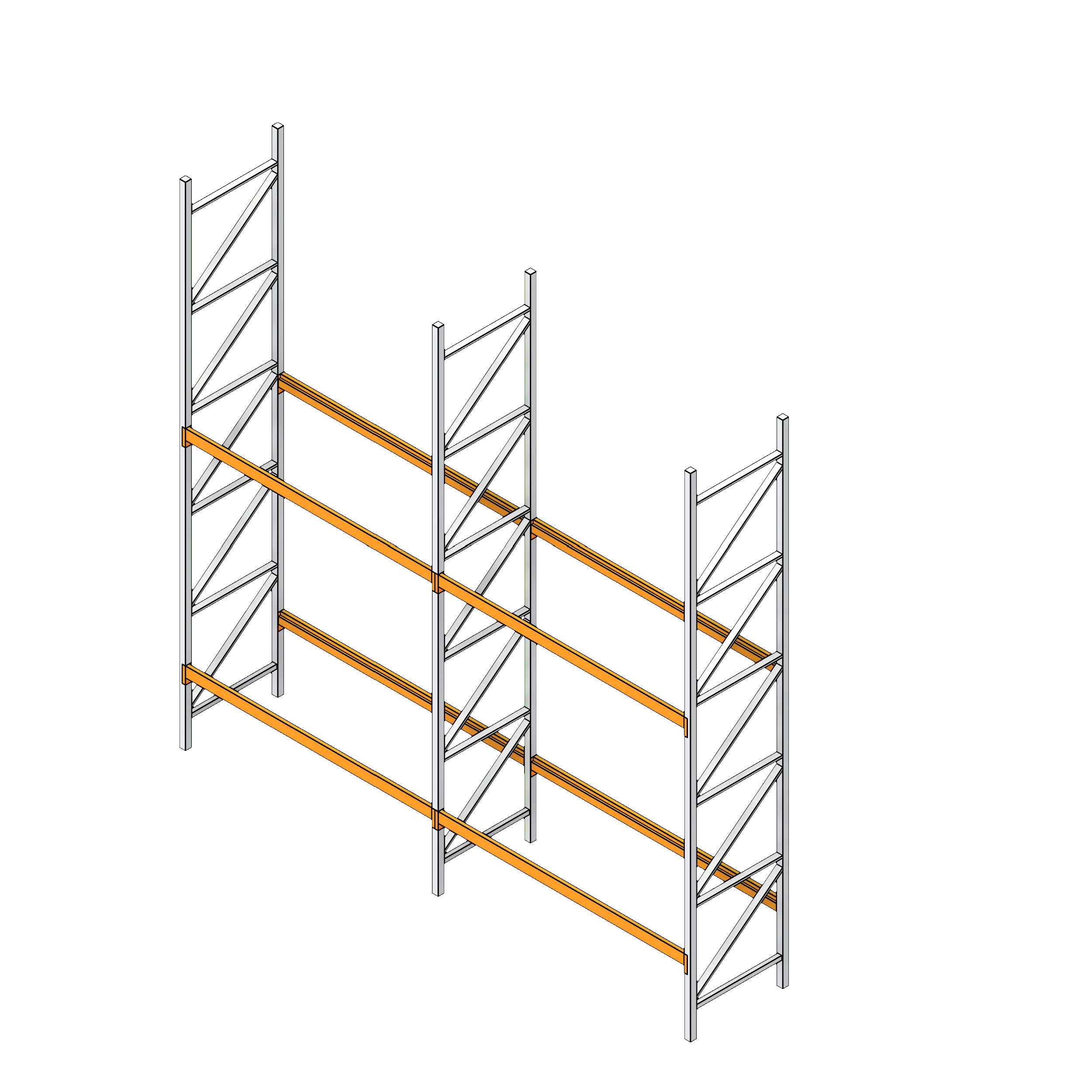

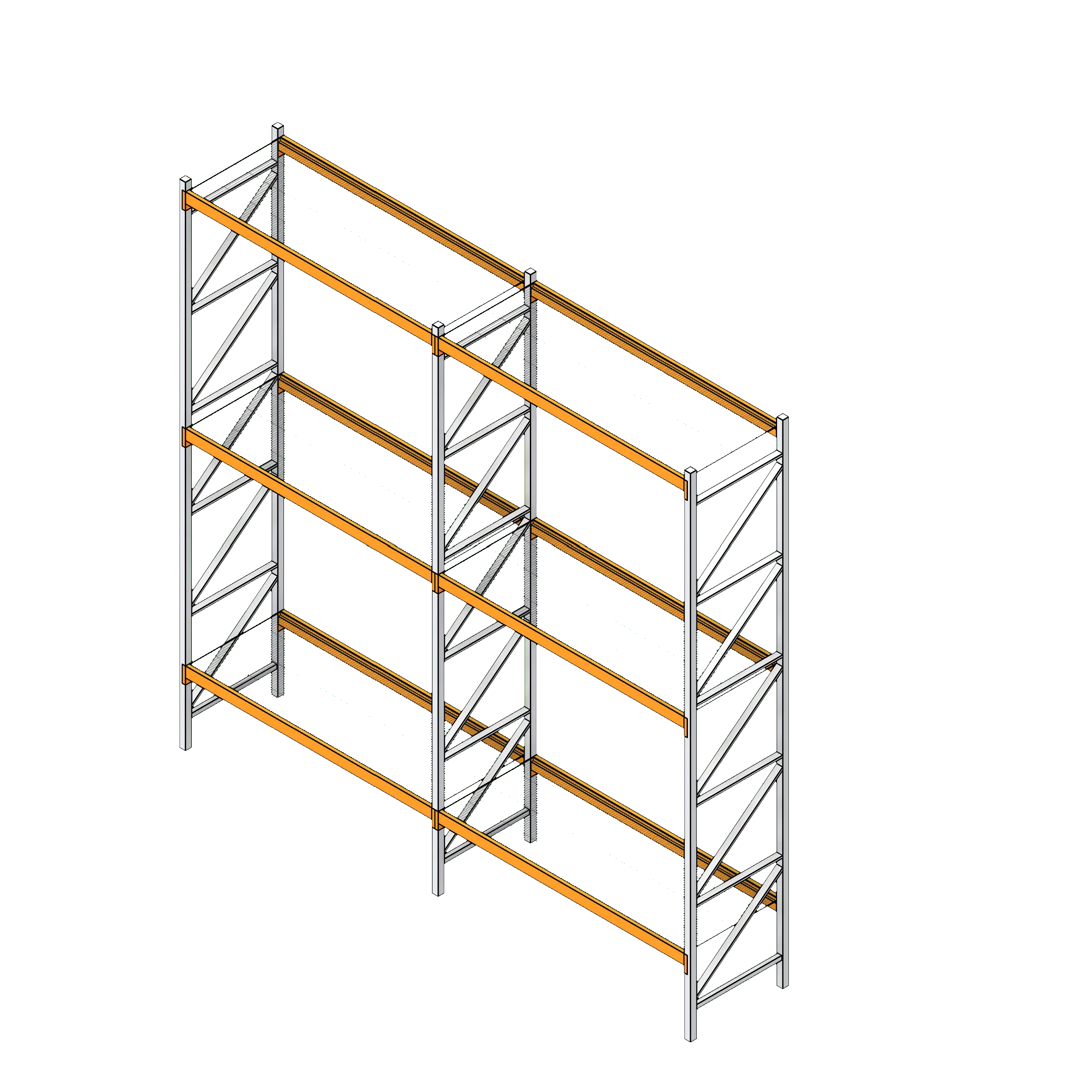

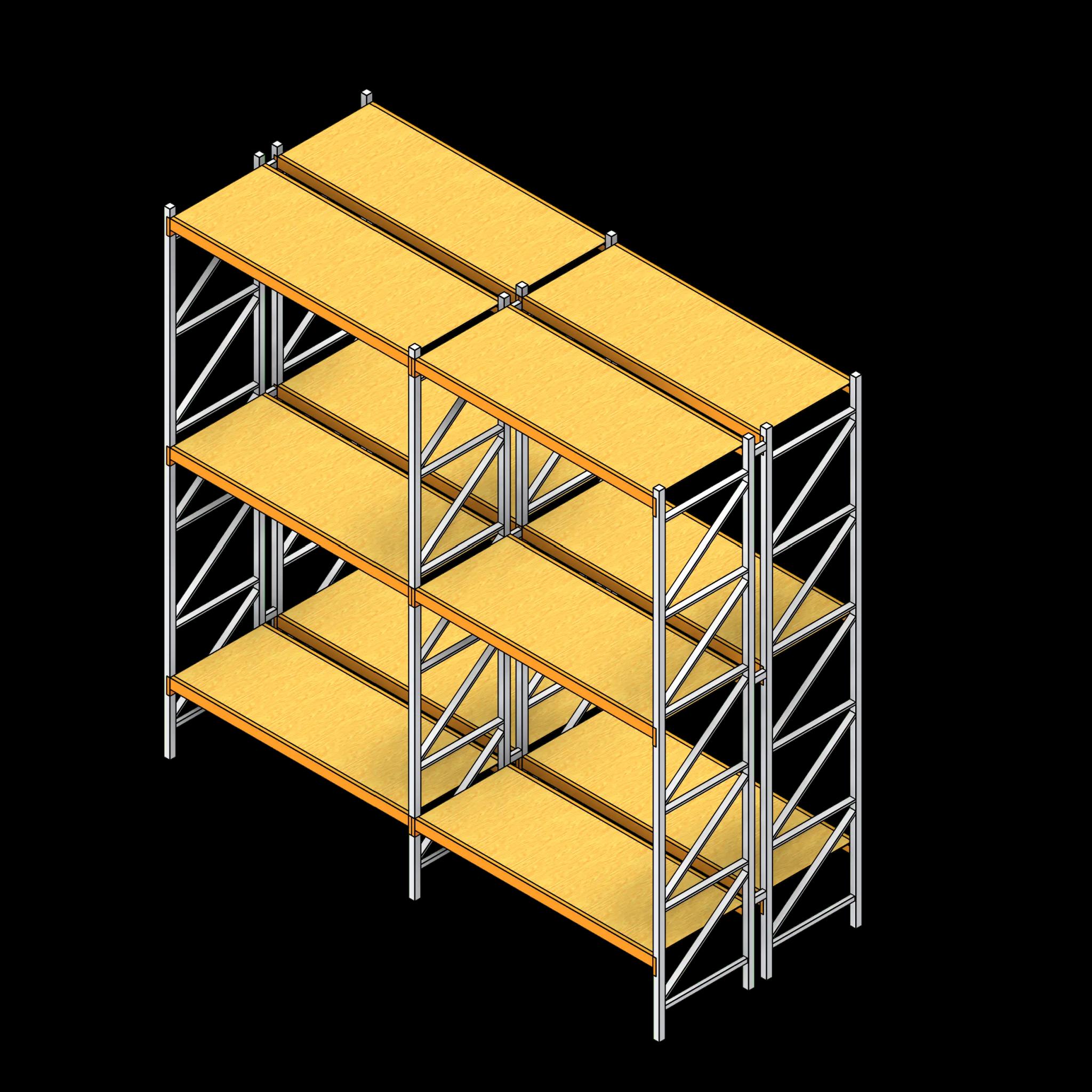

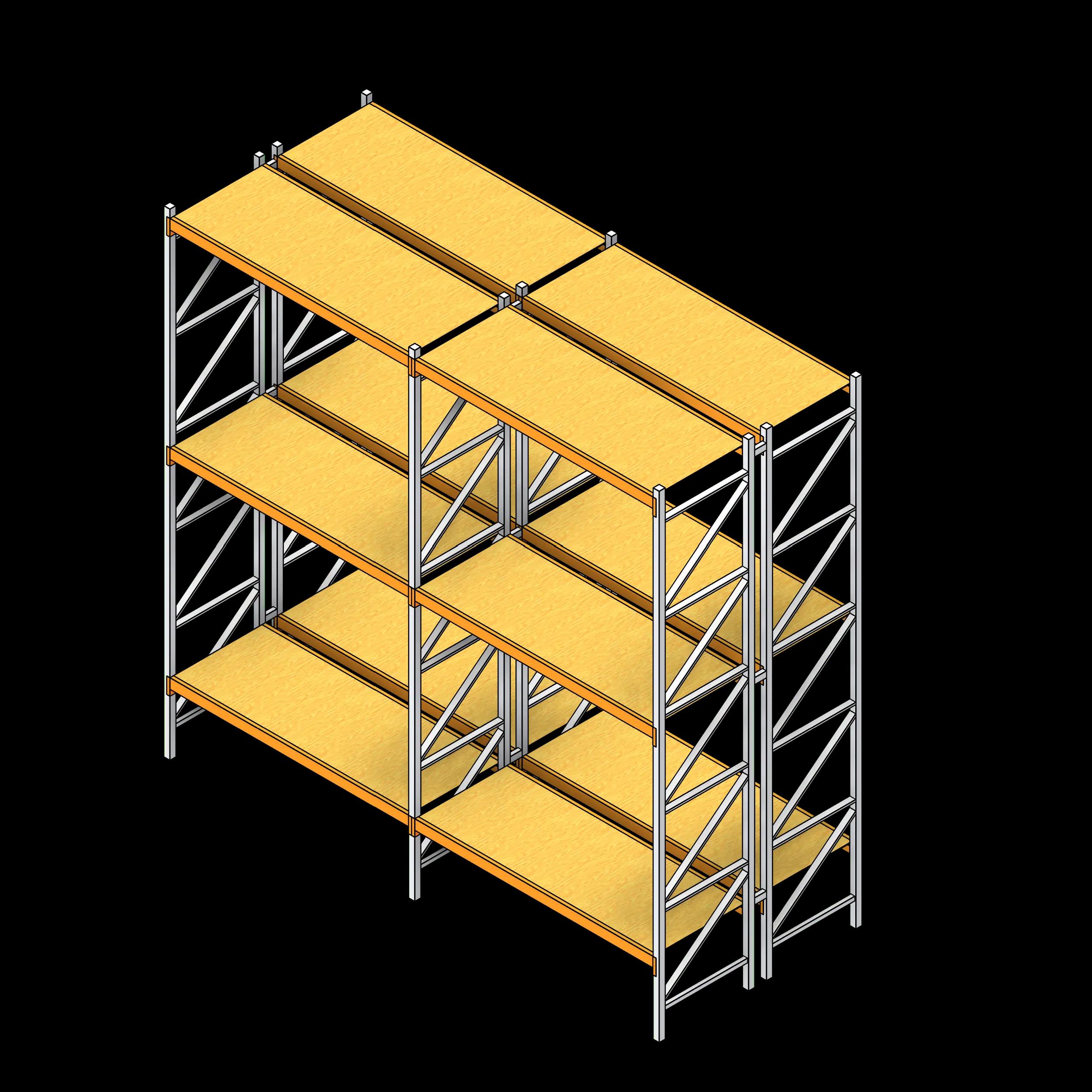

Pallet Rack
This pallet rack is the basis of most warehouse storage systems. For light or heavy duty storage.
The Southwest Solutions Group pallet rack line is designed to be highly flexible and adaptable with every Revit model built to reflect its real world counterpart.Standard Selective Pallet Rack is the basis for most warehouse storage systems. These can provide all varieties from light to heavy-duty, open to closed tubes, and bolted to automatic locking connections. Computerized mills ensure that tolerances on all roll-formed beams and uprights are precise and install with ease.
| Parameter | Value |
|---|---|
| Standard Widths | 48", 60", 72", 84", 96", 108", 120", 132", 144", 288", 300" |
| Minimum Width | 3.25 |
| Maximum Width | 100 |
| Standard Depths | 24", 36", 42", 48" |
| Minimum Depth | 2 |
| Maximum Depth | 4 |
| Standard Heights | 96", 120", 144", 168", 192", 240" |
| Minimum Height | 8 |
| Maximum Height | 25 |
| Manufacturer | Southwest Solutions Group_UNA |
| Lead Time | Contact SSG for info |
| Keynote | 10 56 29.16 |
| Assembly Code | E2020 |
| Author | JBlackwell |
| Toll Free Number | 1-800-803-1083 |
| Property | Value |
|---|---|
| Includes Sustainability | Yes |
| Includes Pricing | Yes |
| ADA Compliant | No |
| Has MEP Connectors | No |
| Primary Material | Powder coated steel |
| BIMobject Category | Furniture: Shelving & Storage |
| IFC | Furniture |
| Omniclass | 23-21 11 11 15 |
