Package Dropbox Stainless Steel Locker
Product SKU
Description
- Secure package dropbox and pass-through
- Latch mechanism allows one door to open at a time
- Fully steel construction with bullet resistance

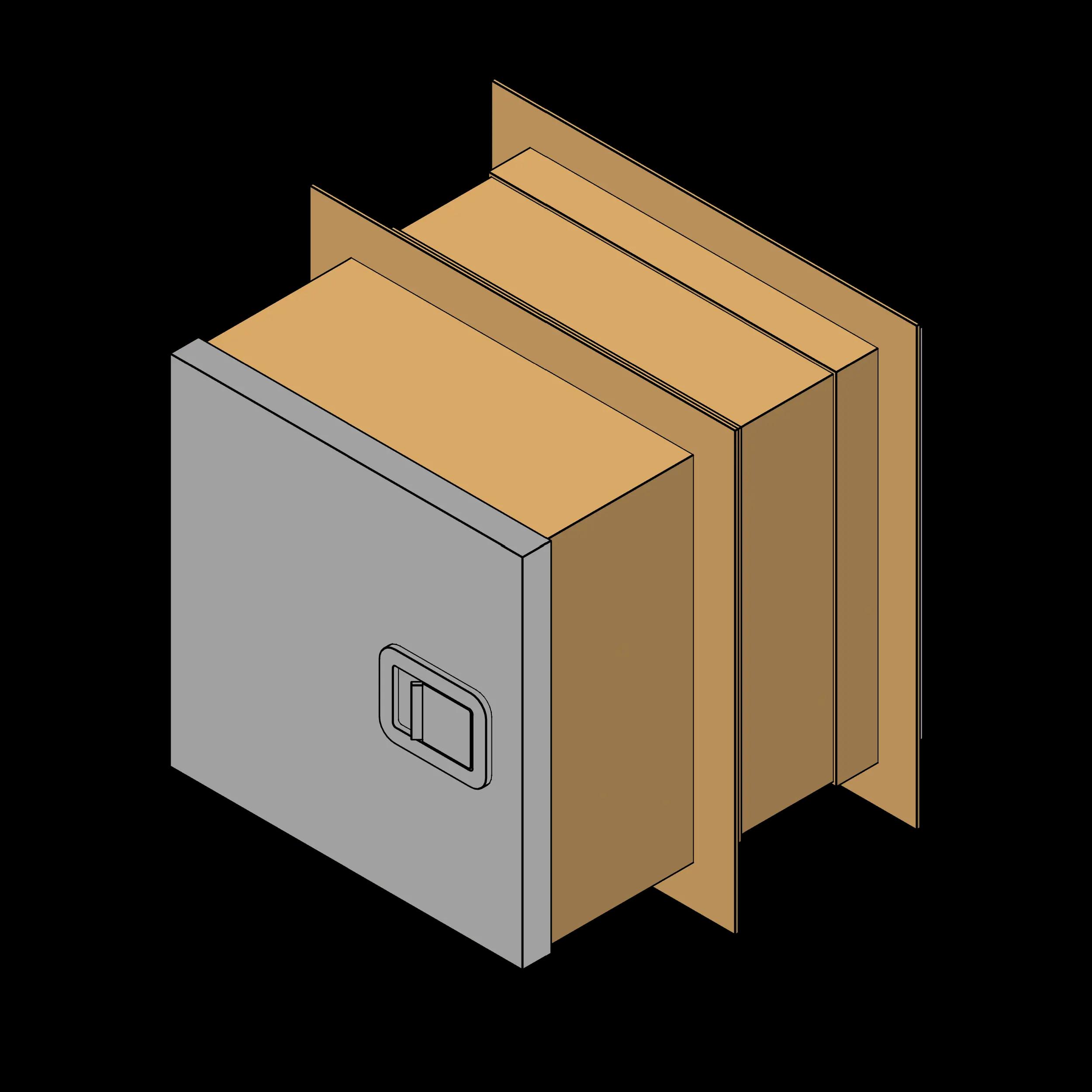

Package Receiver Dropbox
Transfer packages between areas safely with this pass-through package dropbox. The internal mechanism keeps only one door open at a time for maximum security.
To use this family, insert it into your project from the Fetch app and click on the surface to which you wish to mount the product. The model will automatically cut the wall surface. Use the ENTER_Wall Thickness parameter to adjust the back frame to flush against the wall. The unit may also be left or right-hinged and flipped using the parameters in the Construction category of the properties browser.
| Parameter | Value |
|---|---|
| Standard Widths | 19" |
| Minimum Width | 1' 7" (18") |
| Maximum Width | 1' 7" (18") |
| Standard Depths | 17 7/8" |
| Minimum Depth | 1' 5 7/8" (17 7/8") |
| Maximum Depth | 1' 5 7/8" (17 7/8") |
| Standard Heights | 19 1/2" |
| Minimum Height | 1' 7 1/2" (19 1/2") |
| Maximum Height | 1' 7 1/2" (19 1/2") |
| Minimum Wall Thickness | 0' 3 3/4" (3 3/4") |
| Maximum Wall Thickness | 1' 0" (12") |
| Model | 700 |
| Author | AWright |
| Toll Free Number | 1-800-803-1083 |
| Property | Value |
|---|---|
| Includes Pricing | No |
| ADA Compliant | No |
| Has MEP Connectors | No |
| Primary Material | Stainless steel |
| BIMobject Category | Furniture: Shelving & Storage |
| IFC | Furniture |
| Omniclass | 23.40.20.11.17 |
