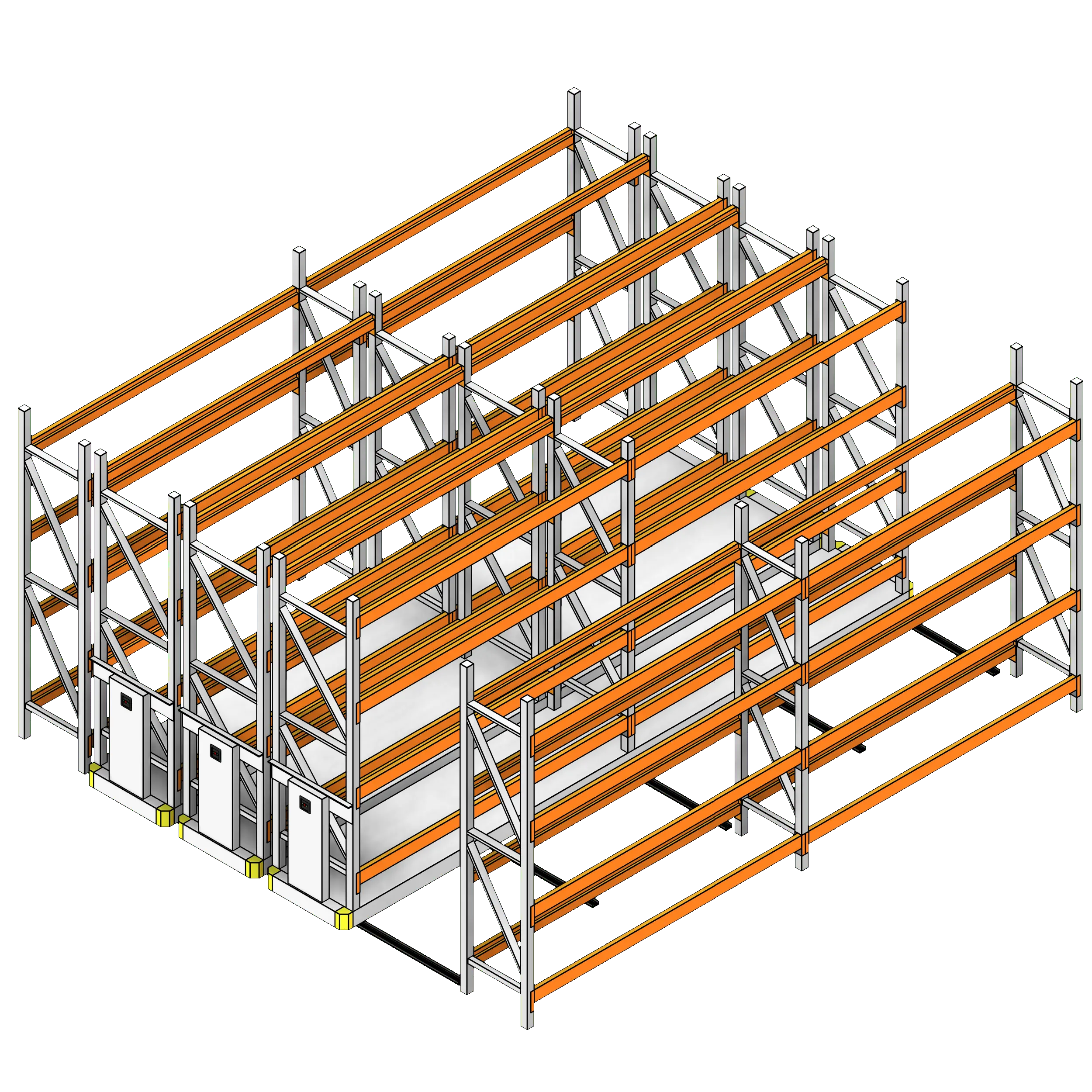

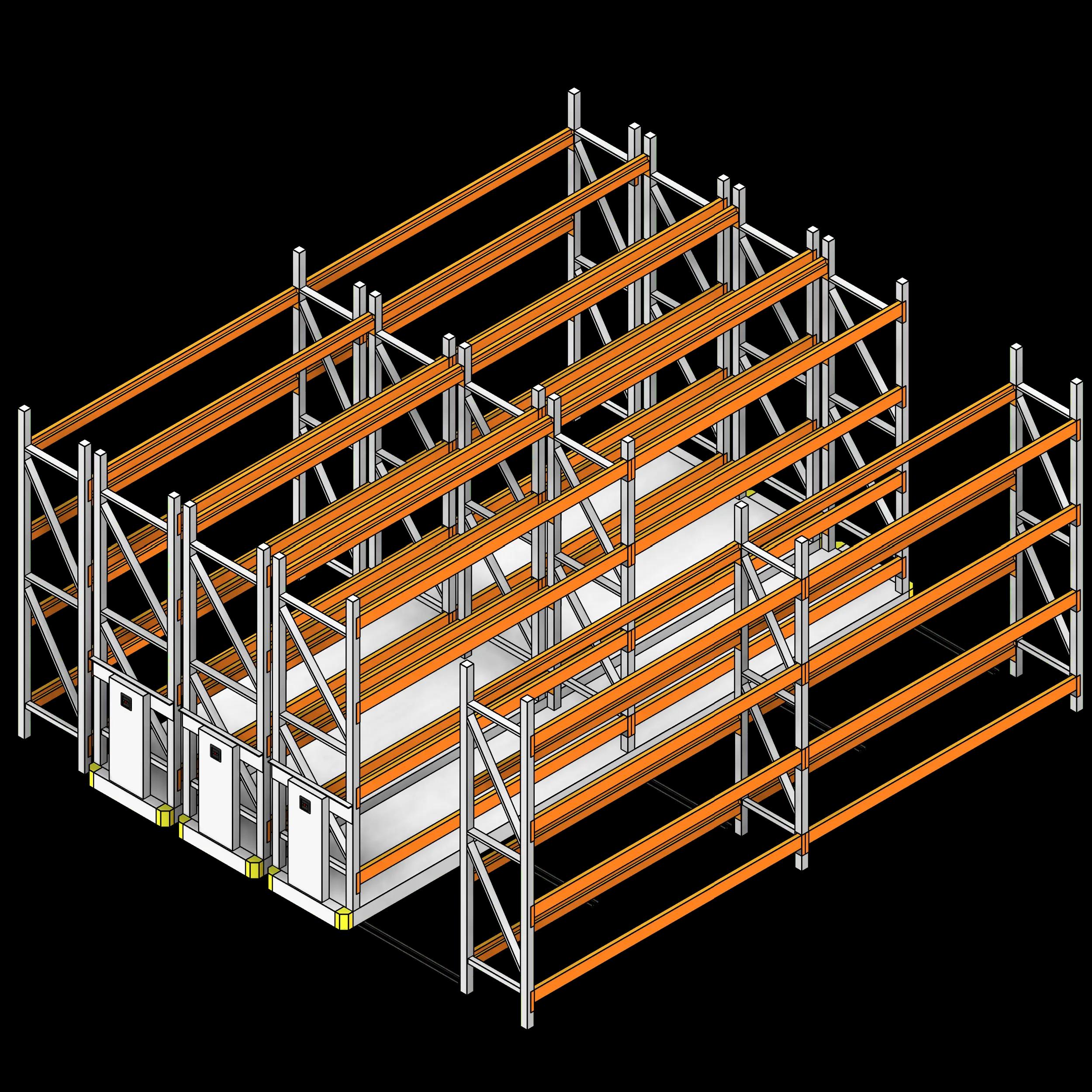

Industrial Pallet Rack High Density Shelving Revit family

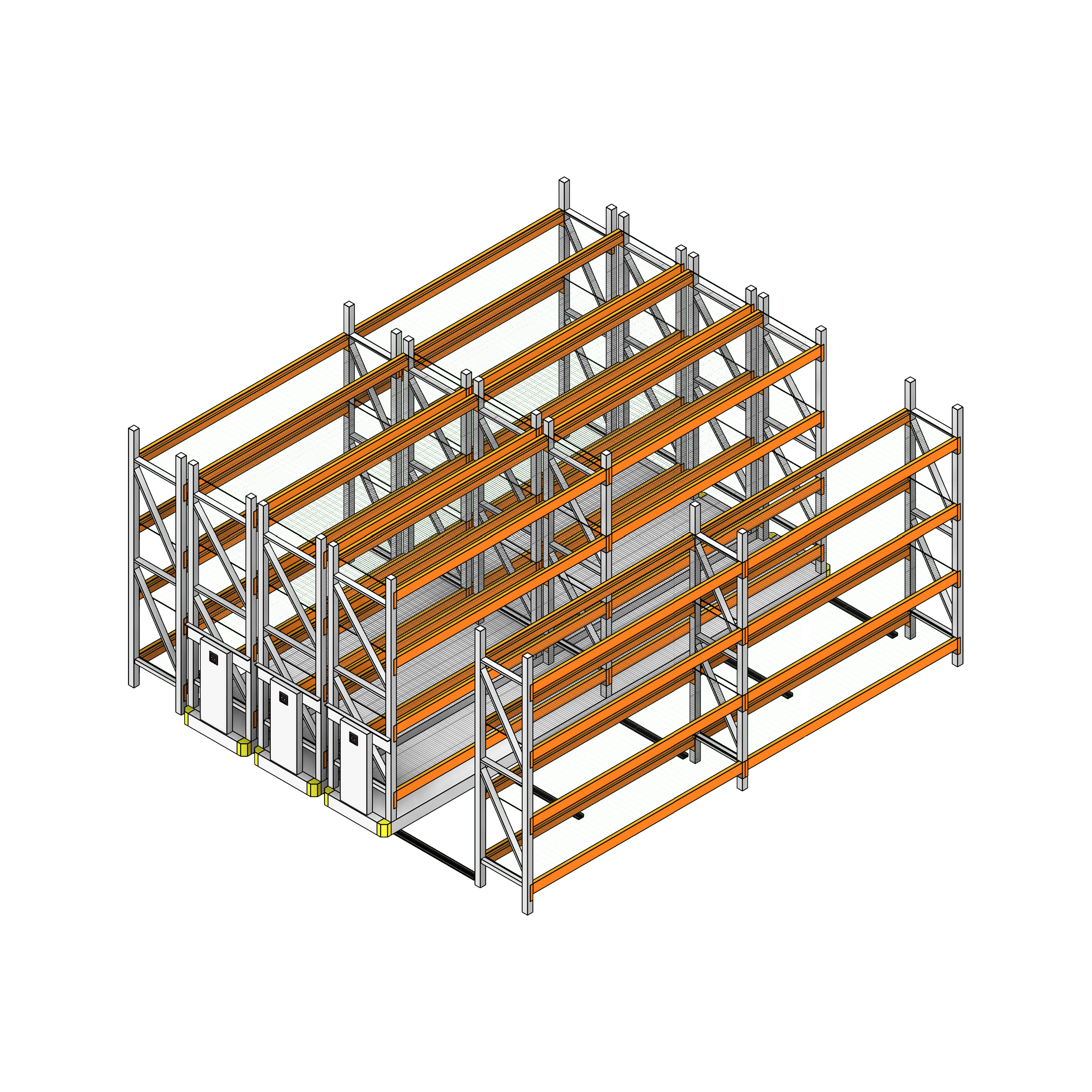

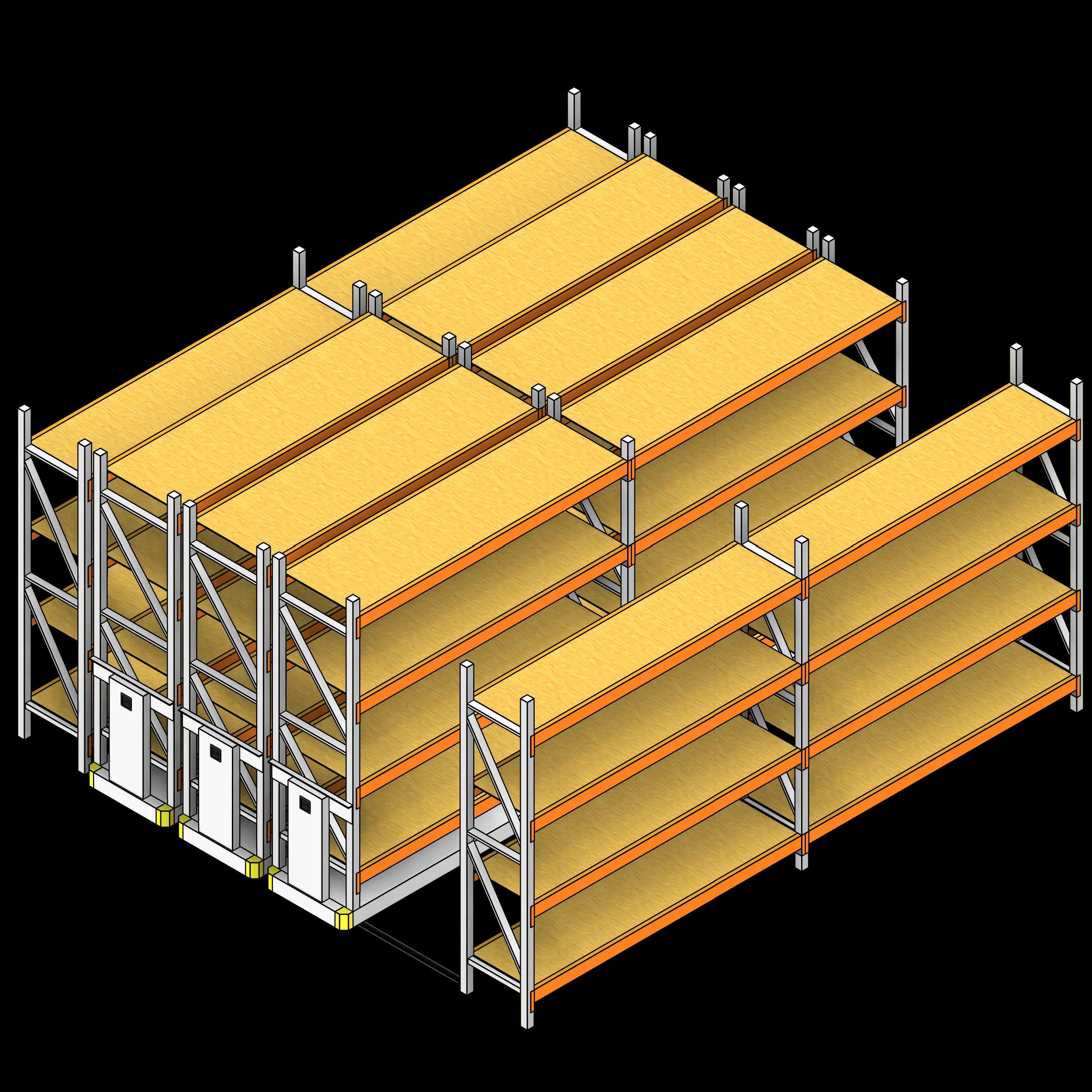

Industrial Pallet Rack High Density Shelving Revit family, view 2

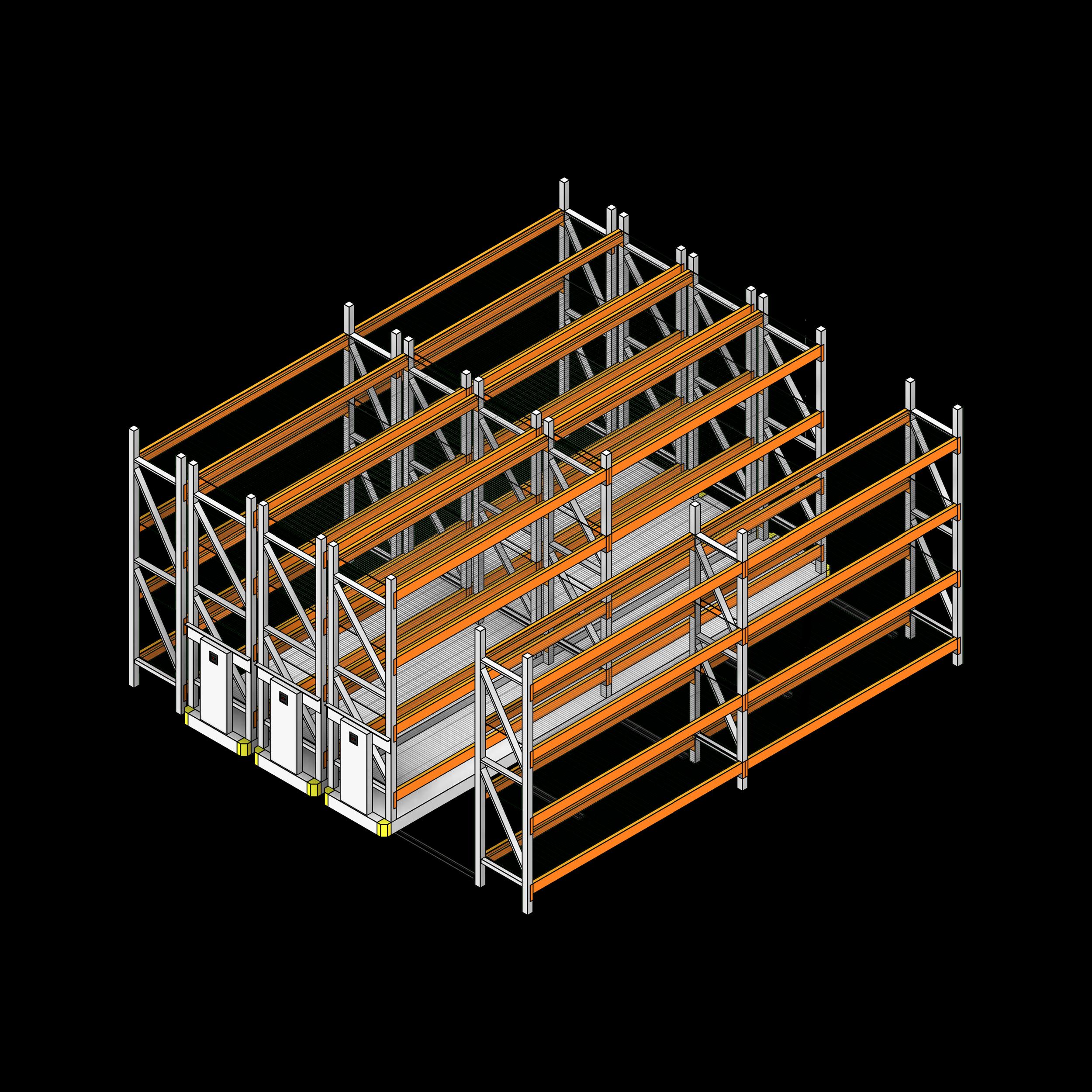

Industrial Pallet Rack High Density Shelving Revit family, view 3
Industrial Pallet Rack High Density Shelving video
Industrial Pallet Rack High Density Shelving Revit family
Industrial Pallet Rack High Density Shelving Revit family, view 2
Industrial Pallet Rack High Density Shelving Revit family, view 3
Updated Jun 8, 2023

Industrial Pallet Rack High Density Shelving

Product SKU

Downloads

Family
Pricing

Description

  • This infinitely expandable mobile shelving system is capable of storing virtually anything
  • Central steel frame with balanced wheels on steel rails make for quiet and smooth operation
  • Motorized operation can carry up to 8000 lbs. on a single carriage
  • Highly configurable model makes planning complex high-density systems easy

Questions about this product?

Industrial High Density Pallet Rack

Take control of your warehouse or shop's materials and inventory with this comprehensive high-density pallet rack. Use the family parameters to easily plan and specify the perfect system for you and your business.

The High-Density Mobile Storage System is a state-of-the-art solution designed for maximizing storage efficiency by utilizing movable carriages on rails, reducing the need for fixed aisles. This innovative system offers up to three times more storage capacity per square foot compared to traditional systems, making it ideal for environments where space is at a premium. Its adaptability allows it to store virtually anything, from files in an office to artifacts in a museum, making it suitable for a range of applications including libraries, hospitals, and warehouses.

This system is particularly distinguished by its ability to be customized with various shelving and cabinet options, and its operation modes—manual, mechanically assisted, or powered—cater to different activity levels and user preferences. Thanks to its configurable design, it integrates seamlessly with existing architectural layouts and ensures user safety with features like color-coded lock indicators and safety locks.

The mobile storage system is constructed from durable materials like cold rolled steel and features a smooth, quiet operation due to its precision-machined components. It also meets ADA accessibility standards, ensuring ease of use for all users. With its intuitive control features, including a smart app for remote aisle management, the system enhances workflow and organizational efficiency, making it a valuable addition to any space-conscious design.

Specifications
Dimensions
Minimum Aisle Width30"
Carriage Width30" to 60"
Shelving Height96" to 240"
Beam Length48", 60", 72", 84", 96", 108", 120", 144"
Carriage Length48" to 882"
Product
Back Clearance0' 9" (9")
ManufacturerSouthwest Solutions Group_SPA
Lead Time4-6 Weeks
ModelHD-PR
Primary MaterialPowder coated steel
Classification
MasterFormat10 56 26 – Mobile Storage Shelving
UniFormatE20 – Furnishings
IFCFurniture
OmniClass23-21 11 11 11
Purchasing
ContractsOmnia, Sourcewell, Equalis, Vizient, Systec
Revit family
Includes PricingYes
ADA CompliantNo
Has MEP ConnectorsNo
Includes SustainabilityYes
