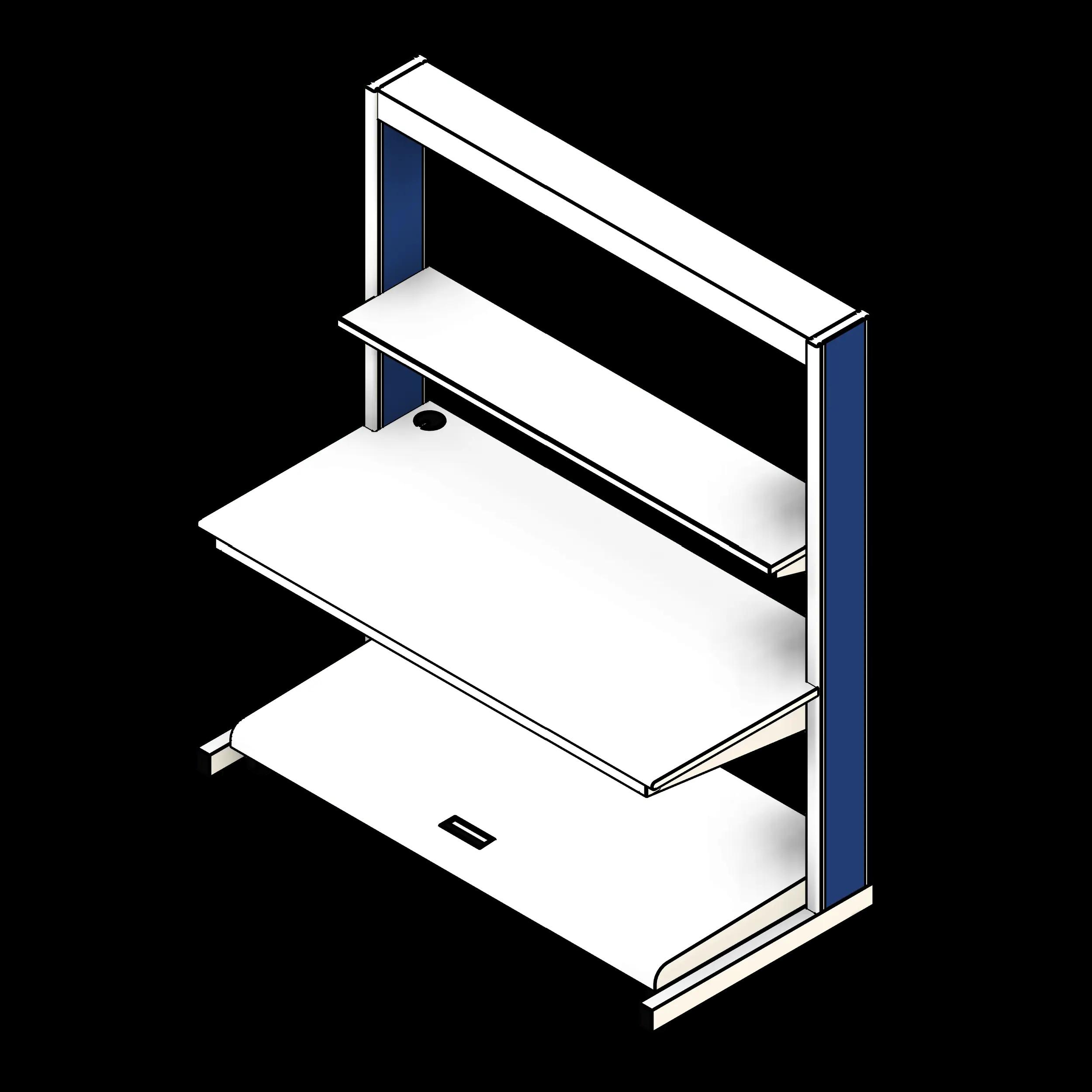

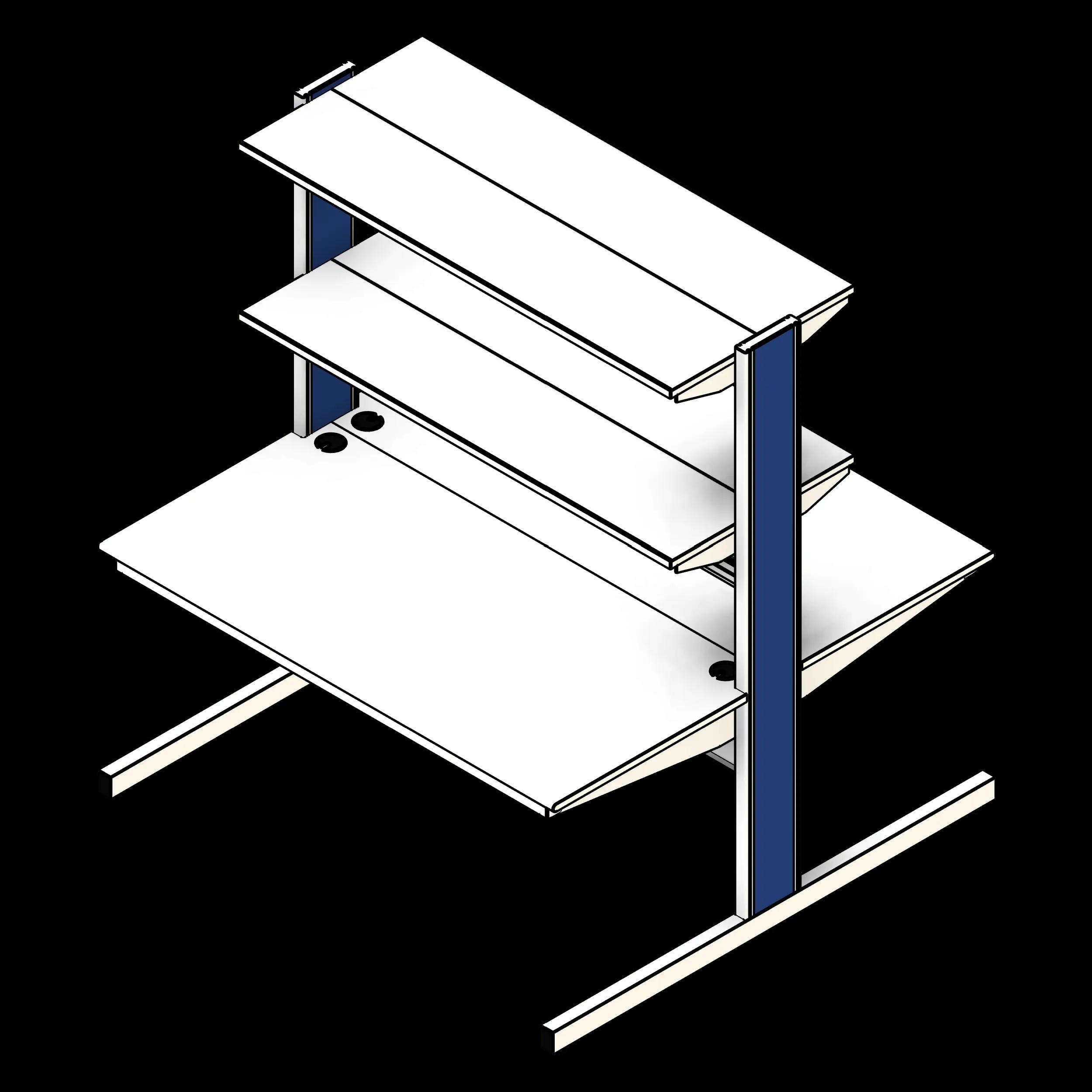

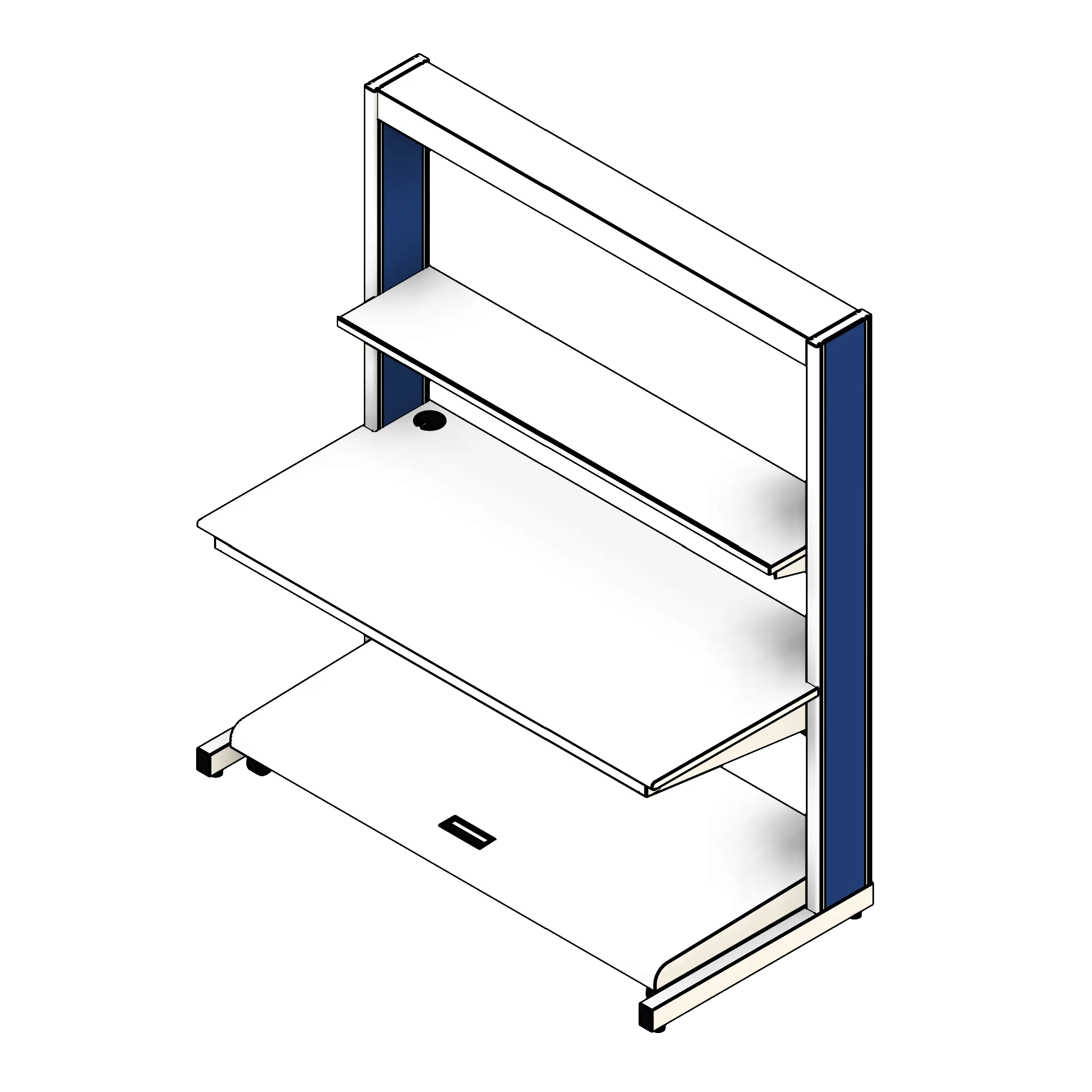

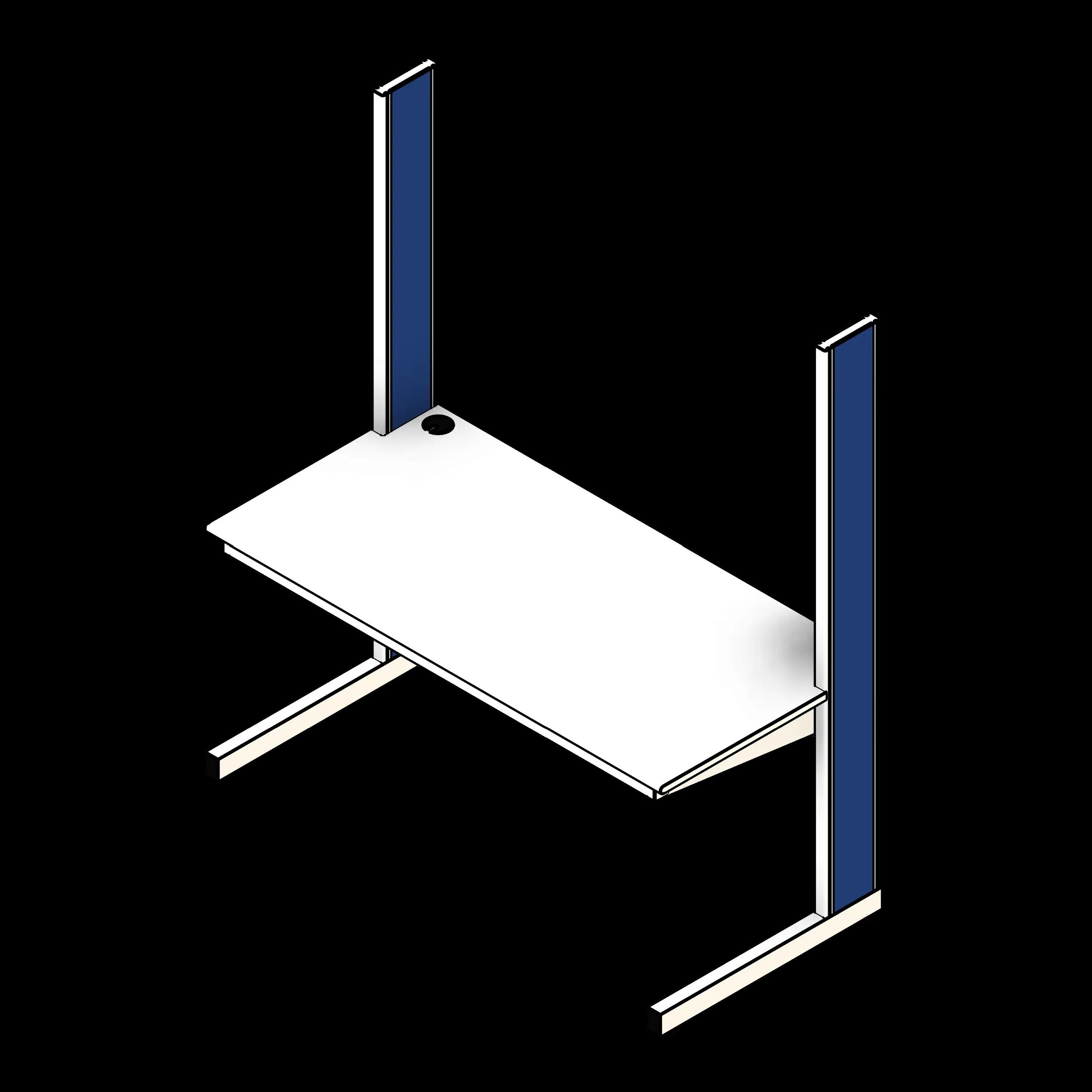

Column Based Powder Coated Steel Workstation Revit family

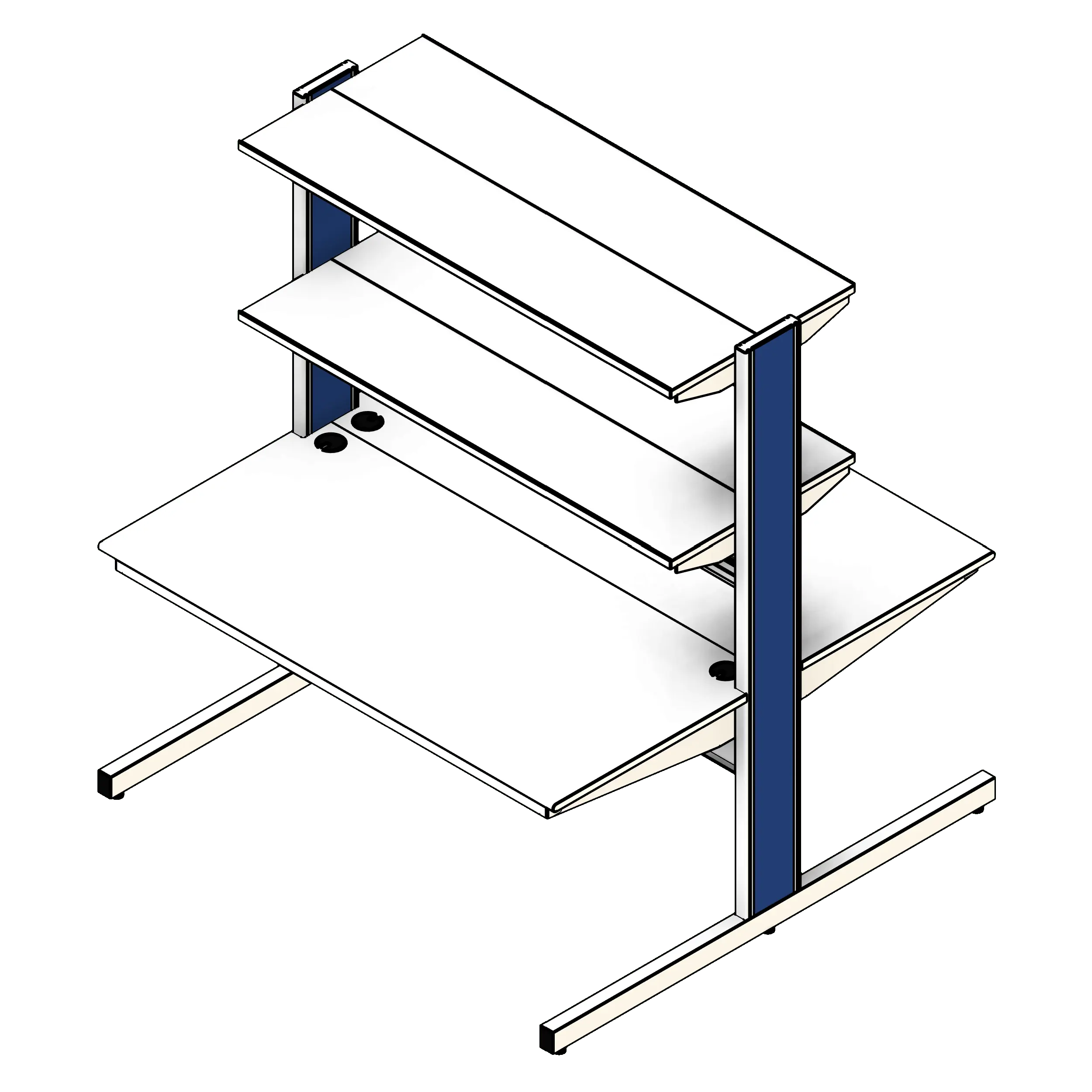

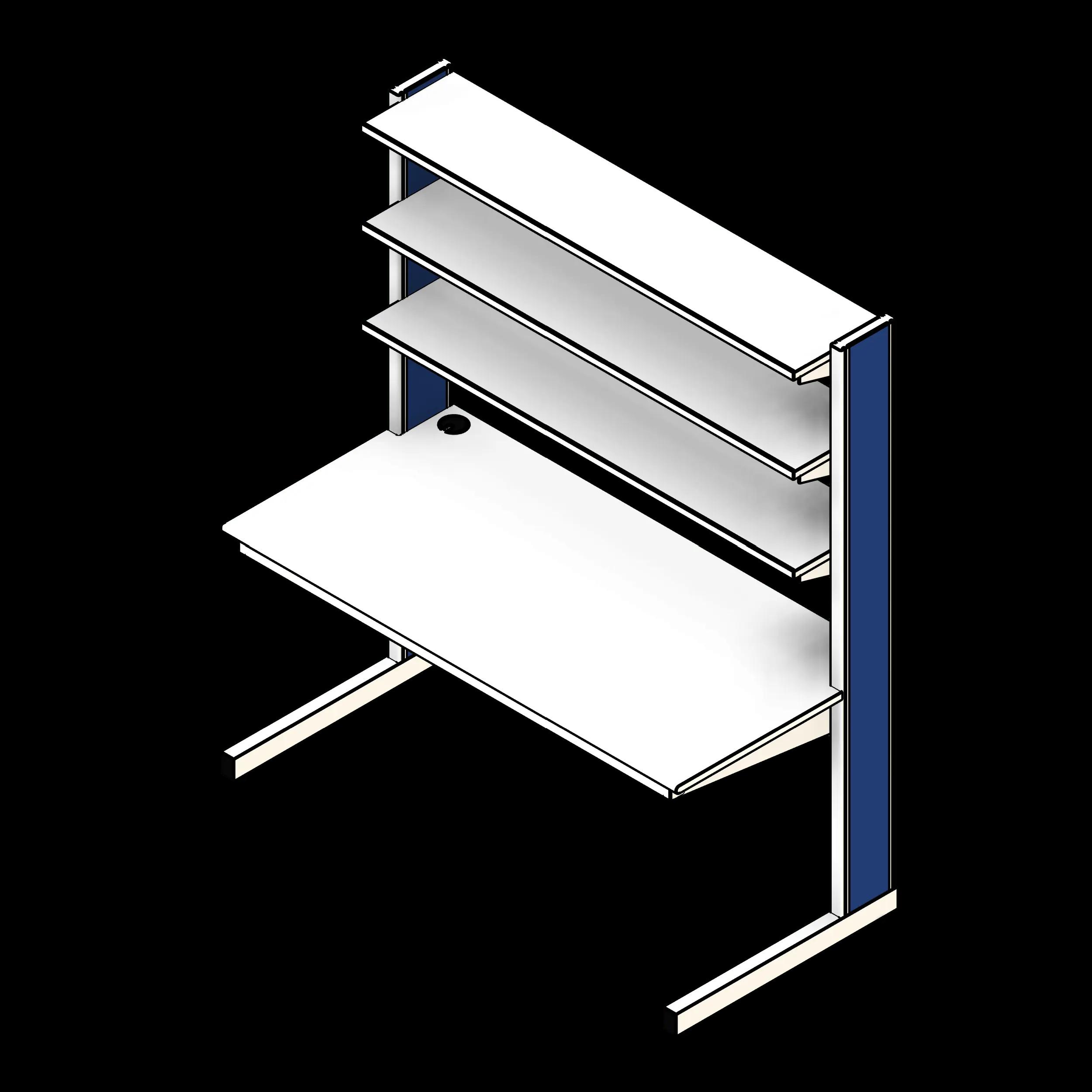

Column Based Powder Coated Steel Workstation Revit family, view 2

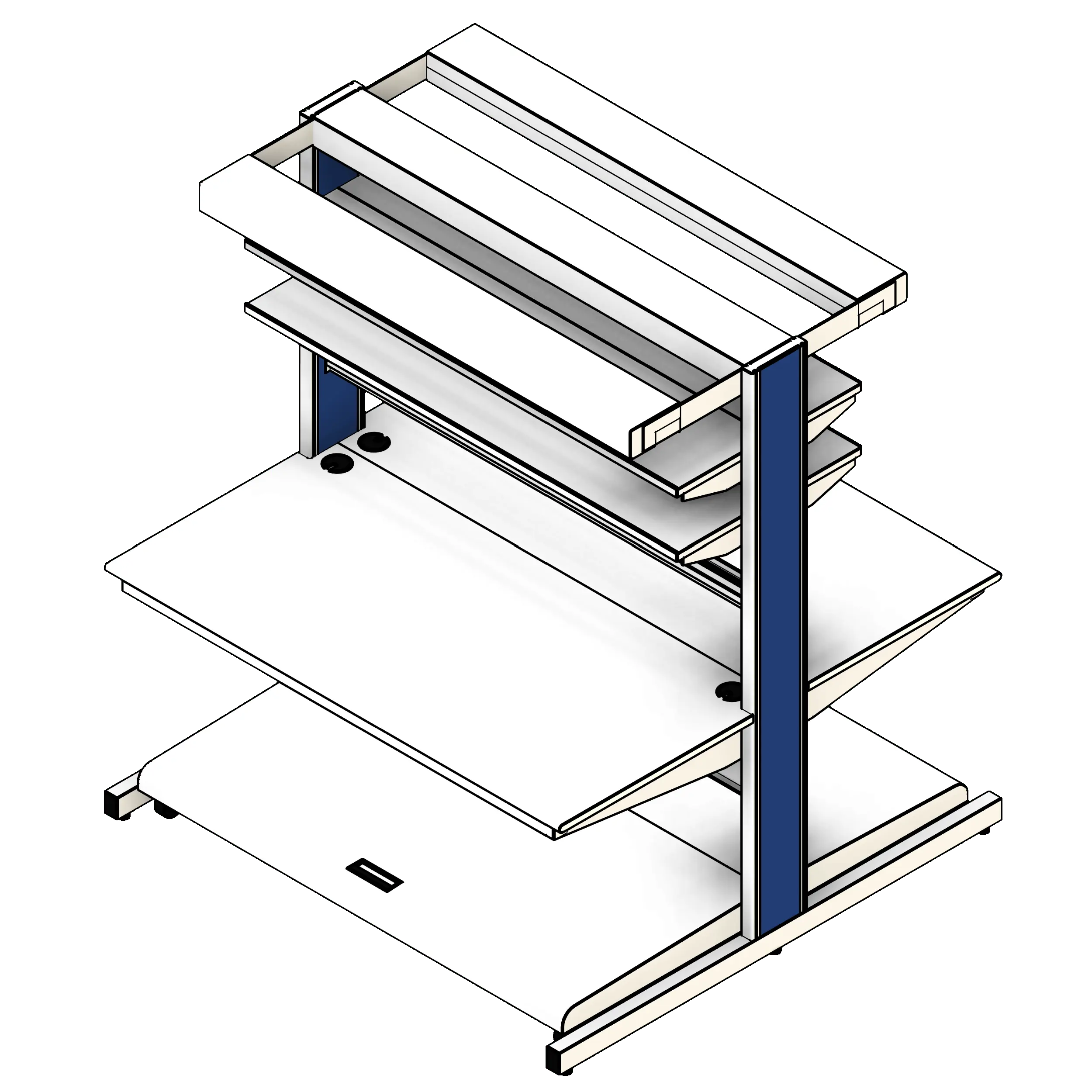

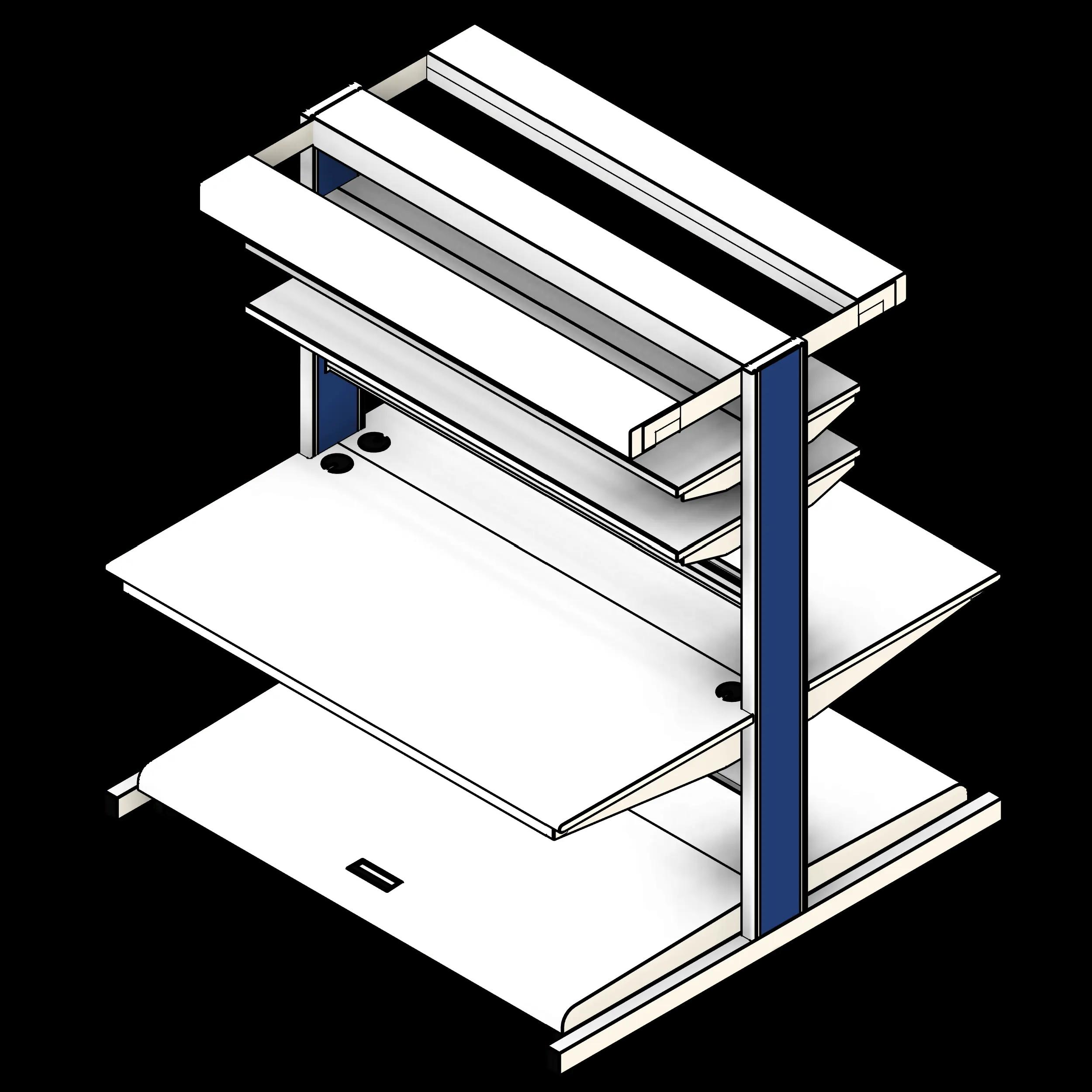

Column Based Powder Coated Steel Workstation Revit family, view 3

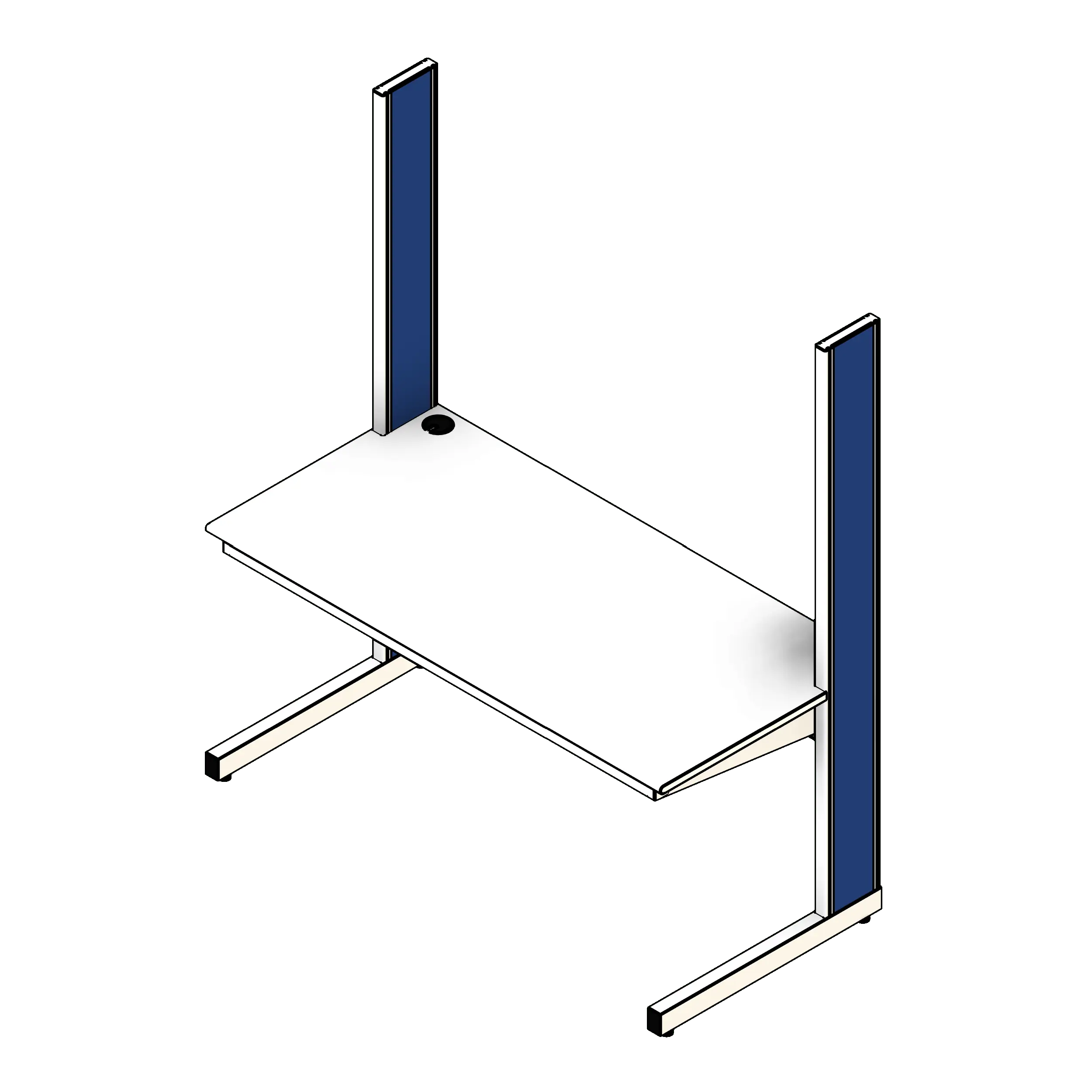

Column Based Powder Coated Steel Workstation Revit family, view 4

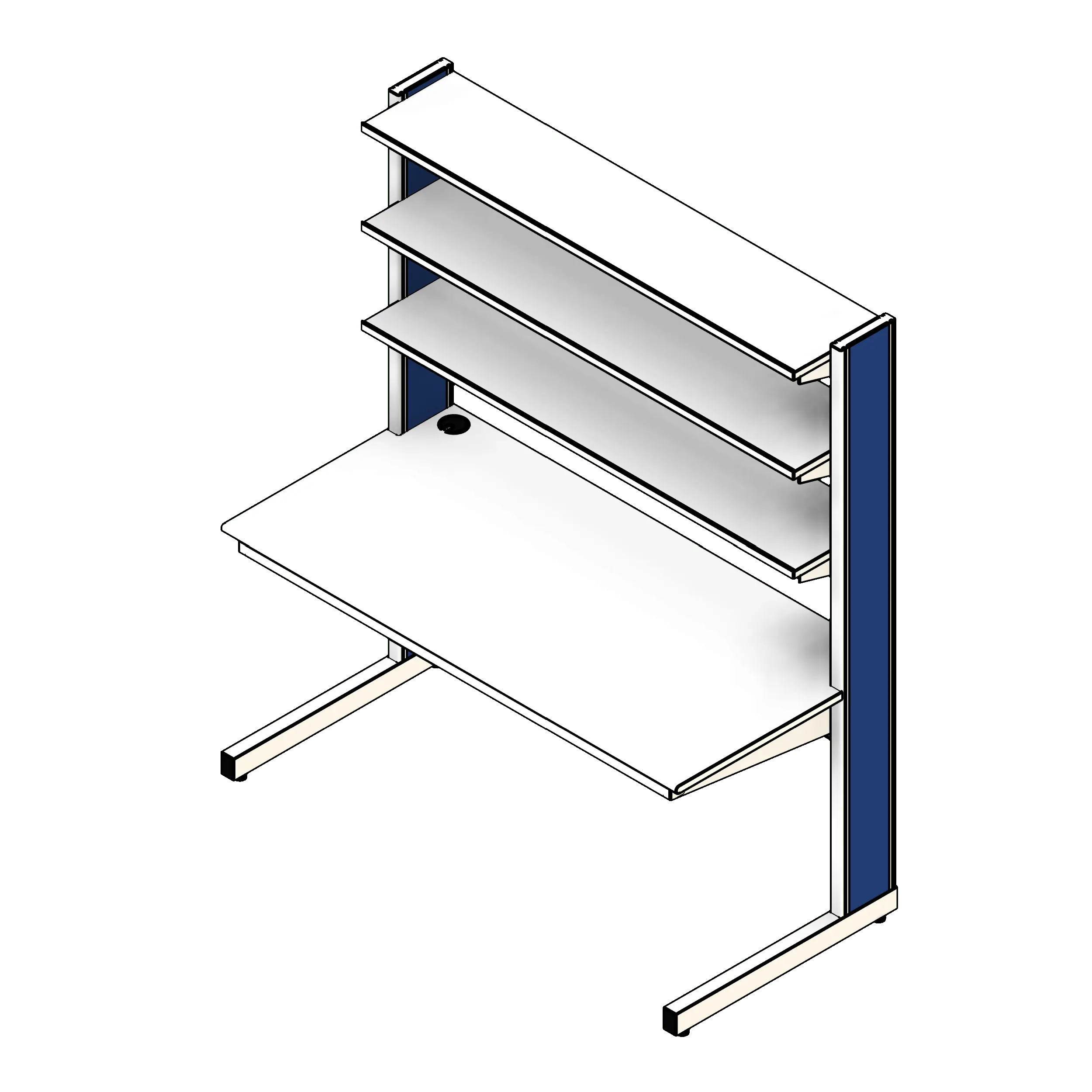

Column Based Powder Coated Steel Workstation Revit family, view 5
Column Based Powder Coated Steel Workstation Revit family, view 6
Column Based Powder Coated Steel Workstation Revit family
Column Based Powder Coated Steel Workstation Revit family, view 2
Column Based Powder Coated Steel Workstation Revit family, view 3
Column Based Powder Coated Steel Workstation Revit family, view 4
Column Based Powder Coated Steel Workstation Revit family, view 5
Column Based Powder Coated Steel Workstation Revit family, view 6
Updated Aug 13, 2026

Column Based Powder Coated Steel Workstation

Product SKU

Downloads

Family
Pricing
ADA

Description

  • Free Revit family lab station ideal for healthcare, scientific and technical labs
  • Single or double-sided configurations
  • Metal shelves can be mounted above or below the worksurface
  • Lockable metal drawers with smooth, ball-bearing glides
  • Powered backsplashes are UL Listed and switched with built-in circuit breaker
  • Dual-channel utility raceways promote orderly, segregated management of electrical wiring, air and gas lines, and cabling
  • Accessories are available within the Revit family as optional parameters - Easy to pick and choose to your specifications without needing to download accessory families

Questions about this product?

Powder Coated Steel Column Based Lab Workstation

The modular lab workplace system is a streamlined, column-based system that was designed with your changing needs in mind. It offers infinite height adjustability for a wide range of components. And almost limitless reconfiguration possibilities. This casework is ideal for healthcare, research and development, light manufacturing and assembly, high-tech, testing operations, and scientific and technical labs. Our healthcare and lab Revit models are free to use and are built in 5D BIM for streamlined project information and helps reduce the amount of rework necessary for job completion.

Specifications
Dimensions
Width24", 30", 36", 42", 48", 54", 60", 66", 72", 78", 84", 90", 96"
Depth24", 30", 36"
Height36", 54", 84"
Shelf Depth12", 15", 18", 24"
Worktop Height18" to 35"
Product
ManufacturerSouthwest Solutions Group_KEW
Lead TimeContact SSG for info
Construction Type0
ModelFV
Primary MaterialPowder coated steel
Classification
MasterFormat12 35 53 – Laboratory Casework
UniFormatE2020 – Moveable Furnishings
IFCFurniture
OmniClass23-21 19 15 25
Revit family
Includes PricingYes
ADA CompliantYes
Has MEP ConnectorsNo
