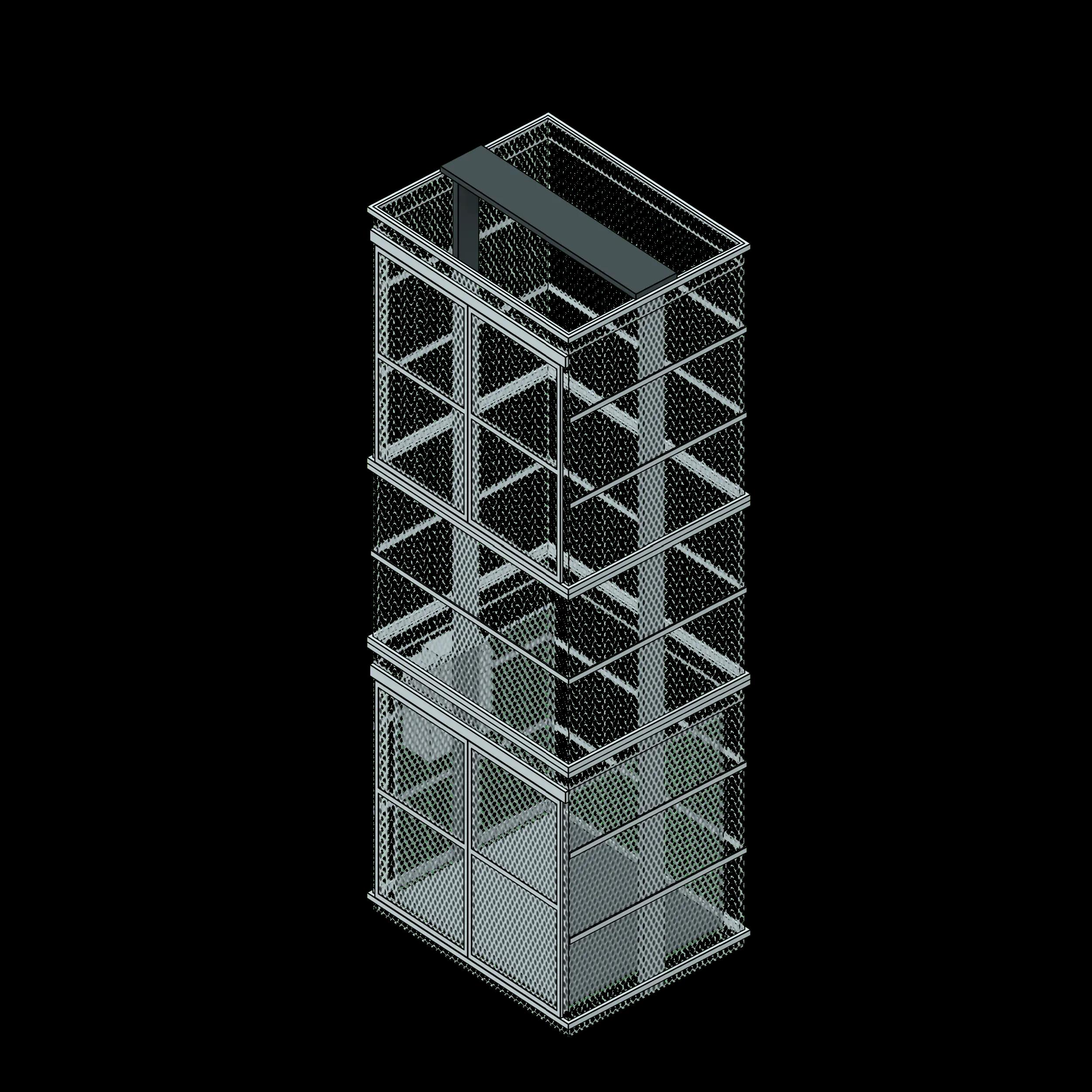

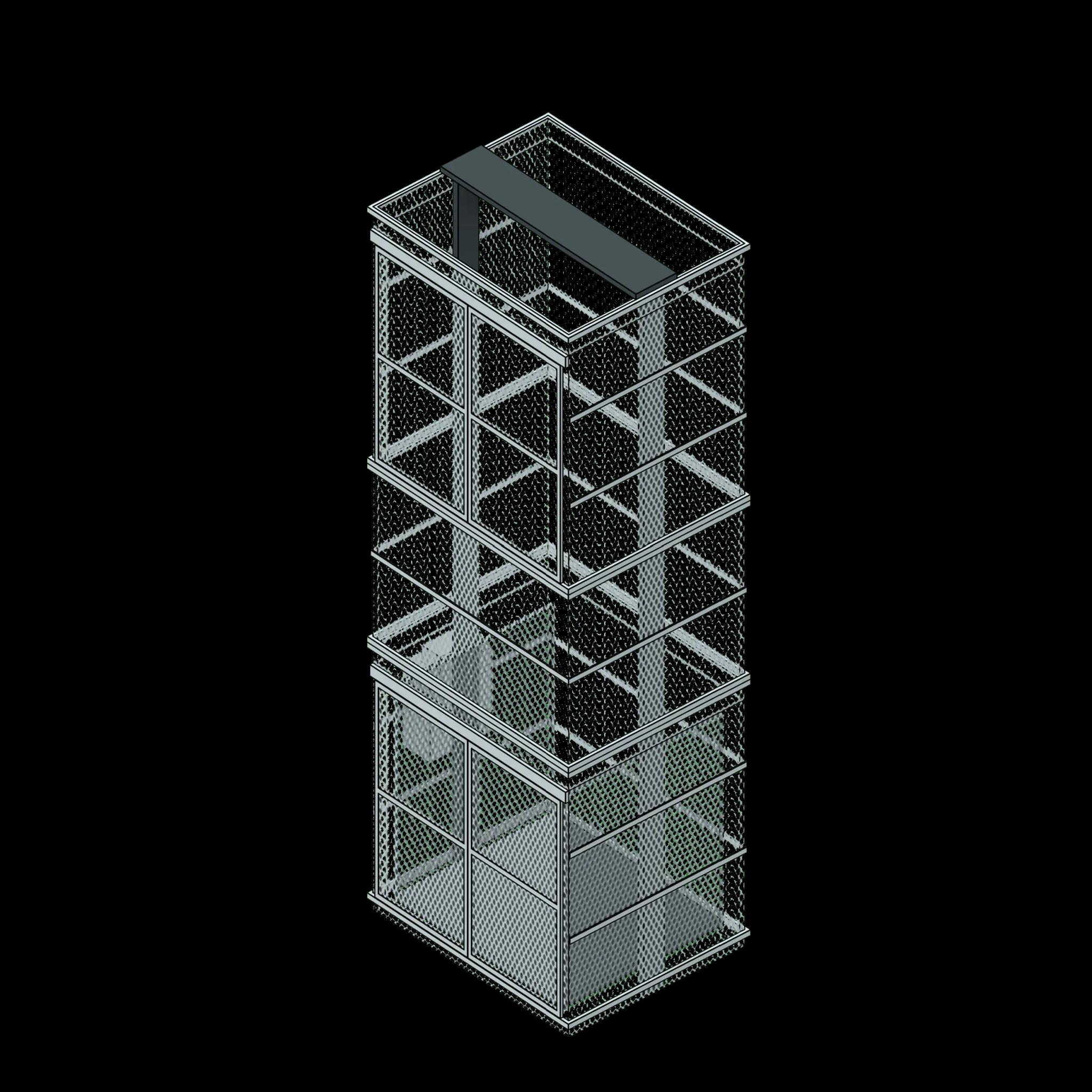

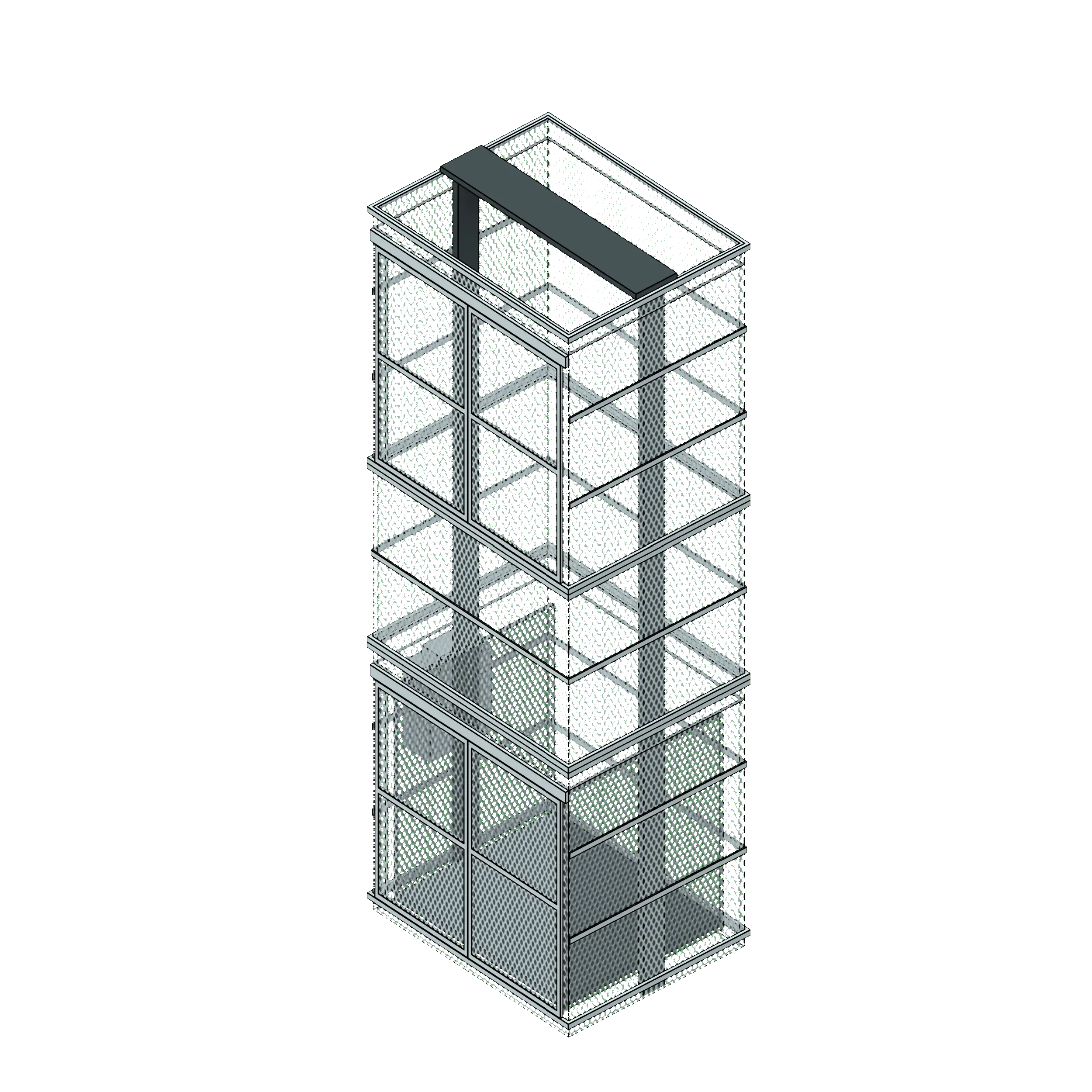

Pallet Vertical Lift

This family is designed to be fully parametric. To use this model, simply insert into your project and enter your desired platform size into ENTER_Platform Width, ENTER_Platform Depth, and ENTER_Floor to Floor Height for the lift to scale automatically. Additional options, such as surface or pit mount, number of landing levels, and door configuration options, can be found in the construction category. All electrical connector settings can be found under the Electrical - Loads category in the type browser. If a user wants to use this family through floor plates, after placing, use the cut tool and click on the floor, then the family to create the correct size cut (approx. 2 1/4" around the lift frame).
