Mobile Warehouse Ladder
Product SKU
Description
- Industrial-grade warehouse ladders make it easy and safe to roll up to any shelving system and retrieve items stored overhead
- Top platform is 10" deep and includes a 4" toeboard and a 36" tall handrail
- Safety enhancements include a 56-degree climbing angle and gripped treads, and sturdy handrails
Rolling Warehouse Ladder

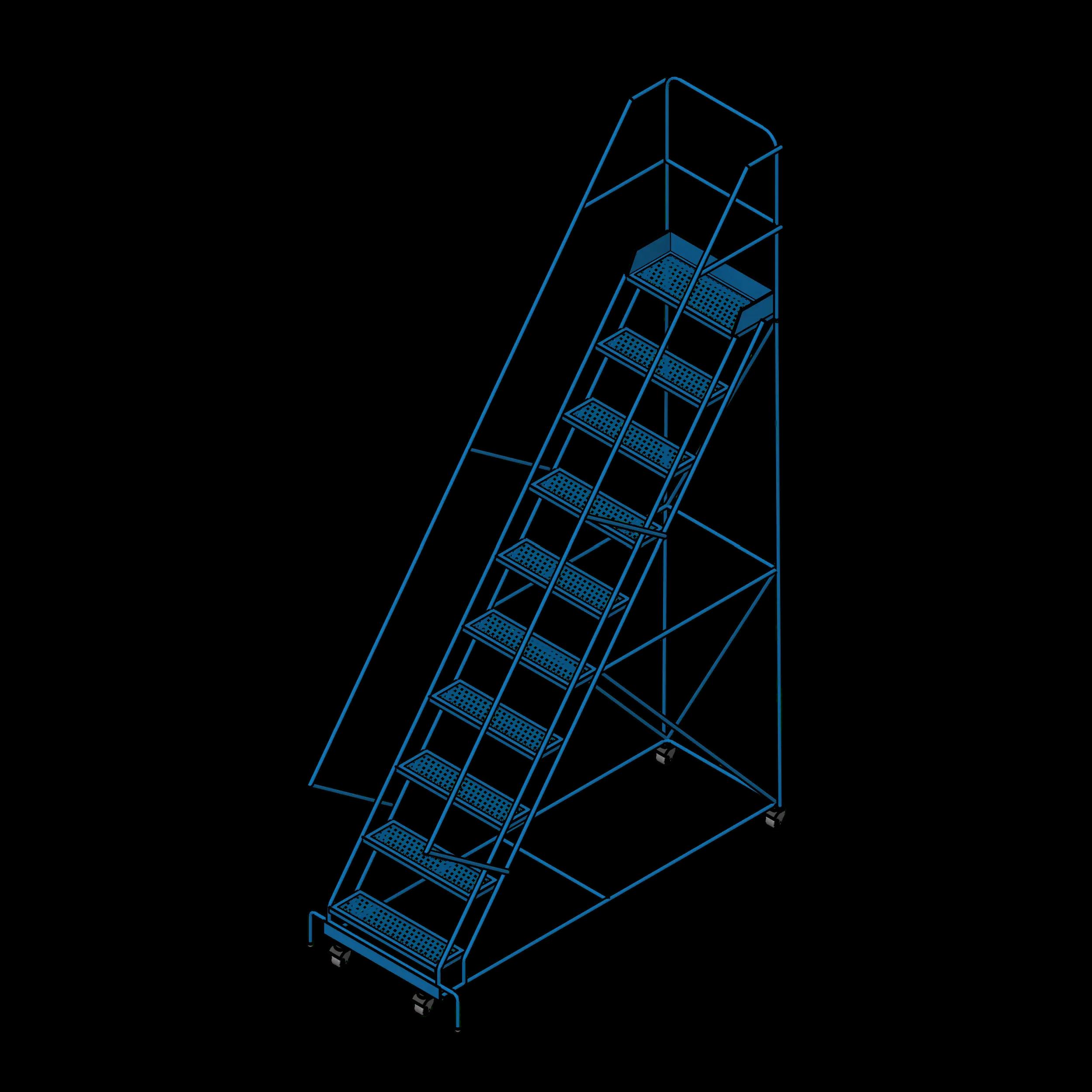

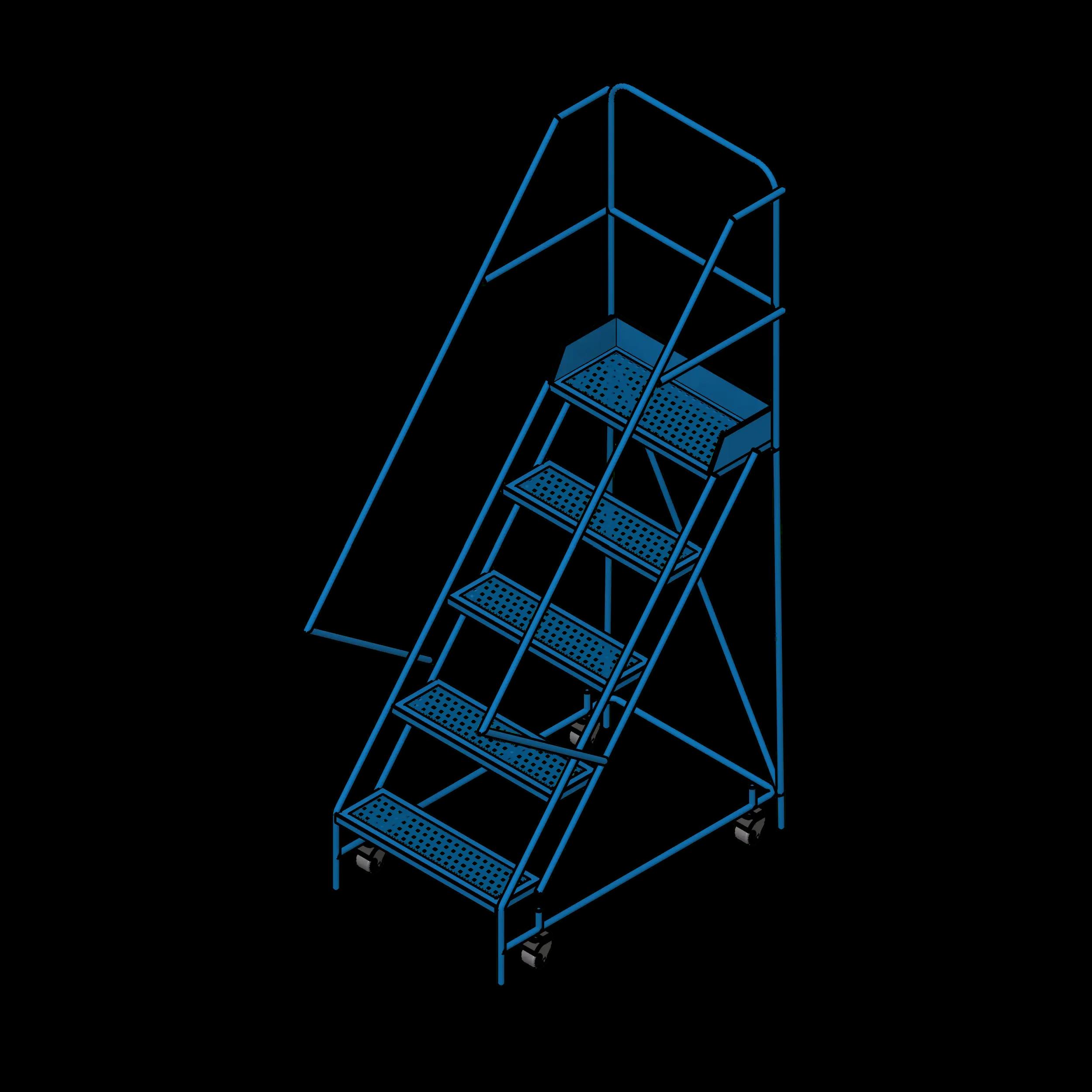

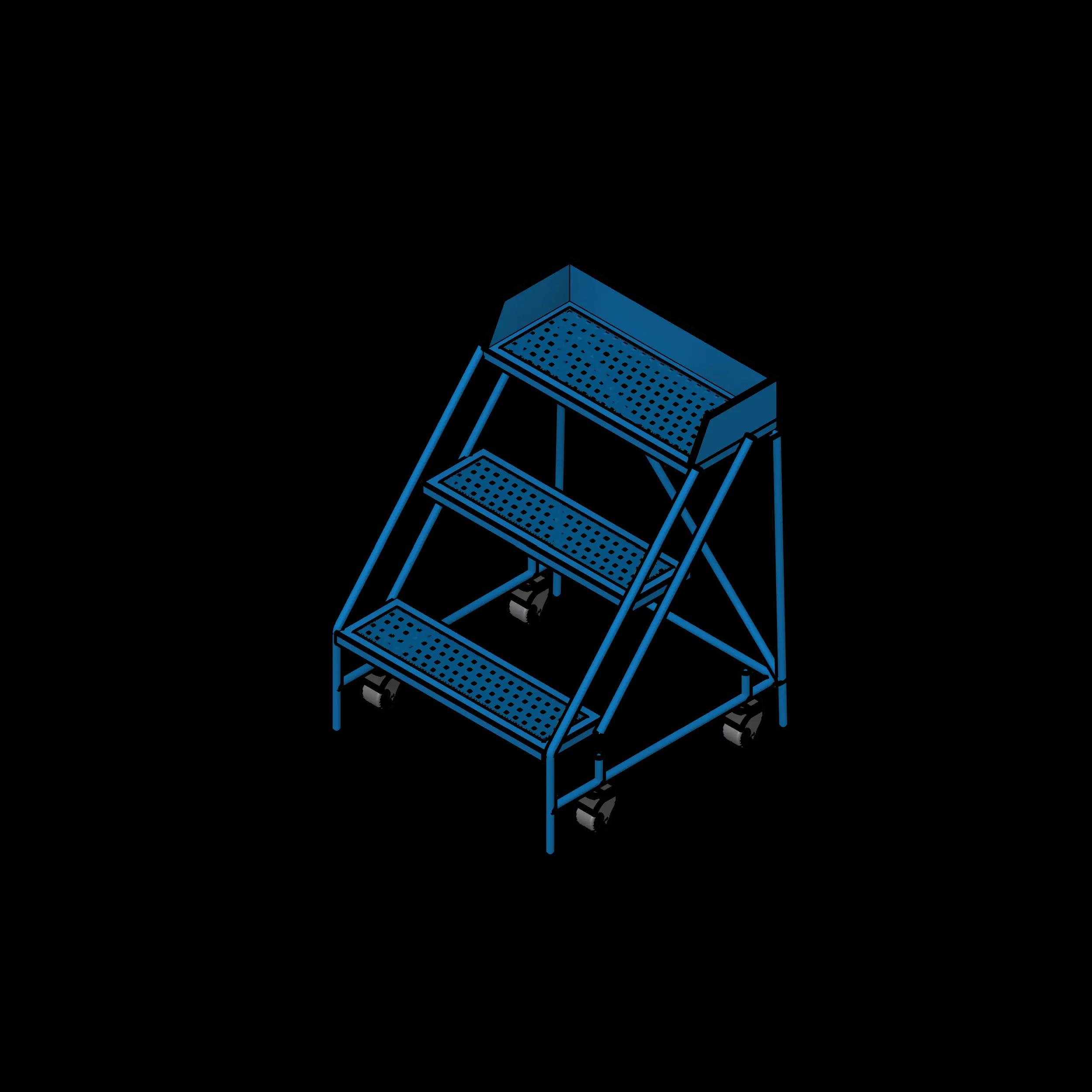

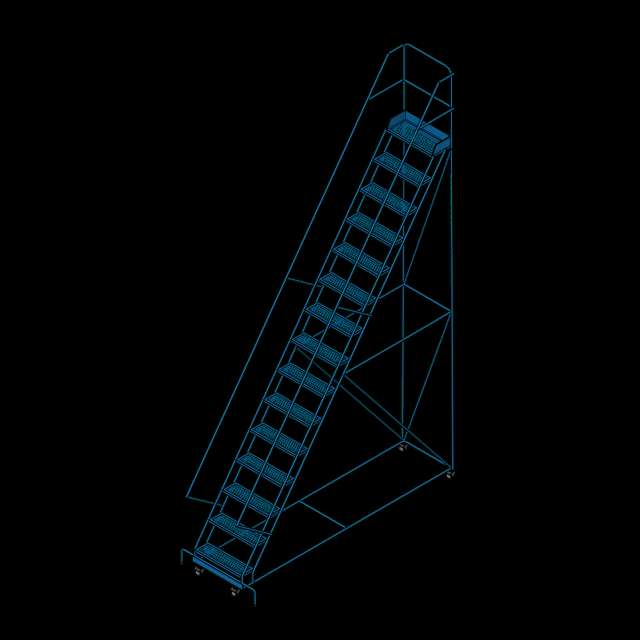

Mobile inclined step ladders are the perfect pair with pallet racks, high-bay shelving, or any industrial storage solution where product may be located far overhead. Each tread adds 10" of height up to 15 steps (150" platform height).
To use this family, insert it into your project using the Fetch app, then select the number of steps you desire. The model will automatically grow to that size and assign the proper caster configuration. Eight steps or more units will use locking casters with a release pedal, while the rest uses spring-loaded casters. The optional outrigger addition extends the width of the back wheels for when the local code requires 3:1 height base ratio.
| Parameter | Value |
|---|---|
| Minimum Number of Steps | 3 |
| Maximum Number of Steps | 15 |
| Standard Widths | 28", 31", 34", 39" |
| Minimum Width | 2.33333333333333 |
| Maximum Width | 3.25 |
| Standard Depths | 27", 35", 42", 50", 57", 63", 70", 77", 83", 90", 97", 104", 110" |
| Minimum Depth | 2.25 |
| Maximum Depth | 9.16666666666667 |
| Standard Heights | 66", 76", 86", 96", 106", 116", 126", 136", 146", 156", 166", 176", 186" |
| Minimum Height | 5.5 |
| Maximum Height | 15.5 |
| Model | GSW |
| Author | AWright |
| Toll Free Number | 1-800-803-1083 |
| Property | Value |
|---|---|
| BIMobject Category | Furniture: Shelving & Storage |
| IFC | Furniture |
