· Updated Aug 7, 201809' Wide - Option 07 Exam Room
Product SKU
SKU: SSG-EX09-7-L
Description
- Kit is designed to represent one common option used for Exam rooms at this Height and Width
- Kit includes two base cabinets, two upper wall cabinets, one roll up desk, two countertop with backsplash, and one sink with faucet.
- Not ADA accessible.
Revit 2016 (11.36 MB)
Revit 2017 (11.36 MB)
Revit 2018 (11.36 MB)
Revit 2019 (11.36 MB)
Revit 2020 (11.36 MB)
Revit 2021 (11.36 MB)
Revit 2022 (11.36 MB)
Revit 2023 (11.36 MB)
Revit 2024 (11.36 MB)
Revit 2025 (11.36 MB)
Revit 2026 (11.36 MB)
Revit 2027 (11.36 MB)
(0.12 MB)

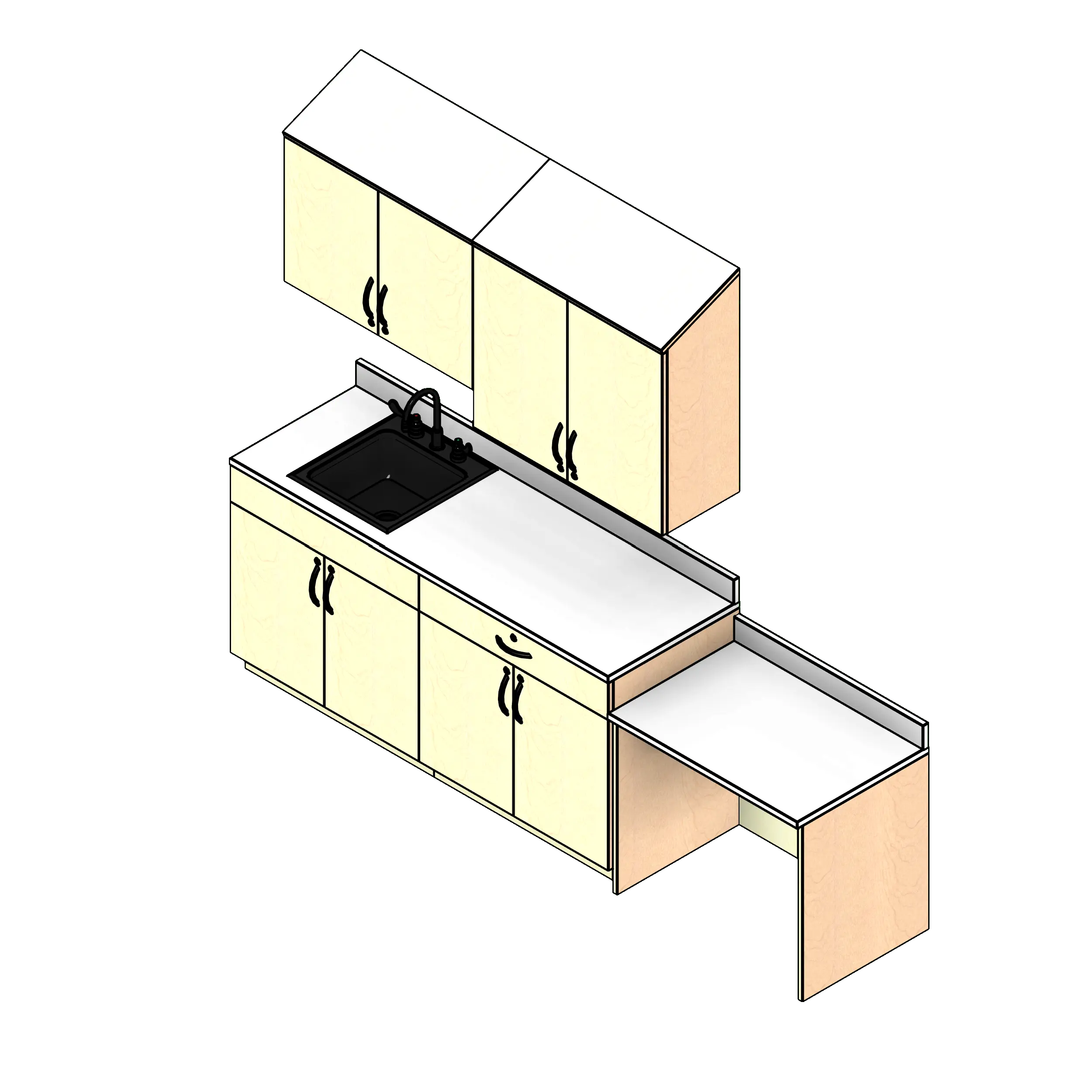

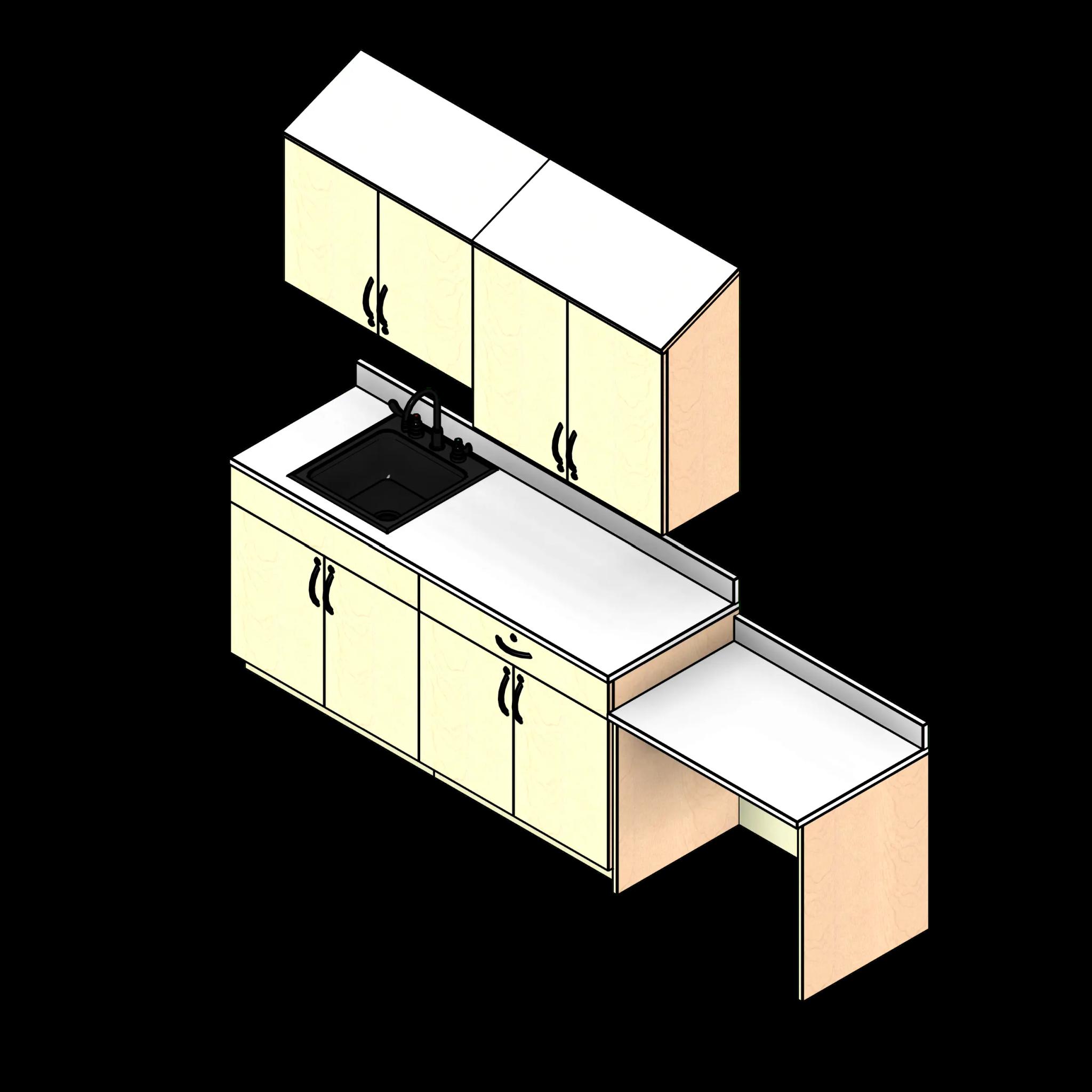

The 09' Wide - Option 07 Exam Room is a 108-inch-wide laminate casework kit for exam rooms that need a sink, enclosed storage, and an open knee-space work area in one 25-inch-deep run. A 36-inch and a 72-inch laminate countertop form the work surface, while the open knee-space laminate base cabinet provides a seated work position alongside a 36-inch two-door, one-drawer base cabinet and a 36-inch two-door sink base cabinet. Two 36-inch two-door laminate wall cabinets keep stored items above the counter, leaving the lower layout focused on sink access, work surface, and knee clearance. The kit includes a single-bowl stainless steel sink with faucet ledge and a laboratory deck-mounted chrome-plated brass faucet. Overall dimensions are 108 inches wide by 25 inches deep by 84 inches high. This option is not ADA accessible.
System Overview
Each kit comes with a variety of options that each have a unique price attached to them. A typical solution would comprise of both upper and lower cabinets with a sink and counter top. Each cabinet door can be equipped with a lock.
Design
- Multiple pull options
- Angled top is optional
- Counter can be equipped with side splash if necessary
- Lock options available
| Parameter | Value |
|---|---|
| ENTER Door Number | 1 |
| ENTER Handle Number | 1 |
| ENTER Kick Plate Number | 1 |
| ADD Locks | 1 |
| OFFSET Top of Cabinet | 7' 0" (84") |
| ADD Angled Top | 1 |
| ADD Back Splash | 1 |
| Property | Value |
|---|---|
| Includes Pricing | Yes |
| ADA Compliant | No |
| Has MEP Connectors | No |
| Width | 9' 0" (108") |
| Depth | 2' 1" (25") |
| Height | 7' 0" (84") |
| Primary Material | Laminate |
| IFC | Furniture |
| OmniClass | 23-21 19 11 |
| Room Type | Exam Room |
