Bottom Track Mobile Shelving Wire Shelving
Updated Aug 12, 2026
Bottom Track Mobile Shelving Wire Shelving
Product SKU
Downloads
- 598 KB
- 260 KB
Description
- Price included in model
- Units slide back and forth with ease
- Track roller included with Mobile kit
- 600-800 lb. capacity per shelf

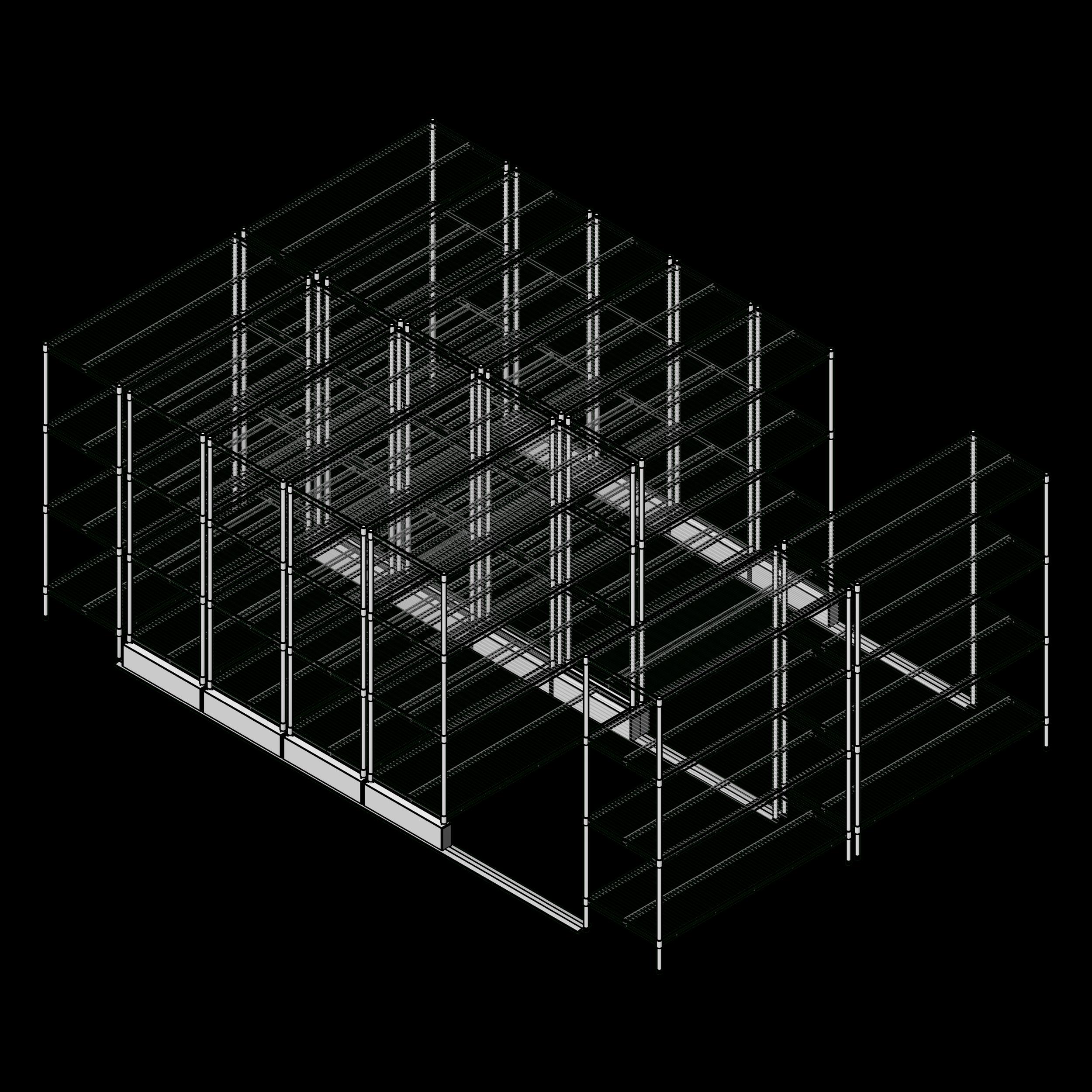

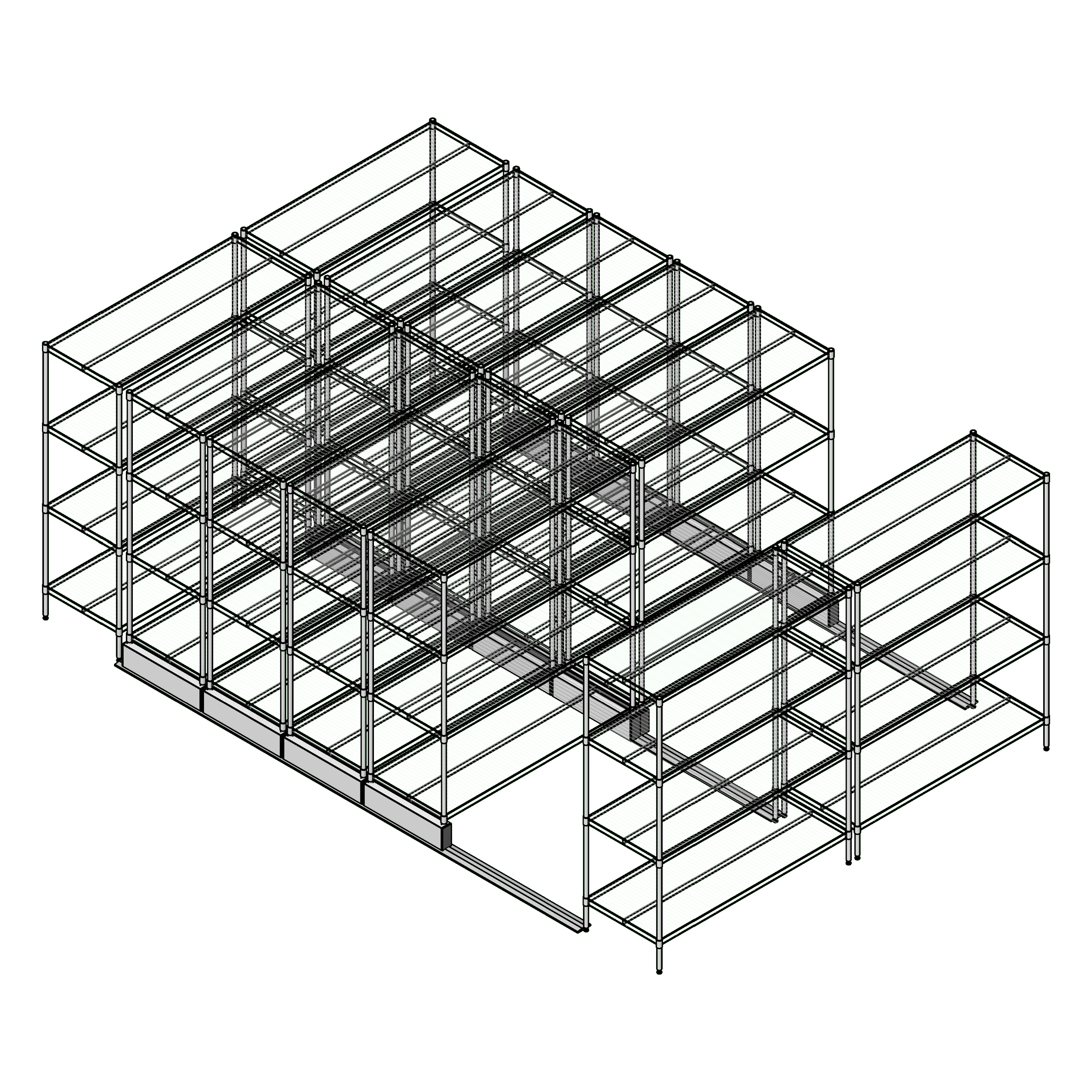

Bottom Track Mobile Shelving
The overhead and bottom track wire shelving system provides maximum storage using minimum space. Kits include all necessary sections of track for assembling lengths that range from 8' to 21'.
Features include:
- Corrosion-free construction
- Fast installation
- Utilizes the structure of existing shelving
- 1200 lb. load capacity per unit
- NSF approved
Overhead track extrusion manufactured of heavy-duty aluminum ensuring years of heavy-duty and reliable service.
| Dimensions | |
|---|---|
| Width | 12', 13', 14', 16', 19', 22' |
| Depth | 24", 30", 36", 42", 48", 54", 60", 72", 84", 96", 108", 120", 132", 144" |
| Height | 74" |
| Minimum Shelf Width | 18" |
| Product | |
| Number of Shelves | 4 to 7 |
| Manufacturer | Southwest Solutions Group_QUA |
| Lead Time | 1-2 Weeks |
| Model | Bottom Track |
| Primary Material | Chrome |
| Classification | |
| MasterFormat | 10 56 23 – Wire Storage Shelving |
| UniFormat | E2020 – Moveable Furnishings |
| IFC | Furniture |
| OmniClass | 23-21 11 11 11 |
| Purchasing | |
| Contracts | Vizient |
| Revit family | |
| Includes Pricing | Yes |
| ADA Compliant | No |
| Has MEP Connectors | No |
Materials
- Casters are 5" x 1-1/4" rigid polyurethane
- Overhead track extrusion manufactured of heavy-duty aluminum
Features and Benefits
- NSF approved
- Corrosion free construction
- Utilizes the structure of existing shelving
- 1200lb. load capacity per unit
| Model | Width | Depth | Height | Weight |
|---|---|---|---|---|
| SMS-47-3U-2L-18D-4 | 12' 0" (144") | 2' 2 3/4" (26 3/4") | 6' 2" (74") | 324.625 |
| SMS-47-2U-2L-21D-4 | 12' 0" (144") | 2' 2 3/4" (26 3/4") | 6' 2" (74") | 271.25 |
| SMS-47-2U-2L-24D-4 | 12' 0" (144") | 2' 2 3/4" (26 3/4") | 6' 2" (74") | 320 |
| SMS-47-3U-3L-18D-4 | 12' 0" (144") | 3' 2 3/4" (38 3/4") | 6' 2" (74") | 414.625 |
| SMS-47-2U-3L-21D-4 | 12' 0" (144") | 3' 2 3/4" (38 3/4") | 6' 2" (74") | 355.25 |
| SMS-47-2U-3L-24D-4 | 12' 0" (144") | 3' 2 3/4" (38 3/4") | 6' 2" (74") | 416 |
| SMS-47-3U-4L-18D-4 | 12' 0" (144") | 4' 2 3/4" (50 3/4") | 6' 2" (74") | 504.625 |
| SMS-47-2U-4L-21D-4 | 12' 0" (144") | 4' 2 3/4" (50 3/4") | 6' 2" (74") | 439.25 |
| SMS-47-2U-4L-24D-4 | 12' 0" (144") | 4' 2 3/4" (50 3/4") | 6' 2" (74") | 512 |
| SMS-47-3U-5L-18D-4 | 12' 0" (144") | 5' 2 3/4" (62 3/4") | 6' 2" (74") | 594.625 |
| SMS-47-2U-5L-21D-4 | 12' 0" (144") | 5' 2 3/4" (62 3/4") | 6' 2" (74") | 523.25 |
| SMS-47-2U-5L-24D-4 | 12' 0" (144") | 5' 2 3/4" (62 3/4") | 6' 2" (74") | 608 |
| SMS-47-3U-6L-18D-4 | 12' 0" (144") | 6' 2 3/4" (74 3/4") | 6' 2" (74") | 684.625 |
| SMS-47-2U-6L-21D-4 | 12' 0" (144") | 6' 2 3/4" (74 3/4") | 6' 2" (74") | 607.25 |
| SMS-47-2U-6L-24D-4 | 12' 0" (144") | 6' 2 3/4" (74 3/4") | 6' 2" (74") | 704 |
| SMS-47-3U-8L-18D-4 | 12' 0" (144") | 8' 4 1/4" (100 1/4") | 6' 2" (74") | 1738.75 |
| SMS-47-2U-8L-21D-4 | 12' 0" (144") | 8' 4 1/4" (100 1/4") | 6' 2" (74") | 1567.5 |
| SMS-47-2U-8L-24D-4 | 12' 0" (144") | 8' 4 1/4" (100 1/4") | 6' 2" (74") | 1801 |
| SMS-47-3U-10L-18D-4 | 12' 0" (144") | 10' 4 1/4" (124 1/4") | 6' 2" (74") | 2098.75 |
| SMS-47-2U-10L-21D-4 | 12' 0" (144") | 10' 4 1/4" (124 1/4") | 6' 2" (74") | 1903.5 |
| SMS-47-2U-10L-24D-4 | 12' 0" (144") | 10' 4 1/4" (124 1/4") | 6' 2" (74") | 2185 |
| SMS-47-3U-12L-18D-4 | 12' 0" (144") | 12' 4 1/4" (148 1/4") | 6' 2" (74") | 2458.75 |
| SMS-47-2U-12L-21D-4 | 12' 0" (144") | 12' 4 1/4" (148 1/4") | 6' 2" (74") | 2239.5 |
| SMS-47-2U-12L-24D-4 | 12' 0" (144") | 12' 4 1/4" (148 1/4") | 6' 2" (74") | 2569 |
| SMS-47-4U-2L-18D-4 | 13' 0" (156") | 2' 2 3/4" (26 3/4") | 6' 2" (74") | 390.75 |
| SMS-47-3U-2L-21D-4 | 13' 0" (156") | 2' 2 3/4" (26 3/4") | 6' 2" (74") | 344.0625 |
| SMS-47-4U-3L-18D-4 | 13' 0" (156") | 3' 2 3/4" (38 3/4") | 6' 2" (74") | 498.75 |
| SMS-47-3U-3L-21D-4 | 13' 0" (156") | 3' 2 3/4" (38 3/4") | 6' 2" (74") | 449.0625 |
| SMS-47-4U-4L-18D-4 | 13' 0" (156") | 4' 2 3/4" (50 3/4") | 6' 2" (74") | 606.75 |
| SMS-47-3U-4L-21D-4 | 13' 0" (156") | 4' 2 3/4" (50 3/4") | 6' 2" (74") | 554.0625 |
| SMS-47-4U-5L-18D-4 | 13' 0" (156") | 5' 2 3/4" (62 3/4") | 6' 2" (74") | 714.75 |
| SMS-47-3U-5L-21D-4 | 13' 0" (156") | 5' 2 3/4" (62 3/4") | 6' 2" (74") | 659.0625 |
| SMS-47-4U-6L-18D-4 | 13' 0" (156") | 6' 2 3/4" (74 3/4") | 6' 2" (74") | 822.75 |
| SMS-47-3U-6L-21D-4 | 13' 0" (156") | 6' 2 3/4" (74 3/4") | 6' 2" (74") | 764.0625 |
| SMS-47-4U-8L-18D-4 | 13' 0" (156") | 8' 4 1/4" (100 1/4") | 6' 2" (74") | 2089.5 |
| SMS-47-3U-8L-21D-4 | 13' 0" (156") | 8' 4 1/4" (100 1/4") | 6' 2" (74") | 1968.375 |
| SMS-47-4U-10L-18D-4 | 13' 0" (156") | 10' 4 1/4" (124 1/4") | 6' 2" (74") | 2521.5 |
| SMS-47-3U-10L-21D-4 | 13' 0" (156") | 10' 4 1/4" (124 1/4") | 6' 2" (74") | 2388.375 |
| SMS-47-4U-12L-18D-4 | 13' 0" (156") | 12' 4 1/4" (148 1/4") | 6' 2" (74") | 2953.5 |
| SMS-47-3U-12L-21D-4 | 13' 0" (156") | 12' 4 1/4" (148 1/4") | 6' 2" (74") | 2808.375 |
| SMS-47-4U-2L-21D-4 | 14' 0" (168") | 2' 2 3/4" (26 3/4") | 6' 2" (74") | 416.875 |
| SMS-47-3U-2L-24D-4 | 14' 0" (168") | 2' 2 3/4" (26 3/4") | 6' 2" (74") | 405.5 |
| SMS-47-2U-2L-27D-4 | 14' 0" (168") | 2' 2 3/4" (26 3/4") | 6' 2" (74") | 304.75 |
| SMS-47-2U-2L-30D-4 | 14' 0" (168") | 2' 2 3/4" (26 3/4") | 6' 2" (74") | 379.5 |
| SMS-47-4U-3L-21D-4 | 14' 0" (168") | 3' 2 3/4" (38 3/4") | 6' 2" (74") | 542.875 |
| SMS-47-3U-3L-24D-4 | 14' 0" (168") | 3' 2 3/4" (38 3/4") | 6' 2" (74") | 525.5 |
| SMS-47-2U-3L-27D-4 | 14' 0" (168") | 3' 2 3/4" (38 3/4") | 6' 2" (74") | 412.75 |
| SMS-47-2U-3L-30D-4 | 14' 0" (168") | 3' 2 3/4" (38 3/4") | 6' 2" (74") | 499.5 |
| SMS-47-4U-4L-21D-4 | 14' 0" (168") | 4' 2 3/4" (50 3/4") | 6' 2" (74") | 668.875 |
| SMS-47-3U-4L-24D-4 | 14' 0" (168") | 4' 2 3/4" (50 3/4") | 6' 2" (74") | 645.5 |
| SMS-47-2U-4L-27D-4 | 14' 0" (168") | 4' 2 3/4" (50 3/4") | 6' 2" (74") | 520.75 |
| SMS-47-2U-4L-30D-4 | 14' 0" (168") | 4' 2 3/4" (50 3/4") | 6' 2" (74") | 619.5 |
| SMS-47-4U-5L-21D-4 | 14' 0" (168") | 5' 2 3/4" (62 3/4") | 6' 2" (74") | 794.875 |
| SMS-47-3U-5L-24D-4 | 14' 0" (168") | 5' 2 3/4" (62 3/4") | 6' 2" (74") | 765.5 |
| SMS-47-2U-5L-27D-4 | 14' 0" (168") | 5' 2 3/4" (62 3/4") | 6' 2" (74") | 628.75 |
| SMS-47-2U-5L-30D-4 | 14' 0" (168") | 5' 2 3/4" (62 3/4") | 6' 2" (74") | 739.5 |
| SMS-47-4U-6L-21D-4 | 14' 0" (168") | 6' 2 3/4" (74 3/4") | 6' 2" (74") | 920.875 |
| SMS-47-3U-6L-24D-4 | 14' 0" (168") | 6' 2 3/4" (74 3/4") | 6' 2" (74") | 885.5 |
| SMS-47-2U-6L-27D-4 | 14' 0" (168") | 6' 2 3/4" (74 3/4") | 6' 2" (74") | 736.75 |
| SMS-47-2U-6L-30D-4 | 14' 0" (168") | 6' 2 3/4" (74 3/4") | 6' 2" (74") | 859.5 |
| SMS-47-4U-8L-21D-4 | 14' 0" (168") | 8' 4 1/4" (100 1/4") | 6' 2" (74") | 2369.25 |
| SMS-47-3U-8L-24D-4 | 14' 0" (168") | 8' 4 1/4" (100 1/4") | 6' 2" (74") | 2261 |
| SMS-47-2U-8L-27D-4 | 14' 0" (168") | 8' 4 1/4" (100 1/4") | 6' 2" (74") | 1932.5 |
| SMS-47-2U-8L-30D-4 | 14' 0" (168") | 8' 4 1/4" (100 1/4") | 6' 2" (74") | 2211 |
| SMS-47-4U-10L-21D-4 | 14' 0" (168") | 10' 4 1/4" (124 1/4") | 6' 2" (74") | 2873.25 |
| SMS-47-3U-10L-24D-4 | 14' 0" (168") | 10' 4 1/4" (124 1/4") | 6' 2" (74") | 2741 |
| SMS-47-2U-10L-27D-4 | 14' 0" (168") | 10' 4 1/4" (124 1/4") | 6' 2" (74") | 2364.5 |
| SMS-47-2U-10L-30D-4 | 14' 0" (168") | 10' 4 1/4" (124 1/4") | 6' 2" (74") | 2691 |
| SMS-47-4U-12L-21D-4 | 14' 0" (168") | 12' 4 1/4" (148 1/4") | 6' 2" (74") | 3377.25 |
| SMS-47-3U-12L-24D-4 | 14' 0" (168") | 12' 4 1/4" (148 1/4") | 6' 2" (74") | 3221 |
| SMS-47-2U-12L-27D-4 | 14' 0" (168") | 12' 4 1/4" (148 1/4") | 6' 2" (74") | 2796.5 |
| SMS-47-2U-12L-30D-4 | 14' 0" (168") | 12' 4 1/4" (148 1/4") | 6' 2" (74") | 3171 |
| SMS-47-6U-2L-18D-4 | 16' 0" (192") | 2' 2 3/4" (26 3/4") | 6' 2" (74") | 525 |
| SMS-47-5U-2L-21D-4 | 16' 0" (192") | 2' 2 3/4" (26 3/4") | 6' 2" (74") | 489.6875 |
| SMS-47-4U-2L-24D-4 | 16' 0" (192") | 2' 2 3/4" (26 3/4") | 6' 2" (74") | 491 |
| SMS-47-3U-2L-27D-4 | 16' 0" (192") | 2' 2 3/4" (26 3/4") | 6' 2" (74") | 380.9375 |
| SMS-47-3U-2L-30D-4 | 16' 0" (192") | 2' 2 3/4" (26 3/4") | 6' 2" (74") | 480.375 |
| SMS-47-2U-2L-33D-4 | 16' 0" (192") | 2' 2 3/4" (26 3/4") | 6' 2" (74") | 358.25 |
| SMS-47-2U-2L-36D-4 | 16' 0" (192") | 2' 2 3/4" (26 3/4") | 6' 2" (74") | 439 |
| SMS-47-6U-3L-18D-4 | 16' 0" (192") | 3' 2 3/4" (38 3/4") | 6' 2" (74") | 669 |
| SMS-47-5U-3L-21D-4 | 16' 0" (192") | 3' 2 3/4" (38 3/4") | 6' 2" (74") | 636.6875 |
| SMS-47-4U-3L-24D-4 | 16' 0" (192") | 3' 2 3/4" (38 3/4") | 6' 2" (74") | 635 |
| SMS-47-3U-3L-27D-4 | 16' 0" (192") | 3' 2 3/4" (38 3/4") | 6' 2" (74") | 515.9375 |
| SMS-47-3U-3L-30D-4 | 16' 0" (192") | 3' 2 3/4" (38 3/4") | 6' 2" (74") | 630.375 |
| SMS-47-2U-3L-33D-4 | 16' 0" (192") | 3' 2 3/4" (38 3/4") | 6' 2" (74") | 490.25 |
| SMS-47-2U-3L-36D-4 | 16' 0" (192") | 3' 2 3/4" (38 3/4") | 6' 2" (74") | 583 |
| SMS-47-6U-4L-18D-4 | 16' 0" (192") | 4' 2 3/4" (50 3/4") | 6' 2" (74") | 813 |
| SMS-47-5U-4L-21D-4 | 16' 0" (192") | 4' 2 3/4" (50 3/4") | 6' 2" (74") | 783.6875 |
| SMS-47-4U-4L-24D-4 | 16' 0" (192") | 4' 2 3/4" (50 3/4") | 6' 2" (74") | 779 |
| SMS-47-3U-4L-27D-4 | 16' 0" (192") | 4' 2 3/4" (50 3/4") | 6' 2" (74") | 650.9375 |
| SMS-47-3U-4L-30D-4 | 16' 0" (192") | 4' 2 3/4" (50 3/4") | 6' 2" (74") | 780.375 |
| SMS-47-2U-4L-33D-4 | 16' 0" (192") | 4' 2 3/4" (50 3/4") | 6' 2" (74") | 622.25 |
| SMS-47-2U-4L-36D-4 | 16' 0" (192") | 4' 2 3/4" (50 3/4") | 6' 2" (74") | 727 |
| SMS-47-6U-5L-18D-4 | 16' 0" (192") | 5' 2 3/4" (62 3/4") | 6' 2" (74") | 957 |
| SMS-47-5U-5L-21D-4 | 16' 0" (192") | 5' 2 3/4" (62 3/4") | 6' 2" (74") | 930.6875 |
| SMS-47-4U-5L-24D-4 | 16' 0" (192") | 5' 2 3/4" (62 3/4") | 6' 2" (74") | 923 |
| SMS-47-3U-5L-27D-4 | 16' 0" (192") | 5' 2 3/4" (62 3/4") | 6' 2" (74") | 785.9375 |
| SMS-47-3U-5L-30D-4 | 16' 0" (192") | 5' 2 3/4" (62 3/4") | 6' 2" (74") | 930.375 |
| SMS-47-2U-5L-33D-4 | 16' 0" (192") | 5' 2 3/4" (62 3/4") | 6' 2" (74") | 754.25 |
| SMS-47-2U-5L-36D-4 | 16' 0" (192") | 5' 2 3/4" (62 3/4") | 6' 2" (74") | 871 |
| SMS-47-6U-6L-18D-4 | 16' 0" (192") | 6' 2 3/4" (74 3/4") | 6' 2" (74") | 1101 |
| SMS-47-5U-6L-21D-4 | 16' 0" (192") | 6' 2 3/4" (74 3/4") | 6' 2" (74") | 1077.6875 |
| SMS-47-4U-6L-24D-4 | 16' 0" (192") | 6' 2 3/4" (74 3/4") | 6' 2" (74") | 1067 |
| SMS-47-3U-6L-27D-4 | 16' 0" (192") | 6' 2 3/4" (74 3/4") | 6' 2" (74") | 920.9375 |
| SMS-47-3U-6L-30D-4 | 16' 0" (192") | 6' 2 3/4" (74 3/4") | 6' 2" (74") | 1080.375 |
| SMS-47-2U-6L-33D-4 | 16' 0" (192") | 6' 2 3/4" (74 3/4") | 6' 2" (74") | 886.25 |
| SMS-47-2U-6L-36D-4 | 16' 0" (192") | 6' 2 3/4" (74 3/4") | 6' 2" (74") | 1015 |
| SMS-47-6U-8L-18D-4 | 16' 0" (192") | 8' 4 1/4" (100 1/4") | 6' 2" (74") | 2794 |
| SMS-47-5U-8L-21D-4 | 16' 0" (192") | 8' 4 1/4" (100 1/4") | 6' 2" (74") | 2770.125 |
| SMS-47-4U-8L-24D-4 | 16' 0" (192") | 8' 4 1/4" (100 1/4") | 6' 2" (74") | 2721 |
| SMS-47-3U-8L-27D-4 | 16' 0" (192") | 8' 4 1/4" (100 1/4") | 6' 2" (74") | 2415.625 |
| SMS-47-3U-8L-30D-4 | 16' 0" (192") | 8' 4 1/4" (100 1/4") | 6' 2" (74") | 2774.25 |
| SMS-47-2U-8L-33D-4 | 16' 0" (192") | 8' 4 1/4" (100 1/4") | 6' 2" (74") | 2333.5 |
| SMS-47-2U-8L-36D-4 | 16' 0" (192") | 8' 4 1/4" (100 1/4") | 6' 2" (74") | 2621 |
| SMS-47-6U-10L-18D-4 | 16' 0" (192") | 10' 4 1/4" (124 1/4") | 6' 2" (74") | 3370 |
| SMS-47-5U-10L-21D-4 | 16' 0" (192") | 10' 4 1/4" (124 1/4") | 6' 2" (74") | 3358.125 |
| SMS-47-4U-10L-24D-4 | 16' 0" (192") | 10' 4 1/4" (124 1/4") | 6' 2" (74") | 3297 |
| SMS-47-3U-10L-27D-4 | 16' 0" (192") | 10' 4 1/4" (124 1/4") | 6' 2" (74") | 2955.625 |
| SMS-47-3U-10L-30D-4 | 16' 0" (192") | 10' 4 1/4" (124 1/4") | 6' 2" (74") | 3374.25 |
| SMS-47-2U-10L-33D-4 | 16' 0" (192") | 10' 4 1/4" (124 1/4") | 6' 2" (74") | 2861.5 |
| SMS-47-2U-10L-36D-4 | 16' 0" (192") | 10' 4 1/4" (124 1/4") | 6' 2" (74") | 3197 |
| SMS-47-6U-12L-18D-4 | 16' 0" (192") | 12' 4 1/4" (148 1/4") | 6' 2" (74") | 3946 |
| SMS-47-5U-12L-21D-4 | 16' 0" (192") | 12' 4 1/4" (148 1/4") | 6' 2" (74") | 3946.125 |
| SMS-47-4U-12L-24D-4 | 16' 0" (192") | 12' 4 1/4" (148 1/4") | 6' 2" (74") | 3873 |
| SMS-47-3U-12L-27D-4 | 16' 0" (192") | 12' 4 1/4" (148 1/4") | 6' 2" (74") | 3495.625 |
| SMS-47-3U-12L-30D-4 | 16' 0" (192") | 12' 4 1/4" (148 1/4") | 6' 2" (74") | 3974.25 |
| SMS-47-2U-12L-33D-4 | 16' 0" (192") | 12' 4 1/4" (148 1/4") | 6' 2" (74") | 3389.5 |
| SMS-47-2U-12L-36D-4 | 16' 0" (192") | 12' 4 1/4" (148 1/4") | 6' 2" (74") | 3773 |
| SMS-47-8U-2L-18D-4 | 19' 0" (228") | 2' 2 3/4" (26 3/4") | 6' 2" (74") | 659.25 |
| SMS-47-6U-2L-21D-4 | 19' 0" (228") | 2' 2 3/4" (26 3/4") | 6' 2" (74") | 562.5 |
| SMS-47-5U-2L-24D-4 | 19' 0" (228") | 2' 2 3/4" (26 3/4") | 6' 2" (74") | 578.5 |
| SMS-47-4U-2L-27D-4 | 19' 0" (228") | 2' 2 3/4" (26 3/4") | 6' 2" (74") | 457.125 |
| SMS-47-4U-2L-30D-4 | 19' 0" (228") | 2' 2 3/4" (26 3/4") | 6' 2" (74") | 583.25 |
| SMS-47-3U-2L-33D-4 | 19' 0" (228") | 2' 2 3/4" (26 3/4") | 6' 2" (74") | 447.8125 |
| SMS-47-3U-2L-36D-4 | 19' 0" (228") | 2' 2 3/4" (26 3/4") | 6' 2" (74") | 557.25 |
| SMS-47-8U-3L-18D-4 | 19' 0" (228") | 3' 2 3/4" (38 3/4") | 6' 2" (74") | 839.25 |
| SMS-47-6U-3L-21D-4 | 19' 0" (228") | 3' 2 3/4" (38 3/4") | 6' 2" (74") | 730.5 |
| SMS-47-5U-3L-24D-4 | 19' 0" (228") | 3' 2 3/4" (38 3/4") | 6' 2" (74") | 746.5 |
| SMS-47-4U-3L-27D-4 | 19' 0" (228") | 3' 2 3/4" (38 3/4") | 6' 2" (74") | 619.125 |
| SMS-47-4U-3L-30D-4 | 19' 0" (228") | 3' 2 3/4" (38 3/4") | 6' 2" (74") | 763.25 |
| SMS-47-3U-3L-33D-4 | 19' 0" (228") | 3' 2 3/4" (38 3/4") | 6' 2" (74") | 612.8125 |
| SMS-47-3U-3L-36D-4 | 19' 0" (228") | 3' 2 3/4" (38 3/4") | 6' 2" (74") | 737.25 |
| SMS-47-8U-4L-18D-4 | 19' 0" (228") | 4' 2 3/4" (50 3/4") | 6' 2" (74") | 1019.25 |
| SMS-47-6U-4L-21D-4 | 19' 0" (228") | 4' 2 3/4" (50 3/4") | 6' 2" (74") | 898.5 |
| SMS-47-5U-4L-24D-4 | 19' 0" (228") | 4' 2 3/4" (50 3/4") | 6' 2" (74") | 914.5 |
| SMS-47-4U-4L-27D-4 | 19' 0" (228") | 4' 2 3/4" (50 3/4") | 6' 2" (74") | 781.125 |
| SMS-47-4U-4L-30D-4 | 19' 0" (228") | 4' 2 3/4" (50 3/4") | 6' 2" (74") | 943.25 |
| SMS-47-3U-4L-33D-4 | 19' 0" (228") | 4' 2 3/4" (50 3/4") | 6' 2" (74") | 777.8125 |
| SMS-47-3U-4L-36D-4 | 19' 0" (228") | 4' 2 3/4" (50 3/4") | 6' 2" (74") | 917.25 |
| SMS-47-8U-5L-18D-4 | 19' 0" (228") | 5' 2 3/4" (62 3/4") | 6' 2" (74") | 1199.25 |
| SMS-47-6U-5L-21D-4 | 19' 0" (228") | 5' 2 3/4" (62 3/4") | 6' 2" (74") | 1066.5 |
| SMS-47-5U-5L-24D-4 | 19' 0" (228") | 5' 2 3/4" (62 3/4") | 6' 2" (74") | 1082.5 |
| SMS-47-4U-5L-27D-4 | 19' 0" (228") | 5' 2 3/4" (62 3/4") | 6' 2" (74") | 943.125 |
| SMS-47-4U-5L-30D-4 | 19' 0" (228") | 5' 2 3/4" (62 3/4") | 6' 2" (74") | 1123.25 |
| SMS-47-3U-5L-33D-4 | 19' 0" (228") | 5' 2 3/4" (62 3/4") | 6' 2" (74") | 942.8125 |
| SMS-47-3U-5L-36D-4 | 19' 0" (228") | 5' 2 3/4" (62 3/4") | 6' 2" (74") | 1097.25 |
| SMS-47-8U-6L-18D-4 | 19' 0" (228") | 6' 2 3/4" (74 3/4") | 6' 2" (74") | 1379.25 |
| SMS-47-6U-6L-21D-4 | 19' 0" (228") | 6' 2 3/4" (74 3/4") | 6' 2" (74") | 1234.5 |
| SMS-47-5U-6L-24D-4 | 19' 0" (228") | 6' 2 3/4" (74 3/4") | 6' 2" (74") | 1250.5 |
| SMS-47-4U-6L-27D-4 | 19' 0" (228") | 6' 2 3/4" (74 3/4") | 6' 2" (74") | 1105.125 |
| SMS-47-4U-6L-30D-4 | 19' 0" (228") | 6' 2 3/4" (74 3/4") | 6' 2" (74") | 1303.25 |
| SMS-47-3U-6L-33D-4 | 19' 0" (228") | 6' 2 3/4" (74 3/4") | 6' 2" (74") | 1107.8125 |
| SMS-47-3U-6L-36D-4 | 19' 0" (228") | 6' 2 3/4" (74 3/4") | 6' 2" (74") | 1277.25 |
| SMS-47-8U-8L-18D-4 | 19' 0" (228") | 8' 4 1/4" (100 1/4") | 6' 2" (74") | 3498.5 |
| SMS-47-6U-8L-21D-4 | 19' 0" (228") | 8' 4 1/4" (100 1/4") | 6' 2" (74") | 3171 |
| SMS-47-5U-8L-24D-4 | 19' 0" (228") | 8' 4 1/4" (100 1/4") | 6' 2" (74") | 3184 |
| SMS-47-4U-8L-27D-4 | 19' 0" (228") | 8' 4 1/4" (100 1/4") | 6' 2" (74") | 2898.75 |
| SMS-47-4U-8L-30D-4 | 19' 0" (228") | 8' 4 1/4" (100 1/4") | 6' 2" (74") | 3340.5 |
| SMS-47-3U-8L-33D-4 | 19' 0" (228") | 8' 4 1/4" (100 1/4") | 6' 2" (74") | 2916.875 |
| SMS-47-3U-8L-36D-4 | 19' 0" (228") | 8' 4 1/4" (100 1/4") | 6' 2" (74") | 3290.5 |
| SMS-47-8U-10L-18D-4 | 19' 0" (228") | 10' 4 1/4" (124 1/4") | 6' 2" (74") | 4218.5 |
| SMS-47-6U-10L-21D-4 | 19' 0" (228") | 10' 4 1/4" (124 1/4") | 6' 2" (74") | 3843 |
| SMS-47-5U-10L-24D-4 | 19' 0" (228") | 10' 4 1/4" (124 1/4") | 6' 2" (74") | 3856 |
| SMS-47-4U-10L-27D-4 | 19' 0" (228") | 10' 4 1/4" (124 1/4") | 6' 2" (74") | 3546.75 |
| SMS-47-4U-10L-30D-4 | 19' 0" (228") | 10' 4 1/4" (124 1/4") | 6' 2" (74") | 4060.5 |
| SMS-47-3U-10L-33D-4 | 19' 0" (228") | 10' 4 1/4" (124 1/4") | 6' 2" (74") | 3576.875 |
| SMS-47-3U-10L-36D-4 | 19' 0" (228") | 10' 4 1/4" (124 1/4") | 6' 2" (74") | 4010.5 |
| SMS-47-8U-12L-18D-4 | 19' 0" (228") | 12' 4 1/4" (148 1/4") | 6' 2" (74") | 4938.5 |
| SMS-47-6U-12L-21D-4 | 19' 0" (228") | 12' 4 1/4" (148 1/4") | 6' 2" (74") | 4515 |
| SMS-47-5U-12L-24D-4 | 19' 0" (228") | 12' 4 1/4" (148 1/4") | 6' 2" (74") | 4528 |
| SMS-47-4U-12L-27D-4 | 19' 0" (228") | 12' 4 1/4" (148 1/4") | 6' 2" (74") | 4194.75 |
| SMS-47-4U-12L-30D-4 | 19' 0" (228") | 12' 4 1/4" (148 1/4") | 6' 2" (74") | 4780.5 |
| SMS-47-3U-12L-33D-4 | 19' 0" (228") | 12' 4 1/4" (148 1/4") | 6' 2" (74") | 4236.875 |
| SMS-47-3U-12L-36D-4 | 19' 0" (228") | 12' 4 1/4" (148 1/4") | 6' 2" (74") | 4730.5 |
| SMS-47-10U-2L-18D-4 | 22' 0" (264") | 2' 2 3/4" (26 3/4") | 6' 2" (74") | 793.5 |
| SMS-47-8U-2L-21D-4 | 22' 0" (264") | 2' 2 3/4" (26 3/4") | 6' 2" (74") | 708.125 |
| SMS-47-7U-2L-24D-4 | 22' 0" (264") | 2' 2 3/4" (26 3/4") | 6' 2" (74") | 747.5 |
| SMS-47-6U-2L-27D-4 | 22' 0" (264") | 2' 2 3/4" (26 3/4") | 6' 2" (74") | 609.5 |
| SMS-47-5U-2L-30D-4 | 22' 0" (264") | 2' 2 3/4" (26 3/4") | 6' 2" (74") | 686.125 |
| SMS-47-4U-2L-33D-4 | 22' 0" (264") | 2' 2 3/4" (26 3/4") | 6' 2" (74") | 537.375 |
| SMS-47-4U-2L-36D-4 | 22' 0" (264") | 2' 2 3/4" (26 3/4") | 6' 2" (74") | 675.5 |
| SMS-47-10U-3L-18D-4 | 22' 0" (264") | 3' 2 3/4" (38 3/4") | 6' 2" (74") | 1009.5 |
| SMS-47-8U-3L-21D-4 | 22' 0" (264") | 3' 2 3/4" (38 3/4") | 6' 2" (74") | 918.125 |
| SMS-47-7U-3L-24D-4 | 22' 0" (264") | 3' 2 3/4" (38 3/4") | 6' 2" (74") | 963.5 |
| SMS-47-6U-3L-27D-4 | 22' 0" (264") | 3' 2 3/4" (38 3/4") | 6' 2" (74") | 825.5 |
| SMS-47-5U-3L-30D-4 | 22' 0" (264") | 3' 2 3/4" (38 3/4") | 6' 2" (74") | 896.125 |
| SMS-47-4U-3L-33D-4 | 22' 0" (264") | 3' 2 3/4" (38 3/4") | 6' 2" (74") | 735.375 |
| SMS-47-4U-3L-36D-4 | 22' 0" (264") | 3' 2 3/4" (38 3/4") | 6' 2" (74") | 891.5 |
| SMS-47-10U-4L-18D-4 | 22' 0" (264") | 4' 2 3/4" (50 3/4") | 6' 2" (74") | 1225.5 |
| SMS-47-8U-4L-21D-4 | 22' 0" (264") | 4' 2 3/4" (50 3/4") | 6' 2" (74") | 1128.125 |
| SMS-47-7U-4L-24D-4 | 22' 0" (264") | 4' 2 3/4" (50 3/4") | 6' 2" (74") | 1179.5 |
| SMS-47-6U-4L-27D-4 | 22' 0" (264") | 4' 2 3/4" (50 3/4") | 6' 2" (74") | 1041.5 |
| SMS-47-5U-4L-30D-4 | 22' 0" (264") | 4' 2 3/4" (50 3/4") | 6' 2" (74") | 1106.125 |
| SMS-47-4U-4L-33D-4 | 22' 0" (264") | 4' 2 3/4" (50 3/4") | 6' 2" (74") | 933.375 |
| SMS-47-4U-4L-36D-4 | 22' 0" (264") | 4' 2 3/4" (50 3/4") | 6' 2" (74") | 1107.5 |
| SMS-47-10U-5L-18D-4 | 22' 0" (264") | 5' 2 3/4" (62 3/4") | 6' 2" (74") | 1441.5 |
| SMS-47-8U-5L-21D-4 | 22' 0" (264") | 5' 2 3/4" (62 3/4") | 6' 2" (74") | 1338.125 |
| SMS-47-7U-5L-24D-4 | 22' 0" (264") | 5' 2 3/4" (62 3/4") | 6' 2" (74") | 1395.5 |
| SMS-47-6U-5L-27D-4 | 22' 0" (264") | 5' 2 3/4" (62 3/4") | 6' 2" (74") | 1257.5 |
| SMS-47-5U-5L-30D-4 | 22' 0" (264") | 5' 2 3/4" (62 3/4") | 6' 2" (74") | 1316.125 |
| SMS-47-4U-5L-33D-4 | 22' 0" (264") | 5' 2 3/4" (62 3/4") | 6' 2" (74") | 1131.375 |
| SMS-47-4U-5L-36D-4 | 22' 0" (264") | 5' 2 3/4" (62 3/4") | 6' 2" (74") | 1323.5 |
| SMS-47-10U-6L-18D-4 | 22' 0" (264") | 6' 2 3/4" (74 3/4") | 6' 2" (74") | 1657.5 |
| SMS-47-8U-6L-21D-4 | 22' 0" (264") | 6' 2 3/4" (74 3/4") | 6' 2" (74") | 1548.125 |
| SMS-47-7U-6L-24D-4 | 22' 0" (264") | 6' 2 3/4" (74 3/4") | 6' 2" (74") | 1611.5 |
| SMS-47-6U-6L-27D-4 | 22' 0" (264") | 6' 2 3/4" (74 3/4") | 6' 2" (74") | 1473.5 |
| SMS-47-5U-6L-30D-4 | 22' 0" (264") | 6' 2 3/4" (74 3/4") | 6' 2" (74") | 1526.125 |
| SMS-47-4U-6L-33D-4 | 22' 0" (264") | 6' 2 3/4" (74 3/4") | 6' 2" (74") | 1329.375 |
| SMS-47-4U-6L-36D-4 | 22' 0" (264") | 6' 2 3/4" (74 3/4") | 6' 2" (74") | 1539.5 |
| SMS-47-10U-8L-18D-4 | 22' 0" (264") | 8' 4 1/4" (100 1/4") | 6' 2" (74") | 4203 |
| SMS-47-8U-8L-21D-4 | 22' 0" (264") | 8' 4 1/4" (100 1/4") | 6' 2" (74") | 3972.75 |
| SMS-47-7U-8L-24D-4 | 22' 0" (264") | 8' 4 1/4" (100 1/4") | 6' 2" (74") | 4101 |
| SMS-47-6U-8L-27D-4 | 22' 0" (264") | 8' 4 1/4" (100 1/4") | 6' 2" (74") | 3865 |
| SMS-47-5U-8L-30D-4 | 22' 0" (264") | 8' 4 1/4" (100 1/4") | 6' 2" (74") | 3906.75 |
| SMS-47-4U-8L-33D-4 | 22' 0" (264") | 8' 4 1/4" (100 1/4") | 6' 2" (74") | 3500.25 |
| SMS-47-4U-8L-36D-4 | 22' 0" (264") | 8' 4 1/4" (100 1/4") | 6' 2" (74") | 3960 |
| SMS-47-10U-10L-18D-4 | 22' 0" (264") | 10' 4 1/4" (124 1/4") | 6' 2" (74") | 5067 |
| SMS-47-8U-10L-21D-4 | 22' 0" (264") | 10' 4 1/4" (124 1/4") | 6' 2" (74") | 4812.75 |
| SMS-47-7U-10L-24D-4 | 22' 0" (264") | 10' 4 1/4" (124 1/4") | 6' 2" (74") | 4965 |
| SMS-47-6U-10L-27D-4 | 22' 0" (264") | 10' 4 1/4" (124 1/4") | 6' 2" (74") | 4729 |
| SMS-47-5U-10L-30D-4 | 22' 0" (264") | 10' 4 1/4" (124 1/4") | 6' 2" (74") | 4746.75 |
| SMS-47-4U-10L-33D-4 | 22' 0" (264") | 10' 4 1/4" (124 1/4") | 6' 2" (74") | 4292.25 |
| SMS-47-4U-10L-36D-4 | 22' 0" (264") | 10' 4 1/4" (124 1/4") | 6' 2" (74") | 4824 |
| SMS-47-10U-12L-18D-4 | 22' 0" (264") | 12' 4 1/4" (148 1/4") | 6' 2" (74") | 5931 |
| SMS-47-8U-12L-21D-4 | 22' 0" (264") | 12' 4 1/4" (148 1/4") | 6' 2" (74") | 5652.75 |
| SMS-47-7U-12L-24D-4 | 22' 0" (264") | 12' 4 1/4" (148 1/4") | 6' 2" (74") | 5829 |
| SMS-47-6U-12L-27D-4 | 22' 0" (264") | 12' 4 1/4" (148 1/4") | 6' 2" (74") | 5593 |
| SMS-47-5U-12L-30D-4 | 22' 0" (264") | 12' 4 1/4" (148 1/4") | 6' 2" (74") | 5586.75 |
| SMS-47-4U-12L-33D-4 | 22' 0" (264") | 12' 4 1/4" (148 1/4") | 6' 2" (74") | 5084.25 |
| SMS-47-4U-12L-36D-4 | 22' 0" (264") | 12' 4 1/4" (148 1/4") | 6' 2" (74") | 5688 |
- SMS-47-3U-2L-18D-4144" W × 26 3/4" D × 74" H · Weight 324.625
- SMS-47-2U-2L-21D-4144" W × 26 3/4" D × 74" H · Weight 271.25
- SMS-47-2U-2L-24D-4144" W × 26 3/4" D × 74" H · Weight 320
- SMS-47-3U-3L-18D-4144" W × 38 3/4" D × 74" H · Weight 414.625
- SMS-47-2U-3L-21D-4144" W × 38 3/4" D × 74" H · Weight 355.25
- SMS-47-2U-3L-24D-4144" W × 38 3/4" D × 74" H · Weight 416
- SMS-47-3U-4L-18D-4144" W × 50 3/4" D × 74" H · Weight 504.625
- SMS-47-2U-4L-21D-4144" W × 50 3/4" D × 74" H · Weight 439.25
- SMS-47-2U-4L-24D-4144" W × 50 3/4" D × 74" H · Weight 512
- SMS-47-3U-5L-18D-4144" W × 62 3/4" D × 74" H · Weight 594.625
- SMS-47-2U-5L-21D-4144" W × 62 3/4" D × 74" H · Weight 523.25
- SMS-47-2U-5L-24D-4144" W × 62 3/4" D × 74" H · Weight 608
