2 Tier - 18"W x 18"D Column Laminate Day Lockers
Product SKU
SKU: SSG-2T-181872
Downloads
- 461 KB
- 8.1 MB
- 52 KB
Description
- Kit is designed for multiple user locker areas
- Locks are cable-free and battery powered
- Kit includes 12 total lockers

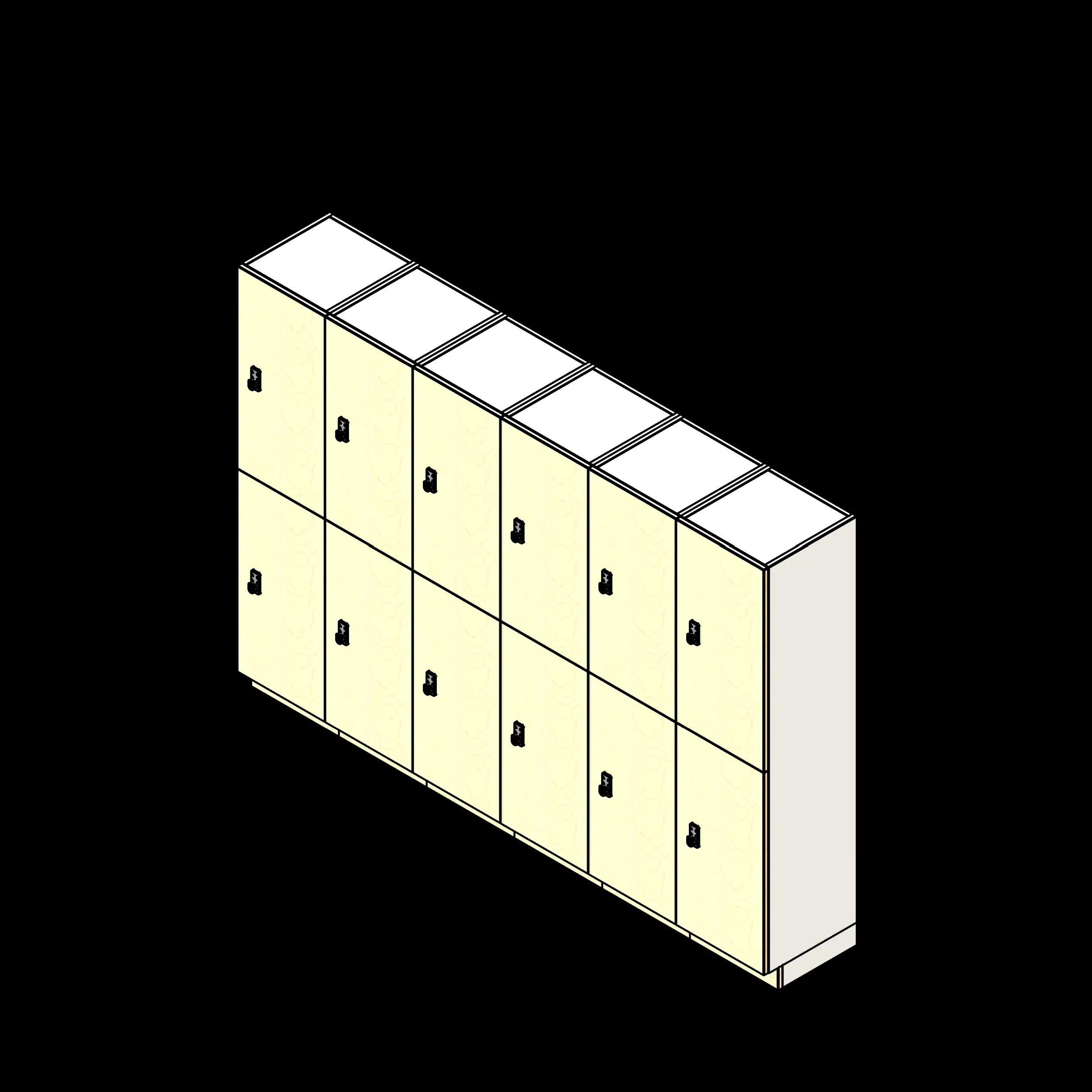

This two-tier laminate day-use locker kit of 18" W x 18" D columns provides 12 lockers for multiple-user storage areas in high-traffic settings. At 9'-0" wide, 1'-6" deep, and 6'-0" high, this configuration uses six Single or Double Door Laminate Locker components to provide two-tier storage within an 18-inch-deep footprint. It suits universities, airports, gyms, and offices where users need a temporary locker during the day and staff need to see which lockers are available. Keyless, cable-free, battery-powered locks avoid keys and external programming devices, while a bright LED identifies available lockers. The latch-bolt lock has burglary protection, a metal outer housing with a matte chrome front, and a stated lifespan of up to 100,000 closures. A master code is possible. Cabinets use 3/4-inch industrial-grade double-faced melamine substrate with 2 mm PVC edge banding and concealed cam fasteners, and are rail mounted for installation.
Each smart day use locker kit was created for high traffic applications like universities, airports, gyms, or offices. Each lock comes with a brightly shining LED which identifies available lockers. Locks are keyless and cable-free so they are unaffected by power outages.
Design
- Other lock type options can be chosen with a potential upcharge. Including Radial combination locks and RFID locks
- Angled top is optional
- Number of Doors, Width, Depth, and Height can be chosen to fill exact needs
| Dimensions | |
|---|---|
| Width | 18" |
| Cabinet Depth | 18" |
| Height | 72" |
| Depth | 18" |
| Product | |
| Left Hinge | 0 |
| Number of Columns | 6 |
| Day Locker Tiers | 2 |
| Primary Material | Laminate |
| Classification | |
| IFC | Furniture |
| OmniClass | 23-19 13 13 |
| Revit family | |
| Includes Pricing | Yes |
| ADA Compliant | No |
| Has MEP Connectors | No |
| Configurable options |
|
