· Updated Oct 9, 20242 Doors 3 Drawers Stainless Steel Cabinet
Product SKU
Description
- Most commonly used in restaurants, hospitals, labs, and other commercial areas
- All-welded cabinet is designed for additional strength
- Cabinet shelf and drawers combination is perfect for storing items in an organized manner
Revit 2020 (0.57 MB)
Revit 2021 (0.57 MB)
Revit 2022 (0.57 MB)
Revit 2023 (0.57 MB)
Revit 2024 (0.57 MB)
Revit 2025 (0.57 MB)
Revit 2026 (0.57 MB)
Revit 2027 (0.57 MB)
(0.16 MB)
Cabinet Doors and Drawers

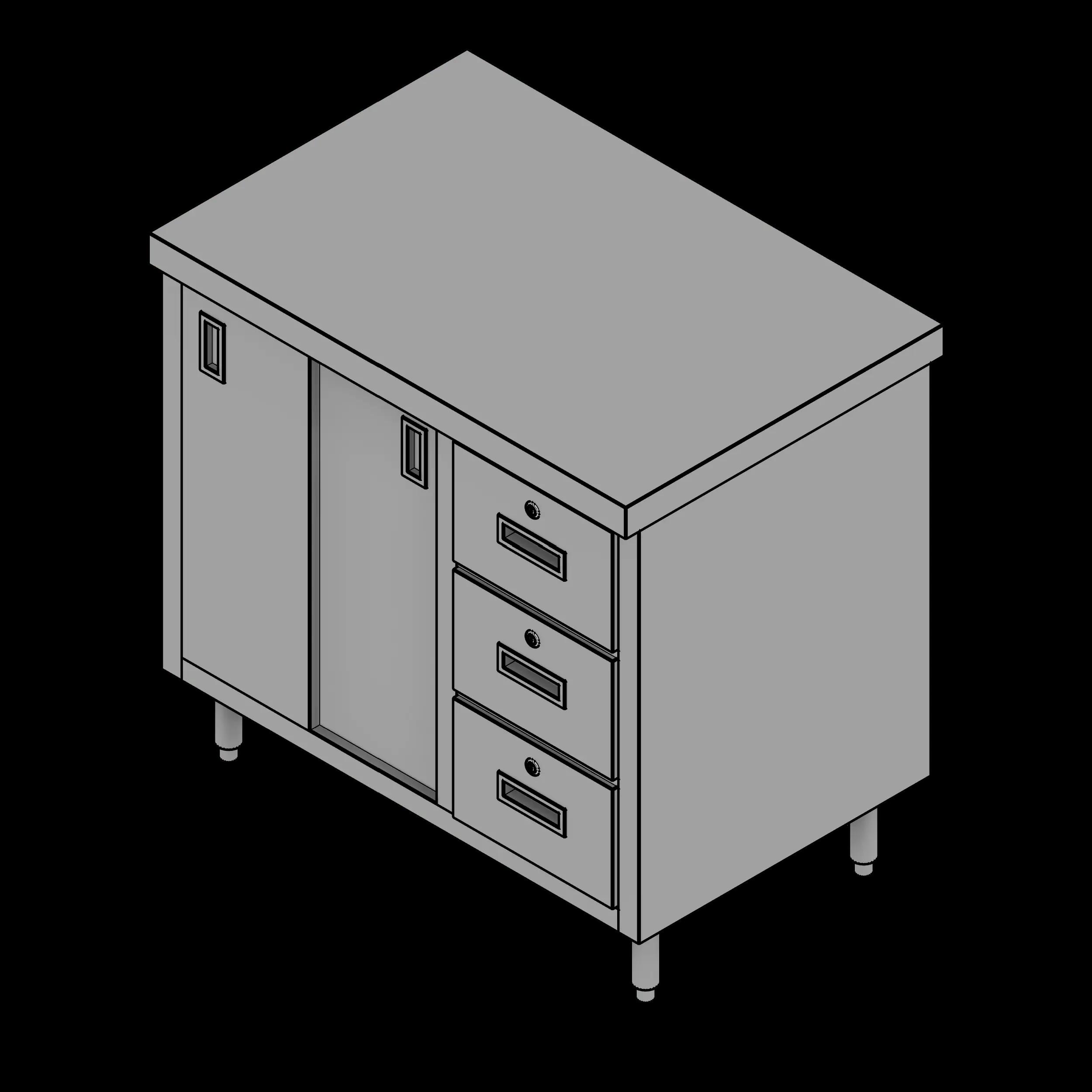

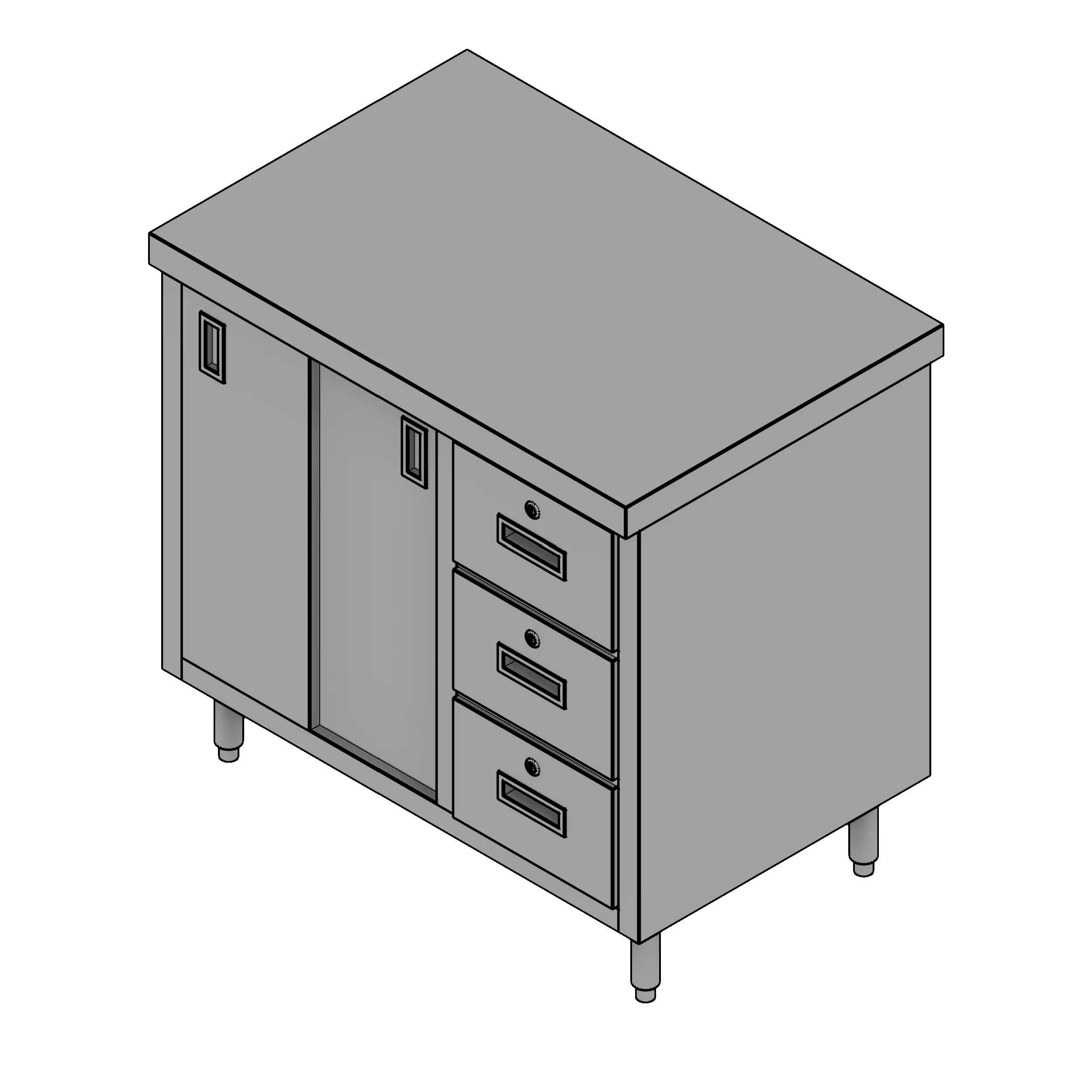

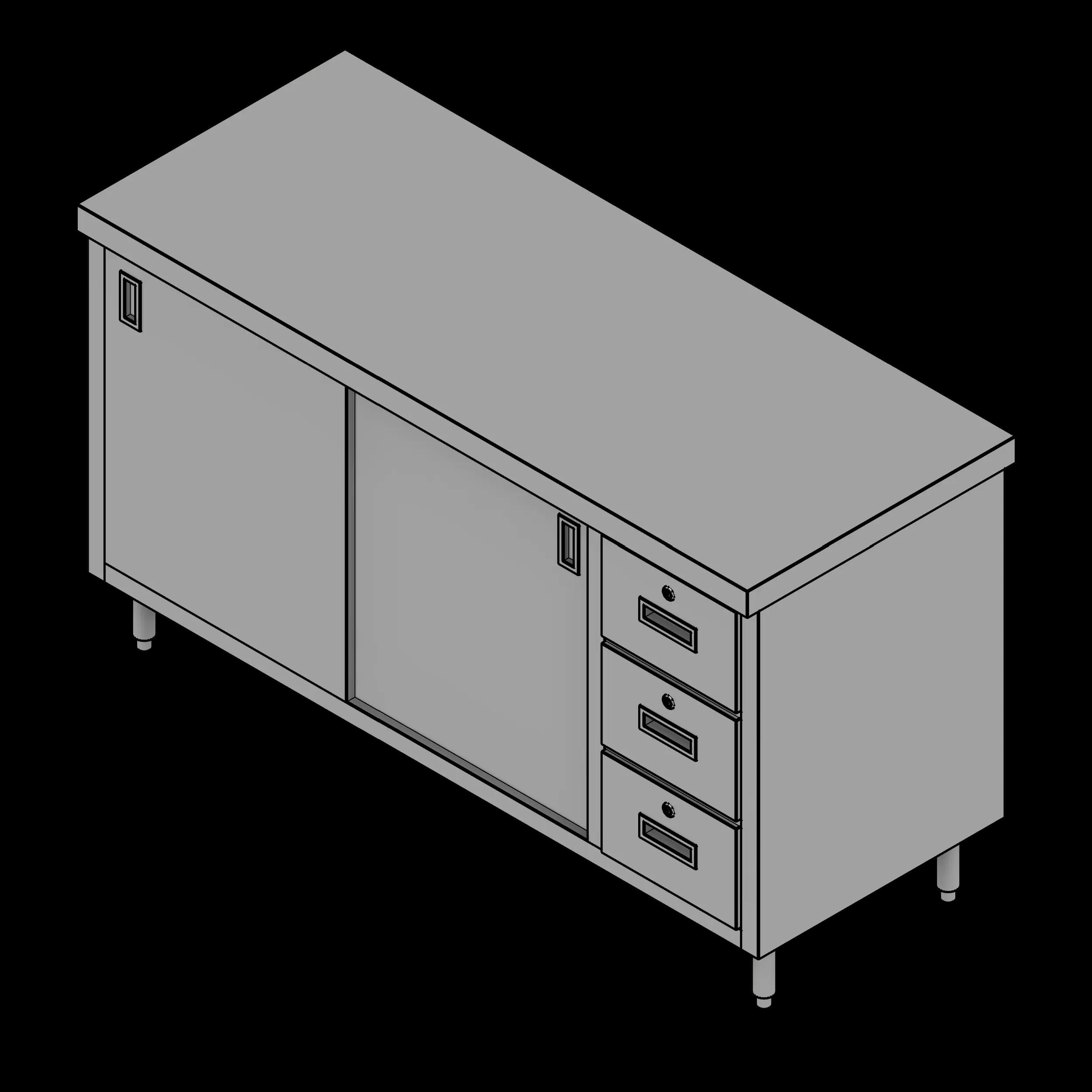

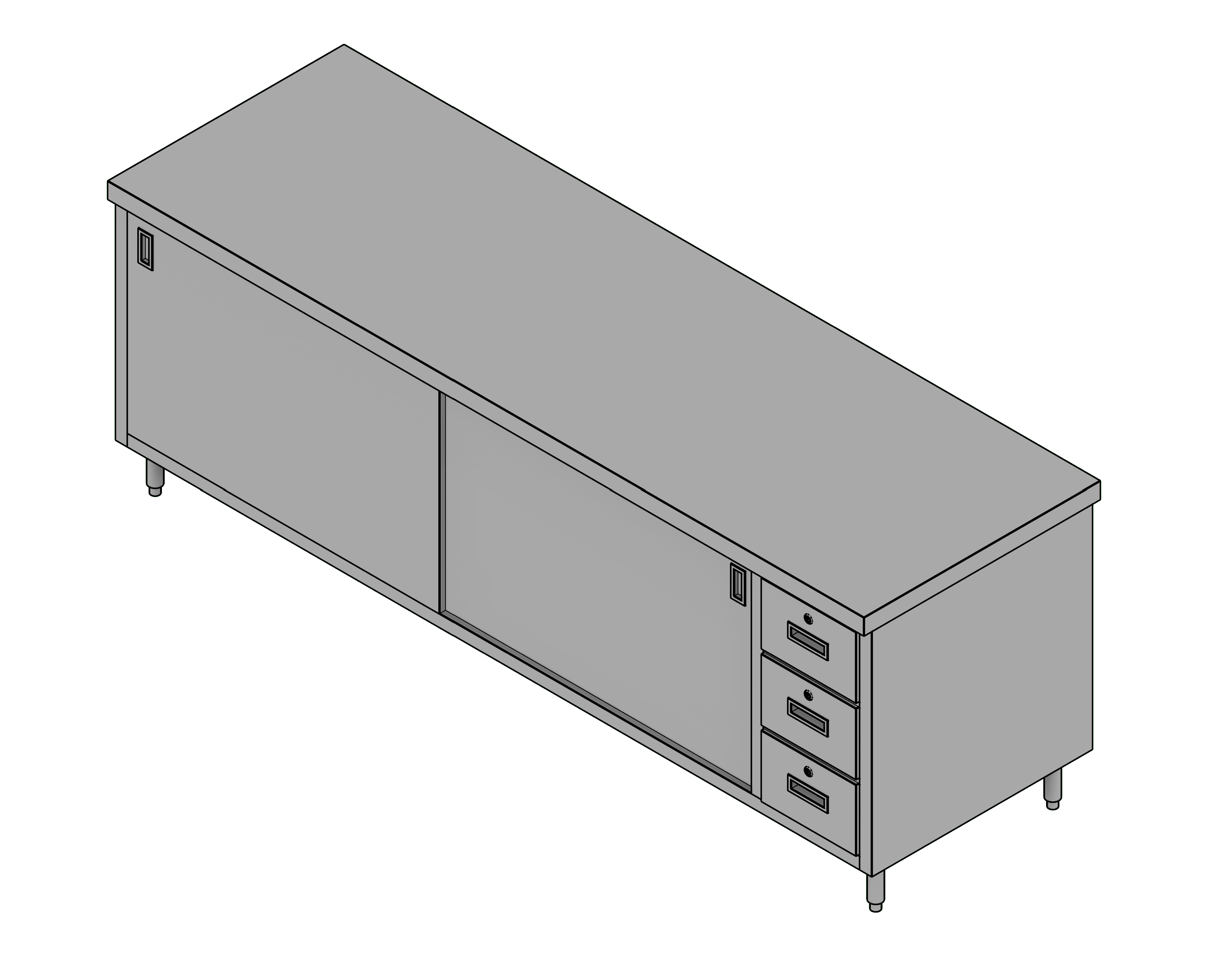

This all-welded cabinet with sliding doors and drawers is most commonly seen in hospitals, labs, restaurants, and other common settings. The drawers have the option to be individually keyed and include a stainless steel shelf. This commercial base cabinet is used for all types of storage applications.

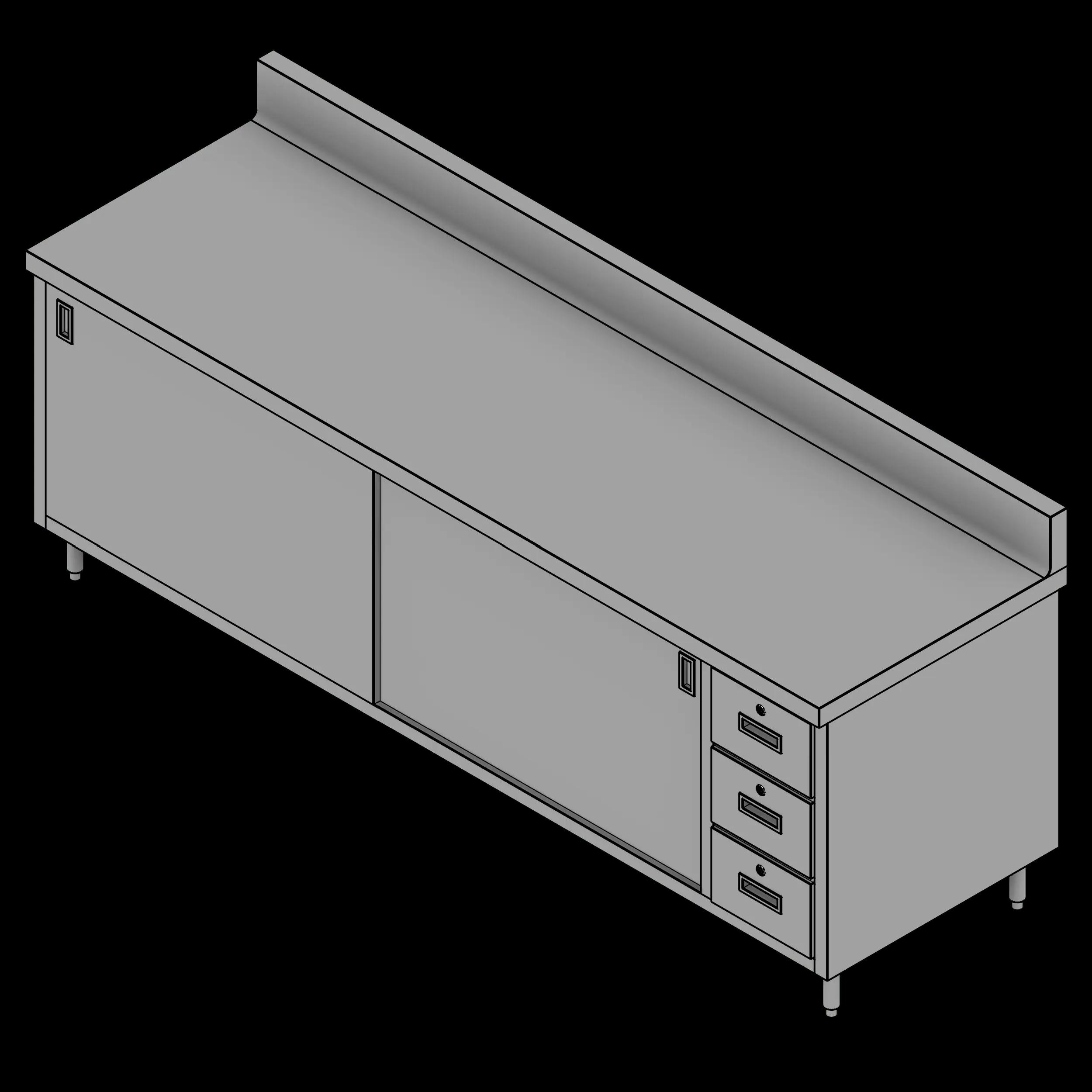

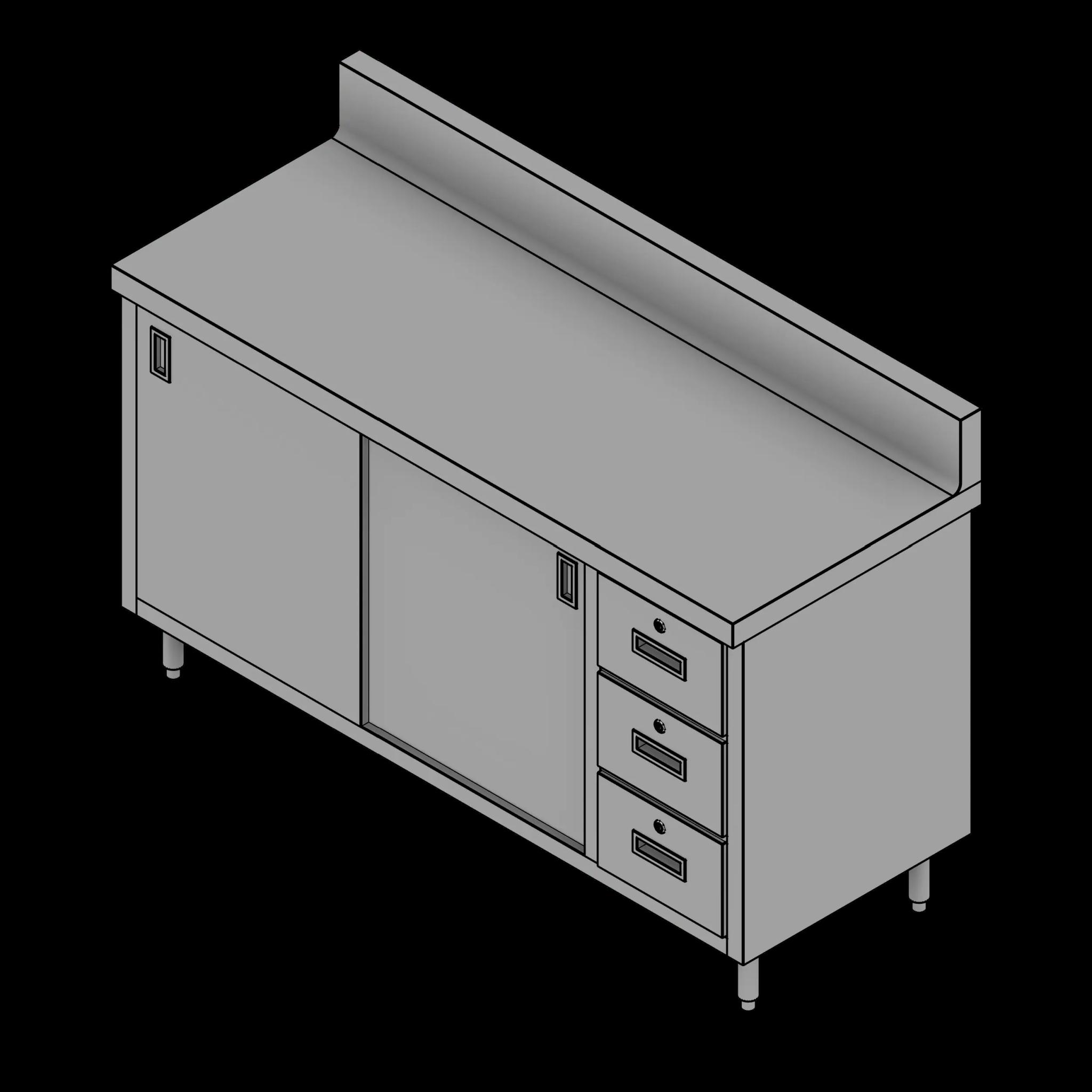

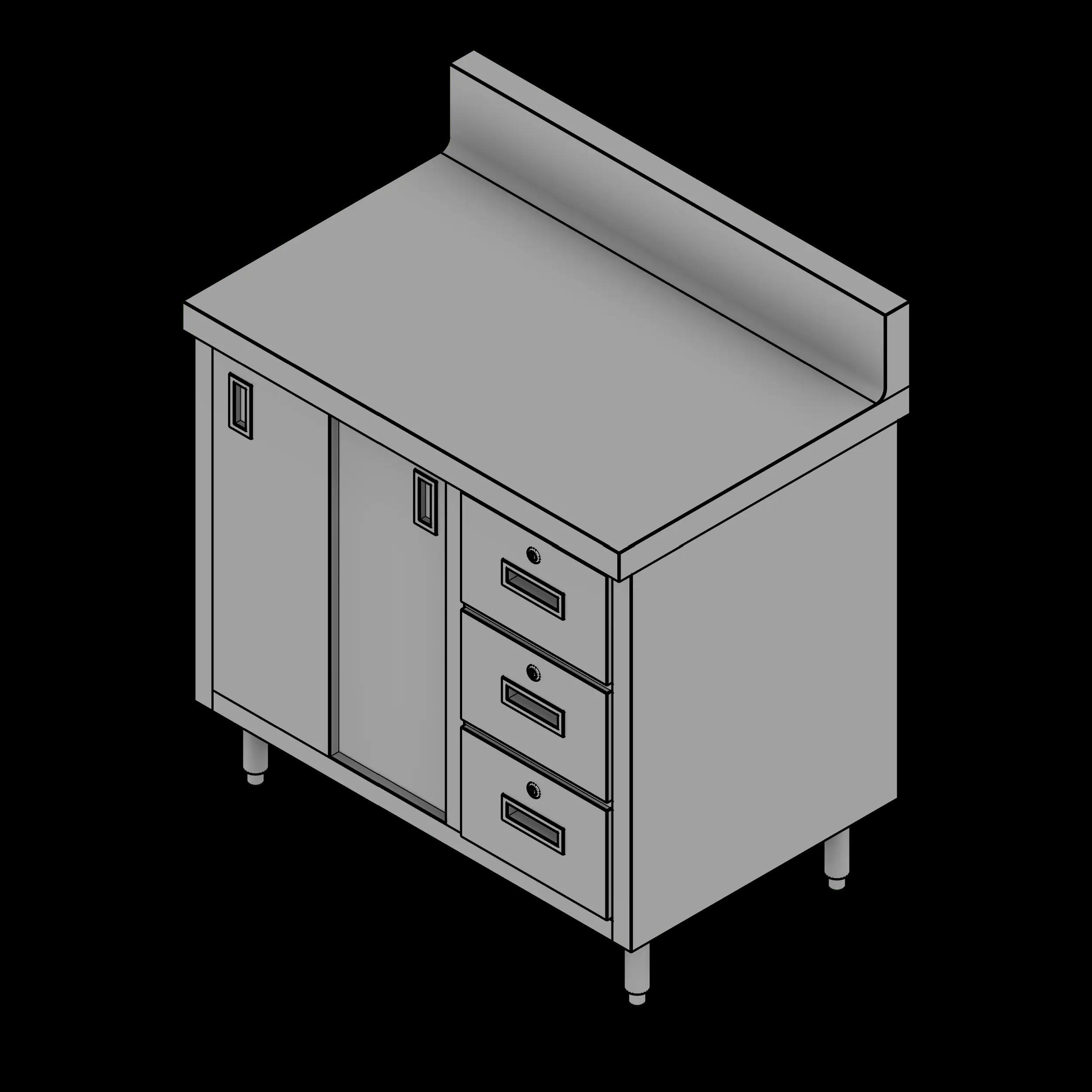

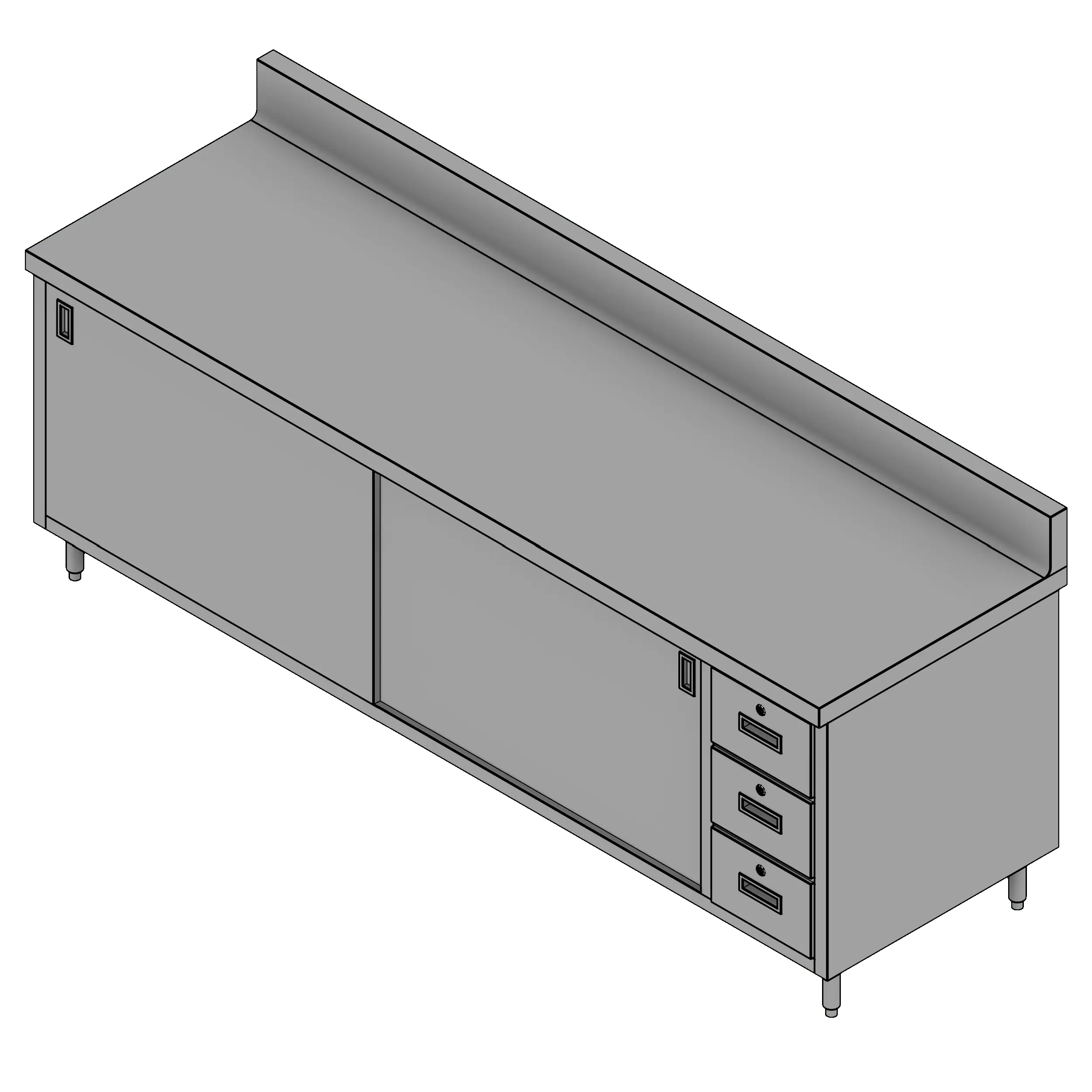

To use this family, insert it into your project from the fetch app and place it in your desired location. Under construction, you can add a backsplash to the base cabinet and locks to the drawers. In the dimensions tab, the width ranges from 36" to 96", and you can modify the depths by choosing either 24" or 30" depth.
| Parameter | Value |
|---|---|
| Standard Widths | 36" - 96" |
| Minimum Width | 3' 0" (36") |
| Maximum Width | 8' 0" (96") |
| Standard Depths | 24", 30" |
| Minimum Depth | 2' 0" (24") |
| Maximum Depth | 2' 6" (30") |
| Standard Heights | 35" |
| Minimum Height | 2' 11" (35") |
| Maximum Height | 2' 11" (35") |
| Manufacturer | Southwest Solutions Group_TAR |
| Lead Time | Contact SSG for more information |
| Model | SMS |
| MasterFormat | 10 56 26 – Mobile Storage Shelving |
| UniFormat | E1030 – Commercial Equipment |
| Property | Value |
|---|---|
| Includes Pricing | No |
| ADA Compliant | No |
| Has MEP Connectors | No |
| Primary Material | Stainless steel |
| IFC | Furniture |
| OmniClass | 23-21-25 11 13 |
