Pharmacy Double Contour Laminate End Panel

Product SKU

Description

  • Pricing is INCLUDED in model.
  • Used at end of run of Pharmacy Back Panels in an Island configuration to cover both sides of base cabinets.
a square with short lines outside the corner
Family
icon of a person with gears next to its head
Pricing
icon of a person with gears next to its head
ADA
Questions
Need some help? Send us a message if you have any sales or model related questions.

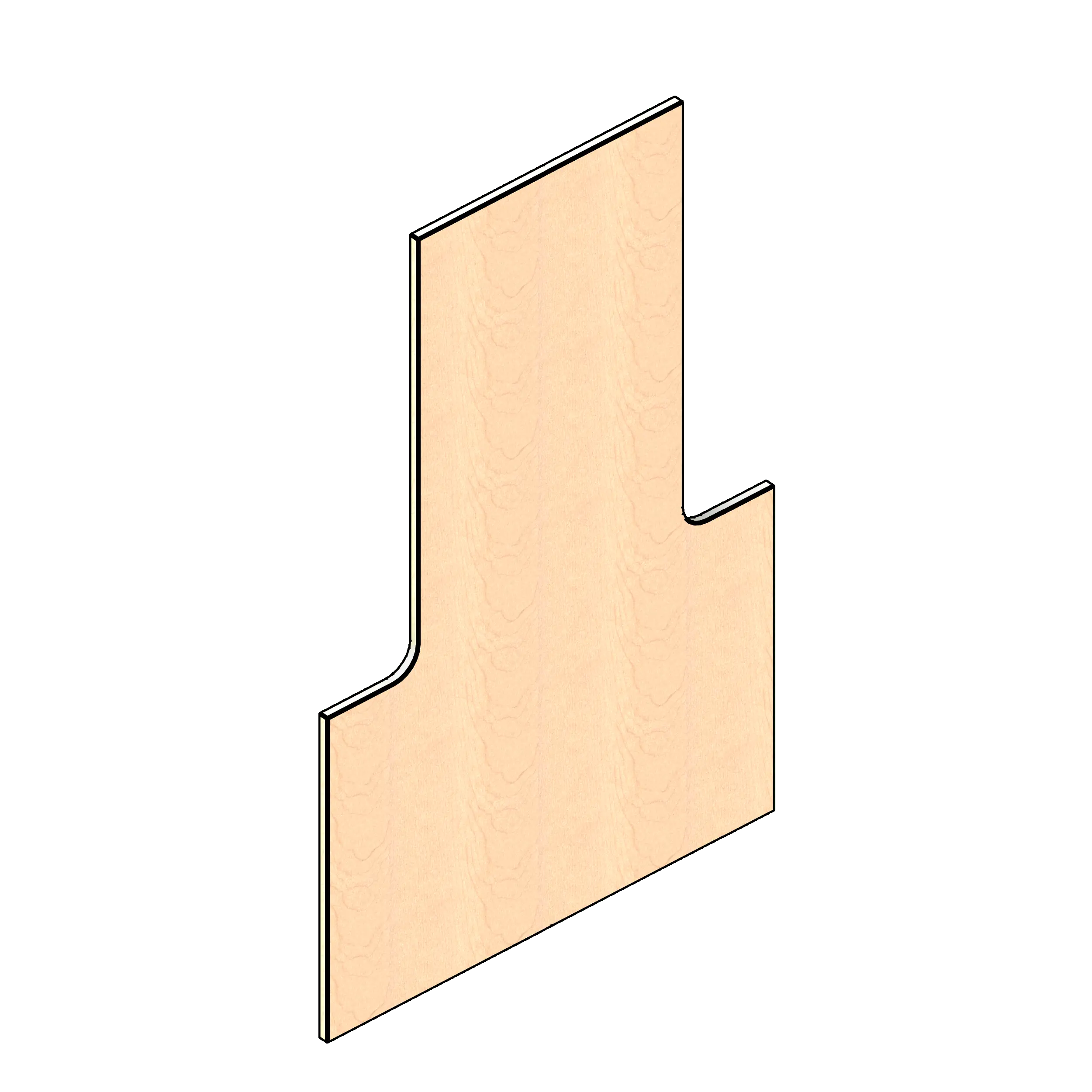

Plastic Laminate Pharmacy Double Contour End Panel

Double contour pharmacy end panels are designed to be used with the pharmacy back panel. Double contour end panels are attached at the end of a run of pharmacy back panels to create a clean look that covers the base cabinet as well as a wall cabinet on each side of an island.

The Southwest Solutions Group casework line is designed to be highly flexible and adaptable with every Revit model built to reflect its real world counterpart. Once loaded, each model has a variety of parameters which allow you to easily manipulate and customize various aspects of the casework design without ever needing to load a type catalog ever again.

Such features include:

  • Quickly Manipulate Sizes
  • Toe Kick Options
  • Door Styles
  • Handle Types
  • Lock Options
  • Angled Top Options
  • Material Options

In addition, each model comes with a high level of information built in, including a worst-case budget price that dynamically updates as you manipulate the model within Revit. This allows the designer and client to quickly understand where the money is being spent. Also, within each model type, there are links to more detailed information should you need it. Having this level of flexibility combined with a high level of information is truly what BIM is meant to be.

ParameterValue
Standard Widths52", 54", 56", 58", 60"
Minimum Width4.3333333
Maximum Width5
Standard Depths1"
Minimum Depth0.083333
Maximum Depth0.083333
Standard Heights84"
Minimum Height7
Maximum Height7
Minimum Counter Depth1.333333
Maximum Counter Depth2.5
Minimum Counter Height2.4166666
Maximum Counter Height3.5
ManufacturerSouthwest Solutions Group_HAM
Lead Time4-6 Weeks
Construction TypeFrameless cabinet construction w/ flush overlay fronts
ModelMCVD
Keynote12 32 16
Assembly CodeE2020
AuthorKBruxvoort
Toll Free Number1-800-803-1083
PropertyValue
EqualisNo
OmniaNo
SourcewellNo
SystecYes
VizientYes
Includes PricingYes
ADA CompliantYes
Has MEP ConnectorsNo
Primary MaterialLaminate
BIMobject CategoryFurniture: Shelving & Storage
IFCFurniture
Omniclass23-21 19 11 13
