Product SKU
Description
- High-security cabinet stores up to twelve sidearms and two rifles
- Available for indoor or outdoor applications, recessed or surface mounted
- Individually keyed compartments with master keyed security door
Revit 2020 (0.88 MB)
Revit 2021 (0.88 MB)
Revit 2022 (0.88 MB)
Revit 2023 (0.88 MB)
Revit 2024 (0.88 MB)
Revit 2025 (0.88 MB)
(0.18 MB)

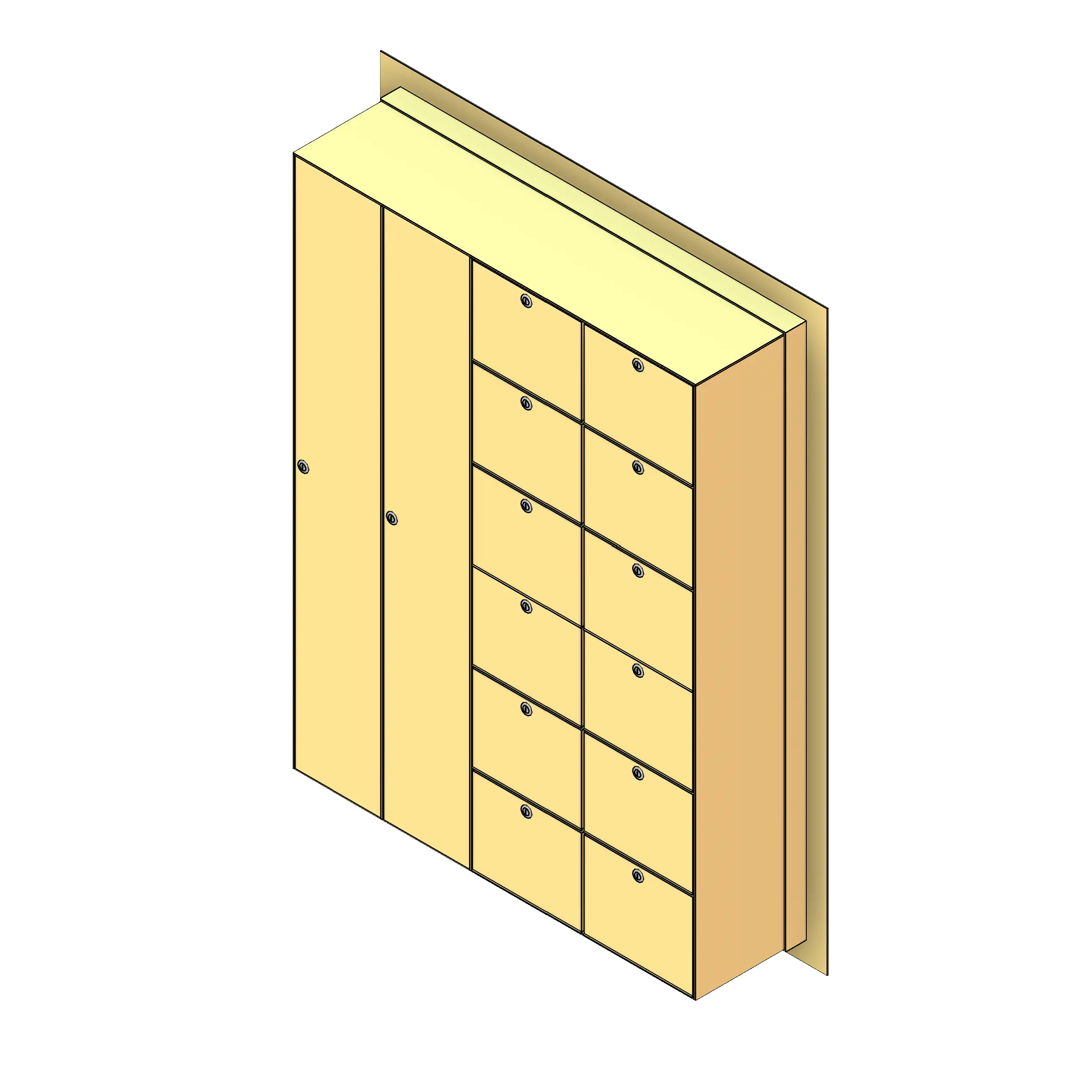

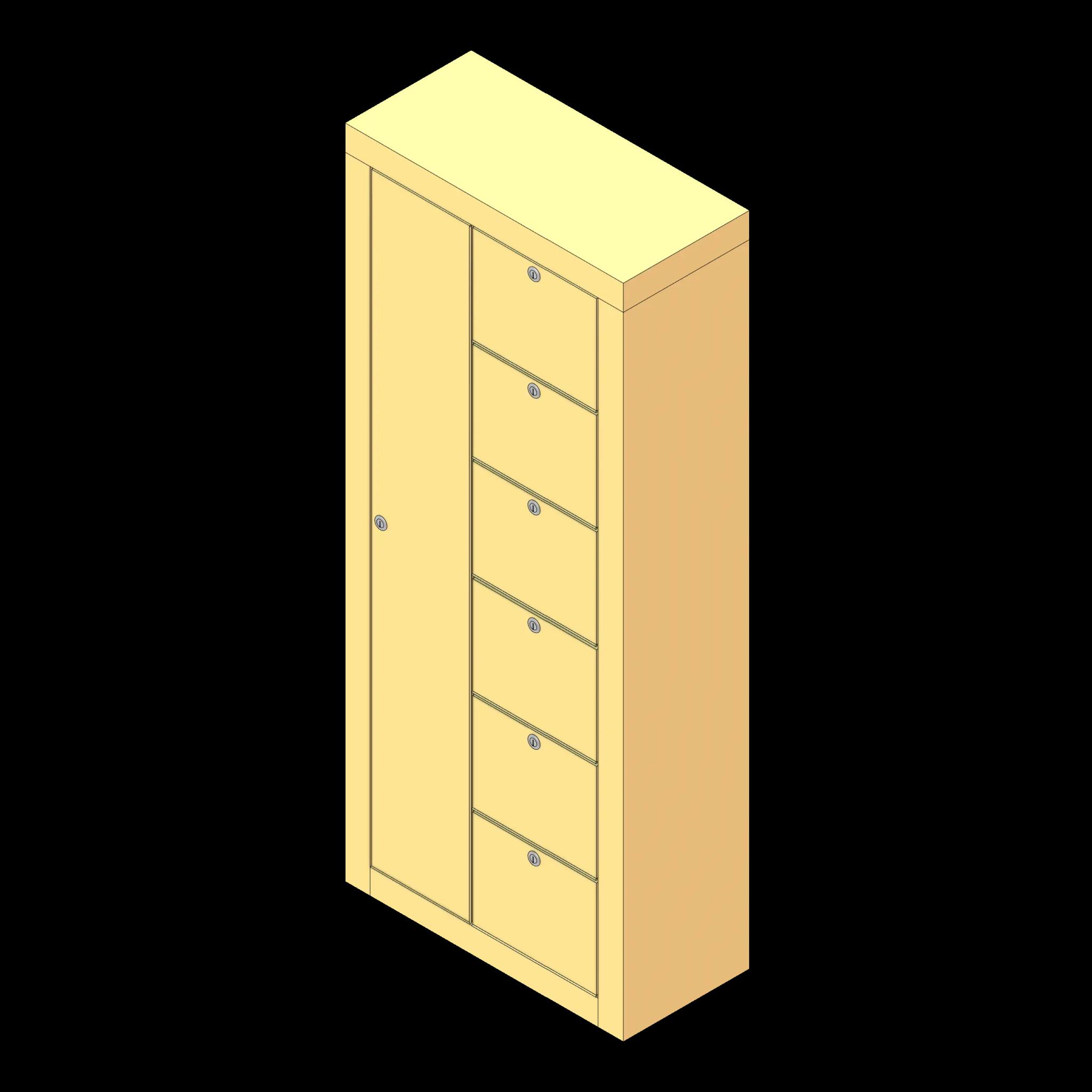

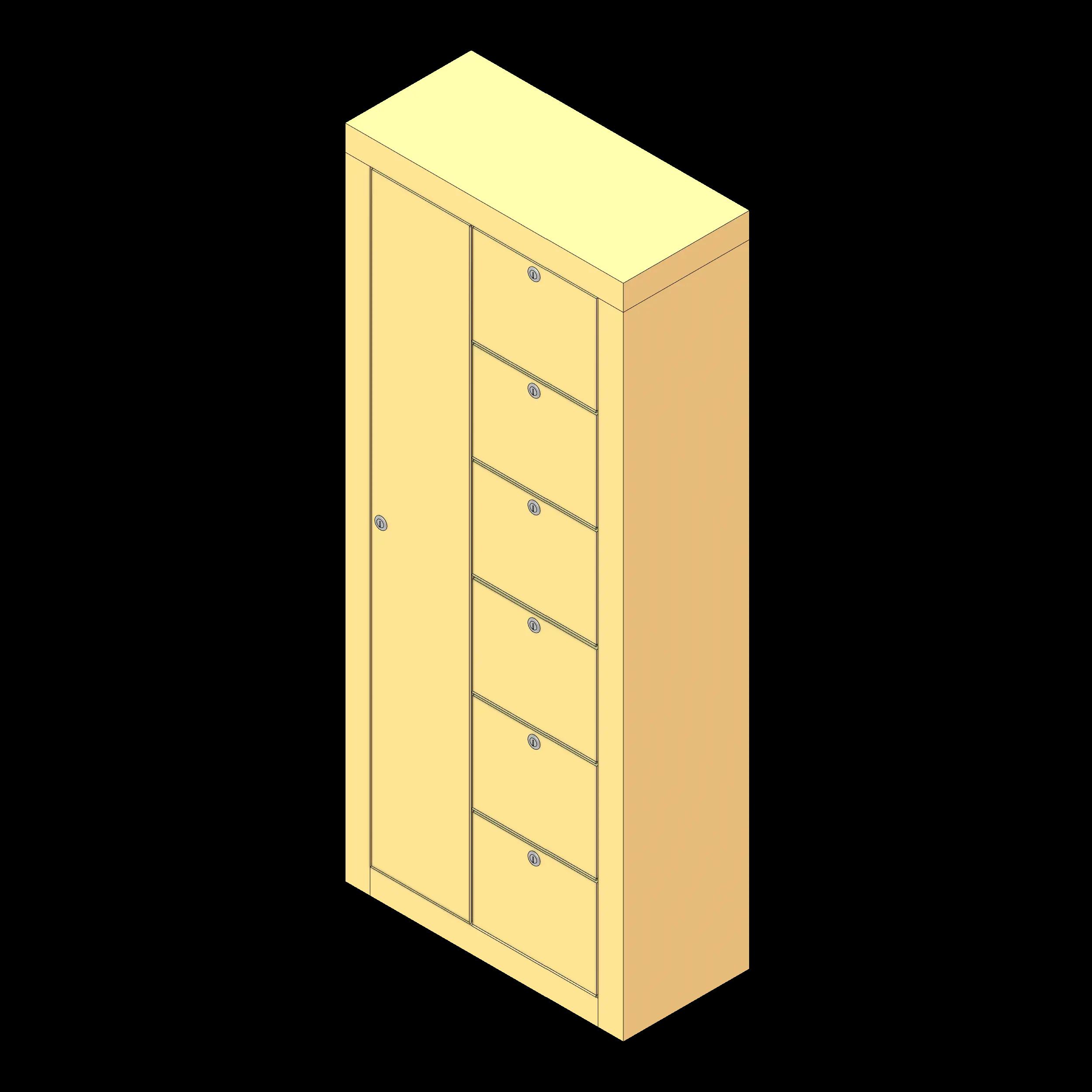

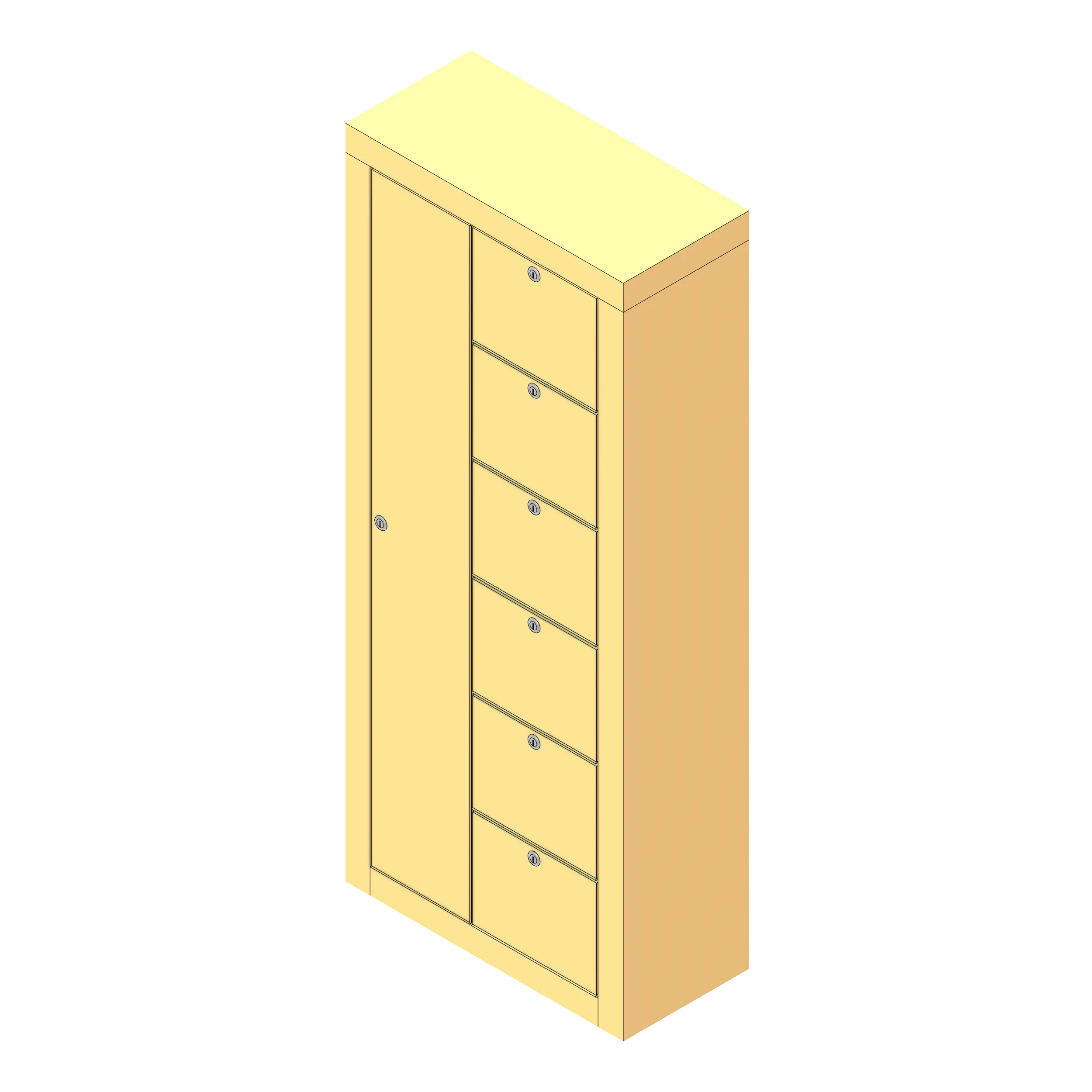

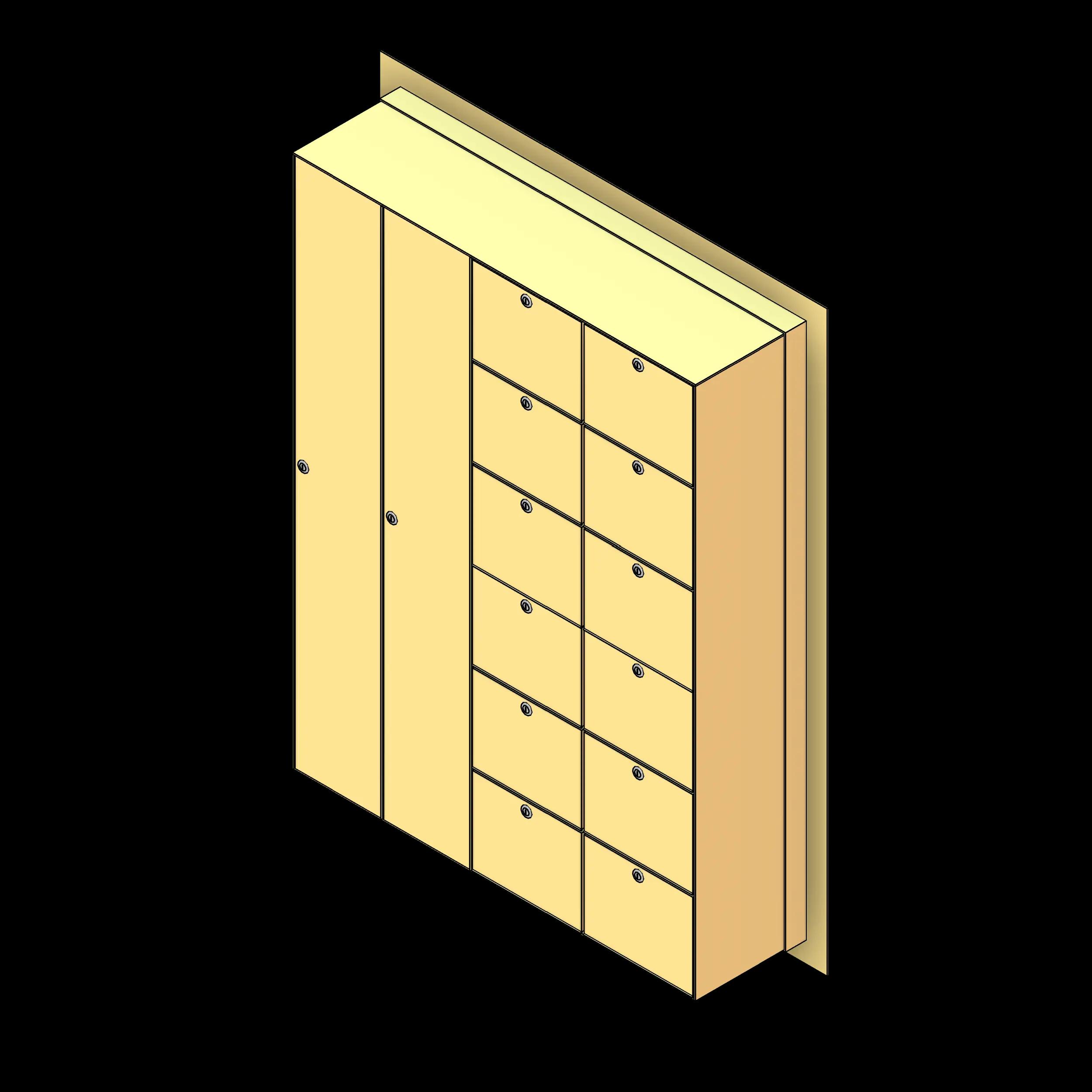

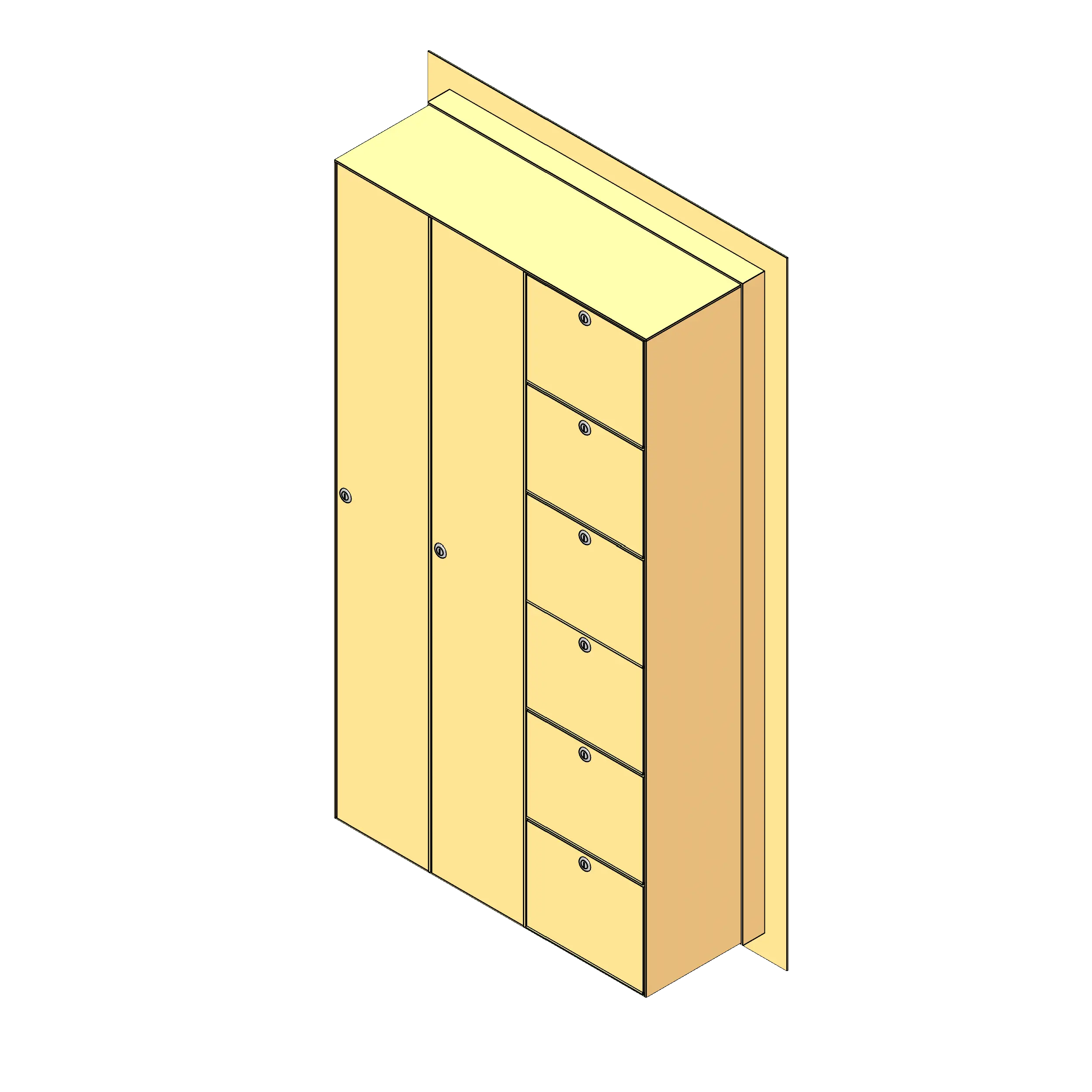

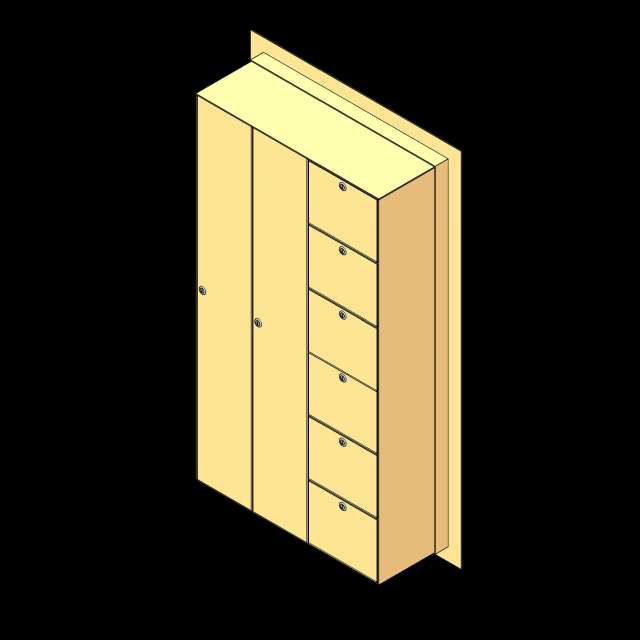

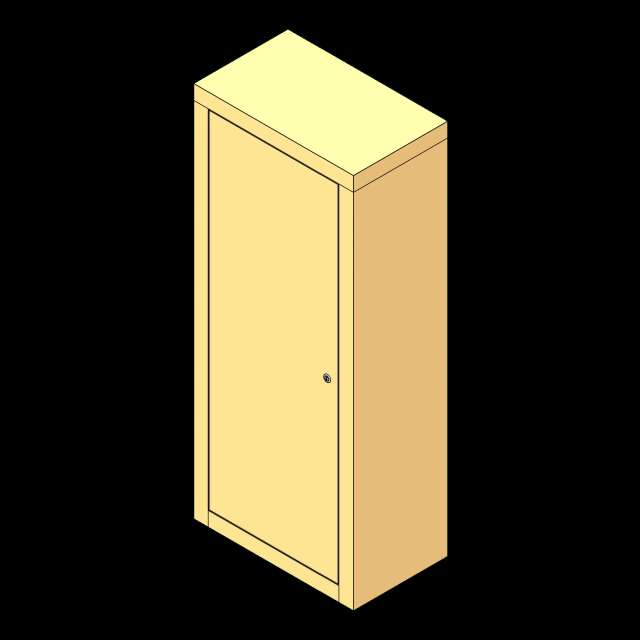

High-Security Weapons Locker

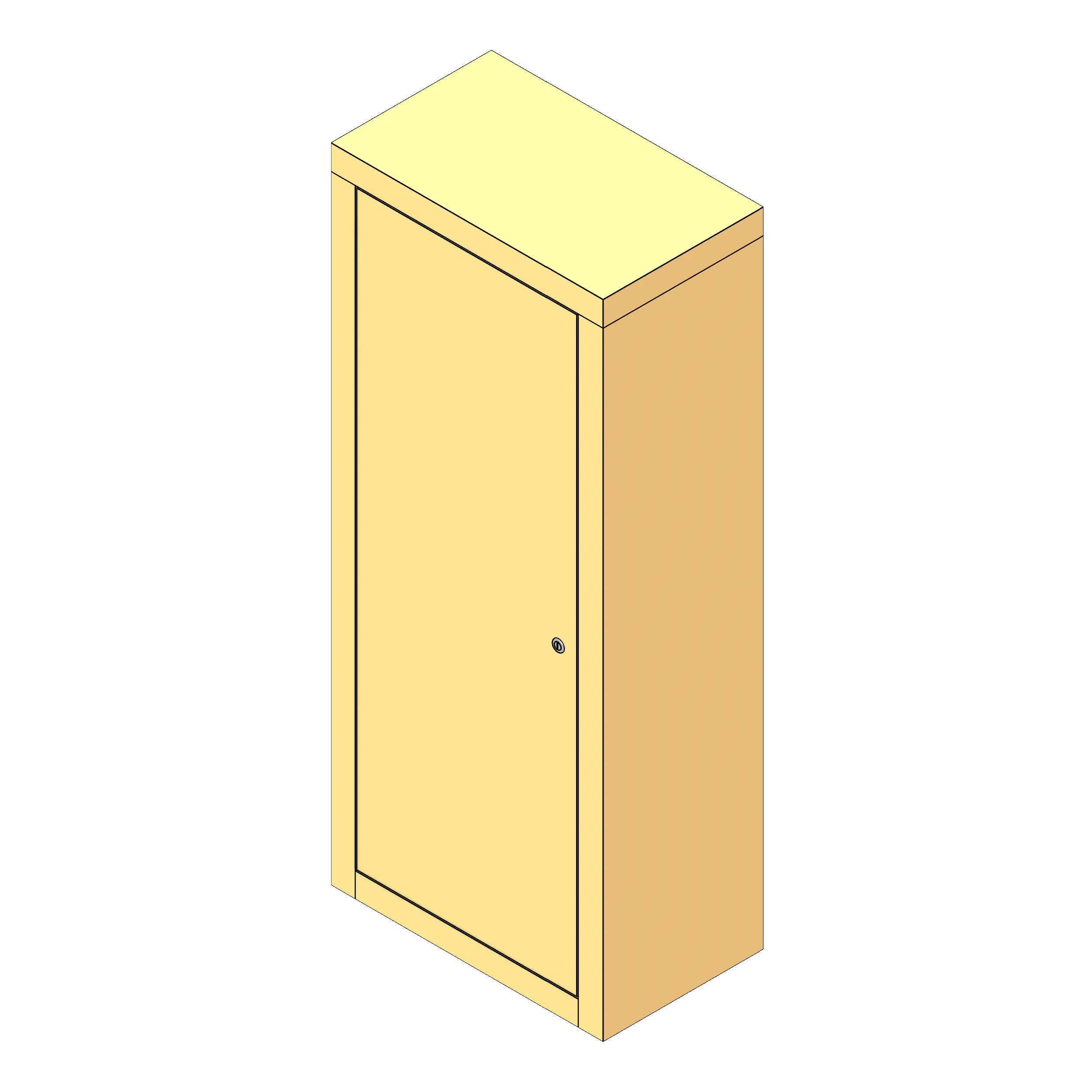

Law enforcement offices use High-security weapons cabinets to store sidearms and rifles behind multiple layers of safety checks. The optional front master door keeps access to compartments safely locked away when not in use.
To use this family, insert it into your project from the Fetch app and click on a wall or surface to apply the locker. Select the desired door configuration from the type drop-down and use the parameters in the properties browser to choose between surface and recessed mounting options. The optional master door may also be applied using the checkbox.
| Parameter | Value |
|---|---|
| Standard Widths | 18", 26", 36" |
| Minimum Width | 1' 6" (18") |
| Maximum Width | 3' 0" (36") |
| Standard Depths | 10", 13" |
| Minimum Depth | 0' 10" (9") |
| Maximum Depth | 1' 1" (12") |
| Standard Heights | 48", 52" |
| Minimum Height | 4' 0" (48") |
| Maximum Height | 4' 4" (51") |
| Model | 700 |
| Author | AWright |
| Toll Free Number | 1-800-803-1083 |
| Property | Value |
|---|---|
| Includes Pricing | No |
| ADA Compliant | No |
| Has MEP Connectors | No |
| Primary Material | Powder coated steel |
| BIMobject Category | Furniture: Shelving & Storage |
| IFC | Furniture |
| Omniclass | 23.40.20.11.17 |
