Description

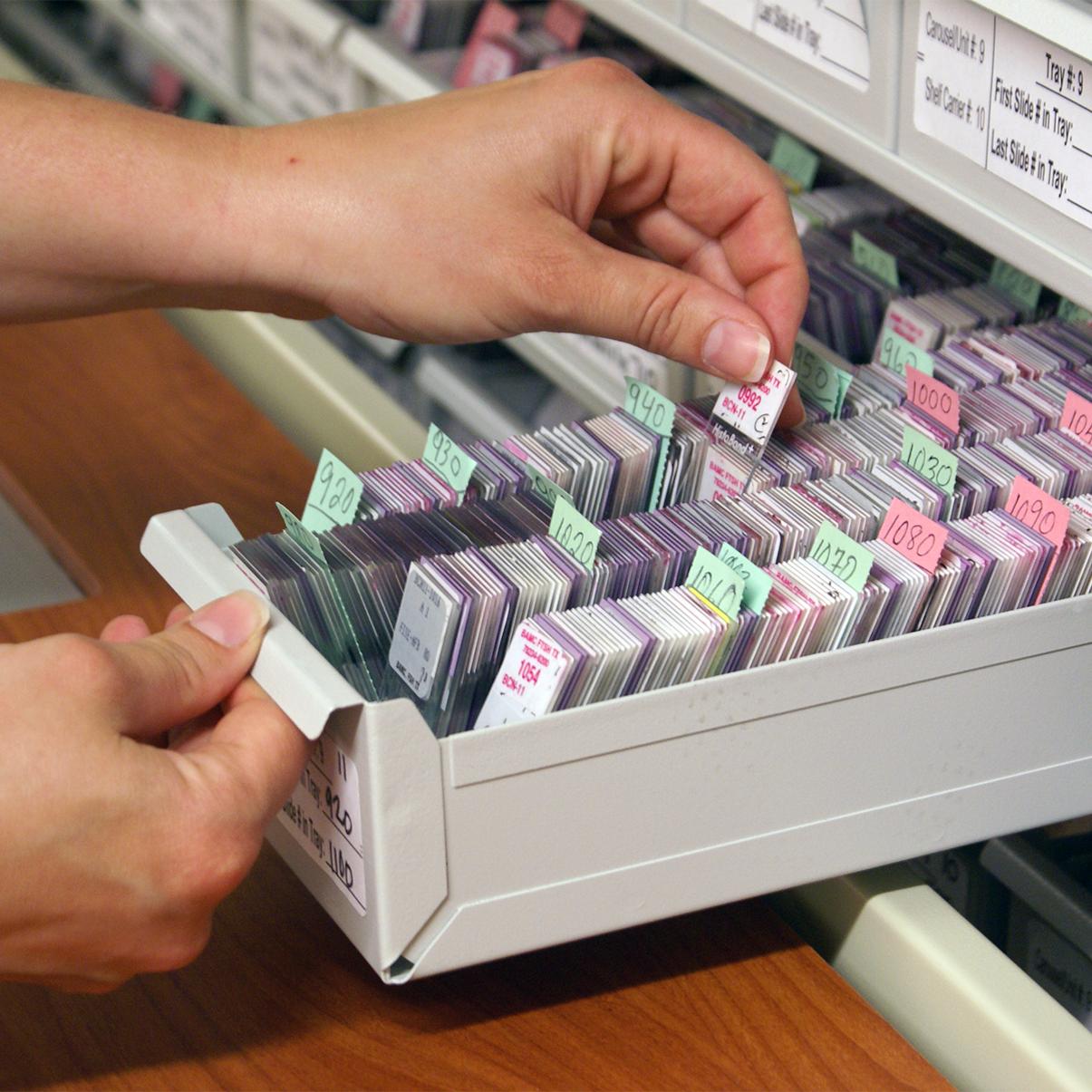

- High-density vertical carousel for histology slides and blocks, available in multiple sizes and configurations.
- Push-button operation delivers slides and blocks to an ergonomic retrieval height.
- Integrated work surface supports seated or standing use and includes an adjustable shelf.
- Model-based pricing included, with dynamic cost estimates that update as configurations change.
Revit 2020 (1.05 MB)
Revit 2021 (1.05 MB)
Revit 2022 (1.05 MB)
Revit 2023 (1.05 MB)
Revit 2024 (1.05 MB)
Revit 2025 (1.05 MB)
Revit 2026 (1.05 MB)
(0.84 MB)
(0.17 MB)
(3.37 MB)
(0.21 MB)
(1.17 MB)
(0.95 MB)

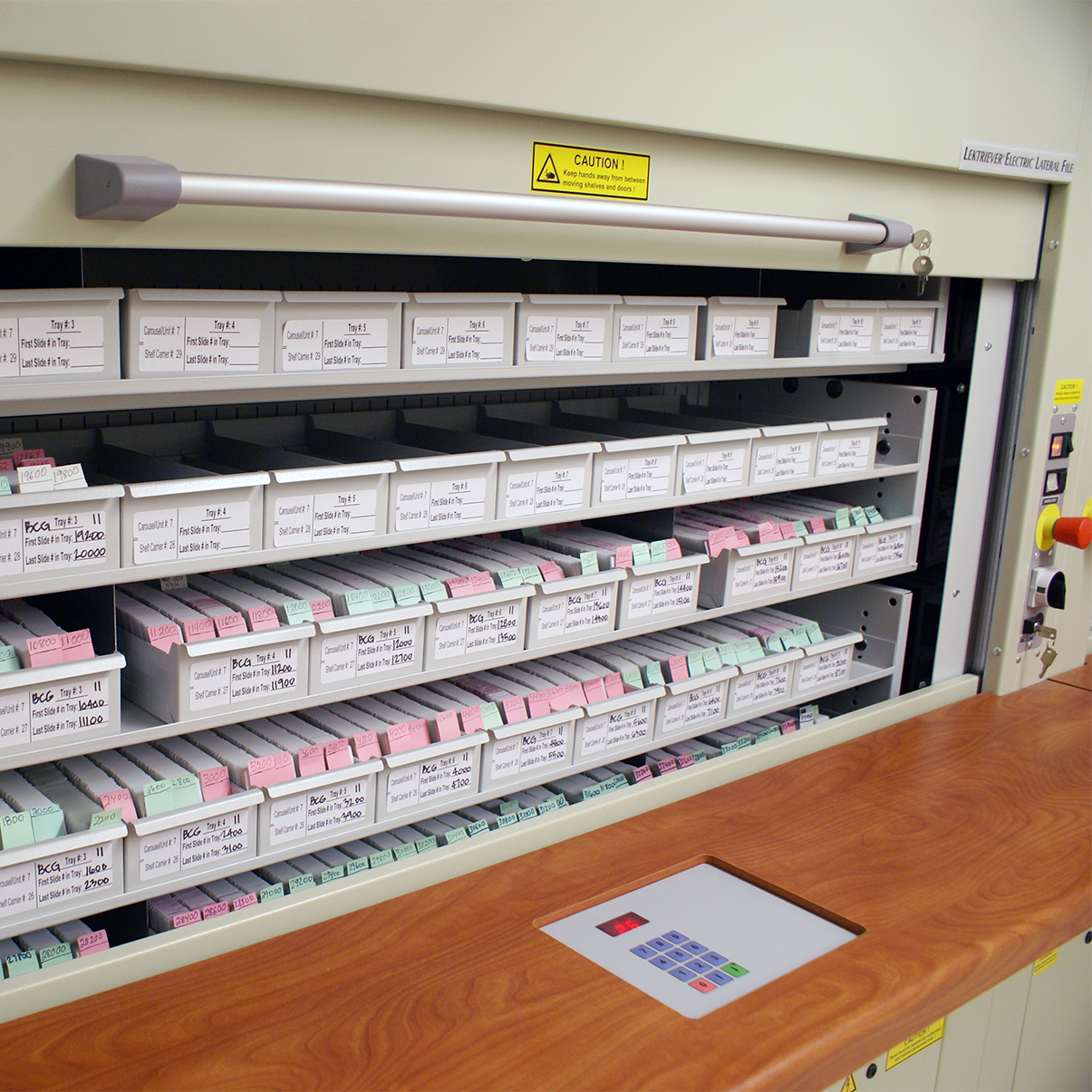

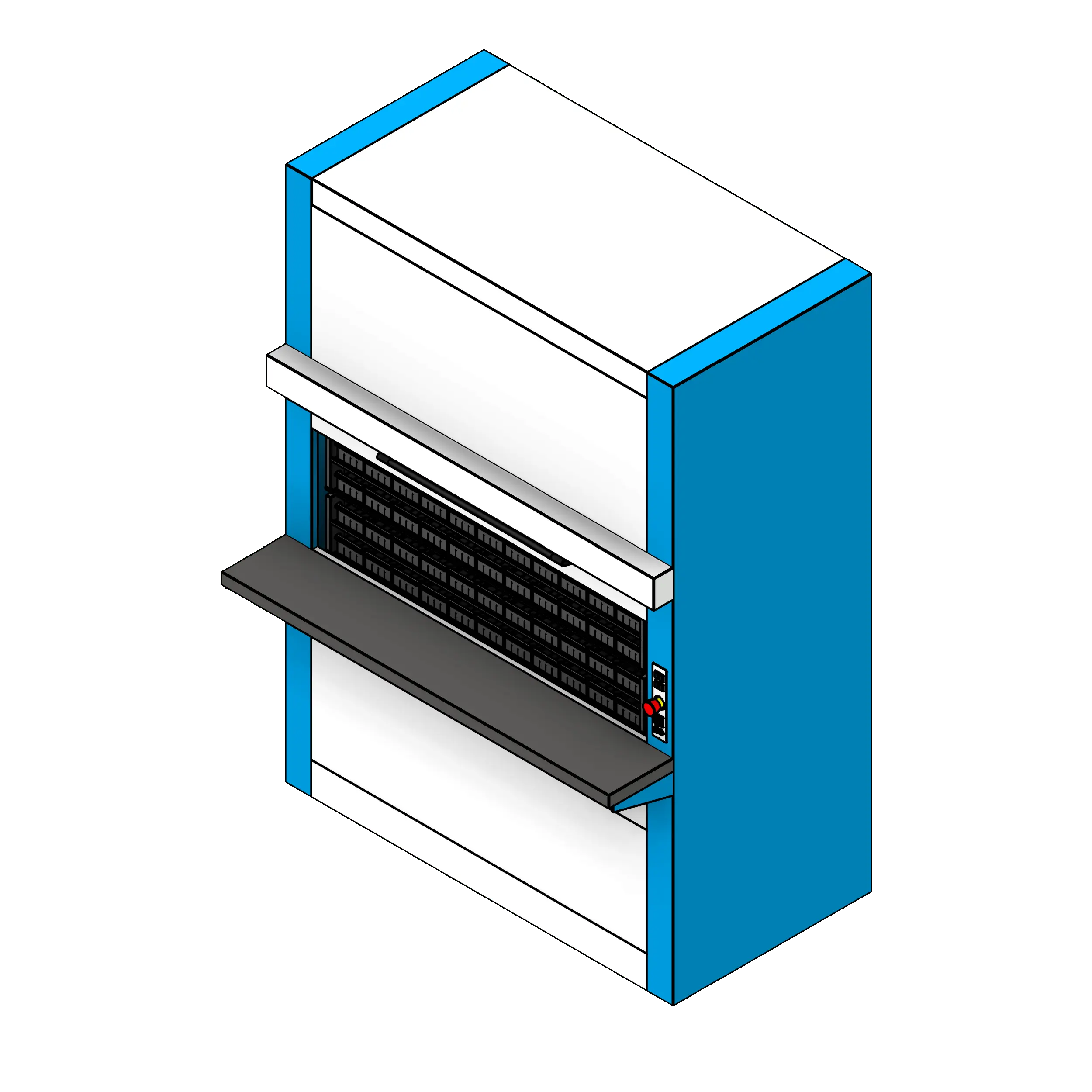

Blood Slide Vertical Carousel

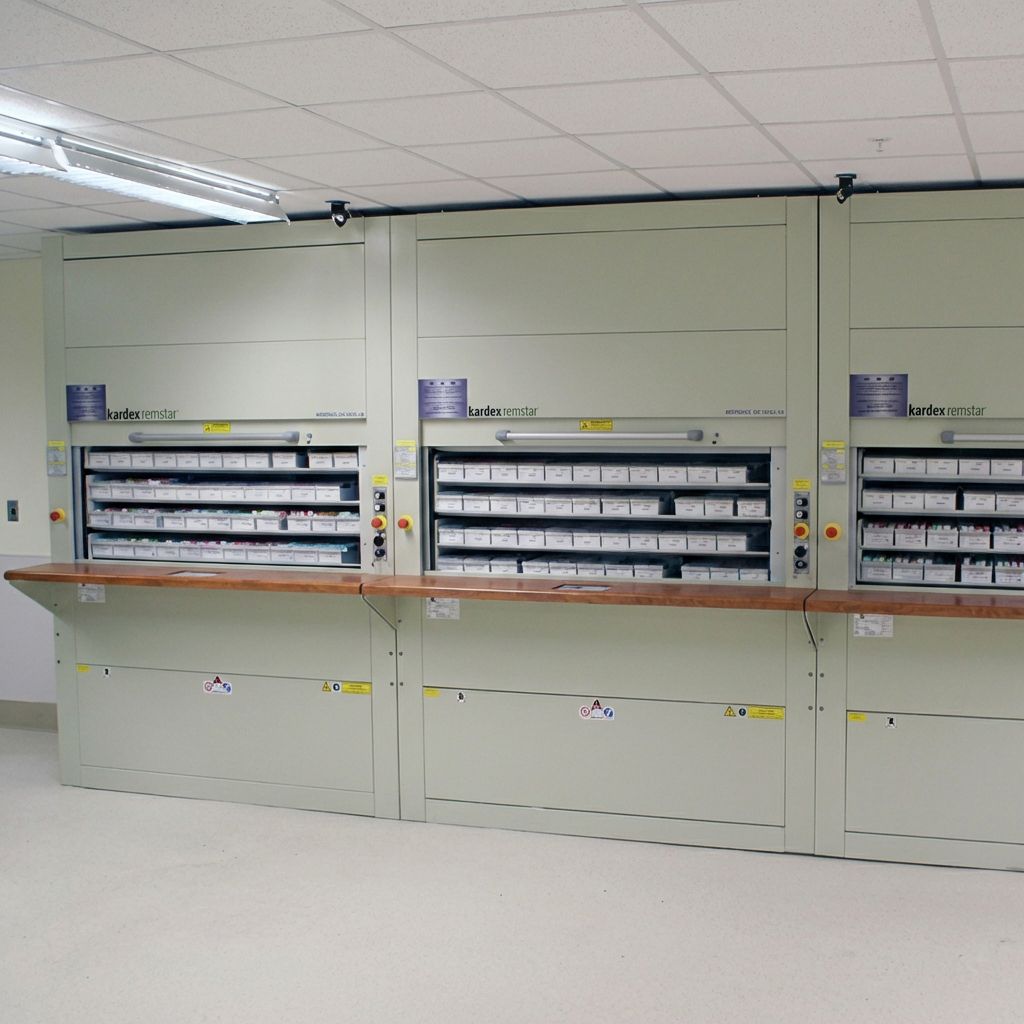

The vertical carousel is a high density automated and retrieval system. This configuration is made specifically to store blood slides.
To configure this family, simply select the desired tray width from eleven available options ranging from 1250 mm to 4050 mm, and choose a tray depth of 609.6 mm, 812.8 mm, or 863.6 mm. The Vertical Lift Module is highly versatile, offering hundreds of height variations between 2550 mm and 30,050 mm (just under 100 feet) to suit a wide range of design requirements.
| Parameter | Value |
|---|---|
| Standard Widths | 71.26" (1810 mm) |
| Minimum Width | 5' 11 1/4" (71 1/4") |
| Maximum Width | 5' 11 1/4" (71 1/4") |
| Standard Depths | 36.42" (925 mm) |
| Minimum Depth | 3' 0 3/8" (36 3/8") |
| Maximum Depth | 3' 0 3/8" (36 3/8") |
| Standard Heights | 86.60" (2200 mm), 88.60" (2250 mm), 94.50" (2400 mm), 98.40" (2500 mm), 104.30" (2650 mm), 108.30" (2750 mm), 114.20" (2900 mm), 118.10" (3000 mm), 124.00" (3150 mm), 128.00" (3250 mm) |
| Minimum Height | 7' 2 5/8" (86 5/8") |
| Maximum Height | 10' 8" (127") |
| Average Access Time | 1/4 carousel revolution in < 8 seconds |
| Noise Level | <60 dB |
| Manufacturer | Southwest Solutions Group_KAR |
| Lead Time | Contact SSG for info |
| Model | 115 |
| Keynote | 41 51 13 |
| Assembly Code | E10 |
| Author | KBruxvoort |
| Toll Free Number | 1-800-803-1083 |
| Property | Value |
|---|---|
| Includes Pricing | Yes |
| ADA Compliant | Yes |
| Has MEP Connectors | Yes |
| Primary Material | Powder coated steel |
| BIMobject Category | Furniture: Shelving & Storage |
| IFC | Furniture |
| Omniclass | 23-23 17 00 |
| Omnia | No |
| Sourcewell | Yes |
| Equalis | Yes |
| Vizient | Yes |
| Systec | No |
