BIM Library> All families>Modular Panel Wire Partition
2024.5.14.1

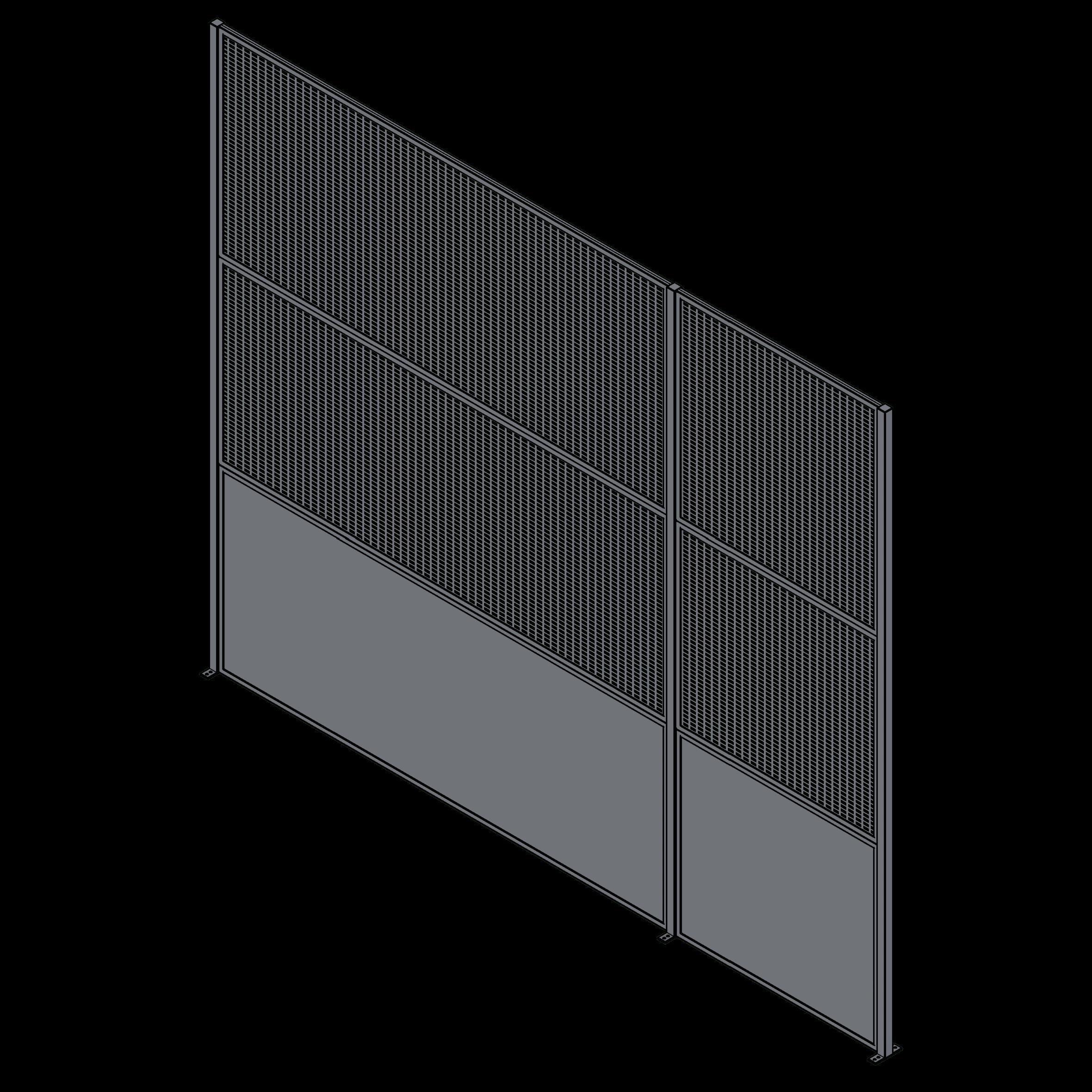

Modular Panel Wire Partition

Product SKU

Description

Included in our free Revit Model:

  • Flexible combinations and modular design
  • Works seamlessly with our wire partition system models
  • Adjustable filler panel to accomodate any panel size within possible height/width ranges
  • Drag or type specific width into parameter
  • 8' or 10' feet heights (or custom order)

Great for use as:

  • Datacenter cages
  • DEA drug storage
  • Driver access cages
  • Tool cribs to securely store tools and equipment
  • Server cages for securing network servers and expensive computer equipment
  • Evidence enclosures or holding cells for law enforcement
a square with short lines outside the corner
Family
icon of a person with gears next to its head
Pricing
Questions
Need some help? Send us a message if you have any sales or model related questions.

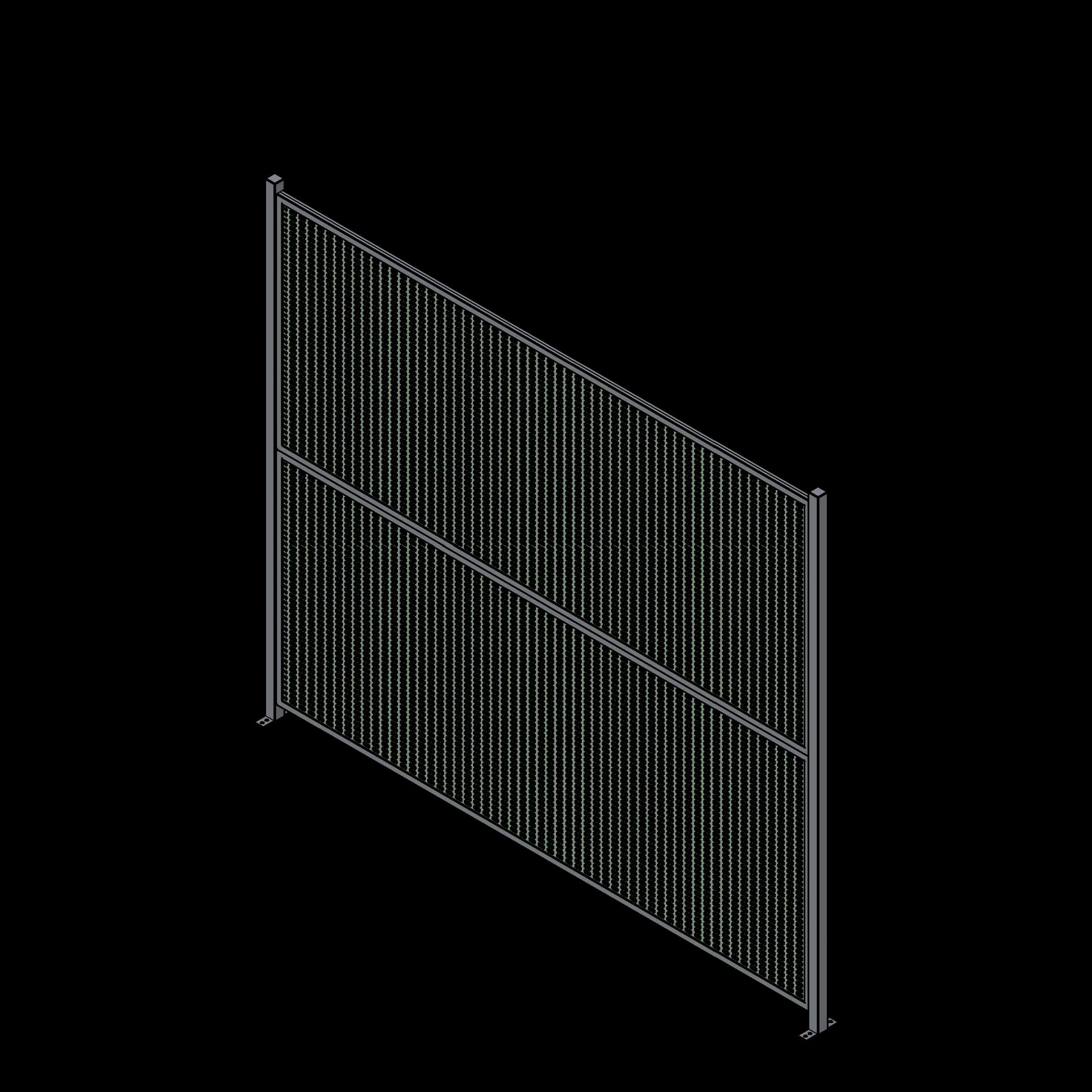

Universal Wire Partition

The wire partition systems can be applied in various applications and serve a number of purposes. Some of these purposes include:
  • Tool cribs to store tools and equipment
  • Driver access cages to control access to distribution centers or factory floors
  • DEA drug storage for pharmacies and pharmaceutical companies
  • Server cages for securing network servers and expensive computer equipment
  • Evidence enclosures or holding cells

System Overview

These wire cages are simple to reconfigure as your needs change. They are versatile, adaptable, customizable, and highly secure. Bolts are only accessible from within the cage or partition, and posts can be anchored to the floor for added stability.

ParameterValue
Standard Widths5', 10'
Minimum Width1' 0" (12")
Standard Depths7"
Standard Heights8' 5 1/4", 10' 5 1/4", 12' 5 1/4"
Minimum Height8' 0" (96")
Maximum Height50' 0" (600")
ManufacturerSouthwest Solutions Group_WIR
Lead Time3-4 Weeks
ModelPartition
Keynote10 22 13
Assembly CodeC1010
Authorssmartin / AWright
Toll Free Number1-800-803-1083
PropertyValue
EqualisNo
Includes SustainabilityYes
OmniaNo
SourcewellNo
SystecNo
VizientNo
Includes PricingYes
ADA CompliantNo
Has MEP ConnectorsNo
Primary MaterialPowder coated steel
BIMobject CategoryFurniture: Shelving & Storage
IFCFurniture
Omniclass23-15 11 15 17 11
SMS Purchase Link<a href="https://www.storemorestore.com/Warehouse-Barriers-10-Ft-Wide-Machinery-Guards-p/sms-79-wsd4-1-10-10.htm">WAREHOUSE BARRIERS (9' 6"W X 0' 2"D X 10' 5-1/4"H), #SMS-79-WSD4-1-10-10</a>
