Wall-Mounted Lift

Product SKU

Description

  • Used extensively in hospital and healthcare environments
  • Store two rows of wheelchairs with the innovative swing-out design

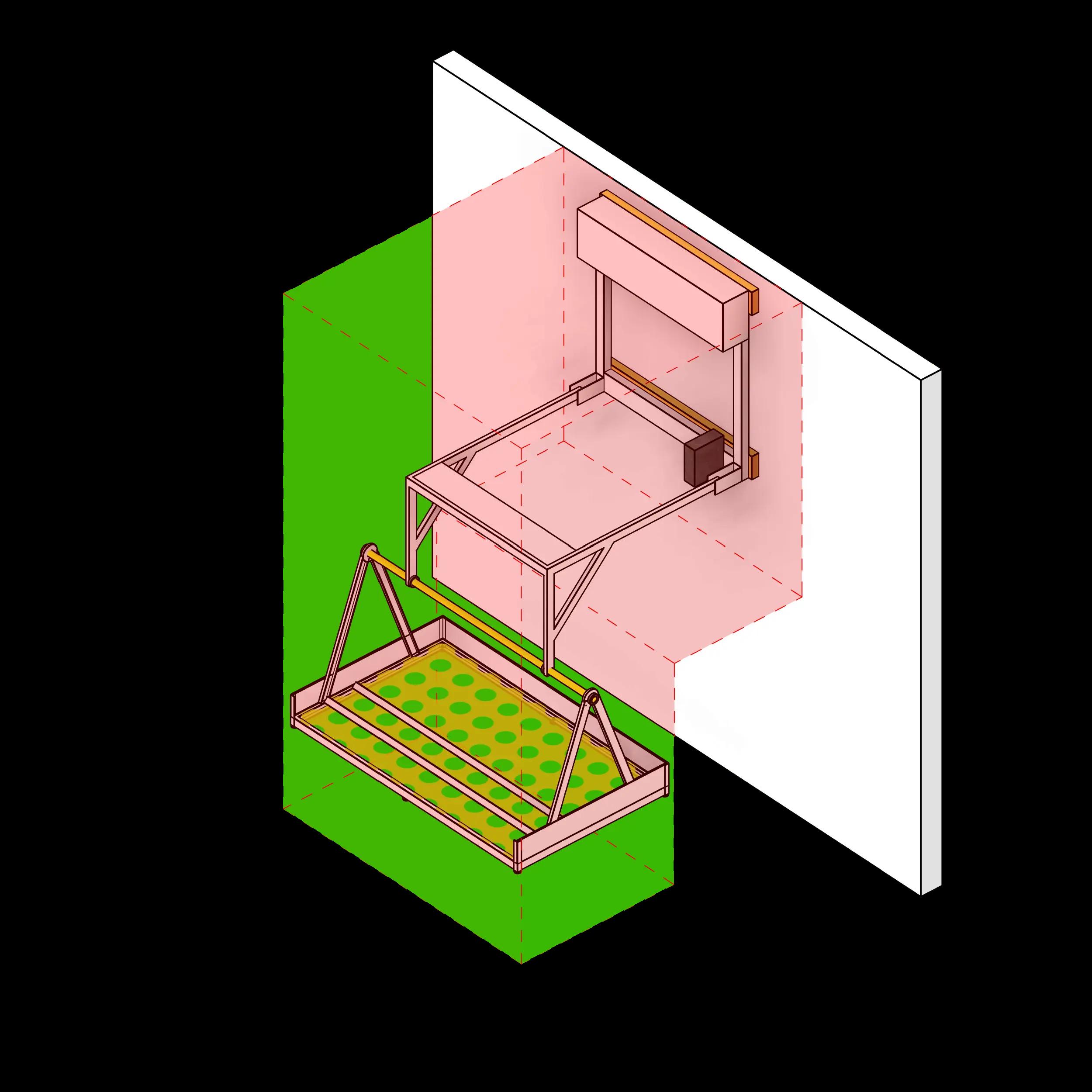

  • Model can be displayed open or closed and includes a manufacturer specified clash detection and clearance zone
a square with short lines outside the corner
Family
icon of a person with gears next to its head
Pricing
icon of a person with gears next to its head
Connectors
Questions
Need some help? Send us a message if you have any sales or model related questions.

Wall-Mounted Lift

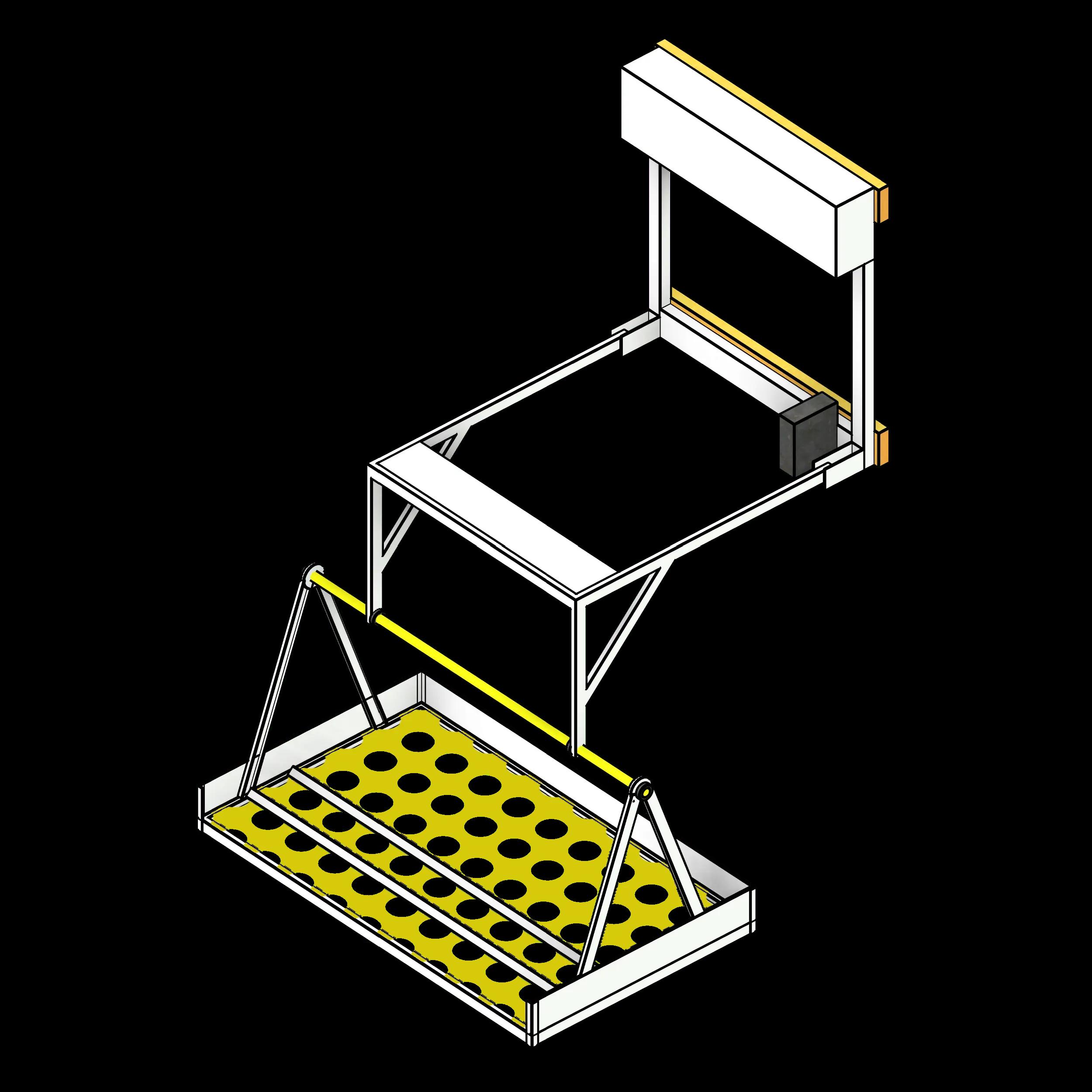

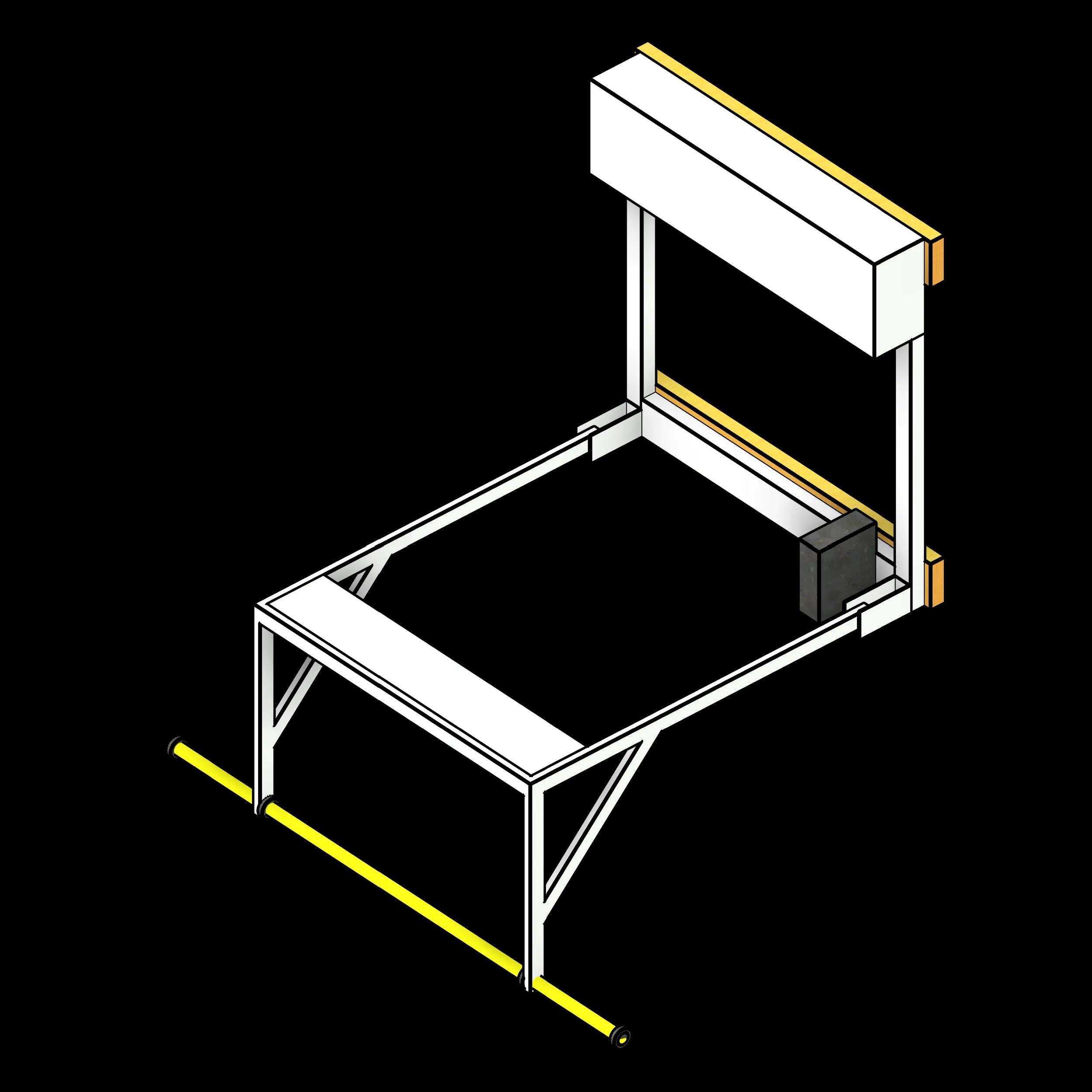

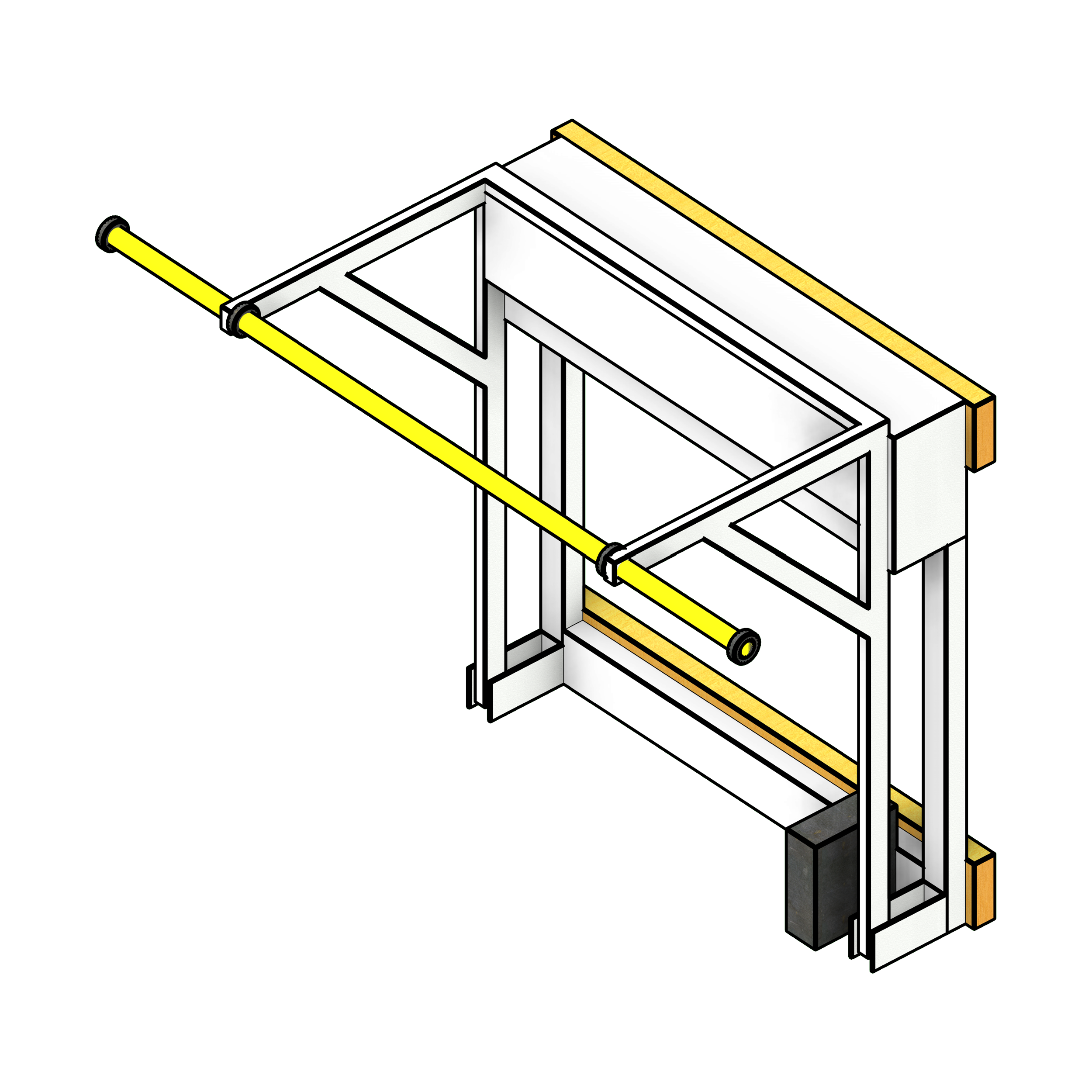

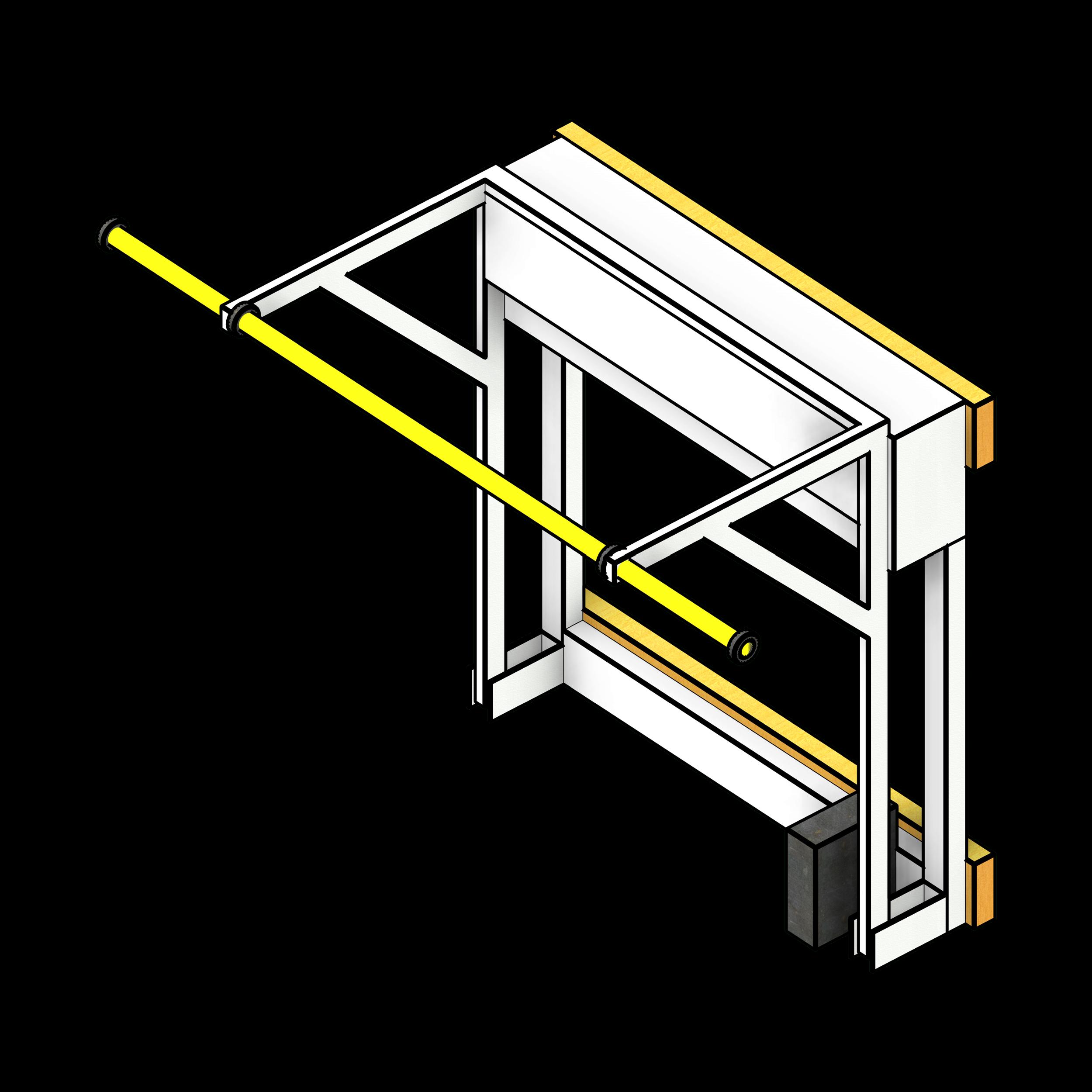

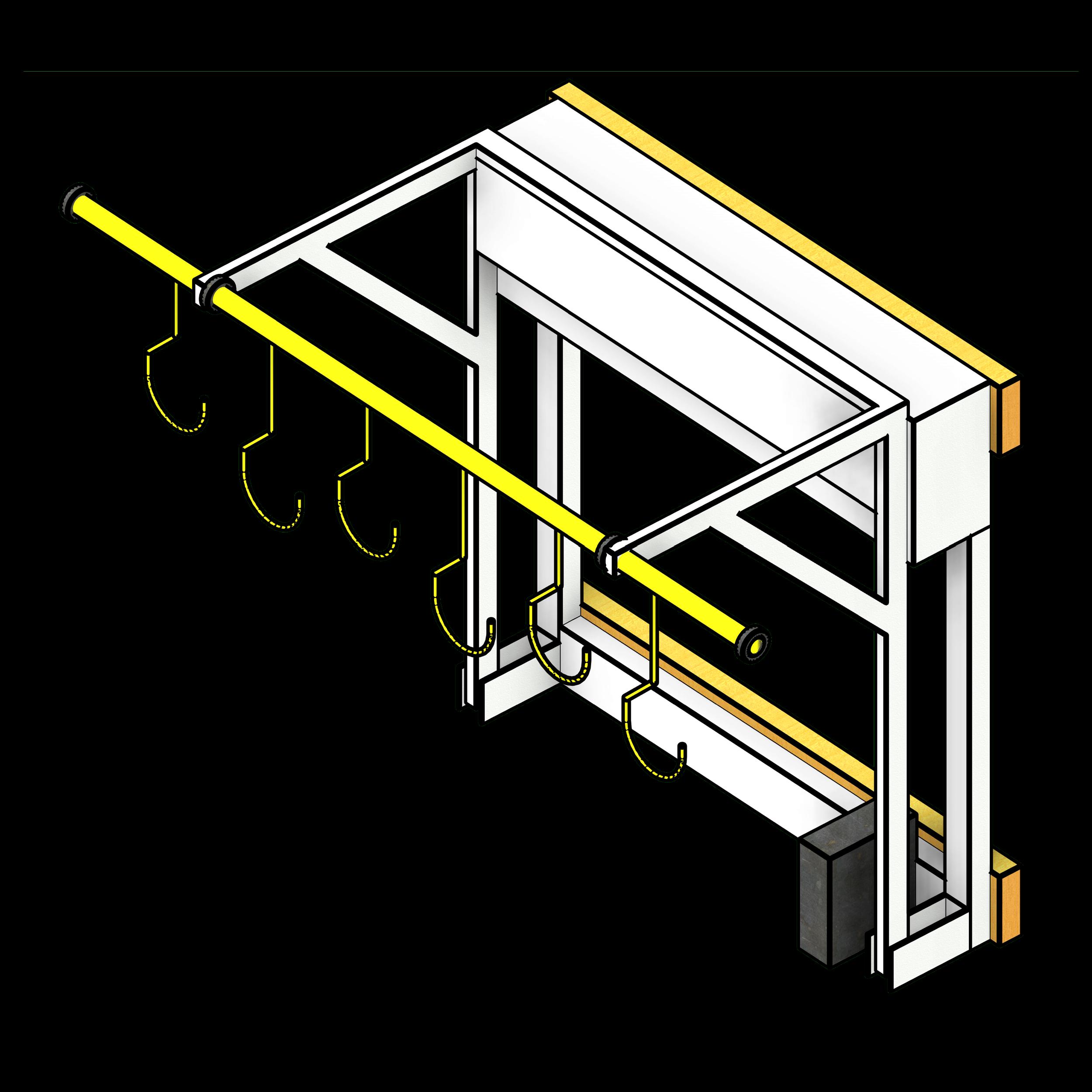

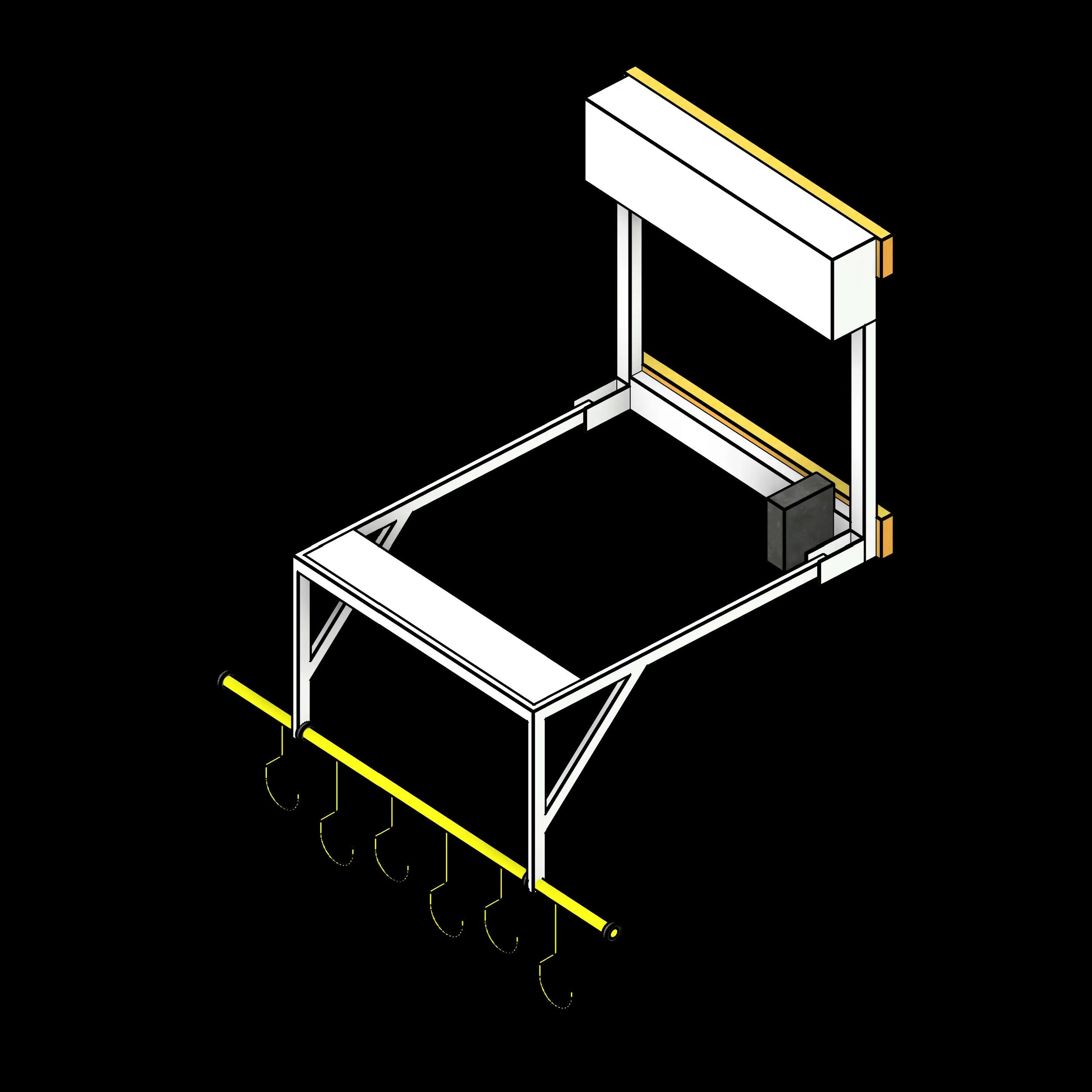

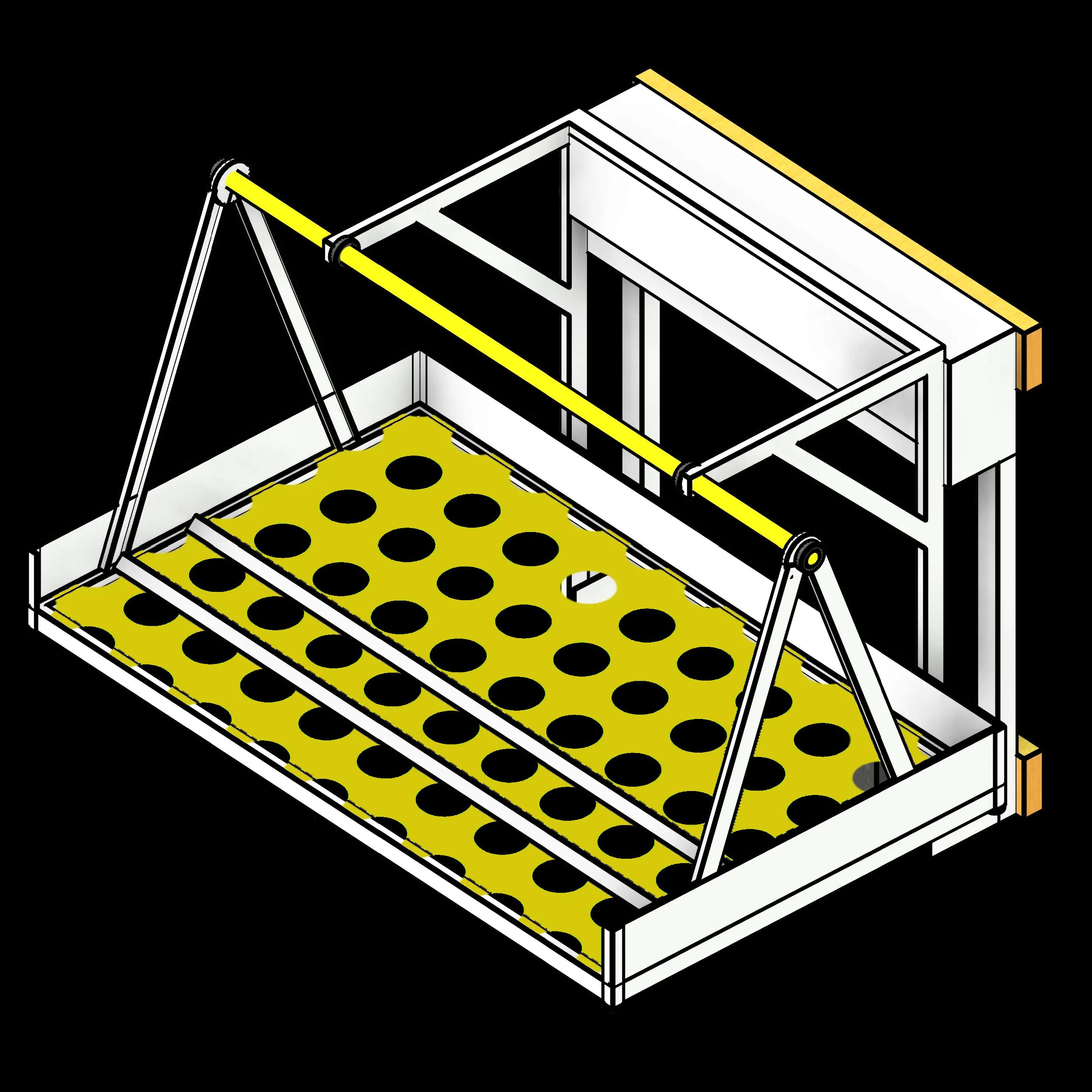

This wall mounted lift system is designed to store items above the ground level. This innovative design de-clutters your storage areas by doubling the available space above and below with the swing-out design. Three configurations give the user a wide variety of use cases: use just the bar to store hanging garments, add the included hooks for bike storage or the platform for storing wheelchairs, cribs, boxes, or rolling bins.

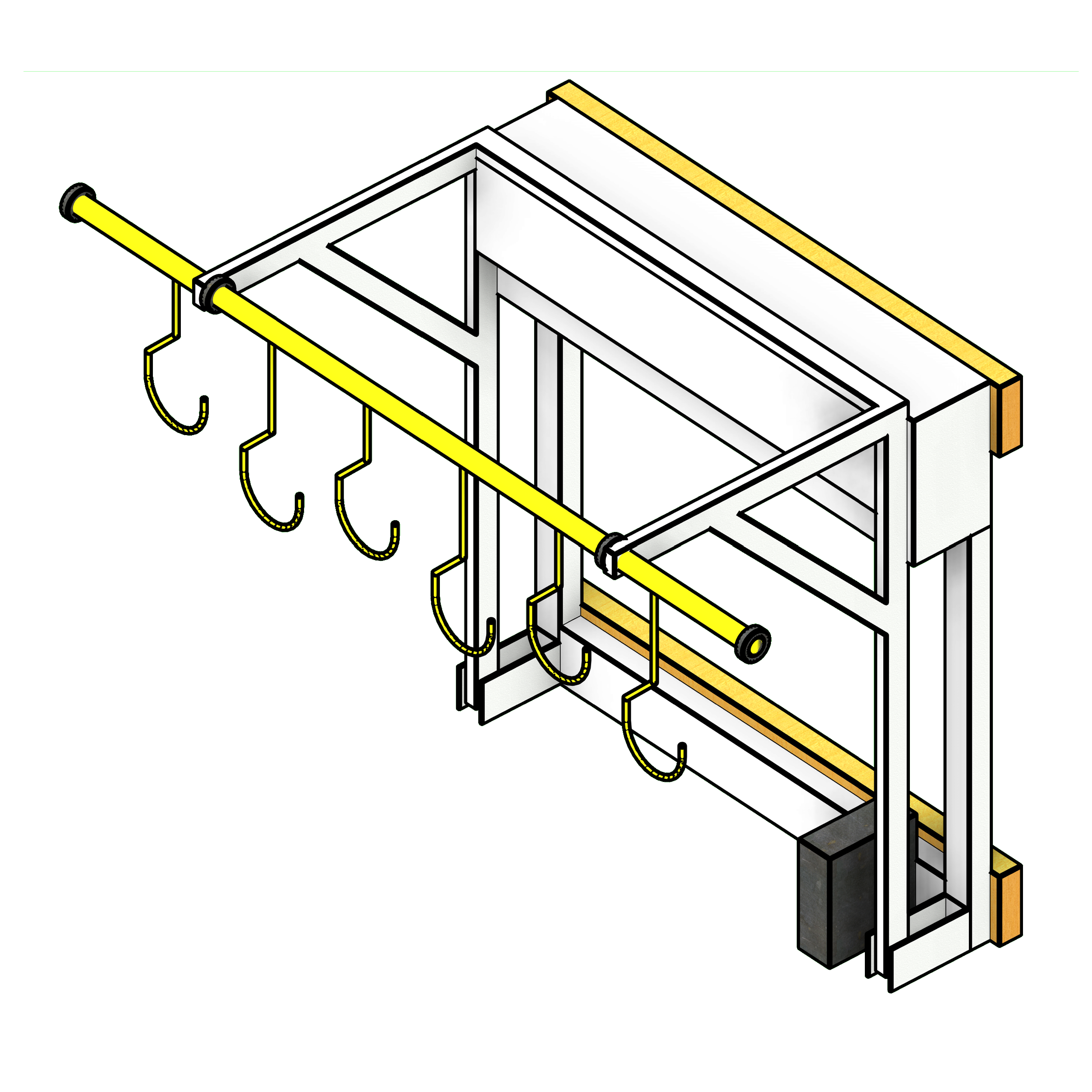

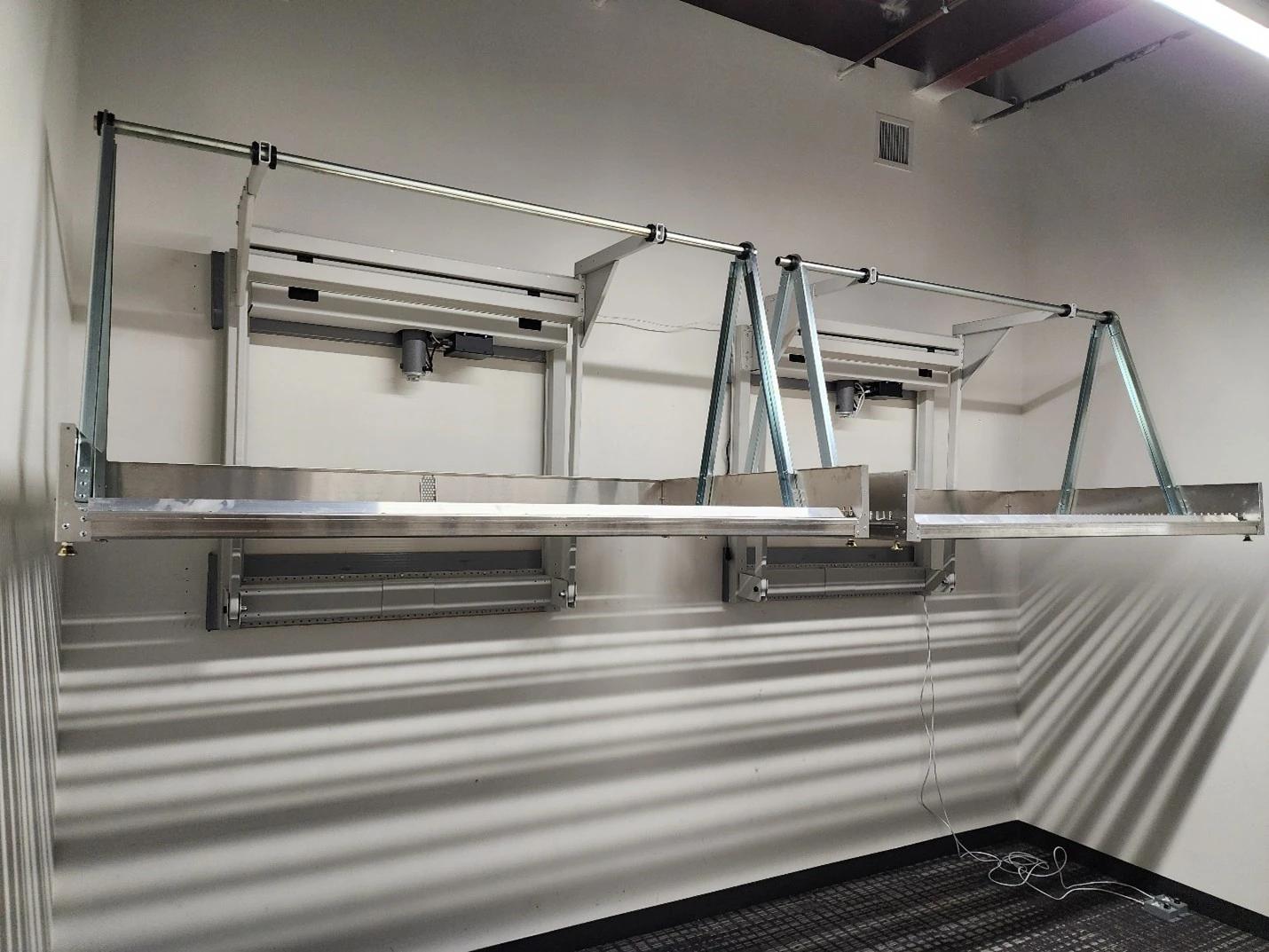

This wall-mounted lift is a versatile storage product that can increase your storage potential in any room. Frequently used in hospital or other medical settings to organize and store wheelchairs. The innovative hang-over design creates two layers of storage space, even in rooms with low ceilings. The hanging platform can be used to store anything - boxes, spare cribs, rolling bins, etc. Without the platform, the hang bar can be used to store hanging garments. Hang bar can also be populated with screw hooks and can store up to 6 bikes with ease.

Use this product by simply placing it on the desired host wall and adjust the mounting height with the supplied parameter. From there, select your desired accessories. Additional settings such as additional length to the included wood blocking can be found in the type menu.

ParameterValue
Standard Widths6' 1"
Minimum Width6.08333333333333
Maximum Width6.08333333333333
Standard Depths4' 9", 6' 6"
Minimum Depth4.75
Maximum Depth6.5
Standard Heights4' 4", 9' 5"
Minimum Height4.33333333333333
Maximum Height9.41666666666667
ManufacturerSouthwest Solutions Group_LNS
Lead TimeContact SSG for more information on this product
ModelTS6G
Keynote10 50 00
Assembly CodeE1020
AuthorAWright
Toll Free Number1-800-803-1083
PropertyValue
Includes PricingYes
ADA CompliantNo
Has MEP ConnectorsYes
Primary MaterialPowder coated steel
BIMobject CategoryFurniture: Shelving & Storage
IFCFurniture
Omniclass23.19.00.00
