Small Narrow Storage Vertical Carousel

Downloads

RFARevit family
PDFFinish options240 KB
PDFCut sheet127 KB
LIBMaterial library864 KB

Get Fetch to load families straight into Revit →

Family

Pricing

ADA

Connectors

Specially designed for spaces with limited width
Used extensively in manufacturing and material handeling environments

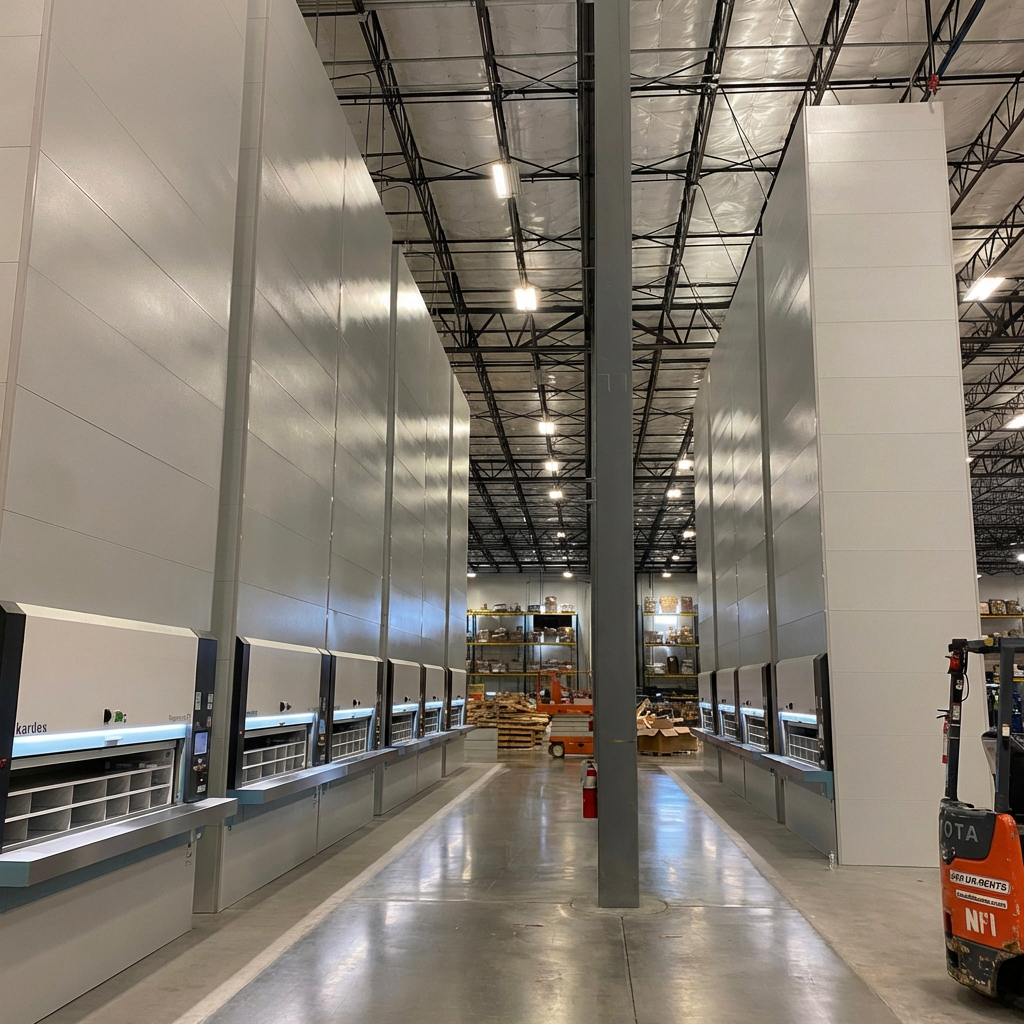

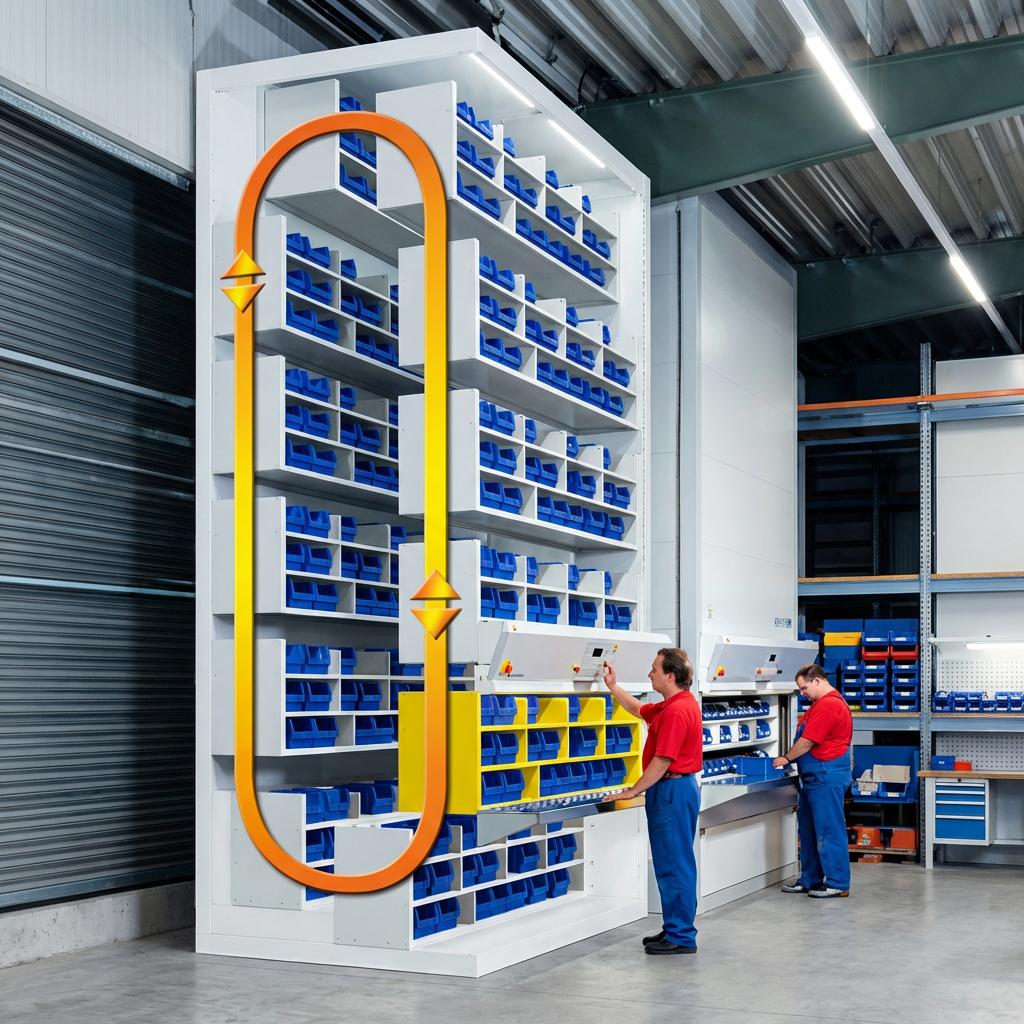

Quickly access small parts with auto-picking system
Reclaim floorspace by storing objects vertically
180 kg max load per carrier

Questions about this product?

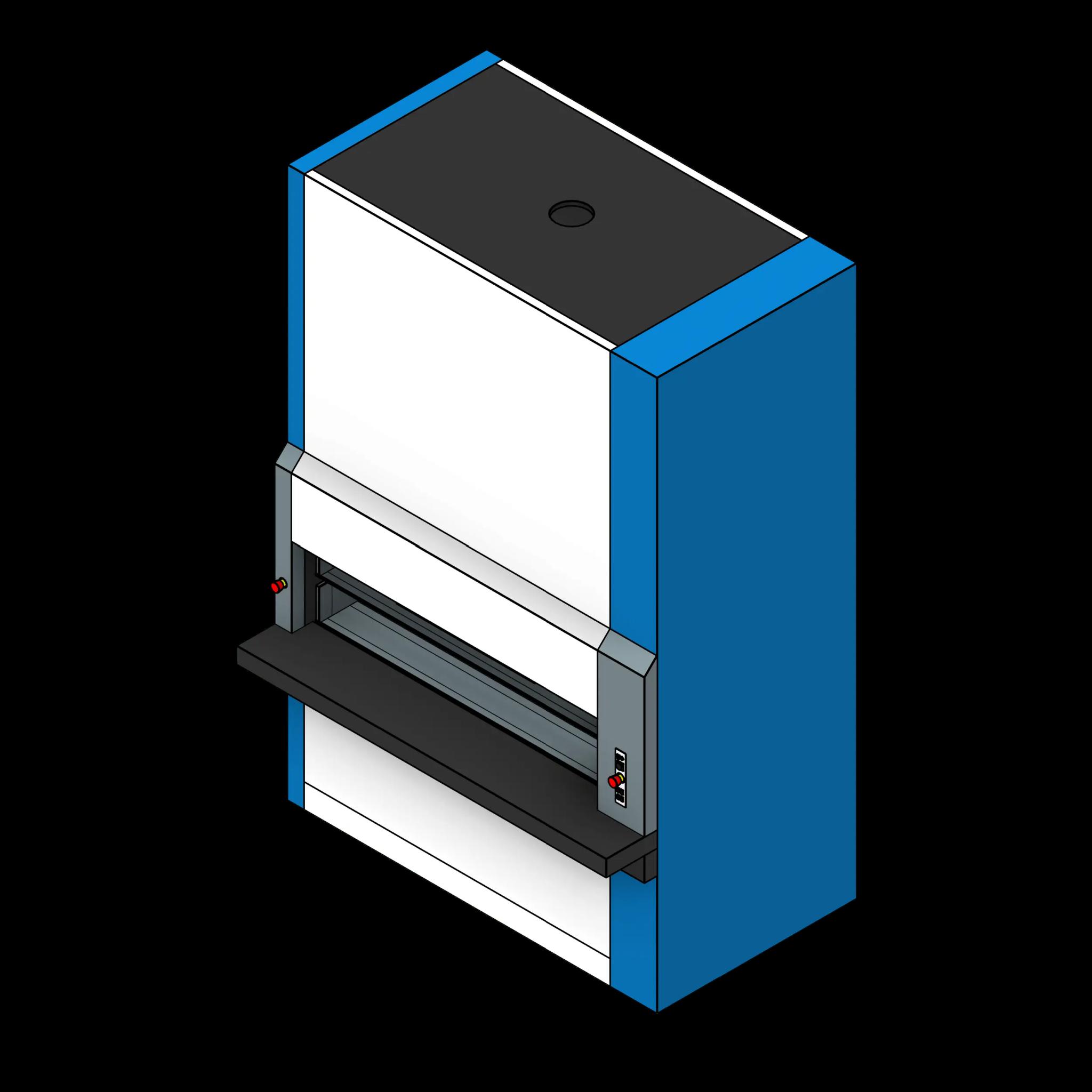

Vertical Carousel Narrow - Small Object Storage

To configure this family, simply select the desired tray width from eleven available options ranging from 1250 mm to 4050 mm, and choose a tray depth of 609.6 mm, 812.8 mm, or 863.6 mm. The Vertical Lift Module is highly versatile, offering hundreds of height variations between 2550 mm and 30,050 mm (just under 100 feet) to suit a wide range of design requirements.

Specifications
Dimensions
Width	1250 - 2400 on 25mm increments
Depth	428, 528, 628
Height	2210 - 7410 mm
Product
Manufacturer	Southwest Solutions Group_KAR
Lead Time	Contact SSG for info
Model	MEG RS 180
Primary Material	Powder coated steel
Classification
MasterFormat	41 51 13
UniFormat	E10 – Equipment
IFC	Furniture
OmniClass	23-23 17 00
Purchasing
Contracts	Sourcewell, Equalis, Vizient
Revit family
Includes Pricing	Yes
ADA Compliant	Yes
Has MEP Connectors	Yes

Model	Width	Depth	Height	Weight
SSG-MEG RS 180.2.1600.4.254.12	7' 7 1/2" (91 1/2")	5' 1 7/8" (61 7/8")	7' 3" (87")	5311
SSG-MEG RS 180.2.1600.4.254.13	7' 7 1/2" (91 1/2")	5' 1 7/8" (61 7/8")	7' 7 7/8" (91 7/8")	5584
SSG-MEG RS 180.2.1600.4.254.14	7' 7 1/2" (91 1/2")	5' 1 7/8" (61 7/8")	8' 0 7/8" (96 7/8")	5858
SSG-MEG RS 180.2.1600.4.254.15	7' 7 1/2" (91 1/2")	5' 1 7/8" (61 7/8")	8' 5 3/4" (101 3/4")	6133
SSG-MEG RS 180.2.1600.4.254.16	7' 7 1/2" (91 1/2")	5' 1 7/8" (61 7/8")	8' 10 3/4" (106 3/4")	6404
SSG-MEG RS 180.2.1600.4.254.17	7' 7 1/2" (91 1/2")	5' 1 7/8" (61 7/8")	9' 3 5/8" (111 5/8")	6678
SSG-MEG RS 180.2.1600.4.254.18	7' 7 1/2" (91 1/2")	5' 1 7/8" (61 7/8")	9' 8 1/2" (116 1/2")	6953
SSG-MEG RS 180.2.1600.4.254.19	7' 7 1/2" (91 1/2")	5' 1 7/8" (61 7/8")	10' 1 1/2" (121 1/2")	7233
SSG-MEG RS 180.2.1600.4.254.20	7' 7 1/2" (91 1/2")	5' 1 7/8" (61 7/8")	10' 6 3/8" (126 3/8")	7509
SSG-MEG RS 180.2.1600.4.254.21	7' 7 1/2" (91 1/2")	5' 1 7/8" (61 7/8")	10' 11 1/4" (131 1/4")	7782
SSG-MEG RS 180.2.1600.4.254.22	7' 7 1/2" (91 1/2")	5' 1 7/8" (61 7/8")	11' 4 1/4" (136 1/4")	8056
SSG-MEG RS 180.2.1600.4.254.23	7' 7 1/2" (91 1/2")	5' 1 7/8" (61 7/8")	11' 10 1/8" (142 1/8")	8331
SSG-MEG RS 180.2.1600.4.254.24	7' 7 1/2" (91 1/2")	5' 1 7/8" (61 7/8")	12' 3" (147")	8605
SSG-MEG RS 180.2.1600.4.254.25	7' 7 1/2" (91 1/2")	5' 1 7/8" (61 7/8")	12' 8" (151")	8878
SSG-MEG RS 180.2.1600.4.254.26	7' 7 1/2" (91 1/2")	5' 1 7/8" (61 7/8")	13' 0 7/8" (156 7/8")	9153
SSG-MEG RS 180.2.1600.4.254.27	7' 7 1/2" (91 1/2")	5' 1 7/8" (61 7/8")	13' 5 3/4" (161 3/4")	9438
SSG-MEG RS 180.2.1600.4.254.28	7' 7 1/2" (91 1/2")	5' 1 7/8" (61 7/8")	13' 10 3/4" (166 3/4")	9711
SSG-MEG RS 180.2.1600.4.254.29	7' 7 1/2" (91 1/2")	5' 1 7/8" (61 7/8")	14' 3 5/8" (171 5/8")	9985
SSG-MEG RS 180.2.1600.4.254.30	7' 7 1/2" (91 1/2")	5' 1 7/8" (61 7/8")	14' 8 5/8" (176 5/8")	10260
SSG-MEG RS 180.2.1600.4.254.31	7' 7 1/2" (91 1/2")	5' 1 7/8" (61 7/8")	15' 1 1/2" (181 1/2")	10534
SSG-MEG RS 180.2.1600.4.254.31	7' 7 1/2" (91 1/2")	5' 1 7/8" (61 7/8")	15' 6 3/8" (186 3/8")	10512
SSG-MEG RS 180.2.1600.4.254.33	7' 7 1/2" (91 1/2")	5' 1 7/8" (61 7/8")	15' 11 3/8" (191 3/8")	10549
SSG-MEG RS 180.2.1600.4.254.34	7' 7 1/2" (91 1/2")	5' 1 7/8" (61 7/8")	16' 4 1/4" (196 1/4")	11038
SSG-MEG RS 180.2.1600.4.254.35	7' 7 1/2" (91 1/2")	5' 1 7/8" (61 7/8")	16' 10 1/8" (202 1/8")	11065
SSG-MEG RS 180.2.1600.4.254.36	7' 7 1/2" (91 1/2")	5' 1 7/8" (61 7/8")	17' 3 1/8" (207 1/8")	11323
SSG-MEG RS 180.2.1600.4.254.37	7' 7 1/2" (91 1/2")	5' 1 7/8" (61 7/8")	17' 8" (212")	11581
SSG-MEG RS 180.2.1600.4.254.38	7' 7 1/2" (91 1/2")	5' 1 7/8" (61 7/8")	18' 0 7/8" (216 7/8")	11488
SSG-MEG RS 180.2.1600.4.254.39	7' 7 1/2" (91 1/2")	5' 1 7/8" (61 7/8")	18' 5 7/8" (221 7/8")	11457
SSG-MEG RS 180.2.1600.4.254.40	7' 7 1/2" (91 1/2")	5' 1 7/8" (61 7/8")	18' 10 3/4" (226 3/4")	11986
SSG-MEG RS 180.2.1600.4.254.41	7' 7 1/2" (91 1/2")	5' 1 7/8" (61 7/8")	19' 3 3/4" (231 3/4")	11938
SSG-MEG RS 180.2.1600.4.254.42	7' 7 1/2" (91 1/2")	5' 1 7/8" (61 7/8")	19' 8 5/8" (236 5/8")	12189
SSG-MEG RS 180.2.1600.4.254.43	7' 7 1/2" (91 1/2")	5' 1 7/8" (61 7/8")	20' 1 1/2" (241 1/2")	12432
SSG-MEG RS 180.2.1600.4.254.44	7' 7 1/2" (91 1/2")	5' 1 7/8" (61 7/8")	20' 6 1/2" (246 1/2")	12286
SSG-MEG RS 180.2.1600.4.254.45	7' 7 1/2" (91 1/2")	5' 1 7/8" (61 7/8")	20' 11 3/8" (251 3/8")	12202
SSG-MEG RS 180.2.1600.4.254.46	7' 7 1/2" (91 1/2")	5' 1 7/8" (61 7/8")	21' 4 1/4" (256 1/4")	12751
SSG-MEG RS 180.2.1600.4.254.47	7' 7 1/2" (91 1/2")	5' 1 7/8" (61 7/8")	21' 9 1/4" (261 1/4")	12652
SSG-MEG RS 180.2.1600.4.254.48	7' 7 1/2" (91 1/2")	5' 1 7/8" (61 7/8")	22' 3 1/8" (267 1/8")	12879
SSG-MEG RS 180.2.1600.4.254.49	7' 7 1/2" (91 1/2")	5' 1 7/8" (61 7/8")	22' 8" (272")	13104
SSG-MEG RS 180.2.1600.4.254.50	7' 7 1/2" (91 1/2")	5' 1 7/8" (61 7/8")	23' 1" (276")	13340
SSG-MEG RS 180.2.1600.4.254.51	7' 7 1/2" (91 1/2")	5' 1 7/8" (61 7/8")	23' 5 7/8" (281 7/8")	13565
SSG-MEG RS 180.2.1600.4.254.52	7' 7 1/2" (91 1/2")	5' 1 7/8" (61 7/8")	23' 10 3/4" (286 3/4")	13792
SSG-MEG RS 180.2.1600.4.254.53	7' 7 1/2" (91 1/2")	5' 1 7/8" (61 7/8")	24' 3 3/4" (291 3/4")	12218

SSG-MEG RS 180.2.1600.4.254.12
91 1/2" W × 61 7/8" D × 87" H · Weight 5311
SSG-MEG RS 180.2.1600.4.254.13
91 1/2" W × 61 7/8" D × 91 7/8" H · Weight 5584
SSG-MEG RS 180.2.1600.4.254.14
91 1/2" W × 61 7/8" D × 96 7/8" H · Weight 5858
SSG-MEG RS 180.2.1600.4.254.15
91 1/2" W × 61 7/8" D × 101 3/4" H · Weight 6133
SSG-MEG RS 180.2.1600.4.254.16
91 1/2" W × 61 7/8" D × 106 3/4" H · Weight 6404
SSG-MEG RS 180.2.1600.4.254.17
91 1/2" W × 61 7/8" D × 111 5/8" H · Weight 6678
SSG-MEG RS 180.2.1600.4.254.18
91 1/2" W × 61 7/8" D × 116 1/2" H · Weight 6953
SSG-MEG RS 180.2.1600.4.254.19
91 1/2" W × 61 7/8" D × 121 1/2" H · Weight 7233
SSG-MEG RS 180.2.1600.4.254.20
91 1/2" W × 61 7/8" D × 126 3/8" H · Weight 7509
SSG-MEG RS 180.2.1600.4.254.21
91 1/2" W × 61 7/8" D × 131 1/4" H · Weight 7782
SSG-MEG RS 180.2.1600.4.254.22
91 1/2" W × 61 7/8" D × 136 1/4" H · Weight 8056
SSG-MEG RS 180.2.1600.4.254.23
91 1/2" W × 61 7/8" D × 142 1/8" H · Weight 8331
