Shuttle Vertical Lift
Product SKU
Description
- Ideal for industrial, materials handling, and assembly applications.
- Easily improve your part picking and assembly times by reducing the amount of time employees spend searching for parts.
- High-Quality powder coated steel available in a variety of colors.

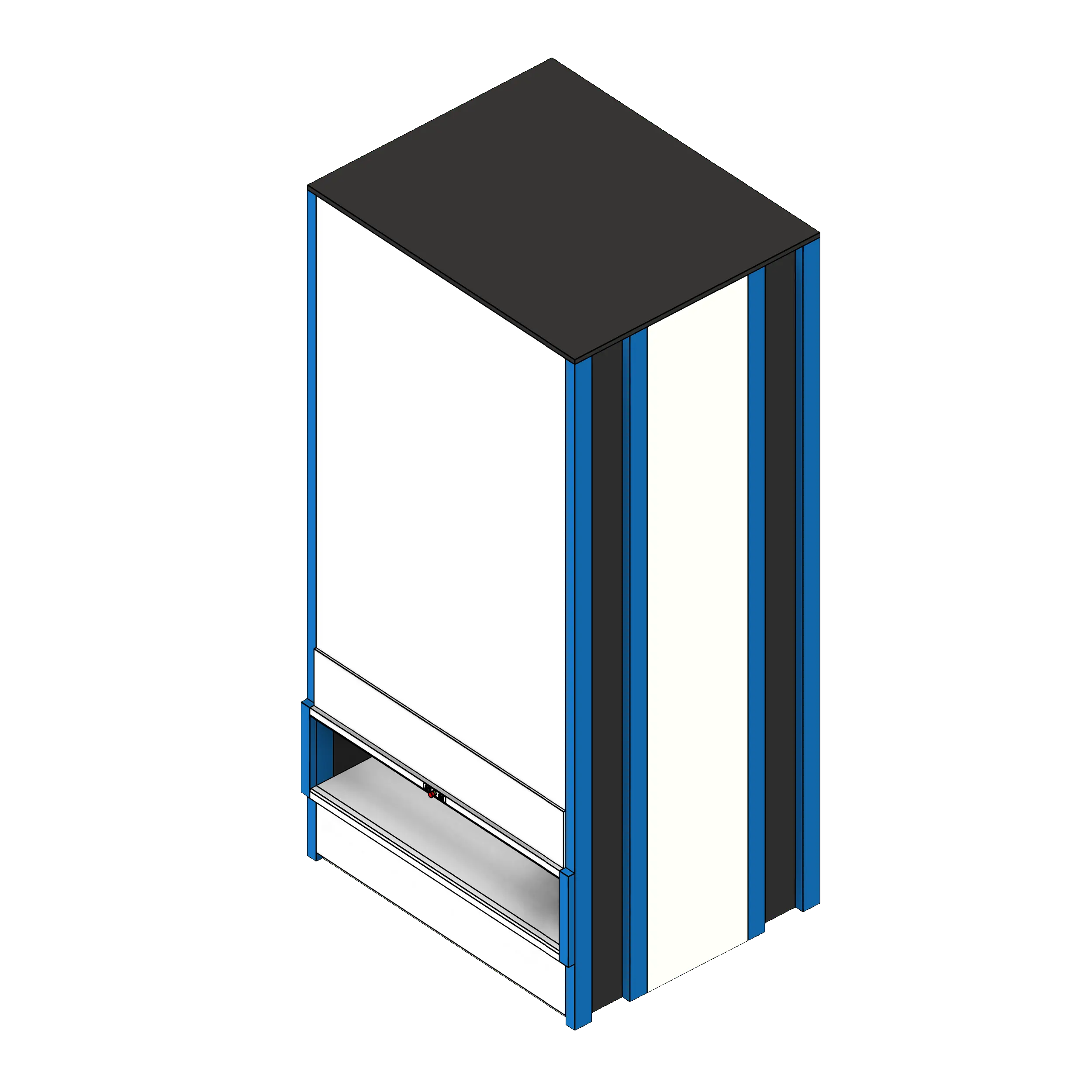

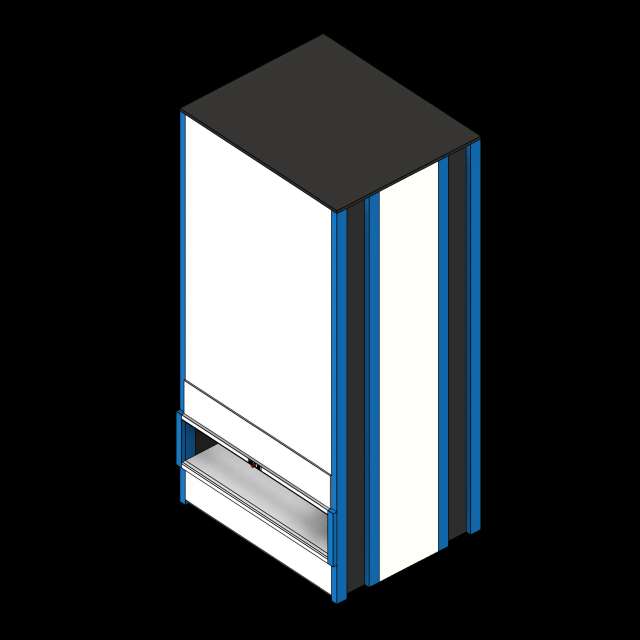

- Model includes a detailed plan-view for accurate placement of anchors and uprights.
Vertical Lift and Retrieval Unit

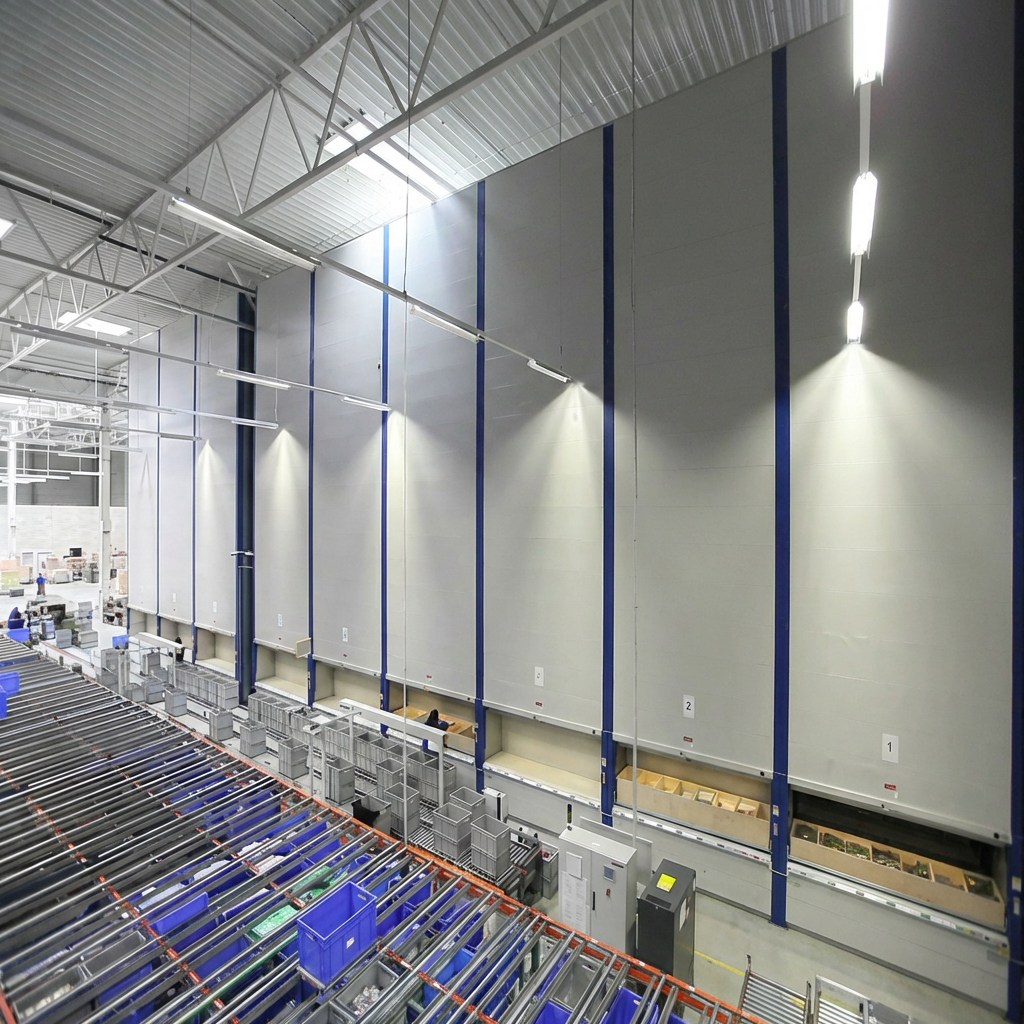

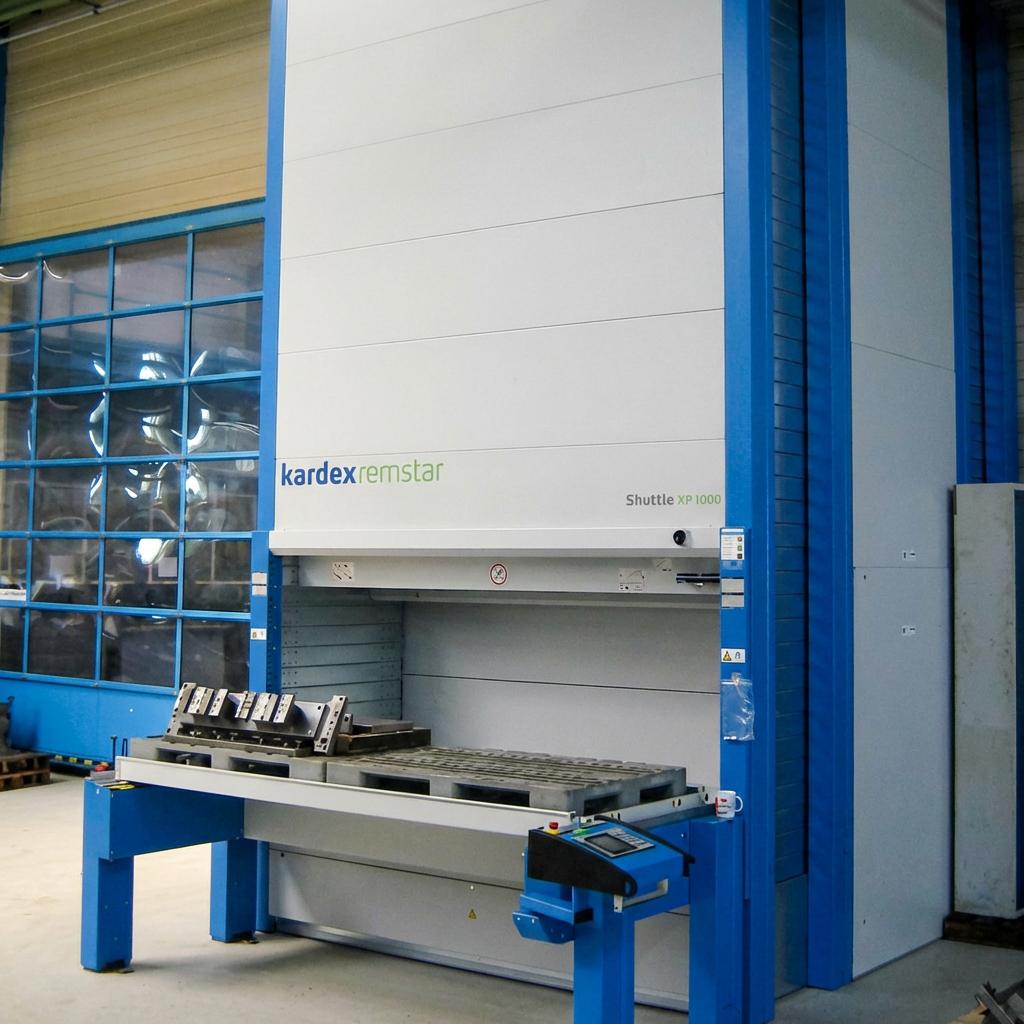

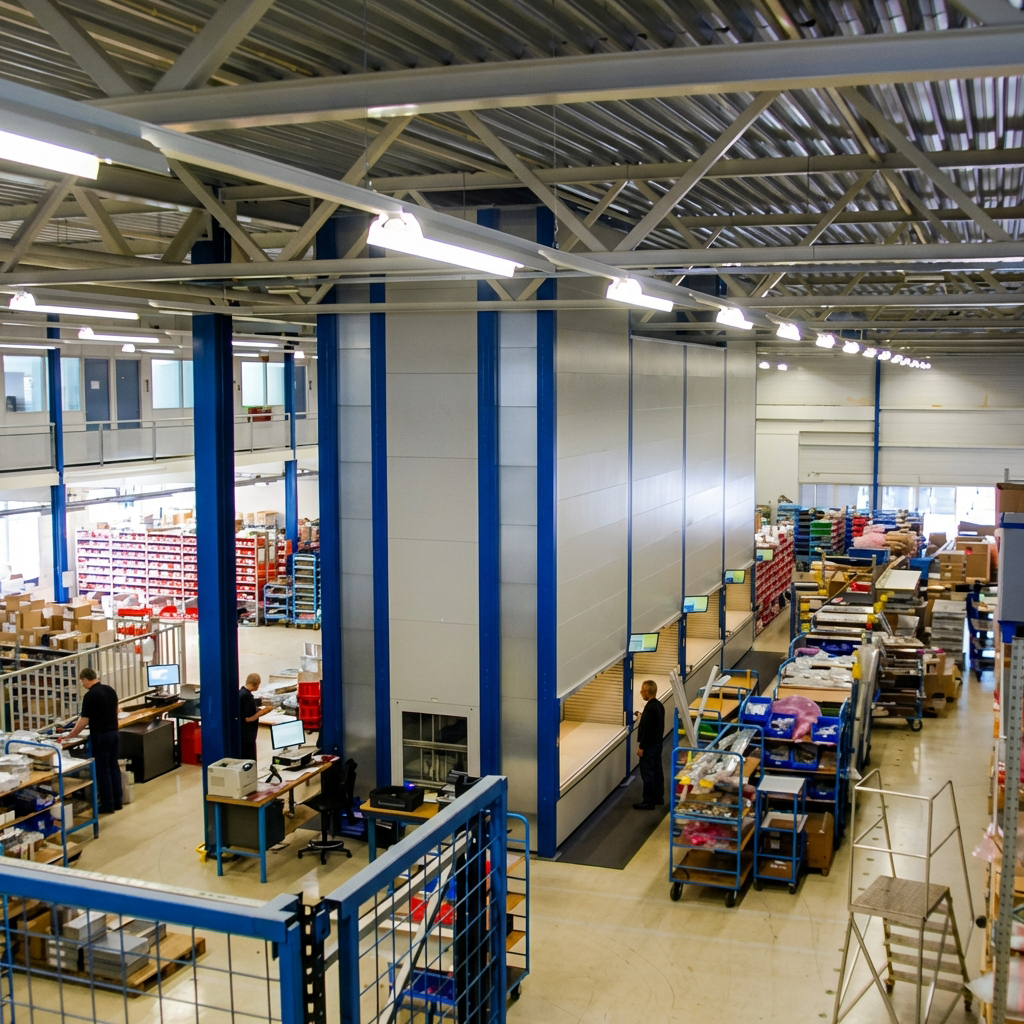

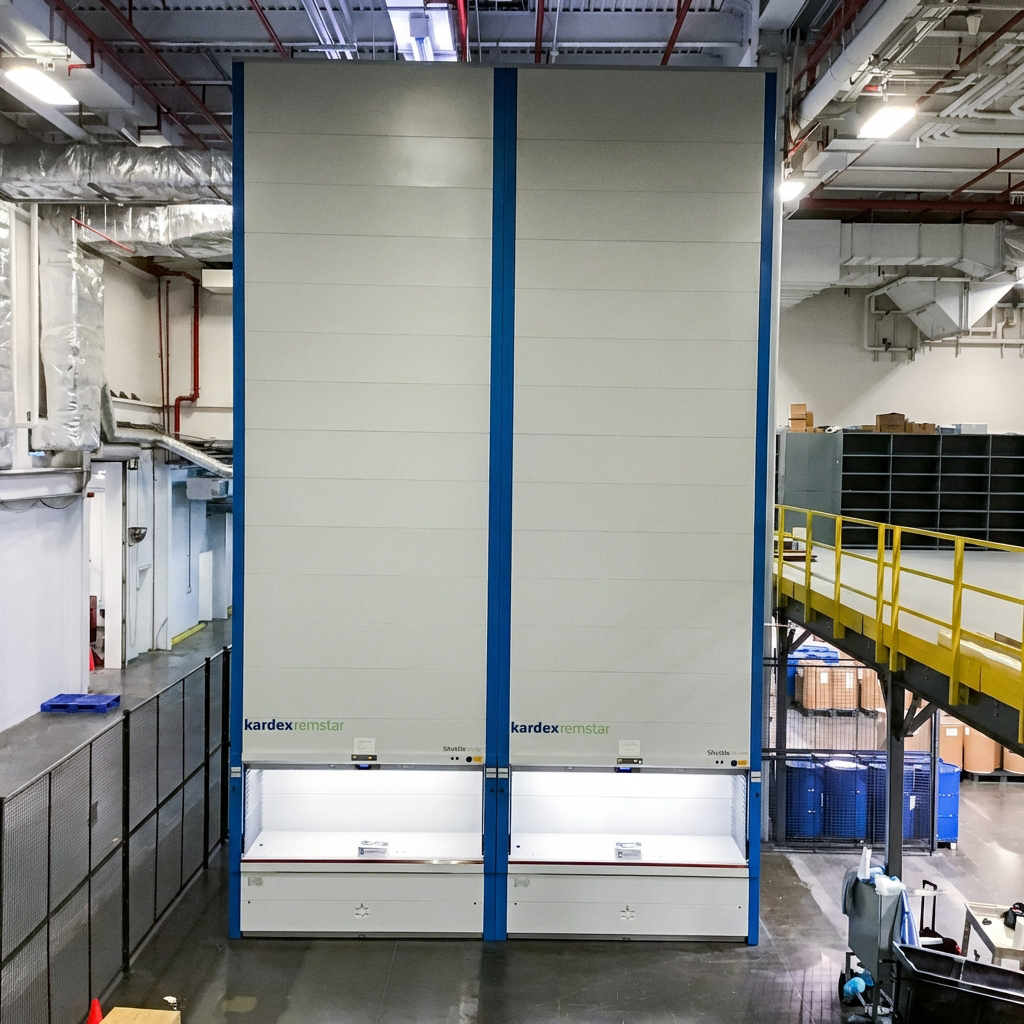

Vertical Lifts make finding the part you need faster and easier. Recover floor space by storing items vertically. The motorized tray retrieves specified items and outputs to the access port in the front. With up to 100' of vertical storage space, this unit can be configured to fit your needs quickly.
To use this family, simply input the desired tray width (eleven options between 1250 mm and 4050 mm), and the desired tray depth (609.6 mm, 812.8 mm, and 863.6 mm). The Vertical Lift Module is an extremely adaptable unit and is capable of hundreds of heights between 2550 mm and 30050 mm (< 100').
| Parameter | Value |
|---|---|
| Standard Widths | 1580 mm - 4380 mm |
| Minimum Width | 5.183727 |
| Maximum Width | 14.37008 |
| Standard Depths | 2312 mm - 4343 mm |
| Minimum Depth | 7.585302 |
| Maximum Depth | 14.24869 |
| Standard Heights | 2550 mm - 30050 mm |
| Minimum Height | 8.366142 |
| Maximum Height | 98.58924 |
| Standard Tray Widths | 1250 mm, 1650 mm, 1850 mm, 2050 mm, 2150 mm, 2450 mm, 2850 mm, 3050 mm, 3250 mm, 3650 mm, 4050 mm |
| Minimum Tray Width | 4.10105 |
| Maximum Tray Width | 13.2874 |
| Standard Tray Depths | 609.6 mm, 812.8 mm, 863.6 mm |
| Minimum Tray Depth | 2 |
| Maximum Tray Depth | 2.833333 |
| Manufacturer | Southwest Solutions Group_KAR |
| Lead Time | Contact SSG for info |
| Model | VLM |
| Keynote | 41 51 13 |
| Assembly Code | E10 |
| Author | AWright |
| Toll Free Number | 1-800-803-1083 |
| Property | Value |
|---|---|
| Equalis | No |
| Omnia | No |
| Sourcewell | Yes |
| Systec | No |
| Vizient | Yes |
| Includes Pricing | Yes |
| ADA Compliant | Yes |
| Has MEP Connectors | Yes |
| Primary Material | Powder coated steel |
| BIMobject Category | Furniture: Shelving & Storage |
| IFC | Furniture |
| Omniclass | 23-23 17 00 |
