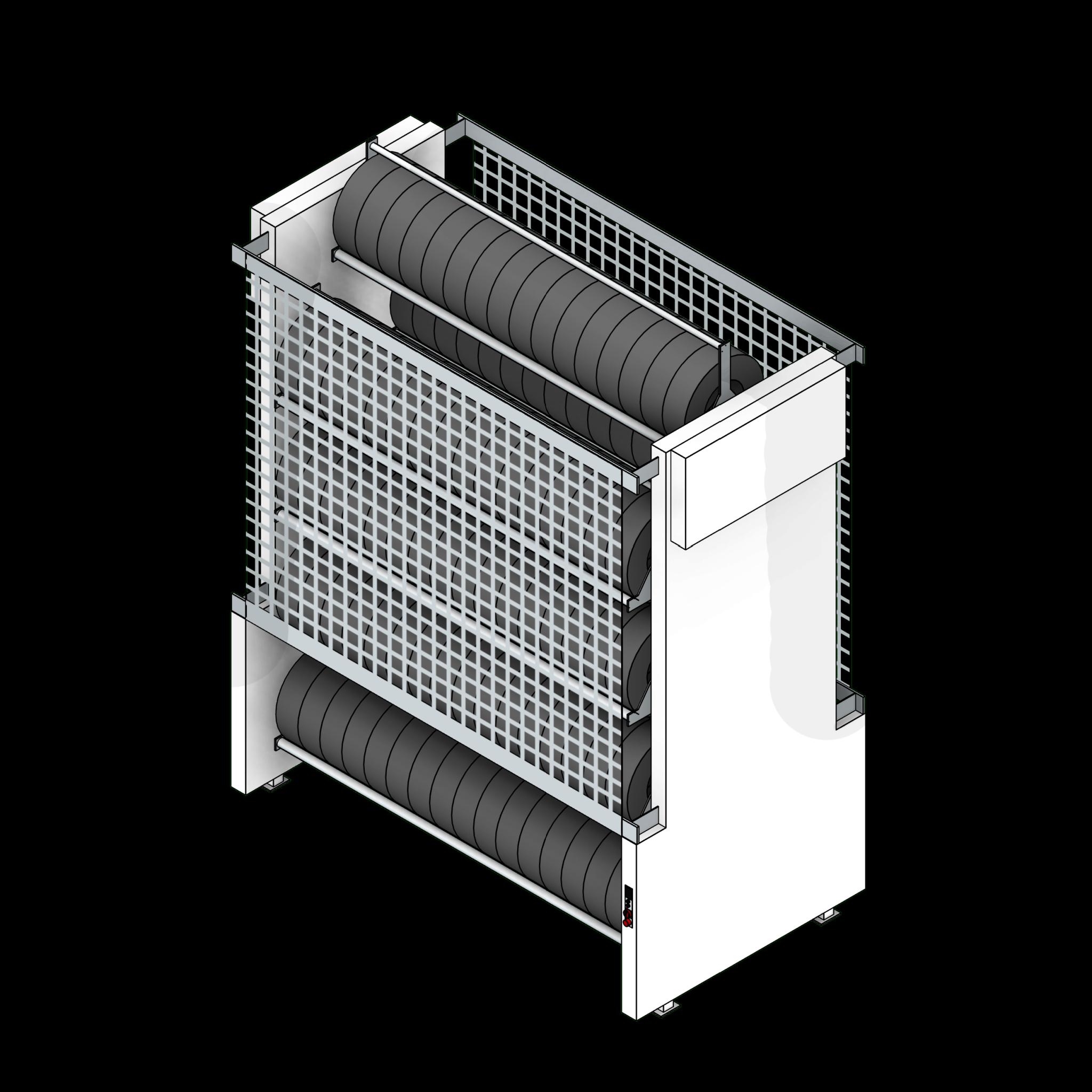

Tire Storage Vertical Carousel
Product SKU
Description
- Used primarily in automotive shops for safely storing tires off the ground.
- Stores up to 44" diameter tires in up to 15 carriages.
- Optional security gate across openings protects inventory.
Vertical Carousel Tire Storage
Use this specialty tire carousel to safely store tires of any size and clear up additional shop floor space. Easy operation and double-sided entry make this a powerful solution for any automotive shop.
This tire carousel family is designed to take the guesswork out of planning vertical carousel systems. To use this model, insert it into your project from Fetch. Enter your desired opening width, maximum tire diameter, and the number of carriers you desire, and the model will automatically size up or down depending on your selections. The tires may be turned off by unchecking the "VIZ_Tires" box under Graphics in the properties browser. This model also includes an electrical connector with all appropriate settings entered in.
| Parameter | Value |
|---|---|
| Standard Widths | 14' 9", 17' 9", 20' 9" |
| Minimum Width | 14.75 |
| Maximum Width | 20.75 |
| Standard Depths | 6' 11", 7' 9", 9' 4" |
| Minimum Depth | 6.91666666666667 |
| Maximum Depth | 9.33333333333333 |
| Standard Heights | 13' 2" - 28' 1" |
| Minimum Height | 13.1666666666667 |
| Maximum Height | 28.0833333333333 |
| Minimum Tire Diameter | 2.33333333333333 |
| Maximum Tire Diameter | 3.66666666666667 |
| Manufacturer | Southwest Solutions Group_VID |
| Lead Time | 10-12 Weeks |
| Model | T |
| Keynote | 14 46 00 |
| Assembly Code | E10 |
| Author | AWright |
| Toll Free Number | 1-800-803-1083 |
| Property | Value |
|---|---|
| Includes Pricing | Yes |
| ADA Compliant | No |
| Has MEP Connectors | Yes |
| Primary Material | Powder coated steel |
| BIMobject Category | Furniture: Shelving & Storage |
| IFC | Furniture |
| Omniclass | 23.50.05.14 |
