Riser Laminate Platform

Downloads

Get Fetch to load families straight into Revit →

Family

Pricing

ADA

Pricing is INCLUDED in model.
Comes standard with 5 different height options.
Typically placed on top of consoles or cabinets located in a Mail Room.
Cost estimate updates dynamically with changes to the model

Questions about this product?

Laminate Riser

The Southwest Solutions Group casework line is designed to be highly flexible and adaptable with every Revit model built to reflect its real world counterpart. Once loaded, each model has a variety of parameters which allow you to easily manipulate and customize various aspects of the casework design without ever needing to load a type catalog ever again.

Such features include:

Quickly Manipulate Sizes
Toe Kick Options
Door Styles
Handle Types
Lock Options
Angled Top Options
Material Options

In addition, each model comes with a high level of information built in, including a worst-case budget price that dynamically updates as you manipulate the model within Revit. This allows the designer and client to quickly understand where the money is being spent. Also, within each model type, there are links to more detailed information should you need it. Having this level of flexibility combined with a high level of information is truly what BIM is meant to be.

Specifications
Dimensions
Width	24 3/4", 28 3/4", 30", 36 7/16", 42 7/16", 48 1/8", 56 1/8", 59 13/16", 69 13/16", 71 1/2", 83 1/2"
Depth	12 7/8", 16 7/8"

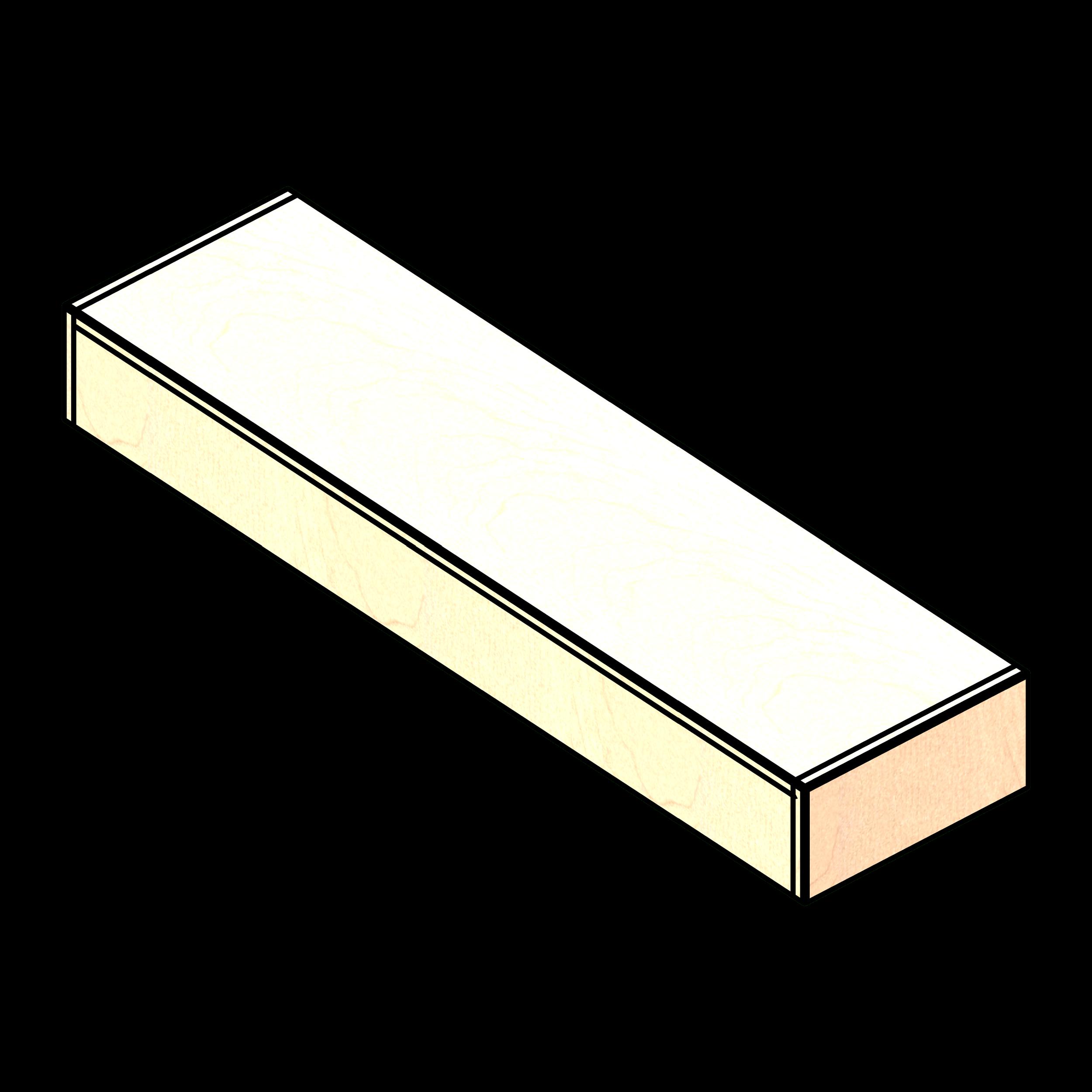

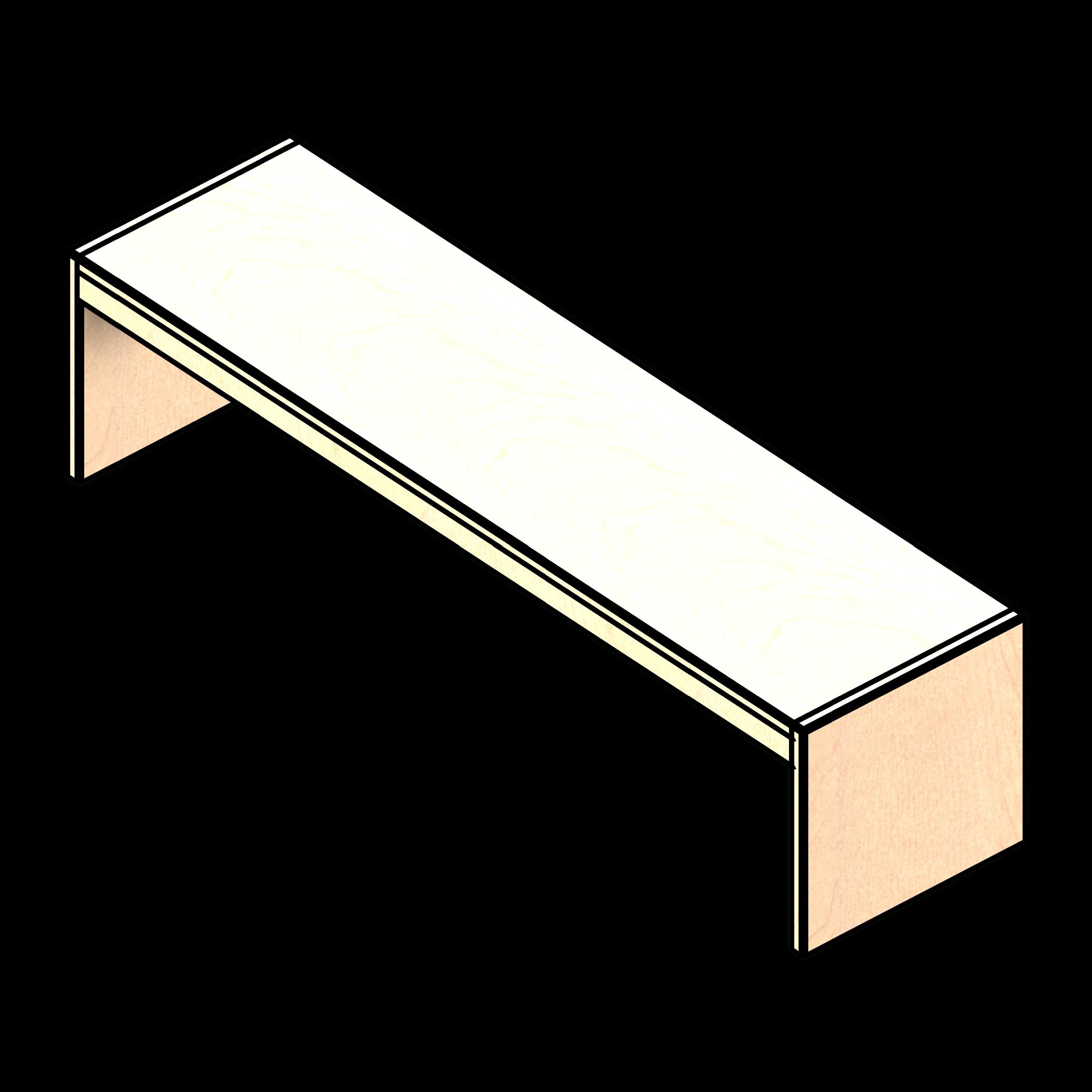

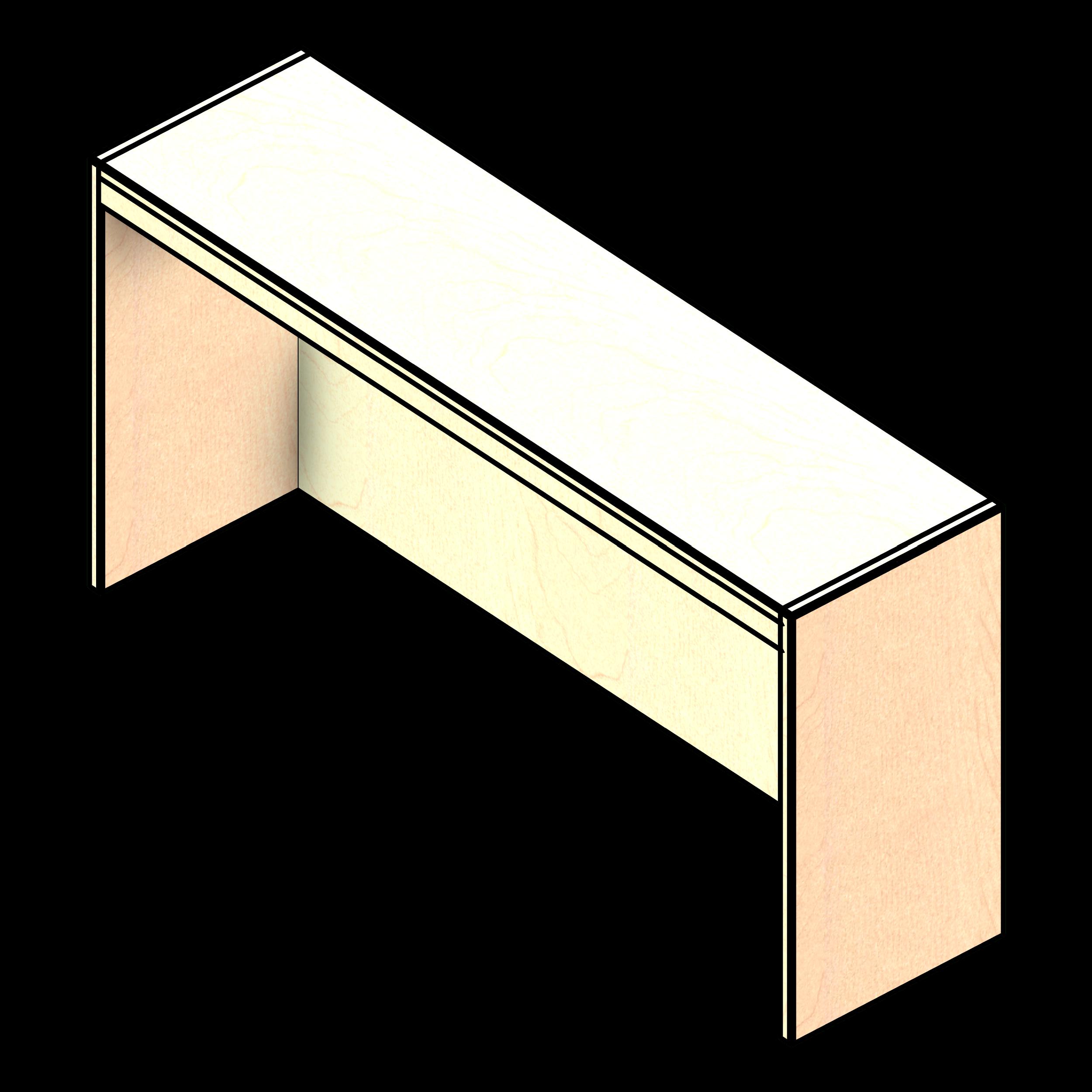

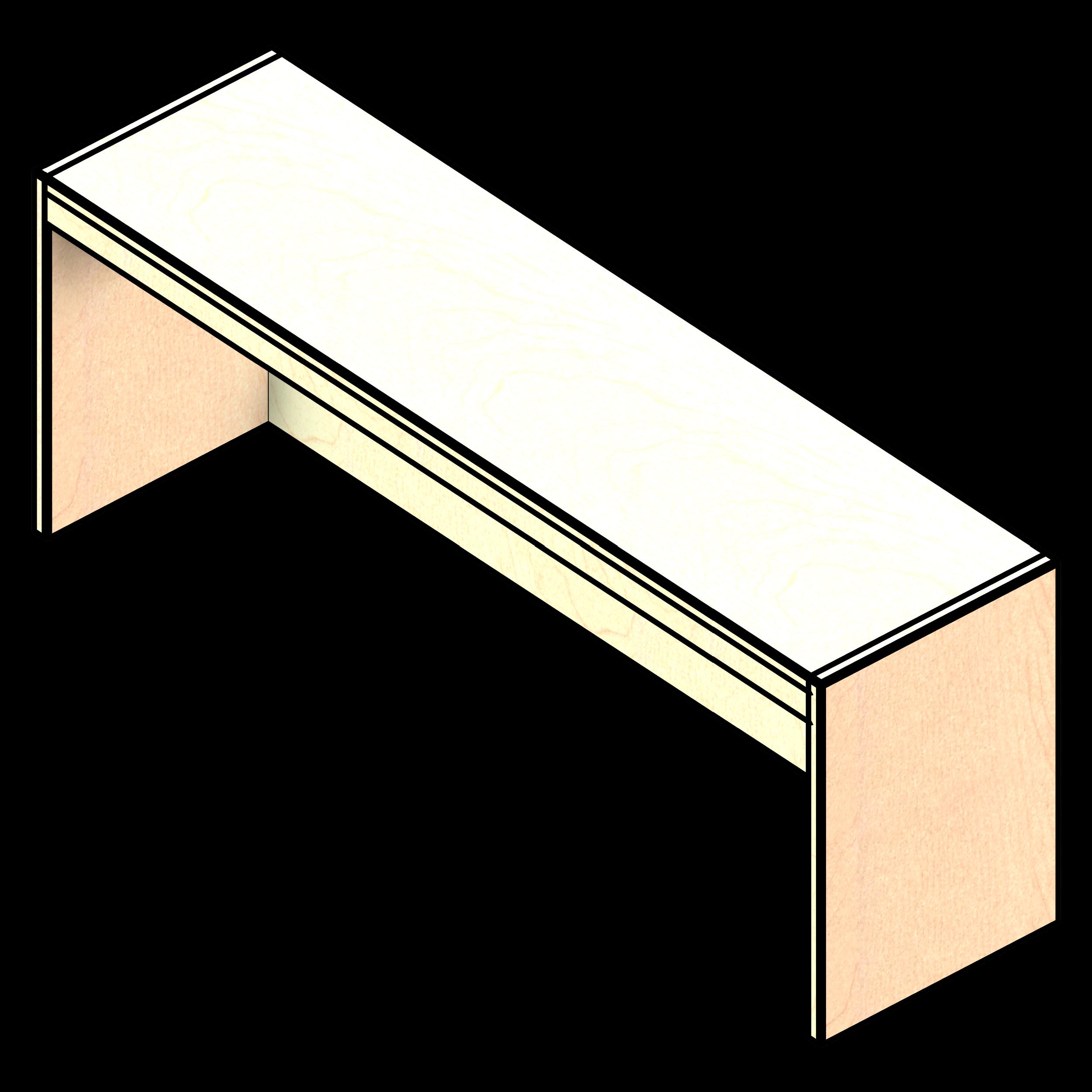

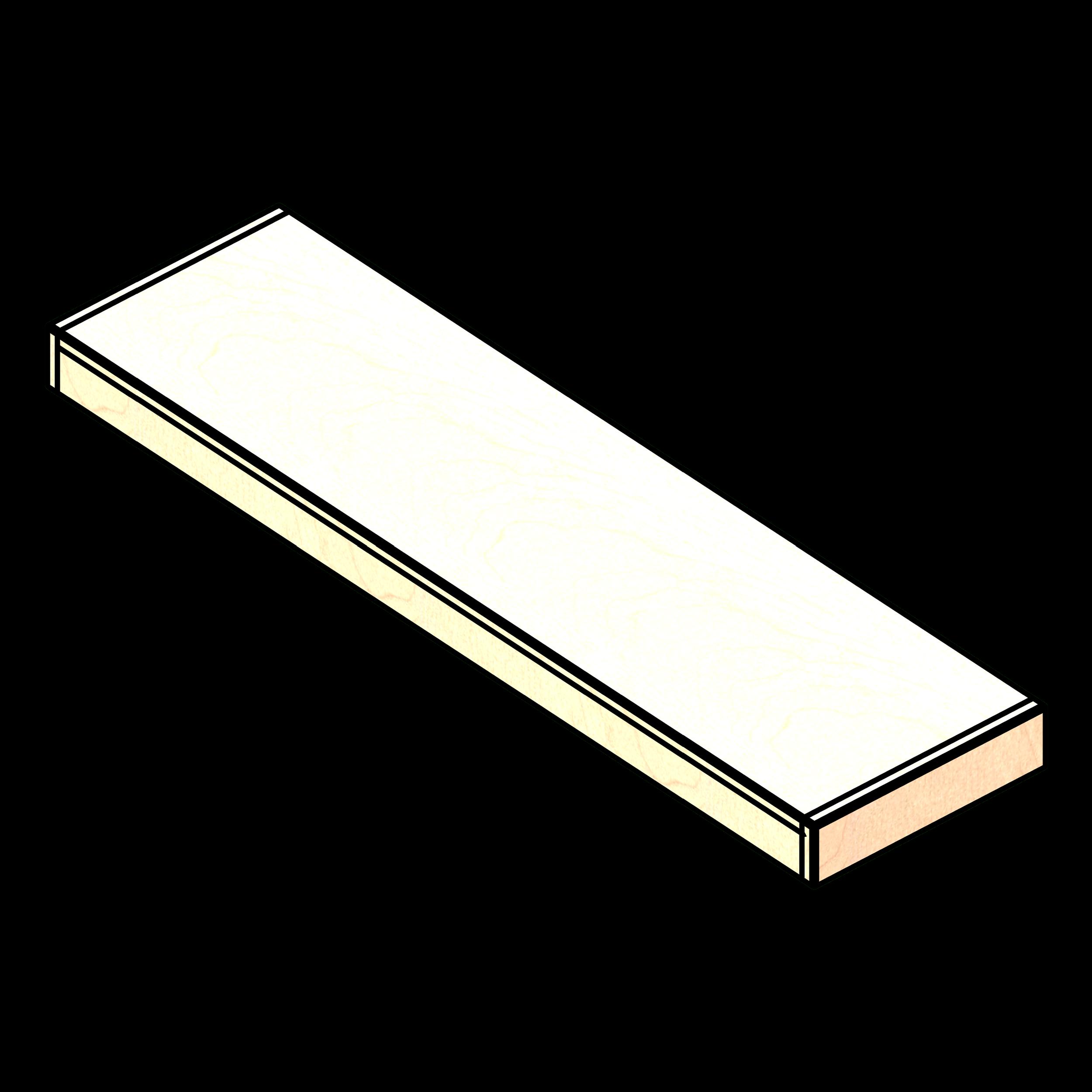

Height	3", 6", 12", 18", 24"
Product
Manufacturer	Southwest Solutions Group_HAM
Lead Time	4-6 Weeks
Construction Type	Frameless cabinet construction w/ flush overlay fronts
Model	E
Primary Material	Laminate
Secondary Material	Aluminium
Classification
MasterFormat	12 32 16 – Manufactured Plastic-Laminate-Clad Casework
UniFormat	E2020 – Moveable Furnishings
IFC	Furniture
OmniClass	23-21 19 15 39
Purchasing
Contracts	Vizient, Systec
Revit family
Includes Pricing	Yes
ADA Compliant	Yes
Has MEP Connectors	No

Model	Width	Depth	Height	Weight
SSG-E241203	2' 0 3/4" (24 3/4")	1' 0 7/8" (12 7/8")	0' 3" (3")	15
SSG-E241603	2' 0 3/4" (24 3/4")	1' 4 7/8" (16 7/8")	0' 3" (3")	19
SSG-E281203	2' 4 3/4" (28 3/4")	1' 0 7/8" (12 7/8")	0' 3" (3")	16
SSG-E281603	2' 4 3/4" (28 3/4")	1' 4 7/8" (16 7/8")	0' 3" (3")	20
SSG-E301203	2' 6" (30")	1' 0 7/8" (12 7/8")	0' 3" (3")	20
SSG-E301603	2' 6" (30")	1' 4 7/8" (16 7/8")	0' 3" (3")	23
SSG-E361203	3' 0 1/2" (36 1/2")	1' 0 7/8" (12 7/8")	0' 3" (3")	23
SSG-E361603	3' 0 1/2" (36 1/2")	1' 4 7/8" (16 7/8")	0' 3" (3")	23
SSG-E421203	3' 6 1/2" (42 1/2")	1' 0 7/8" (12 7/8")	0' 3" (3")	24
SSG-E421603	3' 6 1/2" (42 1/2")	1' 4 7/8" (16 7/8")	0' 3" (3")	25
SSG-E481203	4' 0 1/8" (48 1/8")	1' 0 7/8" (12 7/8")	0' 3" (3")	23
SSG-E481603	4' 0 1/8" (48 1/8")	1' 4 7/8" (16 7/8")	0' 3" (3")	28
SSG-E551203	4' 8 1/8" (56 1/8")	1' 0 7/8" (12 7/8")	0' 3" (3")	28
SSG-E551603	4' 8 1/8" (56 1/8")	1' 4 7/8" (16 7/8")	0' 3" (3")	32
SSG-E601203	4' 11 3/4" (59 3/4")	1' 0 7/8" (12 7/8")	0' 3" (3")	29
SSG-E601603	4' 11 3/4" (59 3/4")	1' 4 7/8" (16 7/8")	0' 3" (3")	34
SSG-E691203	5' 9 3/4" (69 3/4")	1' 0 7/8" (12 7/8")	0' 3" (3")	31
SSG-E691603	5' 9 3/4" (69 3/4")	1' 4 7/8" (16 7/8")	0' 3" (3")	37
SSG-E721203	5' 11 1/2" (71 1/2")	1' 0 7/8" (12 7/8")	0' 3" (3")	32
SSG-E721603	5' 11 1/2" (71 1/2")	1' 4 7/8" (16 7/8")	0' 3" (3")	39
SSG-E841203	6' 11 1/2" (83 1/2")	1' 0 7/8" (12 7/8")	0' 3" (3")	36
SSG-E841603	6' 11 1/2" (83 1/2")	1' 4 7/8" (16 7/8")	0' 3" (3")	43
SSG-E241206	2' 0 3/4" (24 3/4")	1' 0 7/8" (12 7/8")	0' 6" (6")	15
SSG-E241606	2' 0 3/4" (24 3/4")	1' 4 7/8" (16 7/8")	0' 6" (6")	19
SSG-E281206	2' 4 3/4" (28 3/4")	1' 0 7/8" (12 7/8")	0' 6" (6")	16
SSG-E281606	2' 4 3/4" (28 3/4")	1' 4 7/8" (16 7/8")	0' 6" (6")	20
SSG-E301206	2' 6" (30")	1' 0 7/8" (12 7/8")	0' 6" (6")	20
SSG-E301606	2' 6" (30")	1' 4 7/8" (16 7/8")	0' 6" (6")	23
SSG-E361206	3' 0 1/2" (36 1/2")	1' 0 7/8" (12 7/8")	0' 6" (6")	23
SSG-E361606	3' 0 1/2" (36 1/2")	1' 4 7/8" (16 7/8")	0' 6" (6")	23
SSG-E421206	3' 6 1/2" (42 1/2")	1' 0 7/8" (12 7/8")	0' 6" (6")	24
SSG-E421606	3' 6 1/2" (42 1/2")	1' 4 7/8" (16 7/8")	0' 6" (6")	25
SSG-E481206	4' 0 1/8" (48 1/8")	1' 0 7/8" (12 7/8")	0' 6" (6")	23
SSG-E481606	4' 0 1/8" (48 1/8")	1' 4 7/8" (16 7/8")	0' 6" (6")	28
SSG-E551206	4' 8 1/8" (56 1/8")	1' 0 7/8" (12 7/8")	0' 6" (6")	28
SSG-E551606	4' 8 1/8" (56 1/8")	1' 4 7/8" (16 7/8")	0' 6" (6")	32
SSG-E601206	4' 11 3/4" (59 3/4")	1' 0 7/8" (12 7/8")	0' 6" (6")	29
SSG-E601606	4' 11 3/4" (59 3/4")	1' 4 7/8" (16 7/8")	0' 6" (6")	34
SSG-E691206	5' 9 3/4" (69 3/4")	1' 0 7/8" (12 7/8")	0' 6" (6")	31
SSG-E691606	5' 9 3/4" (69 3/4")	1' 4 7/8" (16 7/8")	0' 6" (6")	37
SSG-E721206	5' 11 1/2" (71 1/2")	1' 0 7/8" (12 7/8")	0' 6" (6")	32
SSG-E721606	5' 11 1/2" (71 1/2")	1' 4 7/8" (16 7/8")	0' 6" (6")	39
SSG-E841206	6' 11 1/2" (83 1/2")	1' 0 7/8" (12 7/8")	0' 6" (6")	36
SSG-E841606	6' 11 1/2" (83 1/2")	1' 4 7/8" (16 7/8")	0' 6" (6")	43
SSG-E241212	2' 0 3/4" (24 3/4")	1' 0 7/8" (12 7/8")	1' 0" (12")	22
SSG-E241612	2' 0 3/4" (24 3/4")	1' 4 7/8" (16 7/8")	1' 0" (12")	25
SSG-E281212	2' 4 3/4" (28 3/4")	1' 0 7/8" (12 7/8")	1' 0" (12")	25
SSG-E281612	2' 4 3/4" (28 3/4")	1' 4 7/8" (16 7/8")	1' 0" (12")	28
SSG-E301212	2' 6" (30")	1' 0 7/8" (12 7/8")	1' 0" (12")	26
SSG-E301612	2' 6" (30")	1' 4 7/8" (16 7/8")	1' 0" (12")	31
SSG-E361212	3' 0 1/2" (36 1/2")	1' 0 7/8" (12 7/8")	1' 0" (12")	26
SSG-E361612	3' 0 1/2" (36 1/2")	1' 4 7/8" (16 7/8")	1' 0" (12")	31
SSG-E421212	3' 6 1/2" (42 1/2")	1' 0 7/8" (12 7/8")	1' 0" (12")	33
SSG-E421612	3' 6 1/2" (42 1/2")	1' 4 7/8" (16 7/8")	1' 0" (12")	33
SSG-E481212	4' 0 1/8" (48 1/8")	1' 0 7/8" (12 7/8")	1' 0" (12")	31
SSG-E481612	4' 0 1/8" (48 1/8")	1' 4 7/8" (16 7/8")	1' 0" (12")	36
SSG-E551212	4' 8 1/8" (56 1/8")	1' 0 7/8" (12 7/8")	1' 0" (12")	44
SSG-E551612	4' 8 1/8" (56 1/8")	1' 4 7/8" (16 7/8")	1' 0" (12")	44
SSG-E601212	4' 11 3/4" (59 3/4")	1' 0 7/8" (12 7/8")	1' 0" (12")	40
SSG-E601612	4' 11 3/4" (59 3/4")	1' 4 7/8" (16 7/8")	1' 0" (12")	46
SSG-E691212	5' 9 3/4" (69 3/4")	1' 0 7/8" (12 7/8")	1' 0" (12")	45
SSG-E691612	5' 9 3/4" (69 3/4")	1' 4 7/8" (16 7/8")	1' 0" (12")	51
SSG-E721212	5' 11 1/2" (71 1/2")	1' 0 7/8" (12 7/8")	1' 0" (12")	44
SSG-E721612	5' 11 1/2" (71 1/2")	1' 4 7/8" (16 7/8")	1' 0" (12")	53
SSG-E841212	6' 11 1/2" (83 1/2")	1' 0 7/8" (12 7/8")	1' 0" (12")	50
SSG-E841612	6' 11 1/2" (83 1/2")	1' 4 7/8" (16 7/8")	1' 0" (12")	58
SSG-E241218	2' 0 3/4" (24 3/4")	1' 0 7/8" (12 7/8")	1' 6" (18")	28
SSG-E241618	2' 0 3/4" (24 3/4")	1' 4 7/8" (16 7/8")	1' 6" (18")	32
SSG-E281218	2' 4 3/4" (28 3/4")	1' 0 7/8" (12 7/8")	1' 6" (18")	31
SSG-E281618	2' 4 3/4" (28 3/4")	1' 4 7/8" (16 7/8")	1' 6" (18")	34
SSG-E301218	2' 6" (30")	1' 0 7/8" (12 7/8")	1' 6" (18")	33
SSG-E301618	2' 6" (30")	1' 4 7/8" (16 7/8")	1' 6" (18")	39
SSG-E361218	3' 0 1/2" (36 1/2")	1' 0 7/8" (12 7/8")	1' 6" (18")	33
SSG-E361618	3' 0 1/2" (36 1/2")	1' 4 7/8" (16 7/8")	1' 6" (18")	39
SSG-E421218	3' 6 1/2" (42 1/2")	1' 0 7/8" (12 7/8")	1' 6" (18")	42
SSG-E421618	3' 6 1/2" (42 1/2")	1' 4 7/8" (16 7/8")	1' 6" (18")	42
SSG-E481218	4' 0 1/8" (48 1/8")	1' 0 7/8" (12 7/8")	1' 6" (18")	39
SSG-E481618	4' 0 1/8" (48 1/8")	1' 4 7/8" (16 7/8")	1' 6" (18")	45
SSG-E551218	4' 8 1/8" (56 1/8")	1' 0 7/8" (12 7/8")	1' 6" (18")	57
SSG-E551618	4' 8 1/8" (56 1/8")	1' 4 7/8" (16 7/8")	1' 6" (18")	57
SSG-E601218	4' 11 3/4" (59 3/4")	1' 0 7/8" (12 7/8")	1' 6" (18")	51
SSG-E601618	4' 11 3/4" (59 3/4")	1' 4 7/8" (16 7/8")	1' 6" (18")	58
SSG-E691218	5' 9 3/4" (69 3/4")	1' 0 7/8" (12 7/8")	1' 6" (18")	56
SSG-E691618	5' 9 3/4" (69 3/4")	1' 4 7/8" (16 7/8")	1' 6" (18")	64
SSG-E721218	5' 11 1/2" (71 1/2")	1' 0 7/8" (12 7/8")	1' 6" (18")	56
SSG-E721618	5' 11 1/2" (71 1/2")	1' 4 7/8" (16 7/8")	1' 6" (18")	66
SSG-E841218	6' 11 1/2" (83 1/2")	1' 0 7/8" (12 7/8")	1' 6" (18")	63
SSG-E841618	6' 11 1/2" (83 1/2")	1' 4 7/8" (16 7/8")	1' 6" (18")	74
SSG-E241224	2' 0 3/4" (24 3/4")	1' 0 7/8" (12 7/8")	2' 0" (24")	33
SSG-E241624	2' 0 3/4" (24 3/4")	1' 4 7/8" (16 7/8")	2' 0" (24")	39
SSG-E281224	2' 4 3/4" (28 3/4")	1' 0 7/8" (12 7/8")	2' 0" (24")	38
SSG-E281624	2' 4 3/4" (28 3/4")	1' 4 7/8" (16 7/8")	2' 0" (24")	41
SSG-E301224	2' 6" (30")	1' 0 7/8" (12 7/8")	2' 0" (24")	40
SSG-E301624	2' 6" (30")	1' 4 7/8" (16 7/8")	2' 0" (24")	46
SSG-E361224	3' 0 1/2" (36 1/2")	1' 0 7/8" (12 7/8")	2' 0" (24")	43
SSG-E361624	3' 0 1/2" (36 1/2")	1' 4 7/8" (16 7/8")	2' 0" (24")	48
SSG-E421224	3' 6 1/2" (42 1/2")	1' 0 7/8" (12 7/8")	2' 0" (24")	45
SSG-E421624	3' 6 1/2" (42 1/2")	1' 4 7/8" (16 7/8")	2' 0" (24")	52
SSG-E481224	4' 0 1/8" (48 1/8")	1' 0 7/8" (12 7/8")	2' 0" (24")	46
SSG-E481624	4' 0 1/8" (48 1/8")	1' 4 7/8" (16 7/8")	2' 0" (24")	54
SSG-E551224	4' 8 1/8" (56 1/8")	1' 0 7/8" (12 7/8")	2' 0" (24")	70
SSG-E551624	4' 8 1/8" (56 1/8")	1' 4 7/8" (16 7/8")	2' 0" (24")	70
SSG-E601224	4' 11 3/4" (59 3/4")	1' 0 7/8" (12 7/8")	2' 0" (24")	62
SSG-E601624	4' 11 3/4" (59 3/4")	1' 4 7/8" (16 7/8")	2' 0" (24")	70
SSG-E691224	5' 9 3/4" (69 3/4")	1' 0 7/8" (12 7/8")	2' 0" (24")	68
SSG-E691624	5' 9 3/4" (69 3/4")	1' 4 7/8" (16 7/8")	2' 0" (24")	77
SSG-E721224	5' 11 1/2" (71 1/2")	1' 0 7/8" (12 7/8")	2' 0" (24")	68
SSG-E721624	5' 11 1/2" (71 1/2")	1' 4 7/8" (16 7/8")	2' 0" (24")	79
SSG-E841224	6' 11 1/2" (83 1/2")	1' 0 7/8" (12 7/8")	2' 0" (24")	76
SSG-E841624	6' 11 1/2" (83 1/2")	1' 4 7/8" (16 7/8")	2' 0" (24")	89

SSG-E241203
24 3/4" W × 12 7/8" D × 3" H · Weight 15
SSG-E241603
24 3/4" W × 16 7/8" D × 3" H · Weight 19
SSG-E281203
28 3/4" W × 12 7/8" D × 3" H · Weight 16
SSG-E281603
28 3/4" W × 16 7/8" D × 3" H · Weight 20
SSG-E301203
30" W × 12 7/8" D × 3" H · Weight 20
SSG-E301603
30" W × 16 7/8" D × 3" H · Weight 23
SSG-E361203
36 1/2" W × 12 7/8" D × 3" H · Weight 23
SSG-E361603
36 1/2" W × 16 7/8" D × 3" H · Weight 23
SSG-E421203
42 1/2" W × 12 7/8" D × 3" H · Weight 24
SSG-E421603
42 1/2" W × 16 7/8" D × 3" H · Weight 25
SSG-E481203
48 1/8" W × 12 7/8" D × 3" H · Weight 23
SSG-E481603
48 1/8" W × 16 7/8" D × 3" H · Weight 28
