Electronics Charging Metal Locker

Product SKU

Description

  • Use in classrooms, lecture halls, workplace breakrooms, or any other location where phones and electronics need to be securely stored
  • Each locker opening includes two full-size outlets and two USB-A ports
  • RFID access system is completely touchless and secure
  • Available in 12 and 24 opening configurations
a square with short lines outside the corner
Family
icon of a person with gears next to its head
Connectors
Questions
Need some help? Send us a message if you have any sales or model related questions.

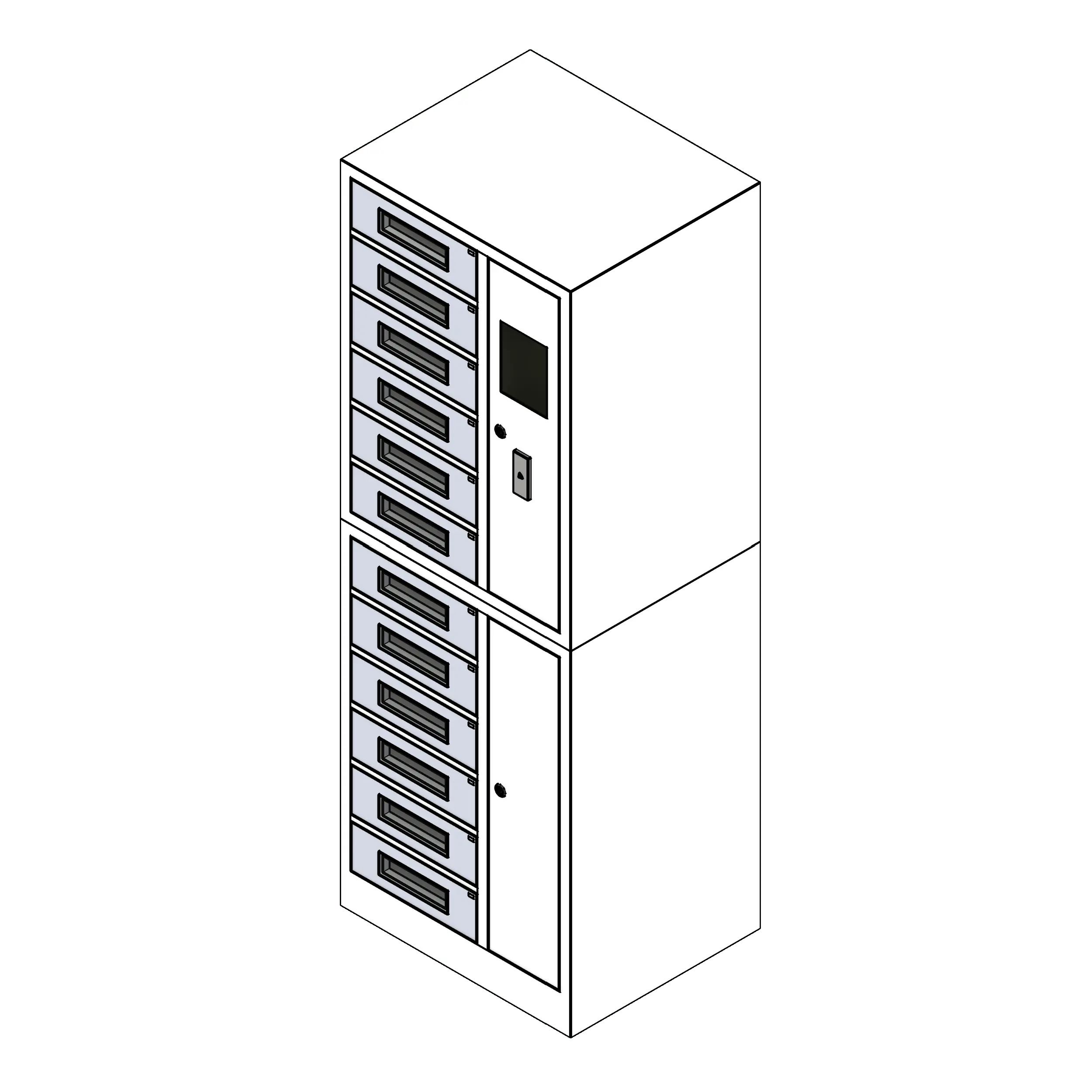

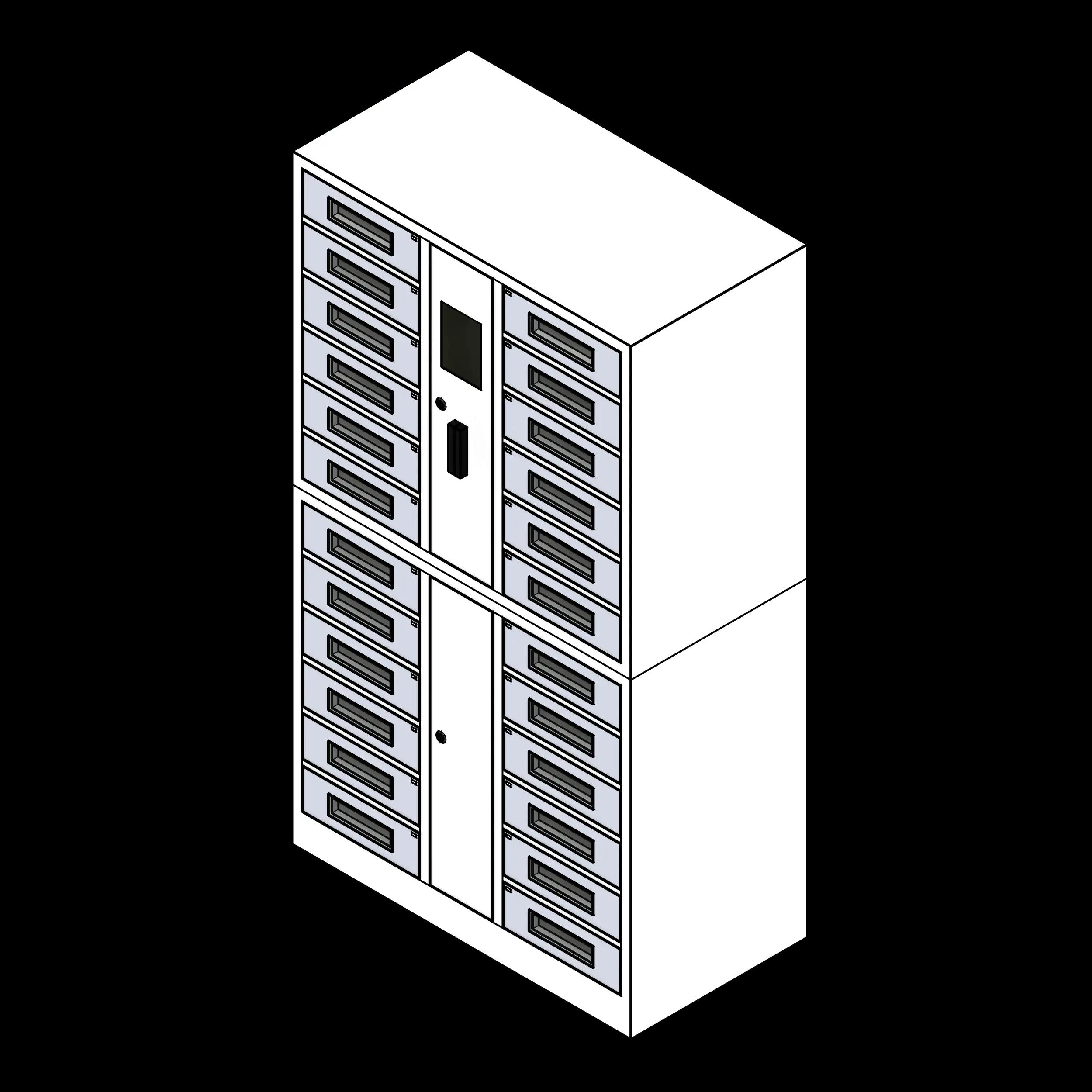

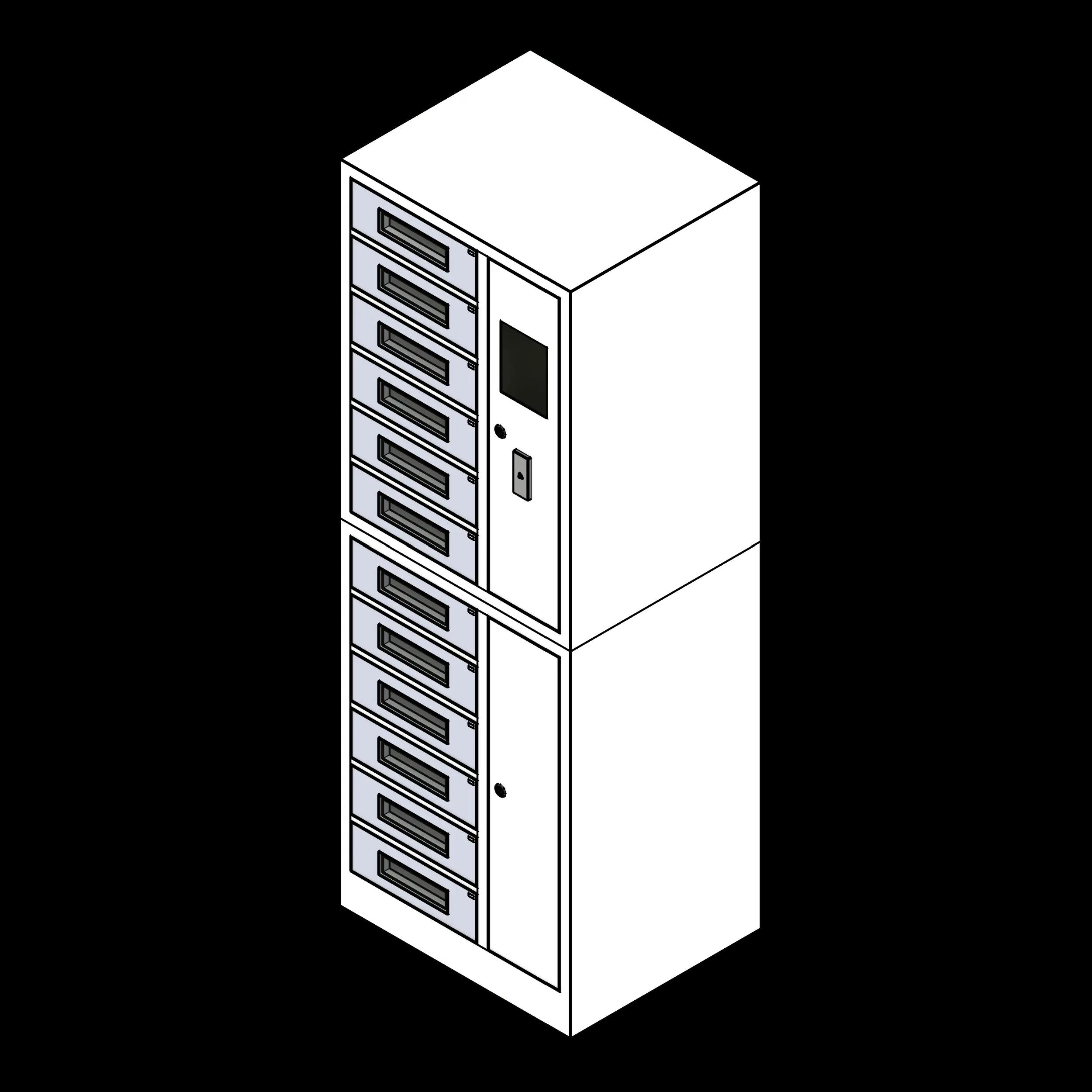

Electronics Charging Locker

This locker is designed to be used with a set group of users; each user is assigned an RFID card keyed to a single locker opening. Scanning the card with the RFID scanner will open only the specified locker for a touchless experience. The touchscreen may be used to enter a password if a key card is lost. Each locker opening includes two full-size outlets and two USB type A ports to charge electronics. Power to the locker unit is supplied by the standard 3-prong plug (120V @ 15 amps, standard).

To use this family, use the Fetch app to insert the model into your project and click to place. Use the options in the property browser to select between 12 and 24 openings and to choose between slide-card access or RFID scanning access. The model will automatically update to reflect your selections. Powder coat colors for the frame and doors can be individually set using the MAT_Frame and MAT_Front parameters. The family includes a power connector with the appropriate electrical information supplied.

ParameterValue
Standard Widths22 3/8", 35 1/2"
Minimum Width1.86653645833333
Maximum Width2.95833333333333
Standard Depths18 1/2"
Minimum Depth1.54166666666667
Maximum Depth1.54166666666667
Standard Heights63"
Minimum Height5.25
Maximum Height5.25
ManufacturerSouthwest Solutions Group_POW
Lead TimeContact SSG for more information
ModelSC
Keynote10 51 13
Assembly CodeE2010
AuthorAWright
Toll Free Number1-800-803-1083
PropertyValue
Includes PricingNo
ADA CompliantNo
Has MEP ConnectorsYes
Primary MaterialPowder coated steel
BIMobject CategoryFurniture: Shelving & Storage
IFCFurniture
Omniclass23-40 20 11 17
Meta DescriptionThis locker keeps cell phones secure with RFID locks and is perfect for use in classrooms and workplace breakrooms. Its innovative power distribution system provides each locker opening with two full-size outlets and 2 USB-A ports to charge cell phones and other electronics.
Meta TitleElectronics Charging Locker
