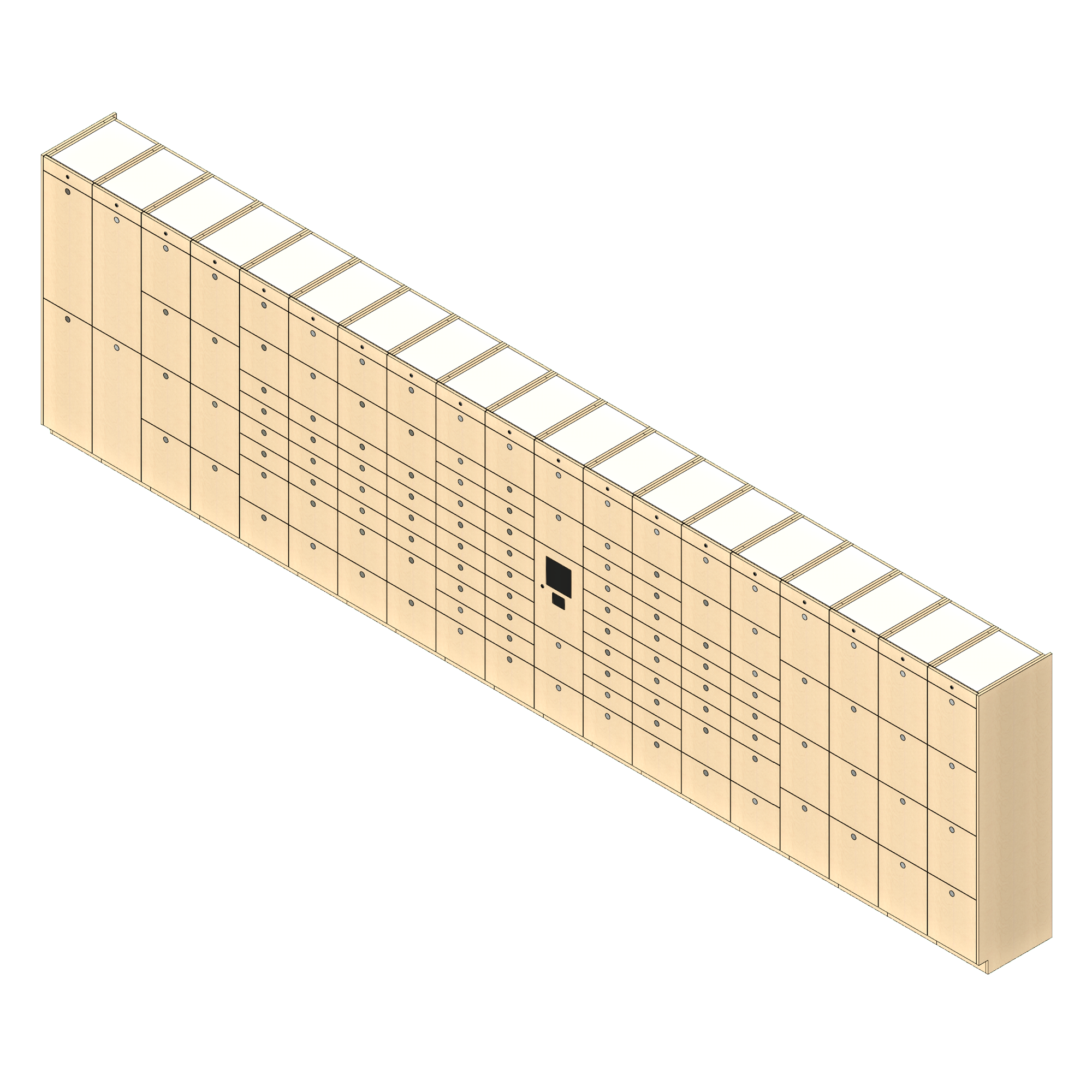

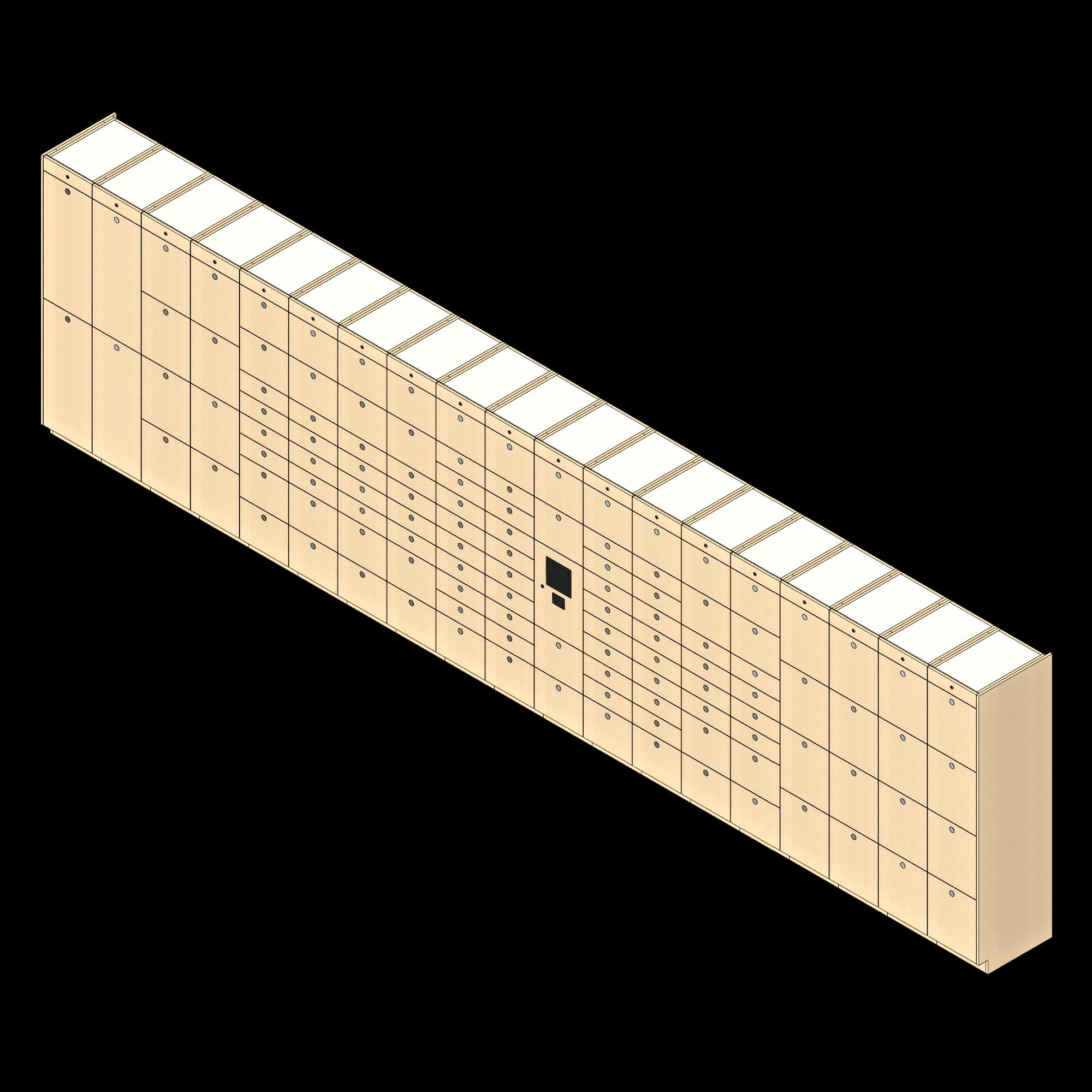

120 Total Openings Laminate Smart Locker

Product SKU

SKU: ssg-120

Description

  • Unit includes 15" Touch Screen w/ Wireless Barcode Scanner
  • Provides a centralized parcel exchange point that ensures an improved chain of custody
  • Recipient instantly receives a Text or Email notification that the package has arrived
icon for pricing which is a dollar sign
Model group
icon of a person with gears next to its head
Pricing
icon of a person with gears next to its head
ADA
icon of a person with gears next to its head
Connectors
Questions
Need some help? Send us a message if you have any sales or model related questions.

Physically, the smart locker systems consist of a bank of modular lockers with one of the lockers dedicated to housing the system hardware and power supply. A typical bank of parcel lockers is comprised of columns, with each column consisting of either six small lockers per column, a mixture of five or six small and medium lockers per column or two large lockers per column. Each column features a proprietary locking raceway that incorporates the required number of smart locking devices for the number of lockers in each column. Electronic locker systems are available in a variety of finishes to complement or match the environments in which they are installed.

Design

  • Optional canopy for outdoor units
  • 1 Touch Screen is needed for every 120 Openings.
  • A soffit above the lockers is Not Recommended for ease of access.
  • Minimum of 2" of Clearance is needed between locker bank and wall
ParameterValue
PropertyValue
Includes PricingYes
ADA CompliantYes
Has MEP ConnectorsYes
Width27' 2" (326")
Depth2' 0" (24")
Height6' 4" (76")
# of Openings120
Qty: Extra Small Doors56
Qty: Small Doors36
Qty: Medium Doors24
Qty: Large Doors4
Qty: Oversize Doors0
Qty: Full Doors0
Qty: Touchscreens1
Primary MaterialLaminate
skussg-120
BIMobject CategoryFurniture: Shelving & Storage
IFCFurniture
Keynote10 55 26
Omniclass23-40 70 27 24 17
Assembly CodeE1030.70
