09' Wide - Option 07 Break Room Revit model group
09' Wide - Option 07 Break Room Revit model group
Updated Jul 31, 2018

09' Wide - Option 07 Break Room

Product SKU

SKU: SSG-BR09-7-L

Downloads

Model group
Pricing

Description

  • Kit is designed to represent one common option used for Break rooms at this Height and Width
  • Kit includes two base cabinets, three upper wall cabinets, one countertop with backsplash, and one sink with faucet.
  • Not ADA accessible.
  • Appliances are for visual representation only, NOT included in budget price

Questions about this product?

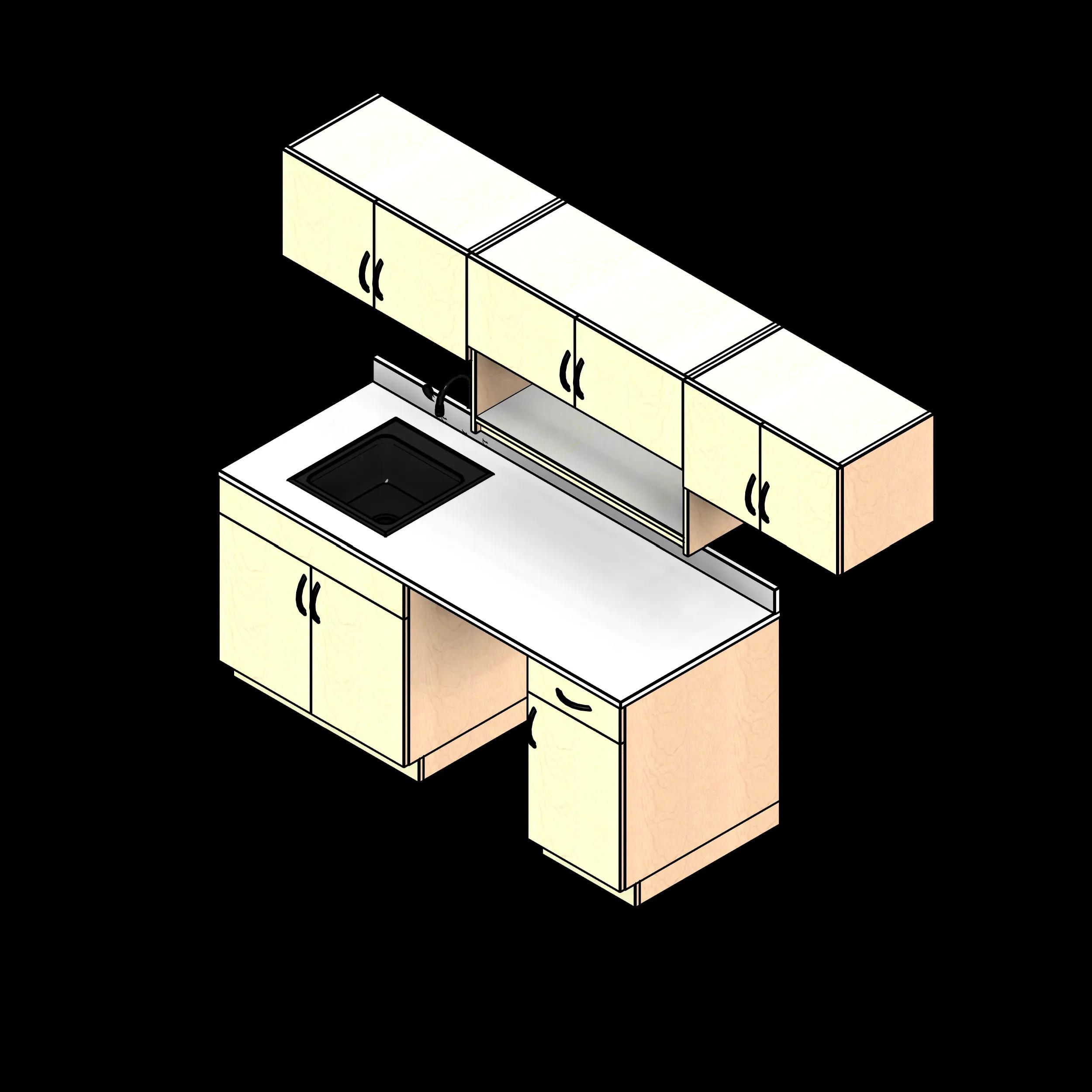

This 9-foot laminate break room casework kit is for business and education break rooms that need a 108-inch countertop, a sink station, an 18-inch one-door, one-drawer base cabinet, and a mix of enclosed and open wall storage. The 108 by 25 by 84 in. kit includes two base cabinets and three upper wall cabinets: a 36-inch two-door sink base, 30-inch and 36-inch two-door wall cabinets, and a 42-inch two-door open wall cabinet. A single-bowl stainless steel sink with faucet ledge and a laboratory deck-mounted chrome-plated brass faucet are included. The countertop includes a backsplash. This configuration gives staff rooms a defined sink and counter area with an open upper cabinet alongside enclosed wall cabinets. It is not ADA accessible. Appliances shown are for visual representation only and are not included in the budget price.

Each kit comes with a variety of options that each have a unique price attached to them. A typical solution would comprise of both upper and lower cabinets with a sink and counter top. Each cabinet door can be equipped with a lock.

Design

  • Multiple pull options
  • Angled top is optional
  • Counter can be equipped with side splash if necessary
  • Lock options available
Specifications
Dimensions
Width108"
Depth25"
Height84"
Product
Primary MaterialLaminate
Room TypeBreak Room
Classification
IFCFurniture
OmniClass23-21 19 11
Revit family
Includes PricingYes
ADA CompliantNo
Has MEP ConnectorsNo
Configurable options
  • Door
  • Handle
  • Kick plate
  • Locks
  • Top of cabinet
  • Angled top
  • Back splash
