Cantilever Vertical Lift

Product SKU

Description

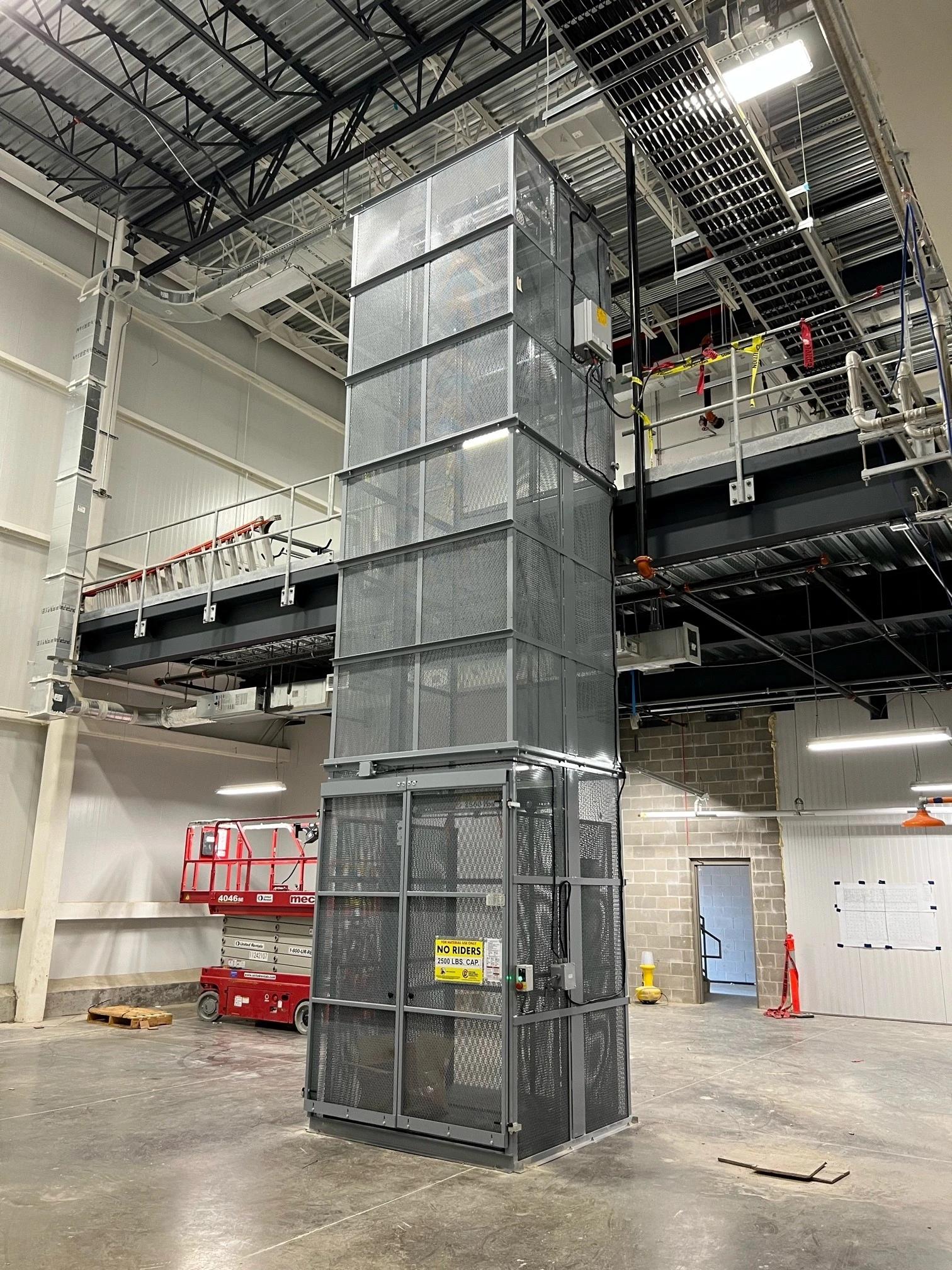

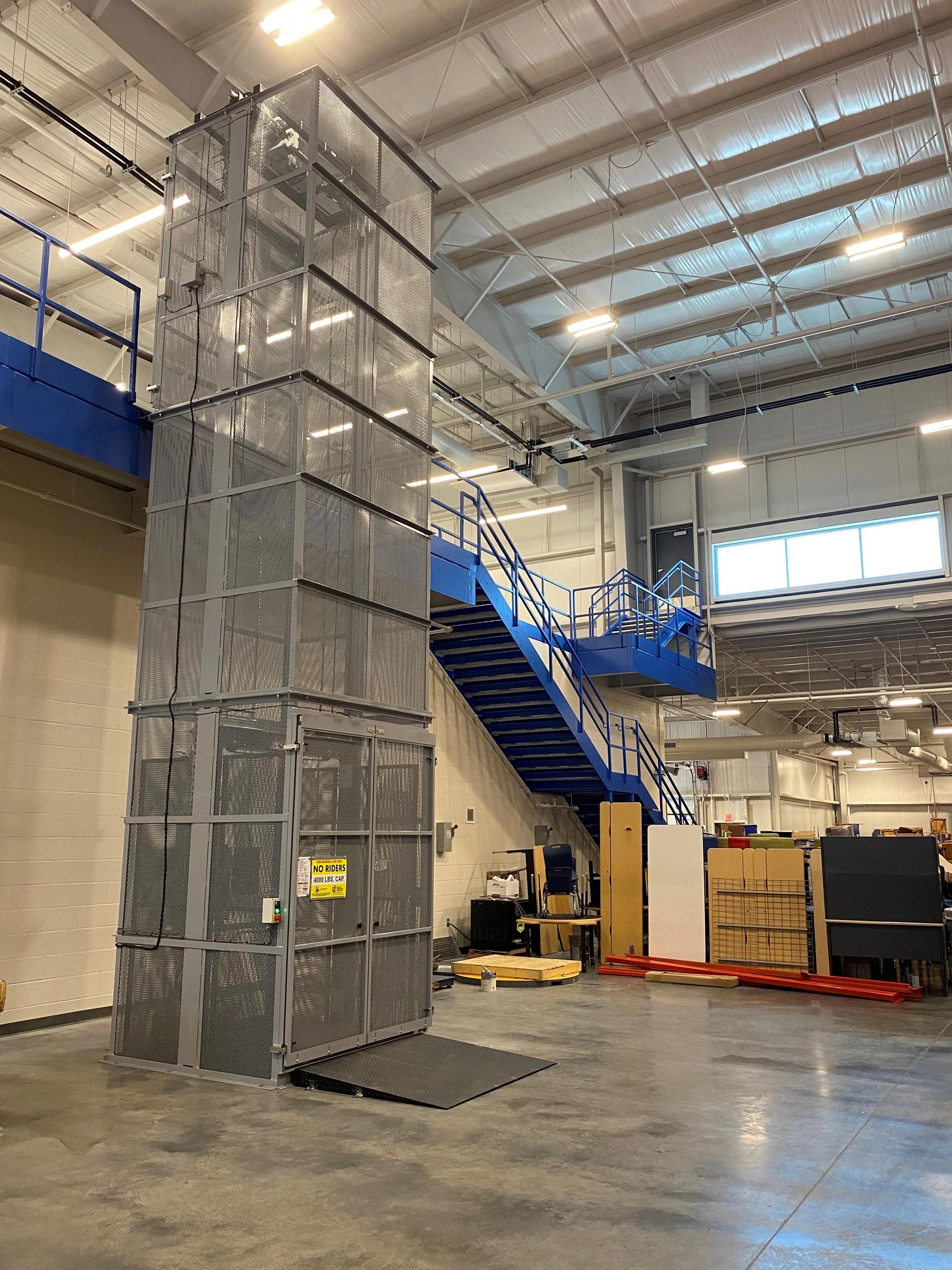

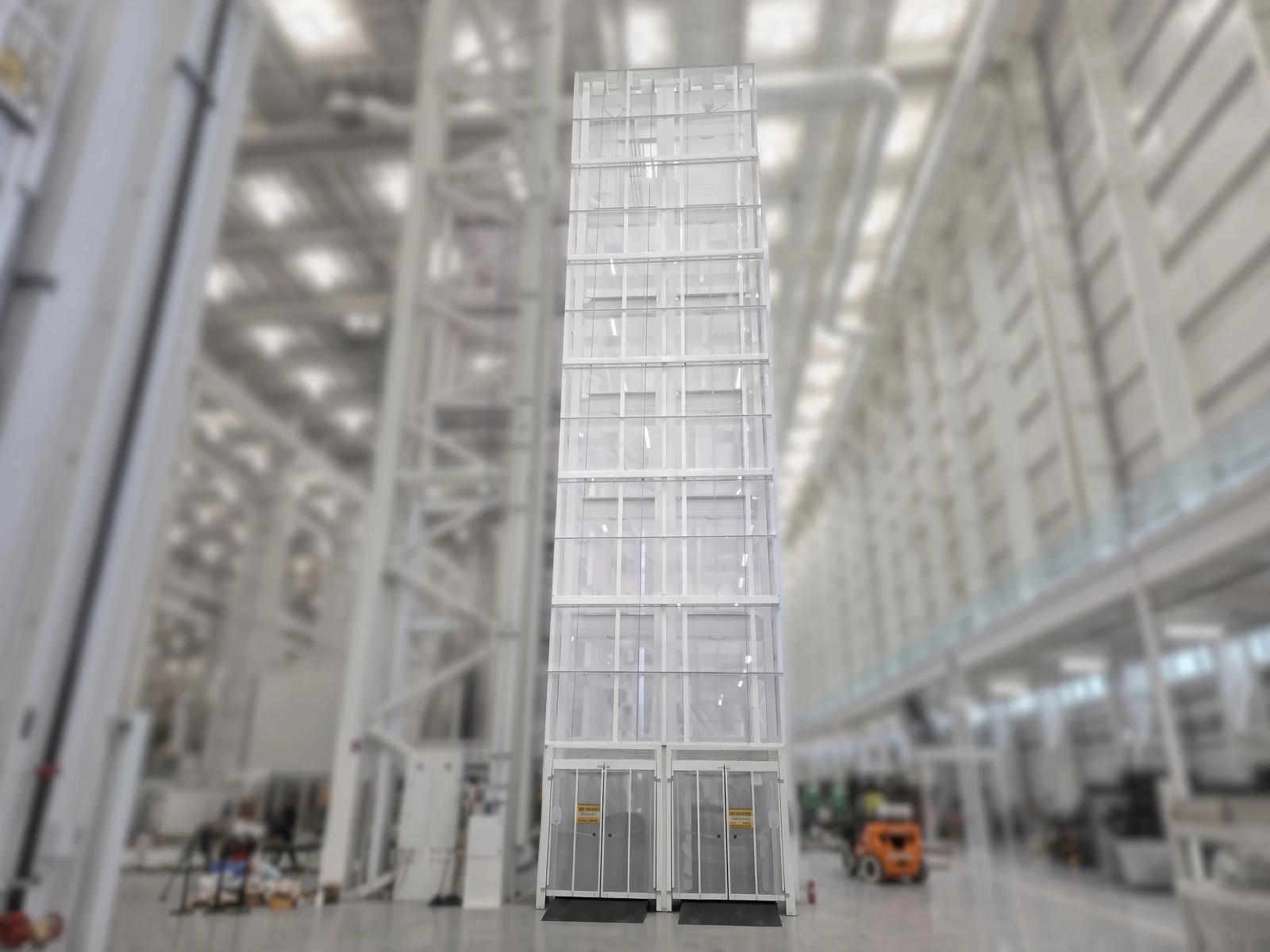

  • Frequently specified in industrial or warehouse settings for lifting bulky or heavy items between levels or mezzanines
  • Can expand up to 4 landings with either C, Z, or passthrough configurations
  • Cantilevered drive chain is easier to install versus other units
a square with short lines outside the corner
Family
icon of a person with gears next to its head
Connectors
Questions
Need some help? Send us a message if you have any sales or model related questions.

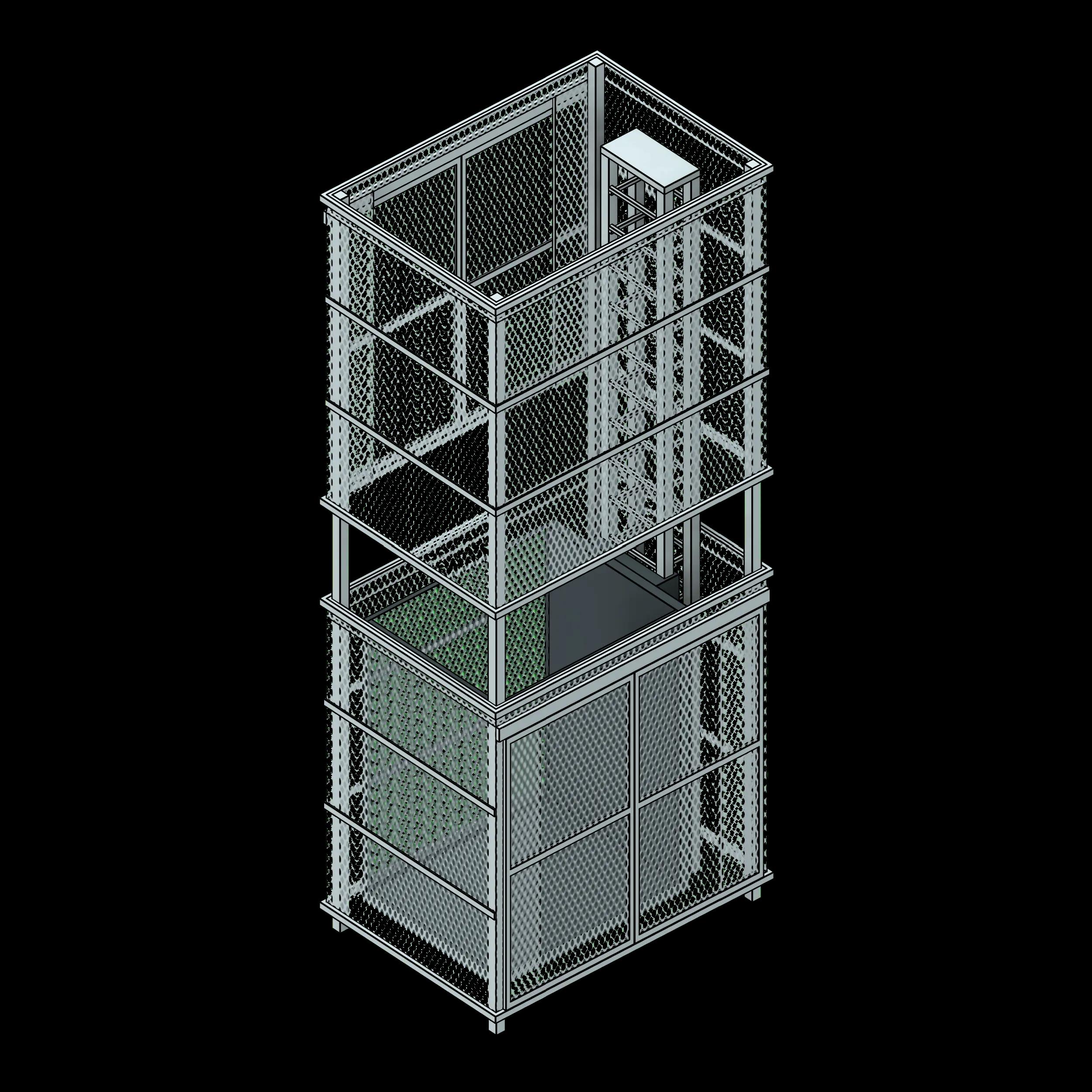

Cantilever Vertical Lift

This family is designed to be fully parametric. To use this model, simply insert into your project and enter your desired platform size into ENTER_Platform Width, ENTER_Platform Depth, and ENTER_Floor to Floor Height for the lift to scale automatically. Additional options, such as surface or pit mount, number of landing levels, and door configuration options, can be found in the construction category. All electrical connector settings can be found under the Electrical - Loads category in the type browser. If a user wants to use this family through floor plates, after placing, use the cut tool and click on the floor, then the family to create the correct size cut.
ParameterValue
TOTAL Horsepower3
TOTAL Load Capacity5000
Minimum Number of Levels2
Maximum Number of Levels4
Standard Platform Widths48" - 96"
Minimum Platform Width4
Maximum Platform Width8
Standard Platform Depths48" - 96"
Minimum Platform Depth4
Maximum Platform Depth8
Standard Load Heights72", 84"
Minimum Load Height6
Maximum Load Height7
Maximum Travel Height40
Loading Height0.5
Pit Height0.5
Travel Speed19-21 feet per minute standard
Top Clearance0.333333333333333
ManufacturerSouthwest Solutions Group_CUS
Lead TimeTypically ships in 6-8 weeks
ModelVRC
Keynote14 46 00
Assembly CodeD1010.20
AuthorAWright
Toll Free Number1-800-803-1083
PropertyValue
EqualisNo
OmniaNo
SourcewellNo
SystecNo
VizientNo
Includes PricingNo
ADA CompliantNo
Has MEP ConnectorsYes
Primary MaterialPowder coated steel
BIMobject CategoryConstruction: Lifts
IFCFurniture
Omniclass23.50.05.14
