Standard Kit Locker Bench

Downloads

RFARevit family
PDFFinish options968 KB
PDFCut sheet188 KB
LIBMaterial library9.3 MB

Get Fetch to load families straight into Revit →

Family

ADA

Used in locker and changing room settings
Butcher block seat material
Stainless steel or powder coated steel legs

Questions about this product?

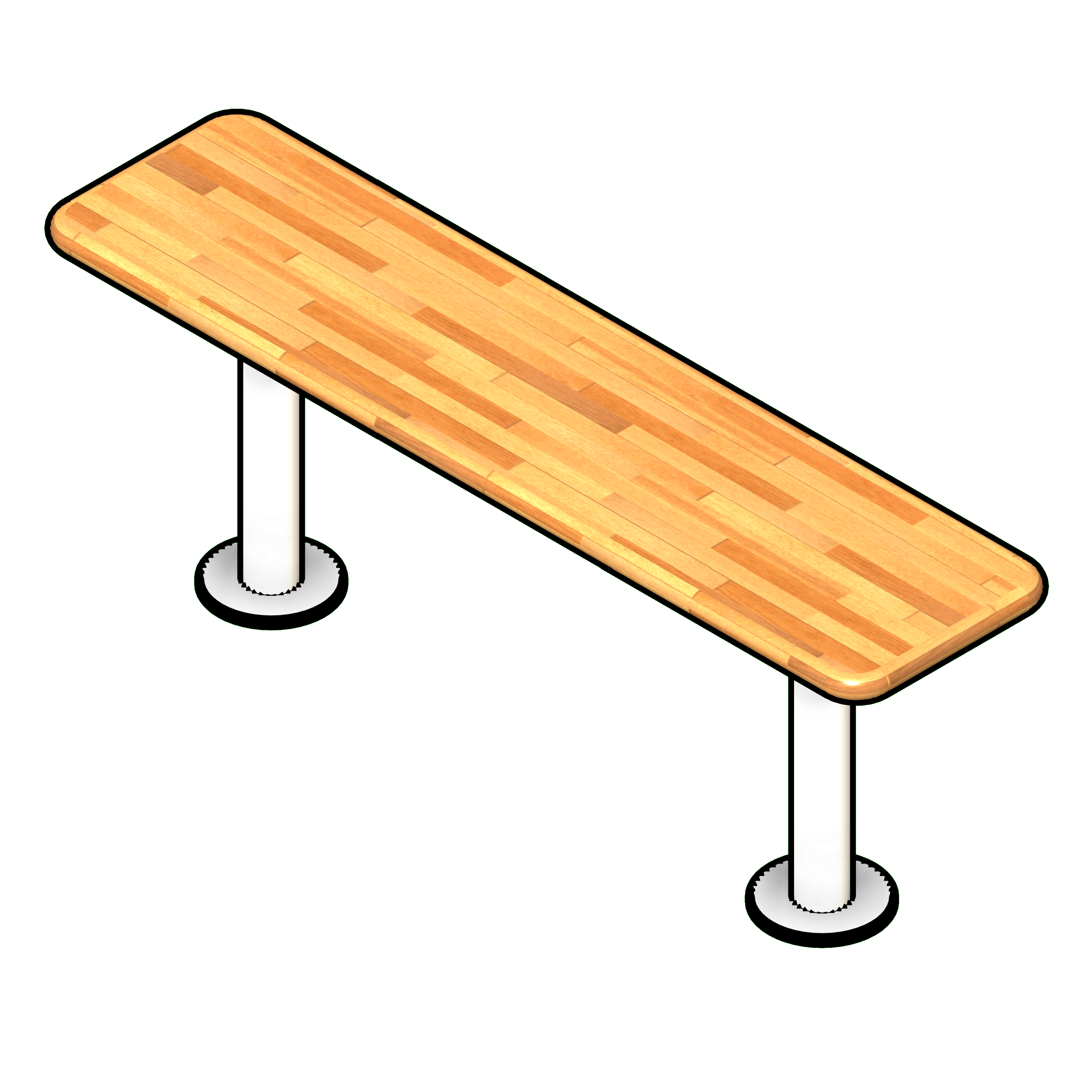

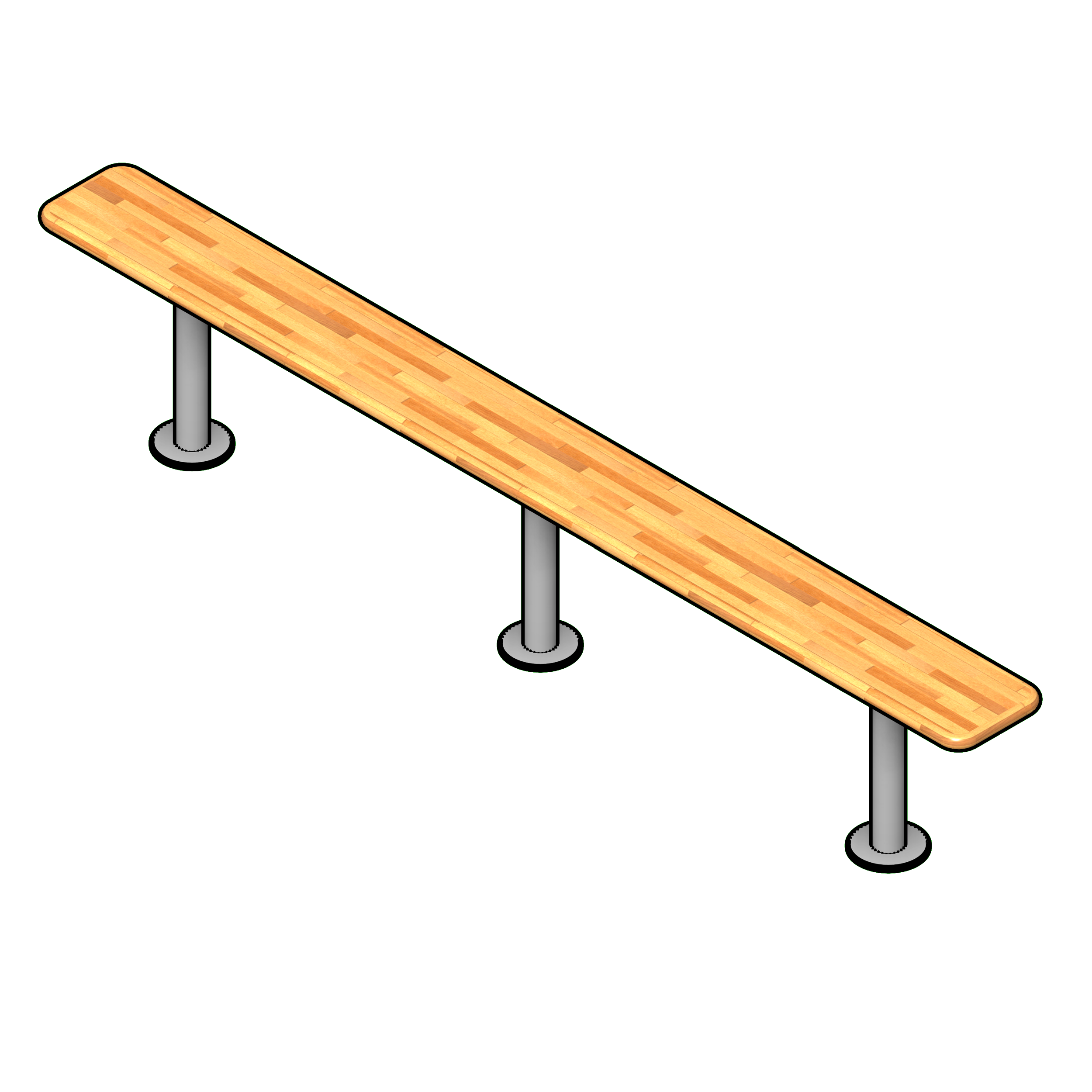

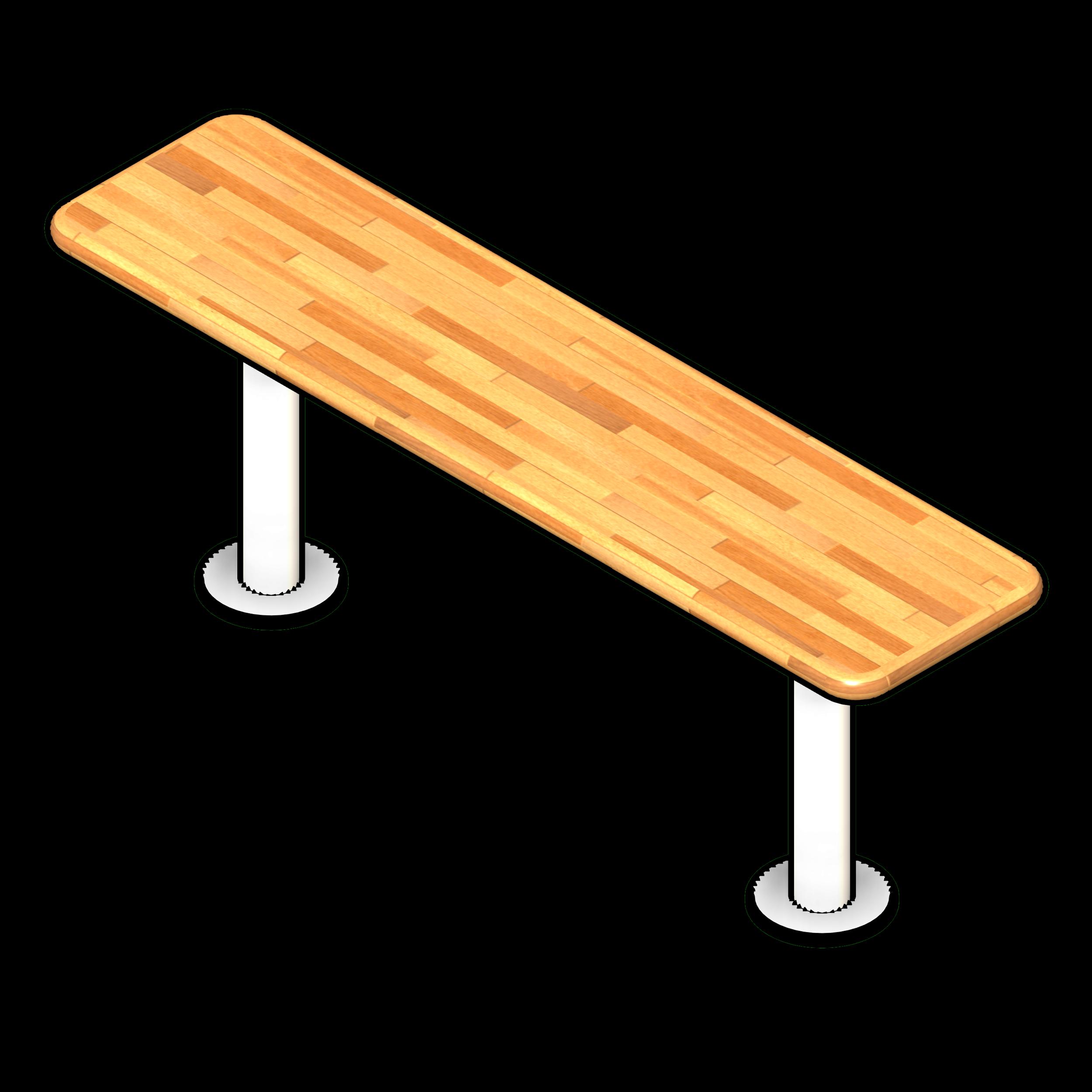

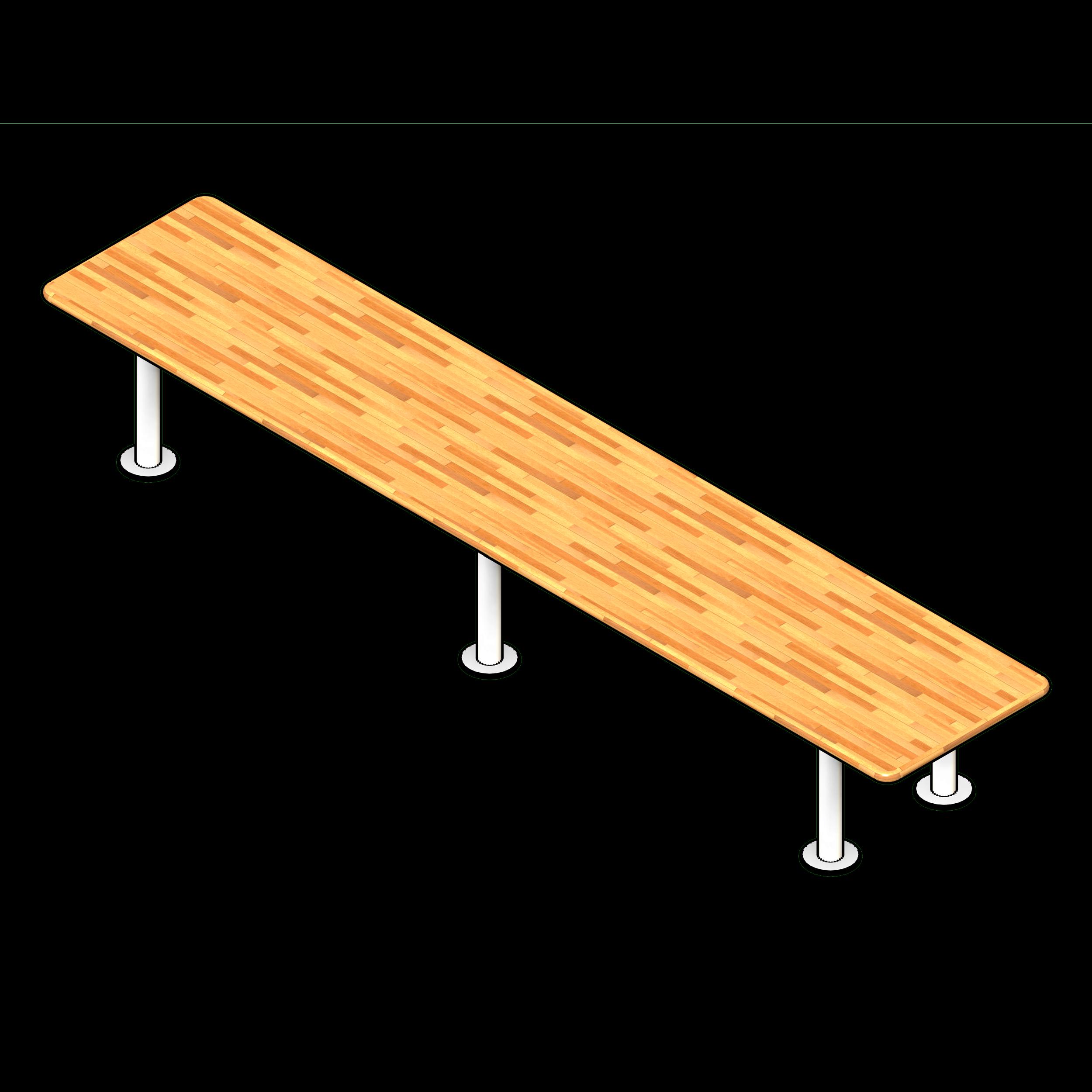

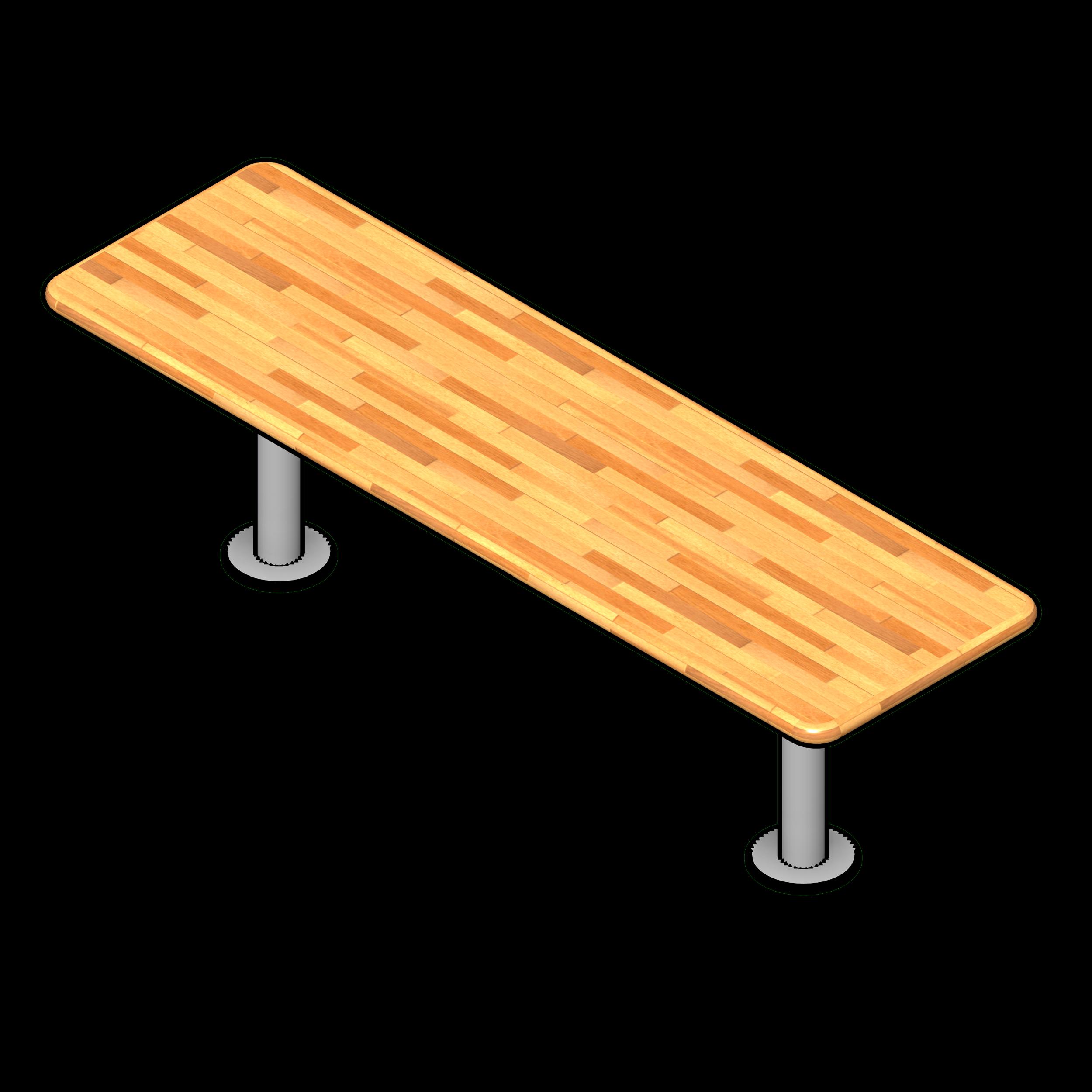

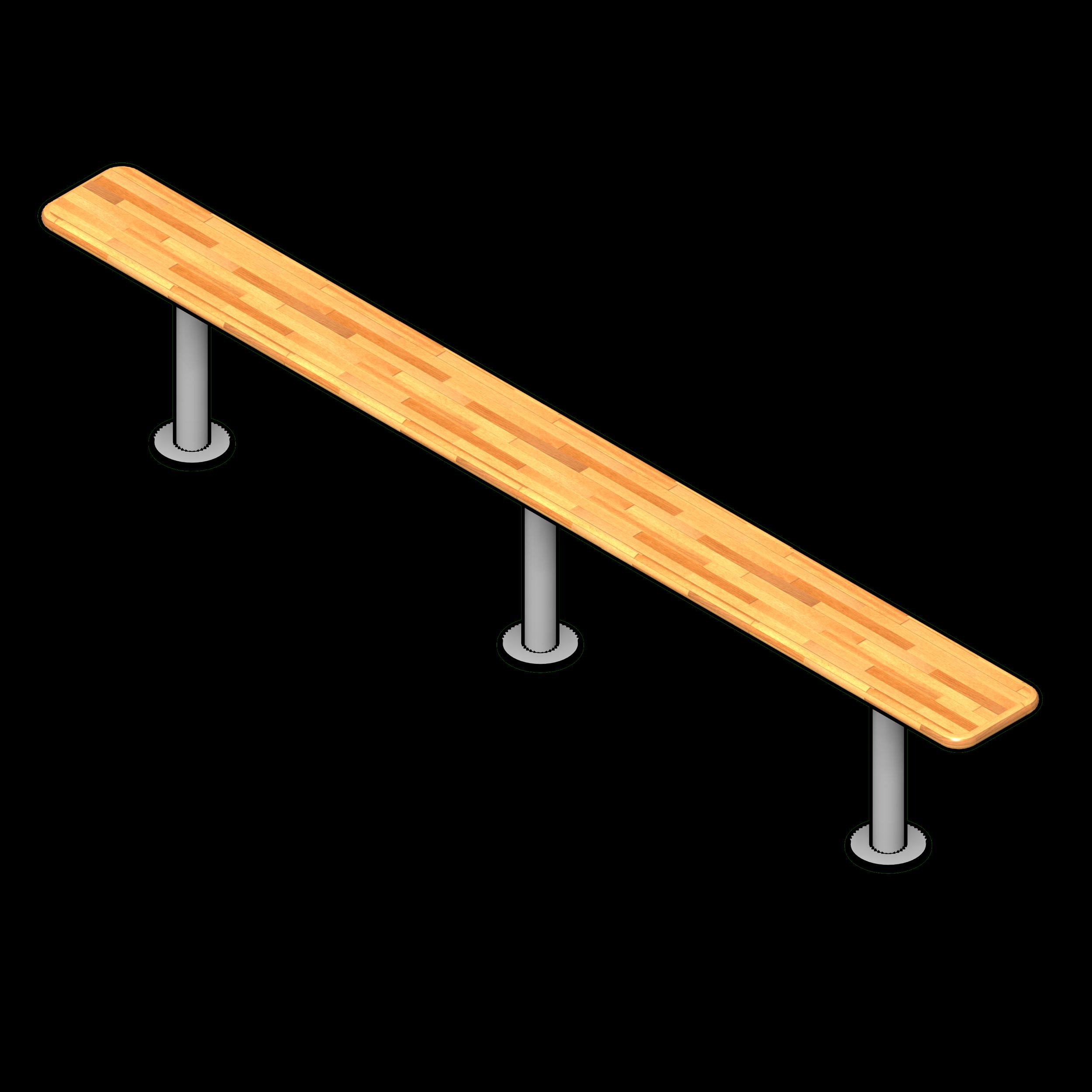

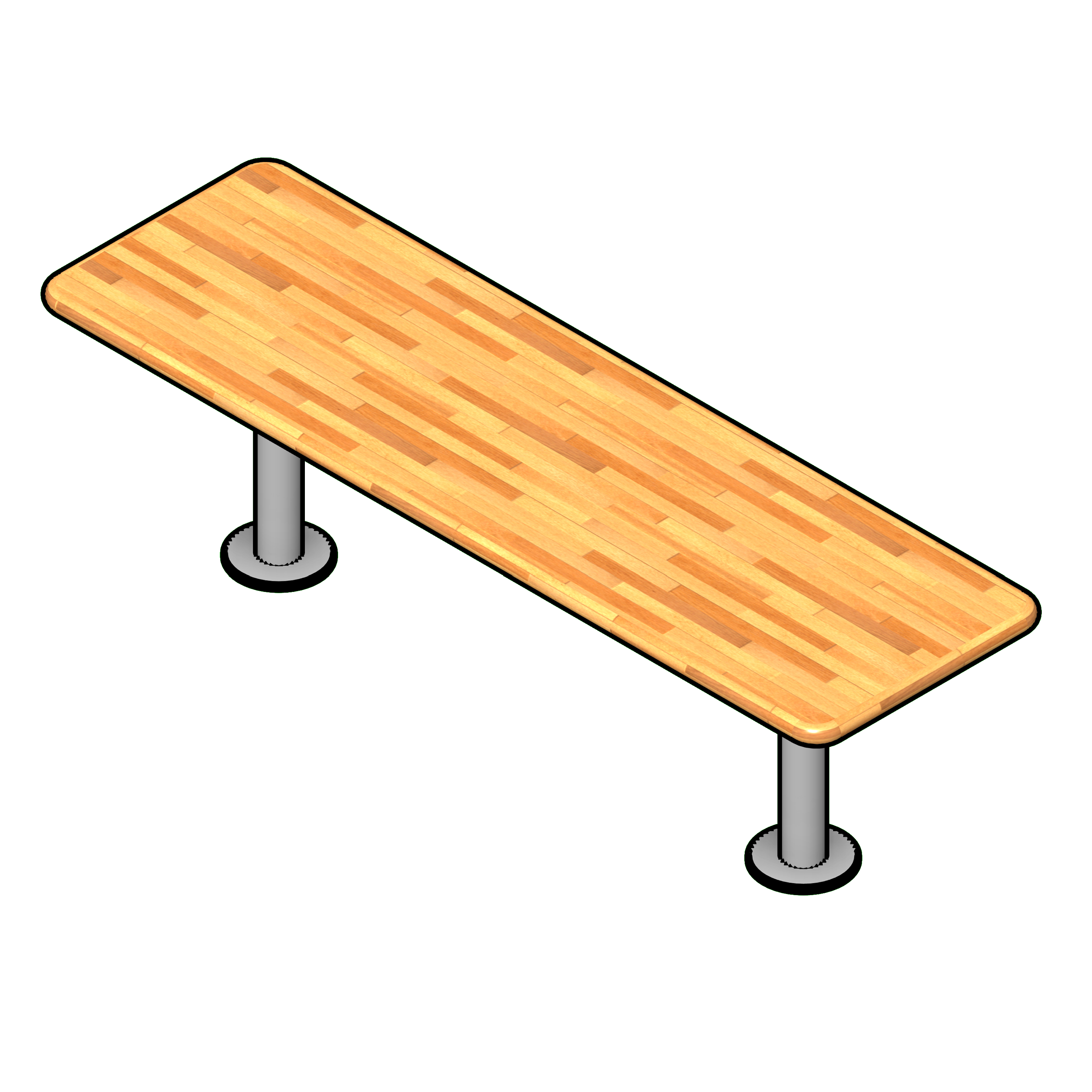

Standard Locker Bench Kit

This locker bench is fully ADA accessible and comes in either freestanding or wall-mounted configurations. High quality butcher block seat material is double sealed and is attractive while being easy to clean. Sturdy tube steel legs come with your choice between stainless steel, or powder coated steel finish. Standard depths of 20” or 24”. All seat heights are fixed at 18”.

Specifications
Dimensions
Width	24", 36", 42", 48", 60", 72", 84", 96", 108", 120", 132", 144"
Depth	9 1/2", 12", 18", 20", 24"
Height	17 1/2"
Product
Manufacturer	Southwest Solutions Group_WIS
Lead Time	4-6 Weeks
Model	LBS
Primary Material	Laminate
Classification
MasterFormat	12 67 23 – Benches
UniFormat	E2010 – Fixed Furnishings
IFC	Furniture
OmniClass	23-21 00 00
Revit family
Includes Pricing	No
ADA Compliant	Yes
Has MEP Connectors	No
Includes Sustainability	Yes

Model	Width	Depth	Height	Weight
SSG-LBSMSLP9H024	2' 0" (24")	0' 9 1/2" (9 1/2")	1' 5 1/2" (17 1/2")	8
SSG-LBSMSLP9H036	3' 0" (36")	0' 9 1/2" (9 1/2")	1' 5 1/2" (17 1/2")	12
SSG-LBSMSLP9H048	4' 0" (48")	0' 9 1/2" (9 1/2")	1' 5 1/2" (17 1/2")	16
SSG-LBSMSLP9H060	5' 0" (60")	0' 9 1/2" (9 1/2")	1' 5 1/2" (17 1/2")	20
SSG-LBSMSLP9H072	6' 0" (72")	0' 9 1/2" (9 1/2")	1' 5 1/2" (17 1/2")	24
SSG-LBSMSLP9H084	7' 0" (84")	0' 9 1/2" (9 1/2")	1' 5 1/2" (17 1/2")	28
SSG-LBSMSLP9H096	8' 0" (96")	0' 9 1/2" (9 1/2")	1' 5 1/2" (17 1/2")	32
SSG-LBSMSLP9H108	9' 0" (108")	0' 9 1/2" (9 1/2")	1' 5 1/2" (17 1/2")	36
SSG-LBSMSLP9H120	10' 0" (120")	0' 9 1/2" (9 1/2")	1' 5 1/2" (17 1/2")	40
SSG-LBSMSLP9H132	11' 0" (132")	0' 9 1/2" (9 1/2")	1' 5 1/2" (17 1/2")	44
SSG-LBSMSLP9H144	12' 0" (144")	0' 9 1/2" (9 1/2")	1' 5 1/2" (17 1/2")	48
SSG-LBSMSLP12024	2' 0" (24")	1' 0" (12")	1' 5 1/2" (17 1/2")	10
SSG-LBSMSLP12036	3' 0" (36")	1' 0" (12")	1' 5 1/2" (17 1/2")	15
SSG-LBSMSLP12048	4' 0" (48")	1' 0" (12")	1' 5 1/2" (17 1/2")	20
SSG-LBSMSLP12060	5' 0" (60")	1' 0" (12")	1' 5 1/2" (17 1/2")	25
SSG-LBSMSLP12072	6' 0" (72")	1' 0" (12")	1' 5 1/2" (17 1/2")	30
SSG-LBSMSLP12084	7' 0" (84")	1' 0" (12")	1' 5 1/2" (17 1/2")	35
SSG-LBSMSLP12096	8' 0" (96")	1' 0" (12")	1' 5 1/2" (17 1/2")	40
SSG-LBSMSLP12108	9' 0" (108")	1' 0" (12")	1' 5 1/2" (17 1/2")	45
SSG-LBSMSLP12120	10' 0" (120")	1' 0" (12")	1' 5 1/2" (17 1/2")	50
SSG-LBSMSLP12132	11' 0" (132")	1' 0" (12")	1' 5 1/2" (17 1/2")	55
SSG-LBSMSLP12144	12' 0" (144")	1' 0" (12")	1' 5 1/2" (17 1/2")	60
SSG-LBSMSLP18024	2' 0" (24")	1' 6" (18")	1' 5 1/2" (17 1/2")	15
SSG-LBSMSLP18036	3' 0" (36")	1' 6" (18")	1' 5 1/2" (17 1/2")	23
SSG-LBSMSLP18048	4' 0" (48")	1' 6" (18")	1' 5 1/2" (17 1/2")	30
SSG-LBSMSLP18060	5' 0" (60")	1' 6" (18")	1' 5 1/2" (17 1/2")	38
SSG-LBSMSLP18072	6' 0" (72")	1' 6" (18")	1' 5 1/2" (17 1/2")	45
SSG-LBSMSLP18084	7' 0" (84")	1' 6" (18")	1' 5 1/2" (17 1/2")	53
SSG-LBSMSLP18096	8' 0" (96")	1' 6" (18")	1' 5 1/2" (17 1/2")	60
SSG-LBSMSLP18108	9' 0" (108")	1' 6" (18")	1' 5 1/2" (17 1/2")	68
SSG-LBSMSLP18120	10' 0" (120")	1' 6" (18")	1' 5 1/2" (17 1/2")	75
SSG-LBSMSLP18132	11' 0" (132")	1' 6" (18")	1' 5 1/2" (17 1/2")	83
SSG-LBSMSLP18144	12' 0" (144")	1' 6" (18")	1' 5 1/2" (17 1/2")	90
SSG-LBSMSLP24024	2' 0" (24")	2' 0" (24")	1' 5 1/2" (17 1/2")	20
SSG-LBSMSLP24036	3' 0" (36")	2' 0" (24")	1' 5 1/2" (17 1/2")	30
SSG-LBSMSLP24048	4' 0" (48")	2' 0" (24")	1' 5 1/2" (17 1/2")	40
SSG-LBSMSLP24060	5' 0" (60")	2' 0" (24")	1' 5 1/2" (17 1/2")	50
SSG-LBSMSLP24072	6' 0" (72")	2' 0" (24")	1' 5 1/2" (17 1/2")	60
SSG-LBSMSLP24084	7' 0" (84")	2' 0" (24")	1' 5 1/2" (17 1/2")	70
SSG-LBSMSLP24096	8' 0" (96")	2' 0" (24")	1' 5 1/2" (17 1/2")	80
SSG-LBSMSLP24108	9' 0" (108")	2' 0" (24")	1' 5 1/2" (17 1/2")	90
SSG-LBSMSLP24120	10' 0" (120")	2' 0" (24")	1' 5 1/2" (17 1/2")	100
SSG-LBSMSLP24132	11' 0" (132")	2' 0" (24")	1' 5 1/2" (17 1/2")	110
SSG-LBSMSLP24144	12' 0" (144")	2' 0" (24")	1' 5 1/2" (17 1/2")	120
SSG-LBSSSLP9H024	2' 0" (24")	0' 9 1/2" (9 1/2")	1' 5 1/2" (17 1/2")	8
SSG-LBSSSLP9H036	3' 0" (36")	0' 9 1/2" (9 1/2")	1' 5 1/2" (17 1/2")	12
SSG-LBSSSLP9H048	4' 0" (48")	0' 9 1/2" (9 1/2")	1' 5 1/2" (17 1/2")	16
SSG-LBSSSLP9H060	5' 0" (60")	0' 9 1/2" (9 1/2")	1' 5 1/2" (17 1/2")	20
SSG-LBSSSLP9H072	6' 0" (72")	0' 9 1/2" (9 1/2")	1' 5 1/2" (17 1/2")	24
SSG-LBSSSLP9H084	7' 0" (84")	0' 9 1/2" (9 1/2")	1' 5 1/2" (17 1/2")	28
SSG-LBSSSLP9H096	8' 0" (96")	0' 9 1/2" (9 1/2")	1' 5 1/2" (17 1/2")	32
SSG-LBSSSLP9H108	9' 0" (108")	0' 9 1/2" (9 1/2")	1' 5 1/2" (17 1/2")	36
SSG-LBSSSLP9H120	10' 0" (120")	0' 9 1/2" (9 1/2")	1' 5 1/2" (17 1/2")	40
SSG-LBSSSLP9H132	11' 0" (132")	0' 9 1/2" (9 1/2")	1' 5 1/2" (17 1/2")	44
SSG-LBSSSLP9H144	12' 0" (144")	0' 9 1/2" (9 1/2")	1' 5 1/2" (17 1/2")	48
SSG-LBSSSLP12024	2' 0" (24")	1' 0" (12")	1' 5 1/2" (17 1/2")	10
SSG-LBSSSLP12036	3' 0" (36")	1' 0" (12")	1' 5 1/2" (17 1/2")	15
SSG-LBSSSLP12048	4' 0" (48")	1' 0" (12")	1' 5 1/2" (17 1/2")	20
SSG-LBSSSLP12060	5' 0" (60")	1' 0" (12")	1' 5 1/2" (17 1/2")	25
SSG-LBSSSLP12072	6' 0" (72")	1' 0" (12")	1' 5 1/2" (17 1/2")	30
SSG-LBSSSLP12084	7' 0" (84")	1' 0" (12")	1' 5 1/2" (17 1/2")	35
SSG-LBSSSLP12096	8' 0" (96")	1' 0" (12")	1' 5 1/2" (17 1/2")	40
SSG-LBSSSLP12108	9' 0" (108")	1' 0" (12")	1' 5 1/2" (17 1/2")	45
SSG-LBSSSLP12120	10' 0" (120")	1' 0" (12")	1' 5 1/2" (17 1/2")	50
SSG-LBSSSLP12132	11' 0" (132")	1' 0" (12")	1' 5 1/2" (17 1/2")	55
SSG-LBSSSLP12144	12' 0" (144")	1' 0" (12")	1' 5 1/2" (17 1/2")	60
SSG-LBSSSLP18024	2' 0" (24")	1' 6" (18")	1' 5 1/2" (17 1/2")	15
SSG-LBSSSLP18036	3' 0" (36")	1' 6" (18")	1' 5 1/2" (17 1/2")	23
SSG-LBSSSLP18048	4' 0" (48")	1' 6" (18")	1' 5 1/2" (17 1/2")	30
SSG-LBSSSLP18060	5' 0" (60")	1' 6" (18")	1' 5 1/2" (17 1/2")	38
SSG-LBSSSLP18072	6' 0" (72")	1' 6" (18")	1' 5 1/2" (17 1/2")	45
SSG-LBSSSLP18084	7' 0" (84")	1' 6" (18")	1' 5 1/2" (17 1/2")	53
SSG-LBSSSLP18096	8' 0" (96")	1' 6" (18")	1' 5 1/2" (17 1/2")	60
SSG-LBSSSLP18108	9' 0" (108")	1' 6" (18")	1' 5 1/2" (17 1/2")	68
SSG-LBSSSLP18180	10' 0" (120")	1' 6" (18")	1' 5 1/2" (17 1/2")	75
SSG-LBSSSLP18132	11' 0" (132")	1' 6" (18")	1' 5 1/2" (17 1/2")	83
SSG-LBSSSLP18144	12' 0" (144")	1' 6" (18")	1' 5 1/2" (17 1/2")	90
SSG-LBSSSLP24024	2' 0" (24")	2' 0" (24")	1' 5 1/2" (17 1/2")	20
SSG-LBSSSLP24036	3' 0" (36")	2' 0" (24")	1' 5 1/2" (17 1/2")	30
SSG-LBSSSLP24048	4' 0" (48")	2' 0" (24")	1' 5 1/2" (17 1/2")	40
SSG-LBSSSLP24060	5' 0" (60")	2' 0" (24")	1' 5 1/2" (17 1/2")	50
SSG-LBSSSLP24072	6' 0" (72")	2' 0" (24")	1' 5 1/2" (17 1/2")	60
SSG-LBSSSLP24084	7' 0" (84")	2' 0" (24")	1' 5 1/2" (17 1/2")	70
SSG-LBSSSLP24096	8' 0" (96")	2' 0" (24")	1' 5 1/2" (17 1/2")	80
SSG-LBSSSLP24108	9' 0" (108")	2' 0" (24")	1' 5 1/2" (17 1/2")	90
SSG-LBSSSLP24240	10' 0" (120")	2' 0" (24")	1' 5 1/2" (17 1/2")	100
SSG-LBSSSLP24132	11' 0" (132")	2' 0" (24")	1' 5 1/2" (17 1/2")	110
SSG-LBSSSLP24144	12' 0" (144")	2' 0" (24")	1' 5 1/2" (17 1/2")	120

SSG-LBSMSLP9H024
24" W × 9 1/2" D × 17 1/2" H · Weight 8
SSG-LBSMSLP9H036
36" W × 9 1/2" D × 17 1/2" H · Weight 12
SSG-LBSMSLP9H048
48" W × 9 1/2" D × 17 1/2" H · Weight 16
SSG-LBSMSLP9H060
60" W × 9 1/2" D × 17 1/2" H · Weight 20
SSG-LBSMSLP9H072
72" W × 9 1/2" D × 17 1/2" H · Weight 24
SSG-LBSMSLP9H084
84" W × 9 1/2" D × 17 1/2" H · Weight 28
SSG-LBSMSLP9H096
96" W × 9 1/2" D × 17 1/2" H · Weight 32
SSG-LBSMSLP9H108
108" W × 9 1/2" D × 17 1/2" H · Weight 36
SSG-LBSMSLP9H120
120" W × 9 1/2" D × 17 1/2" H · Weight 40
SSG-LBSMSLP9H132
132" W × 9 1/2" D × 17 1/2" H · Weight 44
SSG-LBSMSLP9H144
144" W × 9 1/2" D × 17 1/2" H · Weight 48
SSG-LBSMSLP12024
24" W × 12" D × 17 1/2" H · Weight 10
