Modular Pallet Rack Steel Shelving
Product SKU
Description
- Frequently used in manufacturing settings to heavy store dies and molds, or military facilities for storing unit gear and equipment
- Adjustable pallets eliminate empty air space between levels
- Can be paired with an automatic retrieval gantry to eliminate the need for forklifts
Modular Pallet Rack

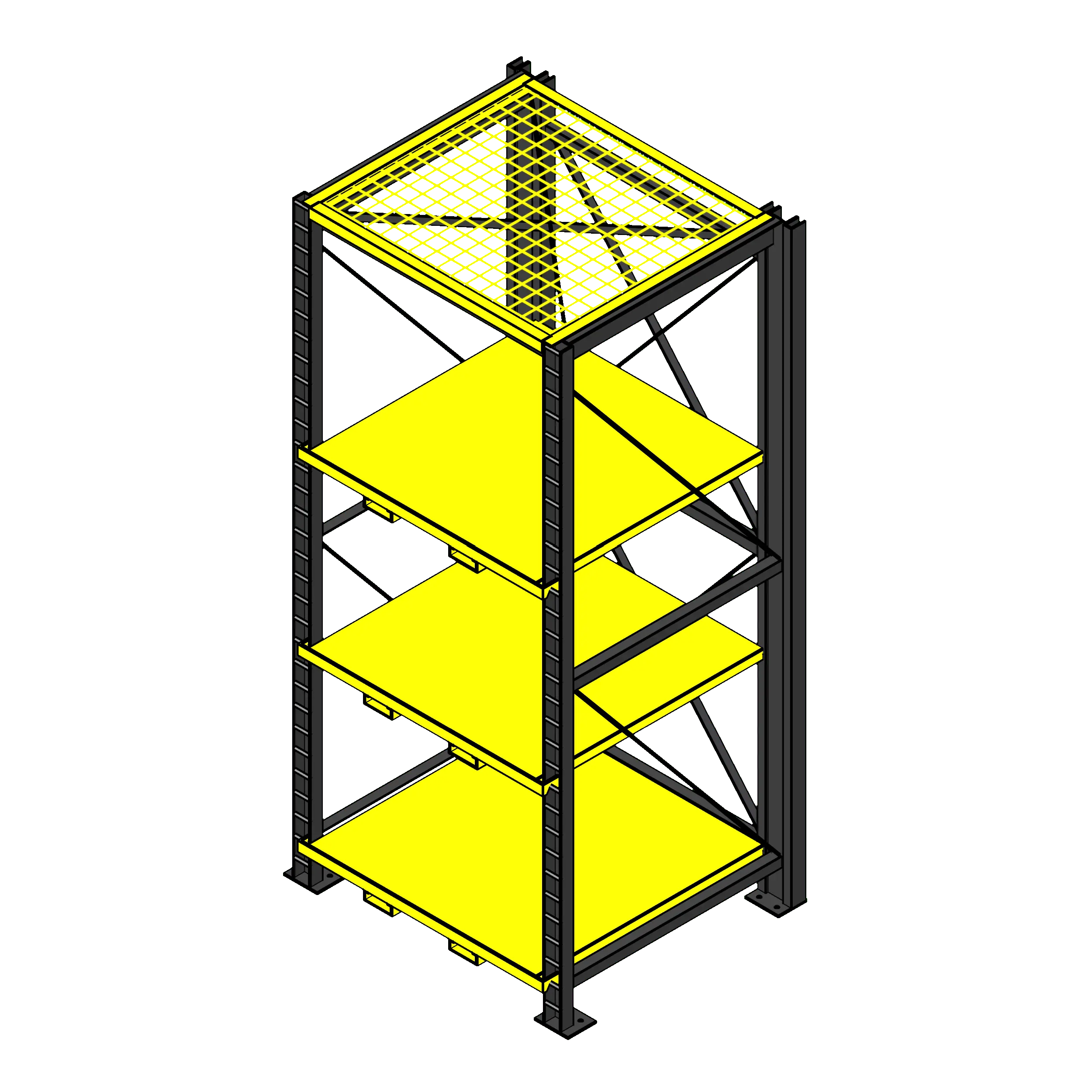

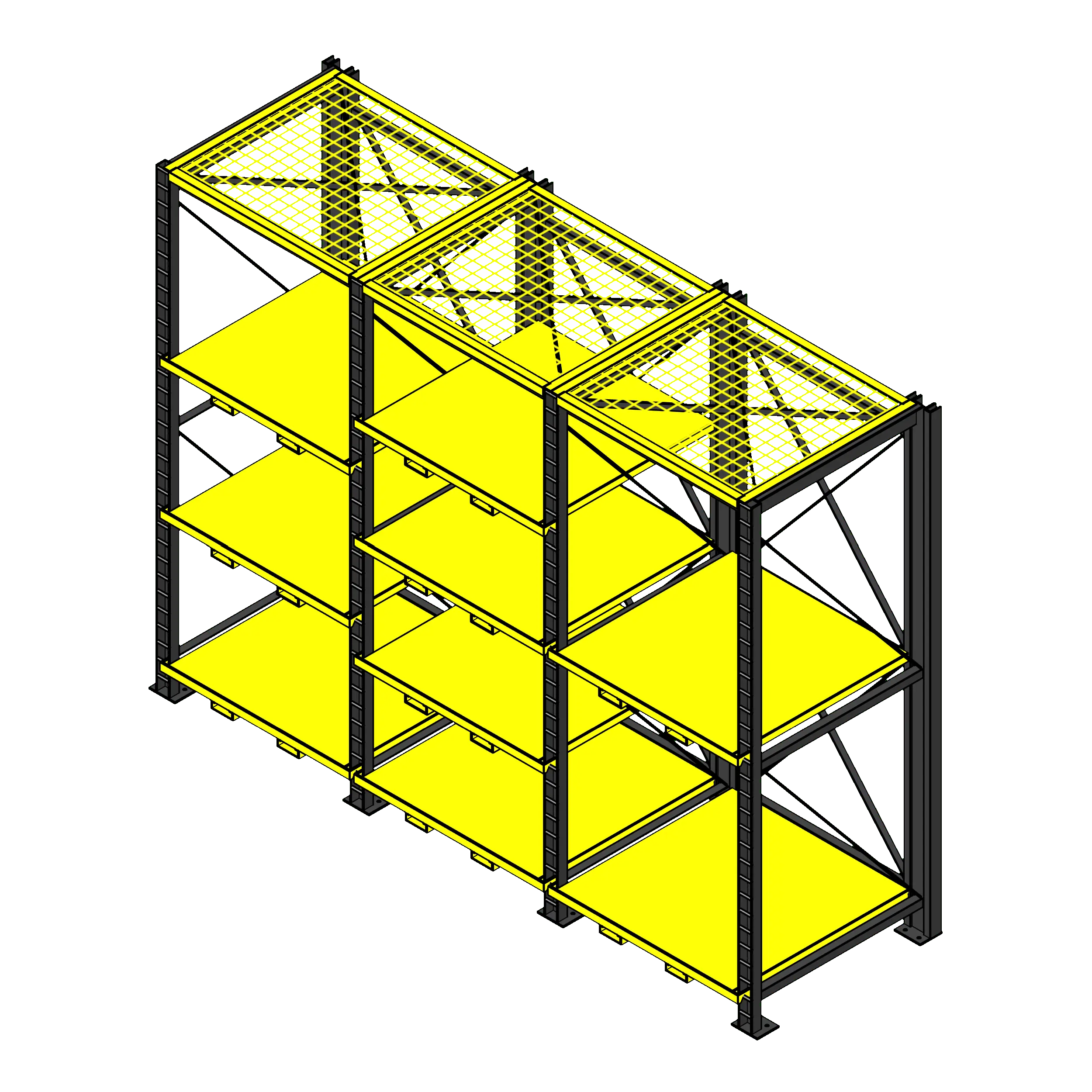

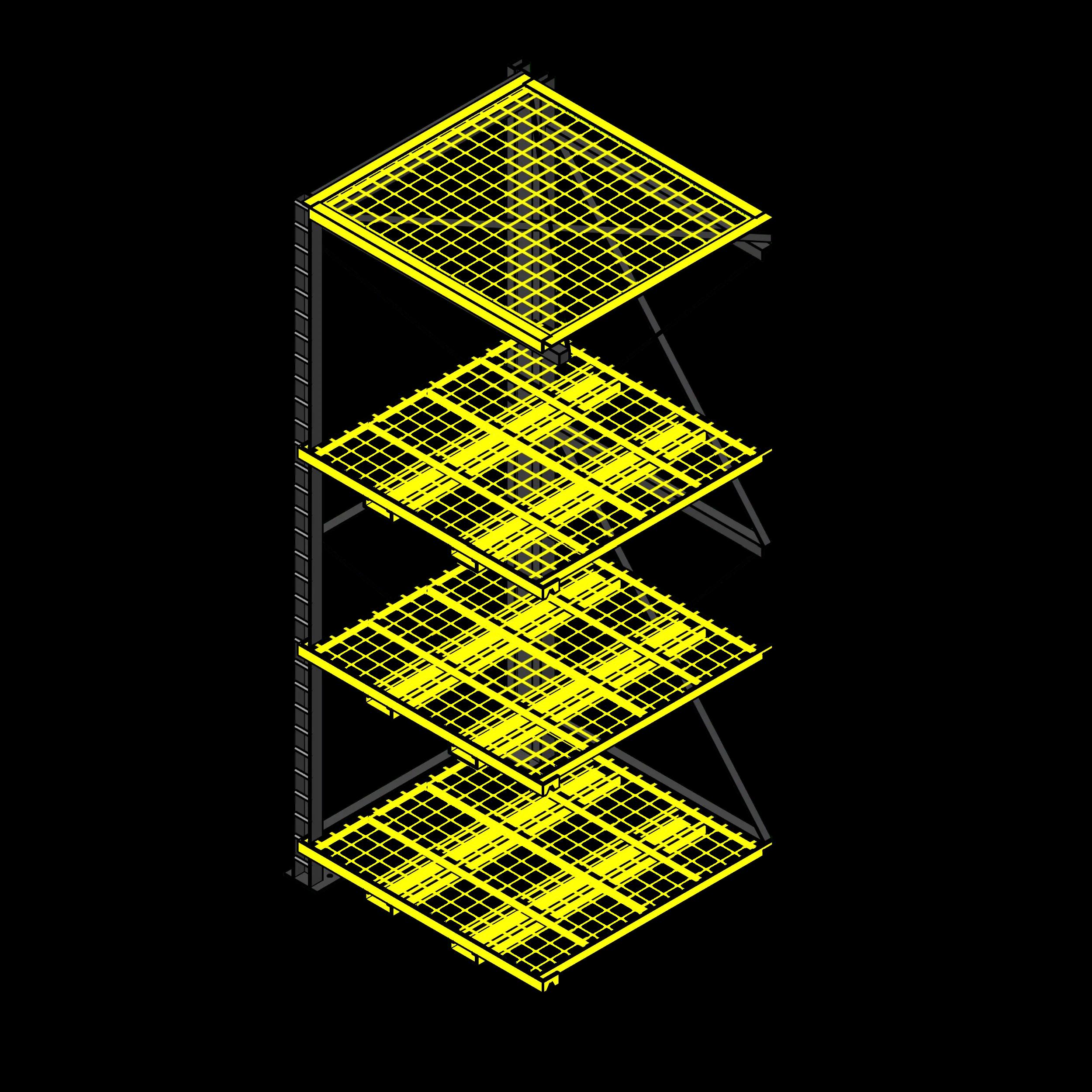

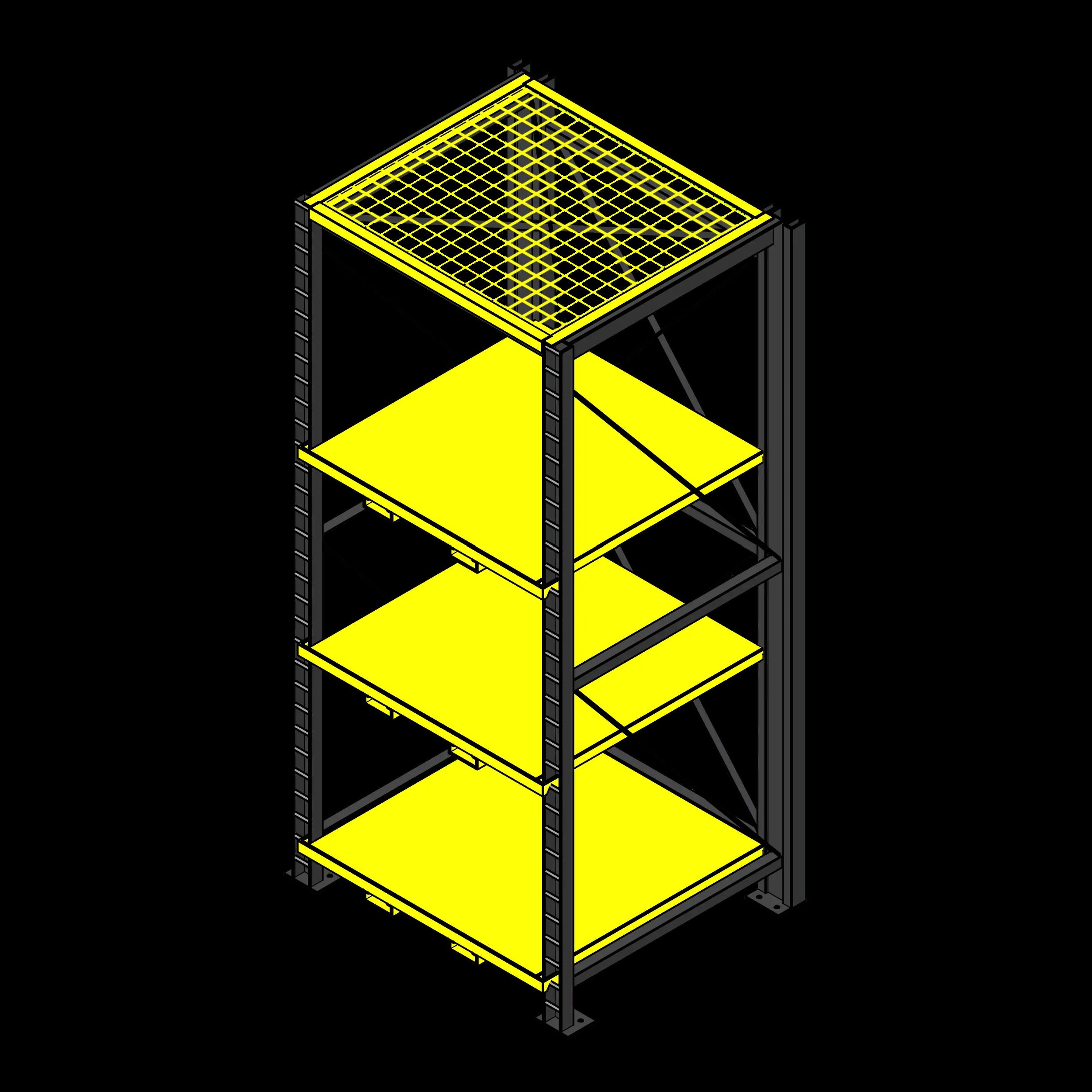

This family is designed to work as a system with the heavy-duty pallet family and the automatic pallet retrieval gantry. To use this family, insert it into your project from the Fetch app and click to place. Use the parameters in the property window to select the desired pallet size and upright height. To chain units together, check the MODIFY_Adder box and place more shelving units side by side. Other options include the continuous top shelf, solid or mesh (flow-through) pallets, and the number of pallets shown in the rack.
| Parameter | Value |
|---|---|
| Standard Widths | 30", 36", 42", 48", 52", 72", 96" |
| Minimum Width | 2.5 |
| Maximum Width | 8 |
| Standard Depths | 30", 36", 42", 48" |
| Minimum Depth | 2.5 |
| Maximum Depth | 4 |
| Standard Heights | 10' 4 5/8", 12' 4 5/8", 16' 4 5/8", 20' 4 5/8", 24' 4 5/8" |
| Minimum Height | 10.3854166666667 |
| Maximum Height | 24.3854166666667 |
| Manufacturer | Southwest Solutions Group_RAP |
| Lead Time | Contact SSG for more information |
| Model | P |
| Keynote | 10 56 29.16 |
| Assembly Code | E1030 |
| Author | AWright |
| Toll Free Number | 1-800-803-1083 |
| Property | Value |
|---|---|
| Includes Pricing | No |
| ADA Compliant | No |
| Has MEP Connectors | No |
| Primary Material | Powder coated steel |
| BIMobject Category | Furniture: Shelving & Storage |
| IFC | Furniture |
| Omniclass | 23 40 20 27 17 |
