Combination Blueprint Storage
Product SKU
Description
- Ideal for applications in corporate settings and design firms.
- Combination shelves and cubbies make for safe and efficient storage for your important drawings and plots.
- Choose between two configurations - vertical cubbies or combination shelves and cubbies.
Combination Blueprint Storage
Combination Blueprint storage provides ample flat shelves for storing active drawing safely. Previous iterations or closed out projects can be moved up into the rolled cubbies for efficient and easy to access storage.

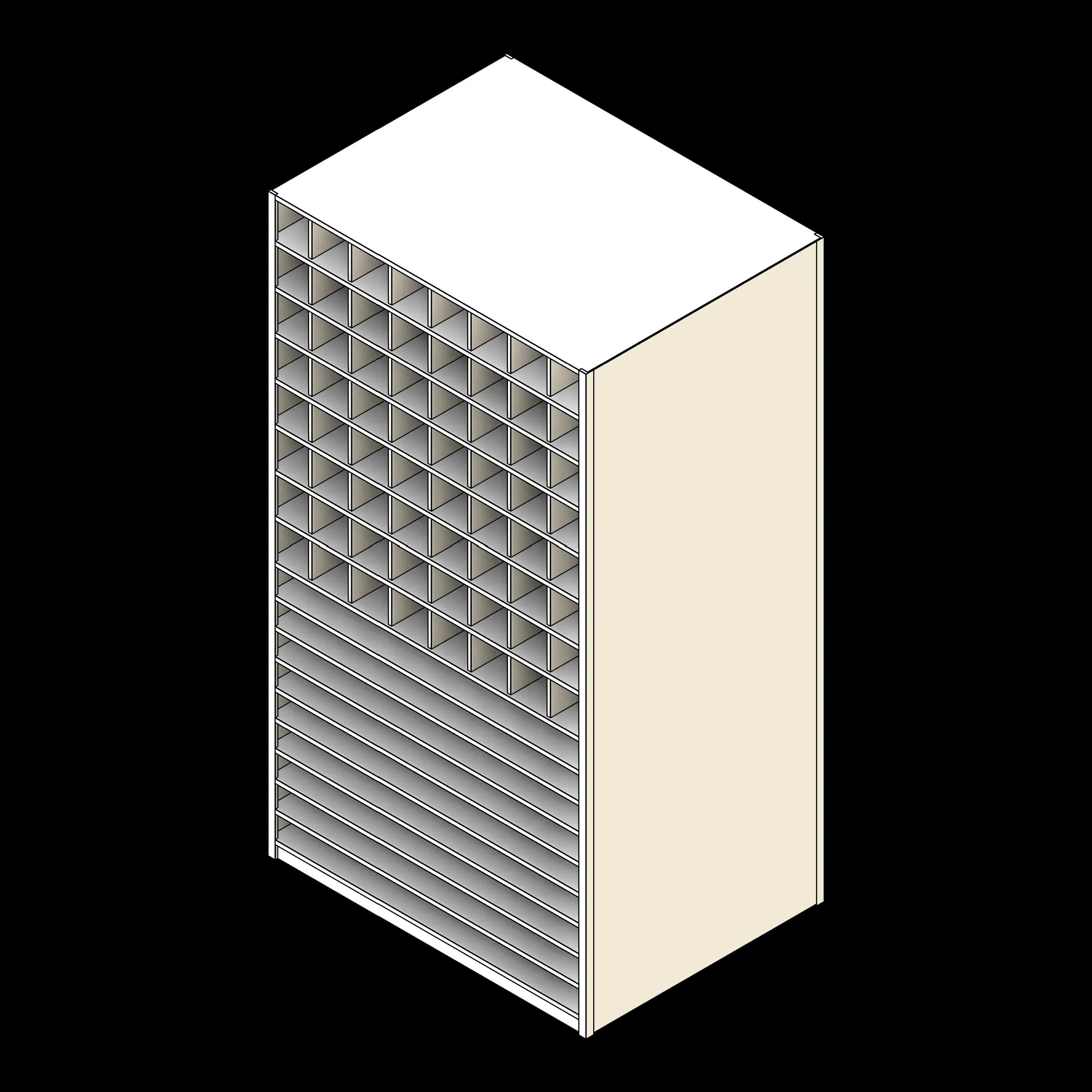

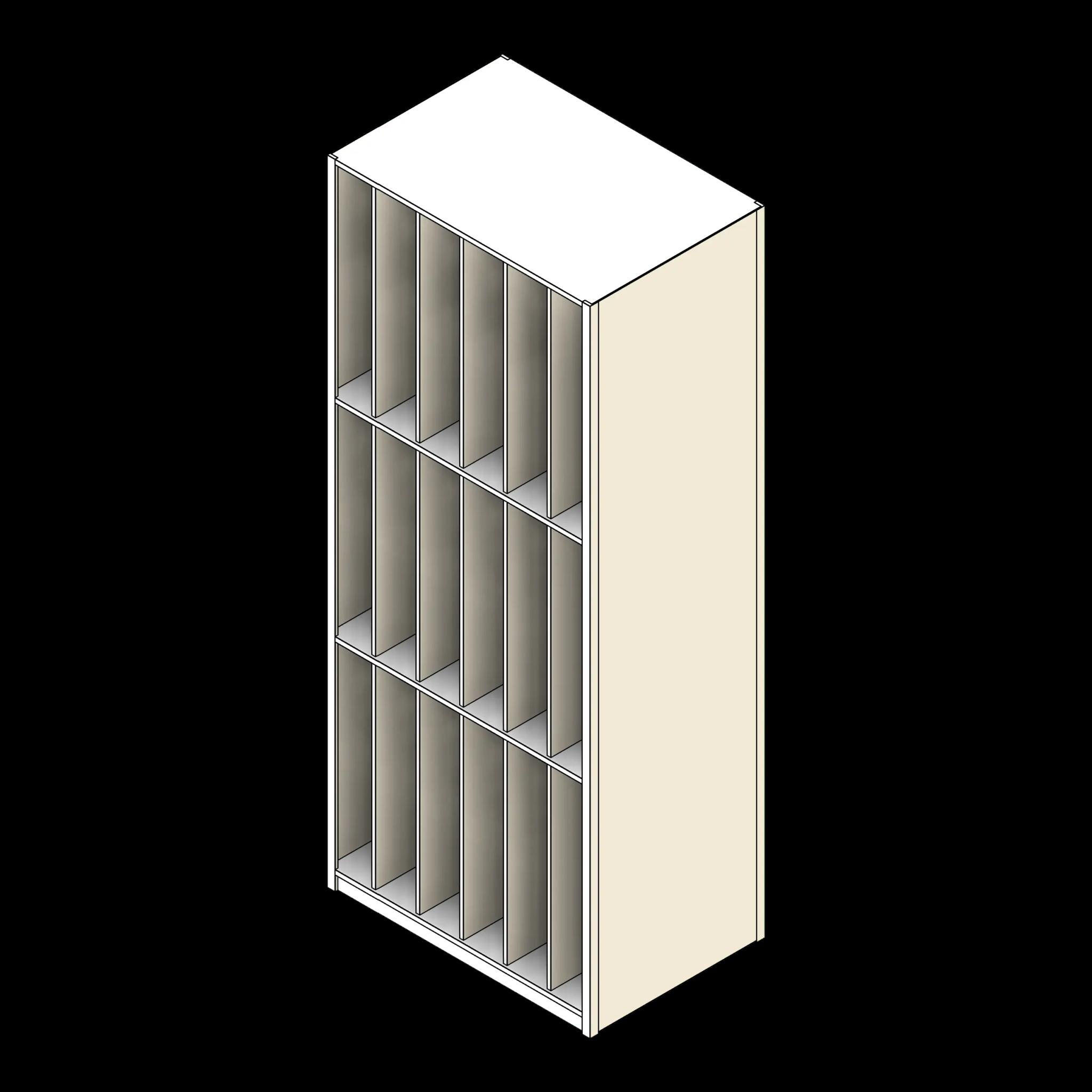

This combination blueprint storage unit is a specially configured 4 post shelving system ideal for use in corporate settings and in design firms. Choose between two configuration options to select either the 48" wide, 36" deep combination shelves and cubbies configuration, or the 36" wide, 24" deep vertical cubbie configuration. All units are 7' 3" tall and include a back panel. Optional double doors with lock are also included in this family.
Multiple units can be joined together by beginning with a unit with MODIFY_Starter checked. Uncheck ADD_Right Upright and align a unit with MODIFY_Adder checker. Repeat this process until the desired number of units is reached.
Download this families material library for access to all colors offered for this product, each with high quality textures and bump maps for photo realistic rendering
| Parameter | Value |
|---|---|
| Standard Widths | 36", 48" |
| Minimum Width | 3 |
| Maximum Width | 4 |
| Standard Depths | 24", 36" |
| Minimum Depth | 2 |
| Maximum Depth | 3 |
| Standard Heights | 7' 3" |
| Minimum Height | 0 |
| Maximum Height | 7.25 |
| Manufacturer | Southwest Soltuions Group_PNC |
| Lead Time | Ships in 7-8 weeks |
| Model | 1H |
| Keynote | 12 31 00 |
| Assembly Code | E20 |
| Author | AWright |
| Toll Free Number | 1-800-803-1083 |
| Property | Value |
|---|---|
| Includes Sustainability | Yes |
| Includes Pricing | Yes |
| ADA Compliant | No |
| Has MEP Connectors | No |
| Primary Material | Powder coated steel |
| BIMobject Category | Furniture: Shelving & Storage |
| IFC | Furniture |
| Omniclass | 23-40 35 00 |
