- 1500lbs capacity per level, not to exceed 4000lbs
- Removable retainer pipes extend 5" high
- Each bay provides 15" of vertical storage space
- Powder coated finish
Revit 2020 (0.48 MB)
Revit 2021 (0.48 MB)
Revit 2022 (0.48 MB)
Revit 2023 (0.48 MB)
Revit 2024 (0.48 MB)
Revit 2025 (0.48 MB)
(0.08 MB)
Questions
Need some help? Send us a message if you have any sales or model related questions.
Steel Cantilever Pipe Rack

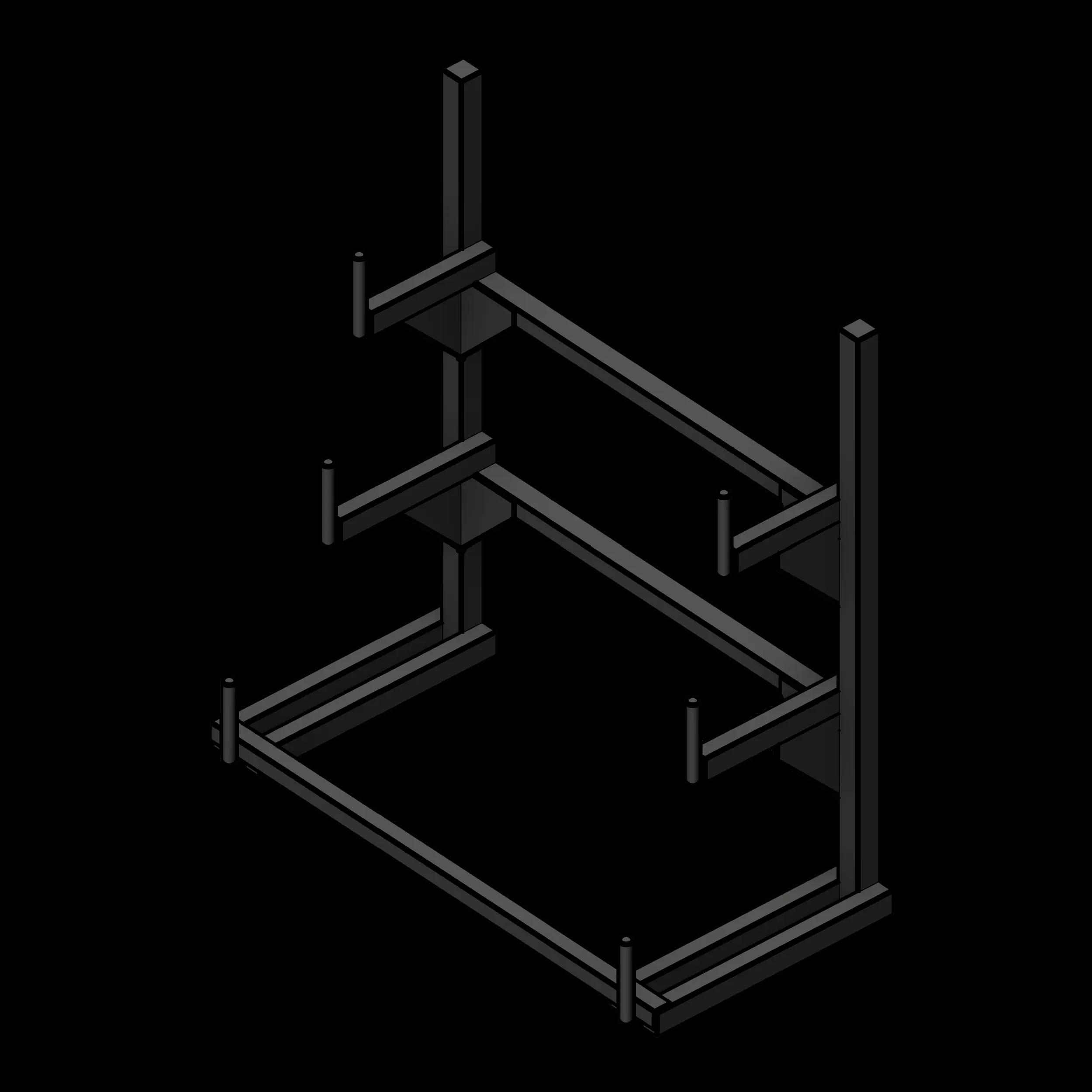

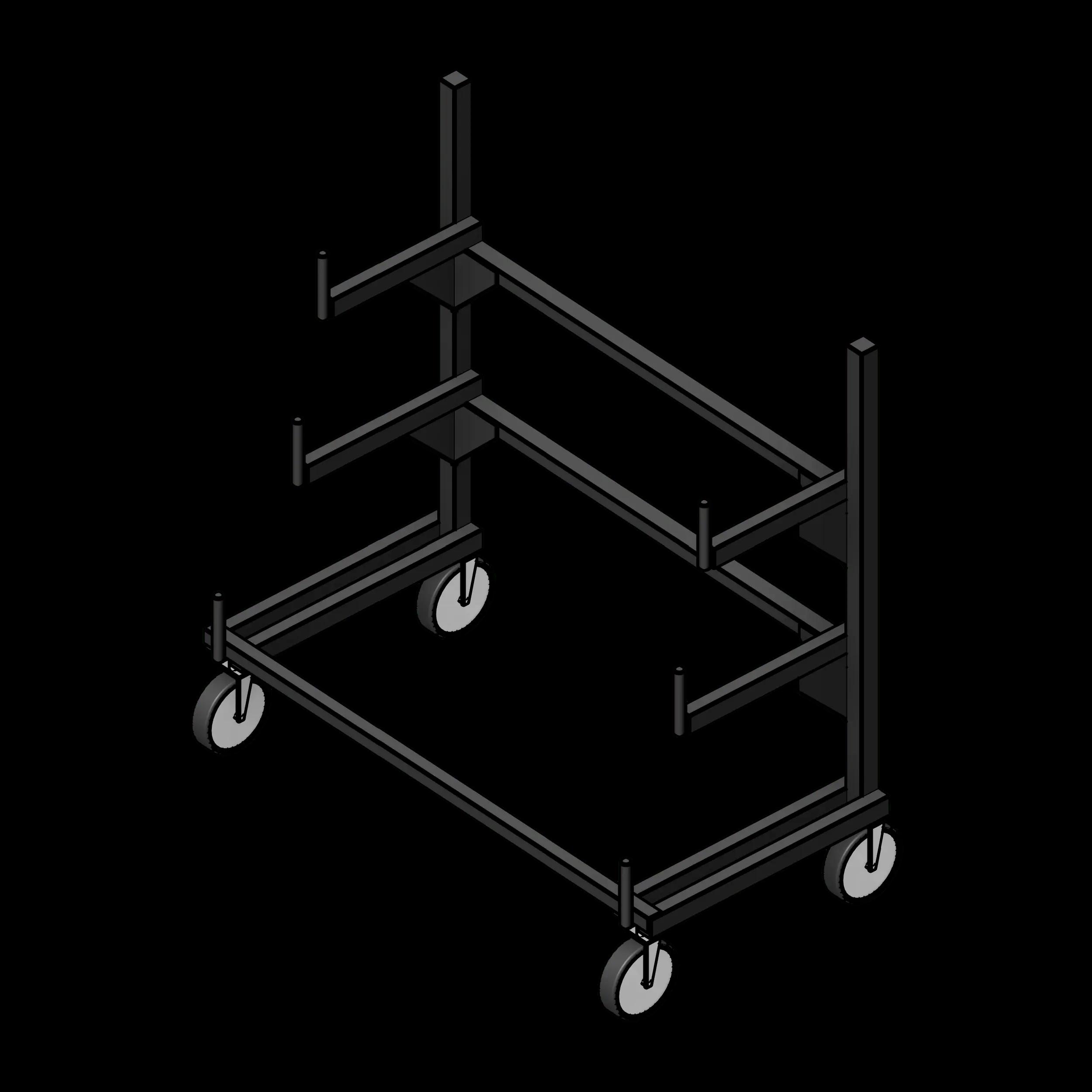

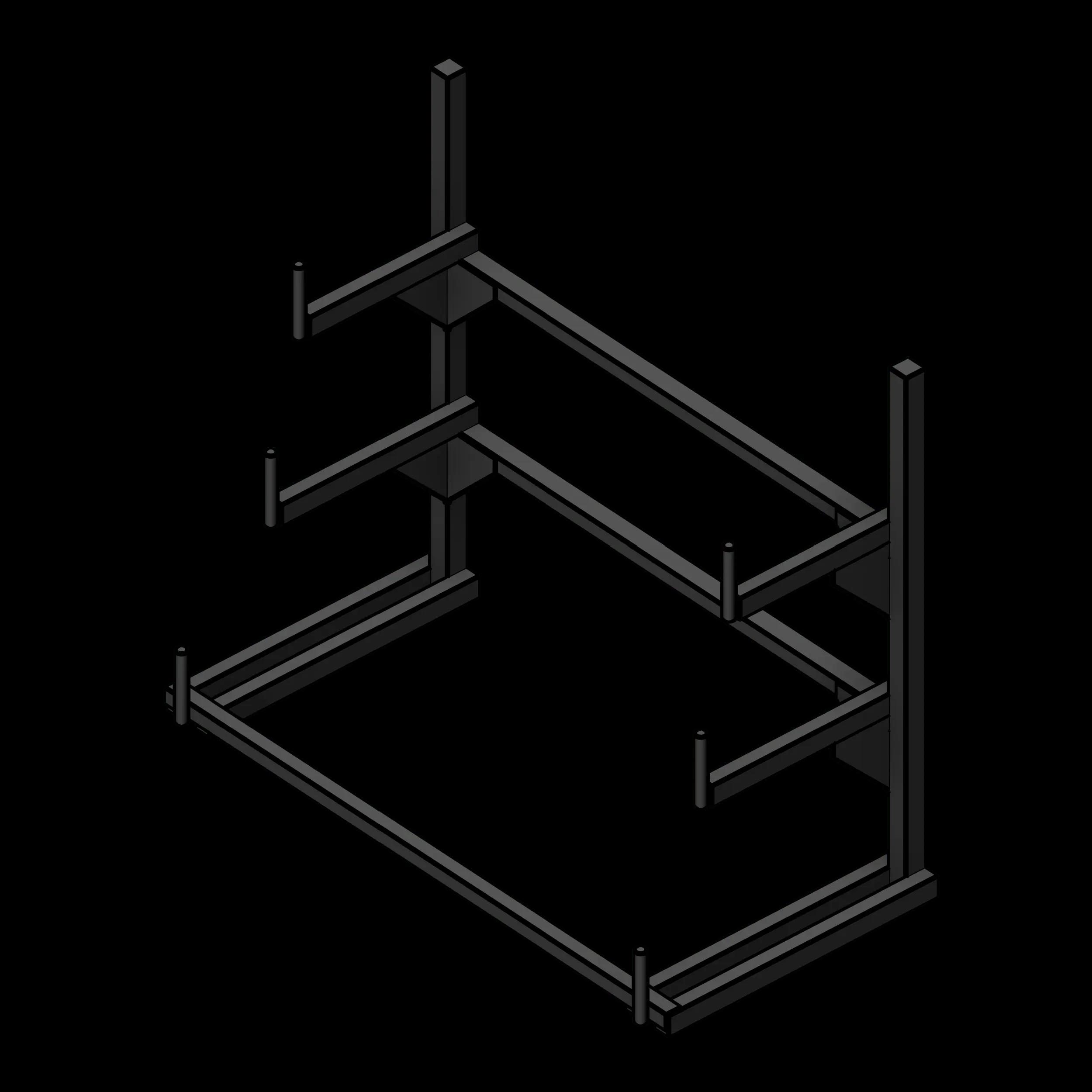

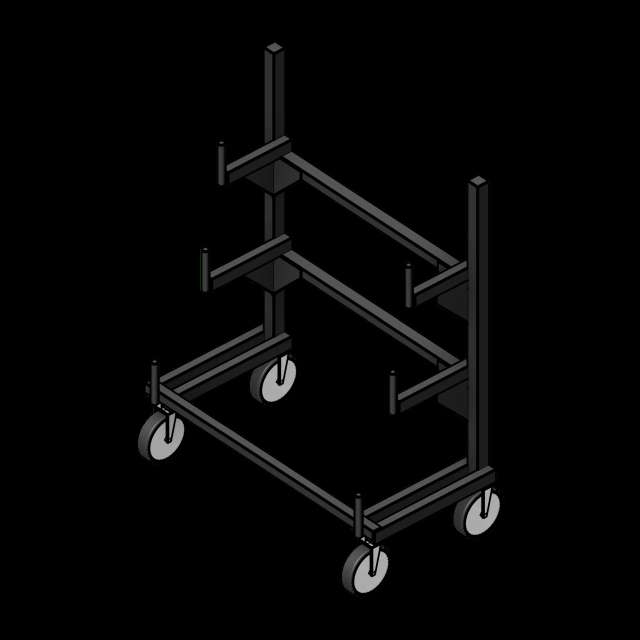

The Southwest Solutions Group cantilever pipe storage rack is designed to be highly flexible and adaptable with every Revit model built to reflect its real world counterpart. This rack has a load capacity of 1500lbs per level, not to exceed 4000lbs, and each bay provides 15" of vertical storage space.
| Parameter | Value |
|---|---|
| Standard Widths | 48", 60" |
| Minimum Width | 4' 0" (48") |
| Maximum Width | 5' 0" (60") |
| Standard Depths | 24", 30" |
| Minimum Depth | 2' 0" (24") |
| Maximum Depth | 2' 6" (30") |
| Standard Heights | 51", 61" |
| Minimum Height | 4' 3" (51") |
| Maximum Height | 5' 1" (60") |
| Manufacturer | Southwest Solutions Group_LIT |
| Lead Time | Contact SSG for info |
| Model | CBR |
| Keynote | 10 56 29.26 |
| Assembly Code | E2050 |
| Author | KBruxvoort |
| Toll Free Number | 1-800-803-1083 |
| Property | Value |
|---|---|
| Includes Pricing | Yes |
| ADA Compliant | No |
| Has MEP Connectors | No |
| Primary Material | Powder coated steel |
| BIMobject Category | Furniture: Shelving & Storage |
| IFC | Furniture |
| Omniclass | 23-21 11 11 15 |
