Frequently found in industrial and store room environments
Stores a large variety of heavy and bulky items
Fully configurable shelving system can be customized to fit your specific needs

Questions about this product?

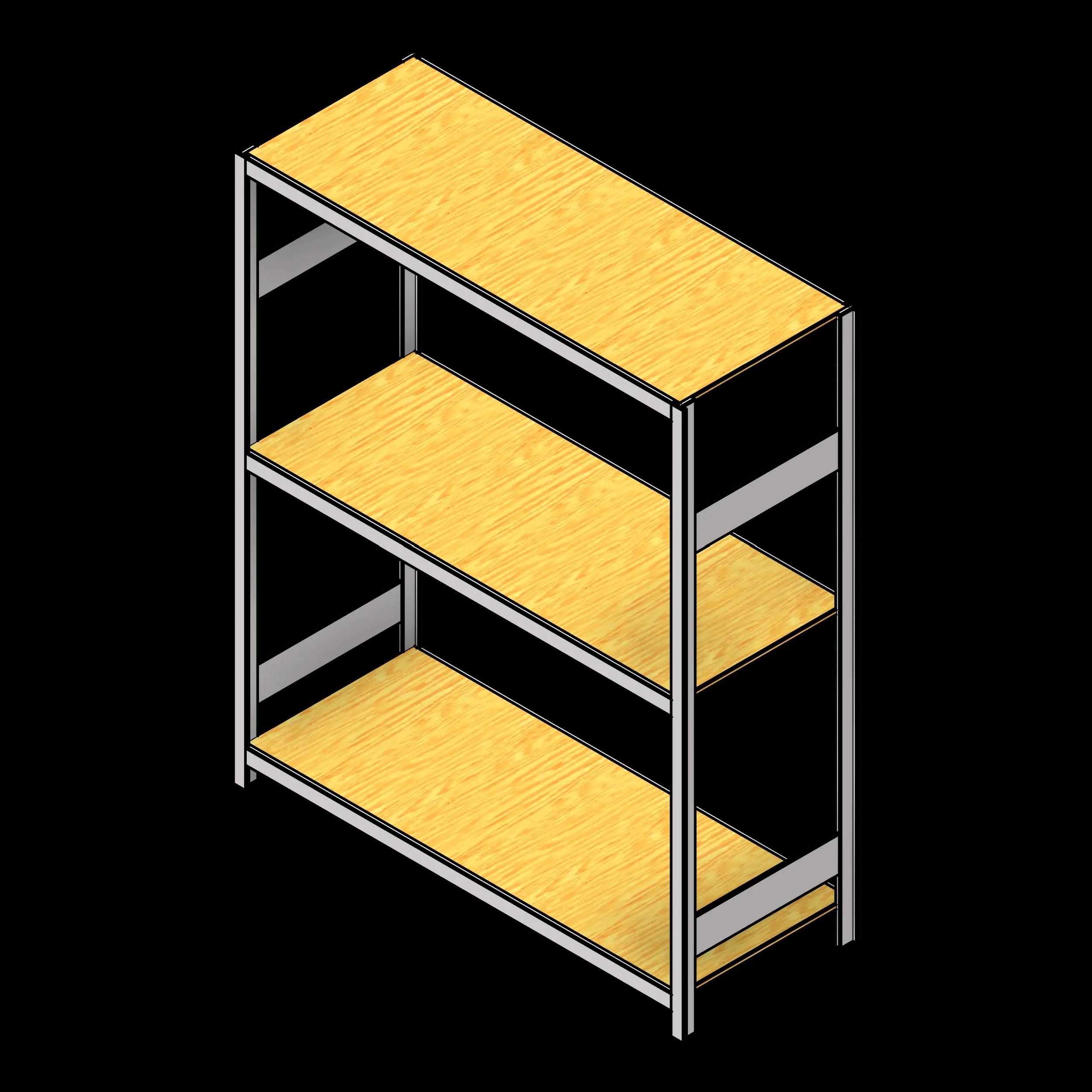

Wide Span Shelving

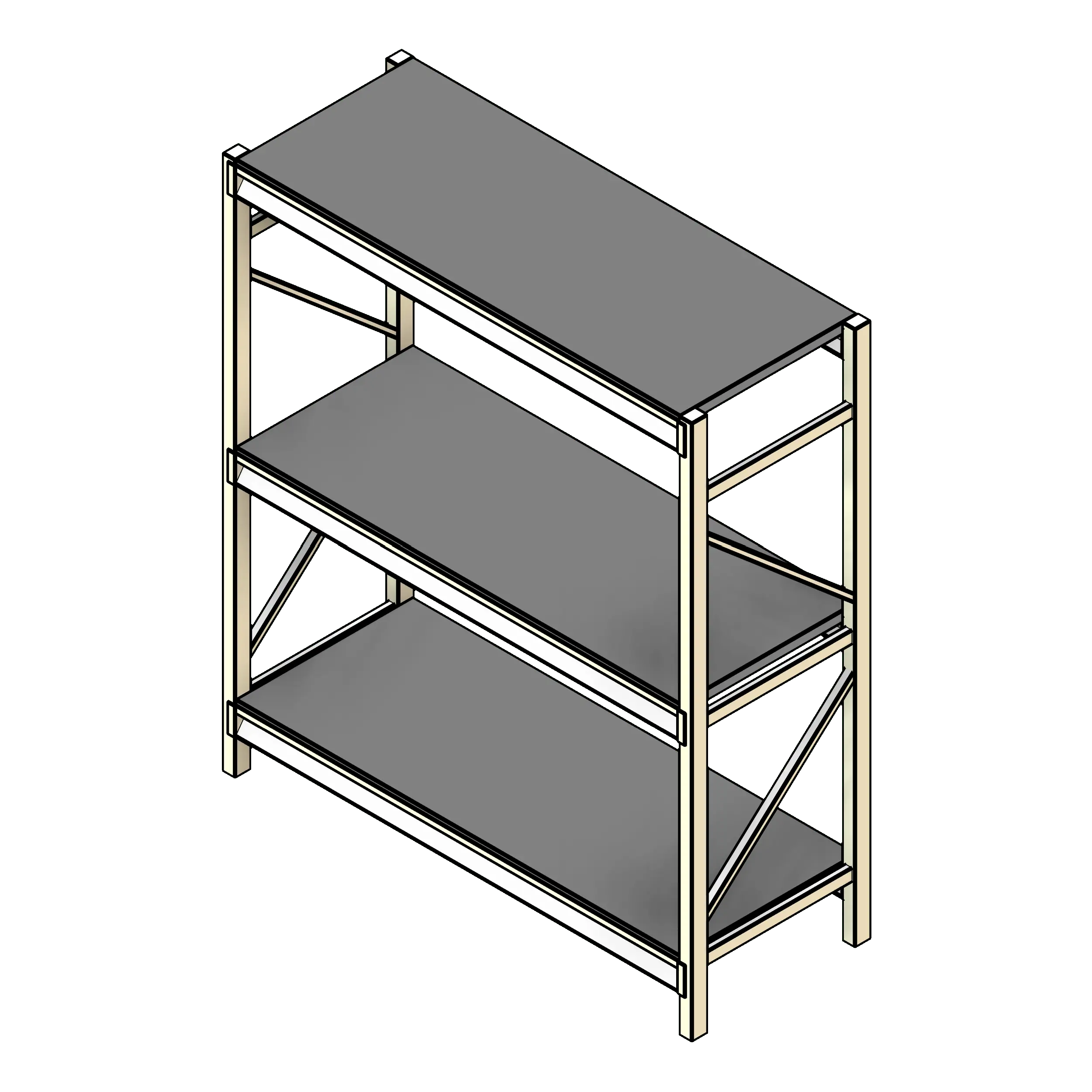

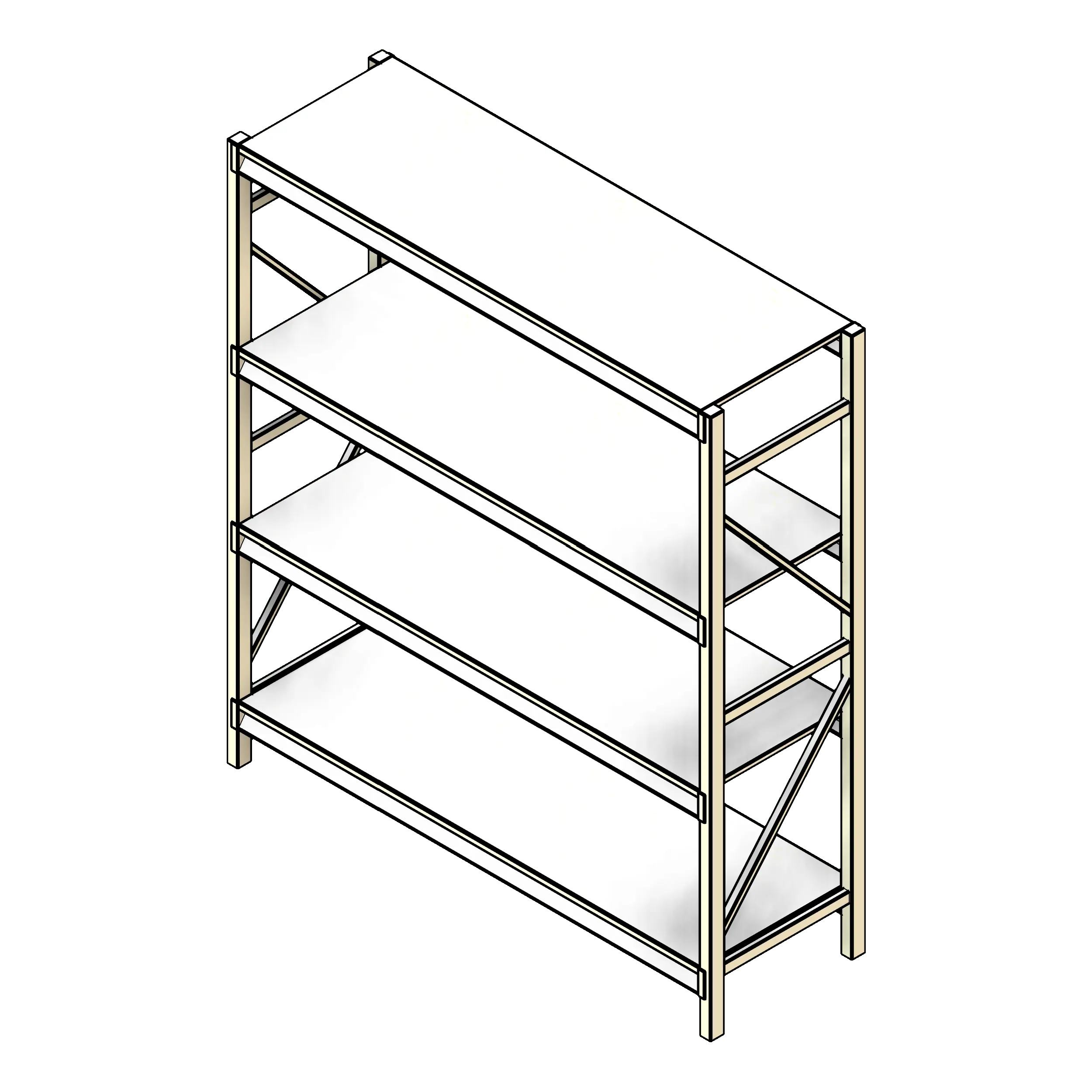

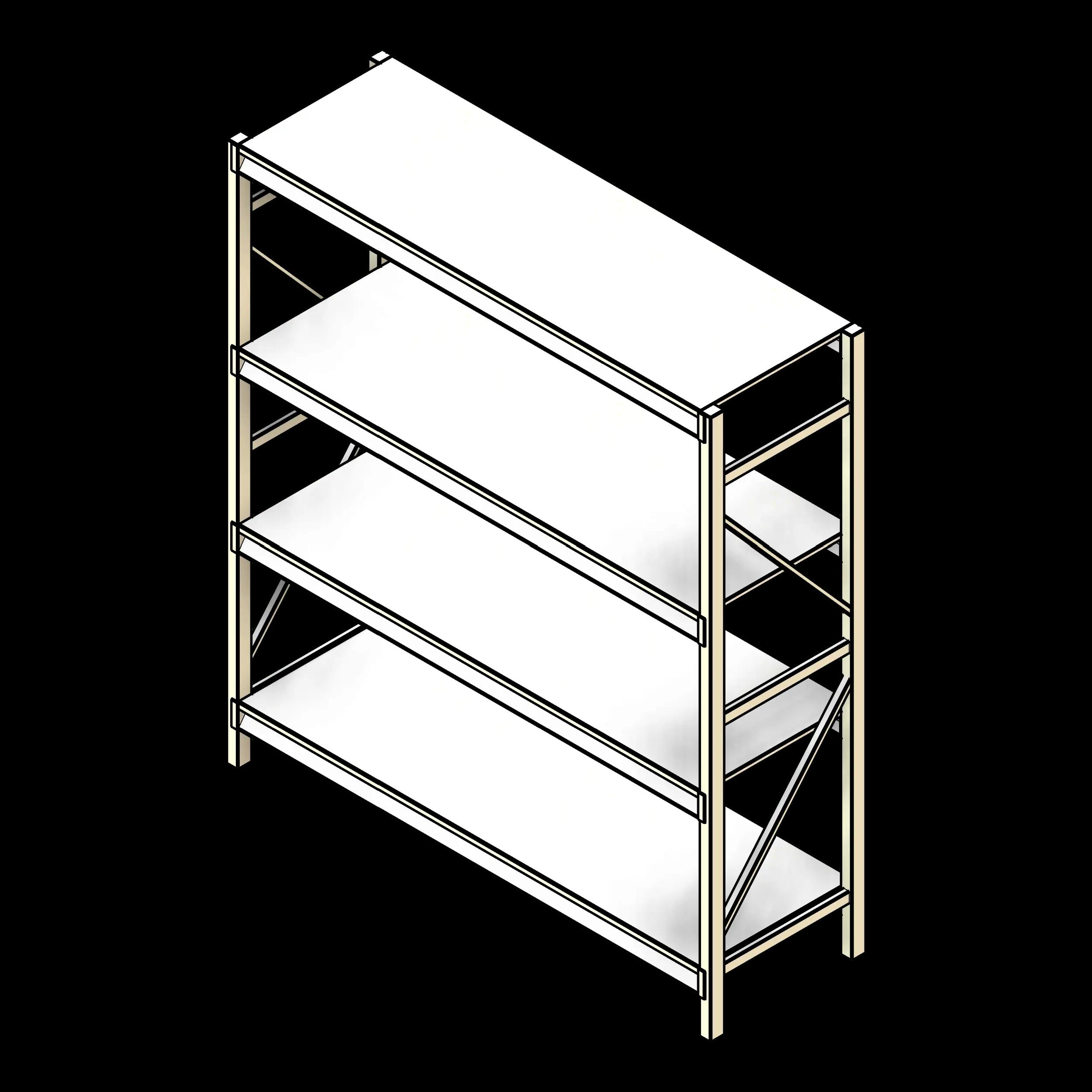

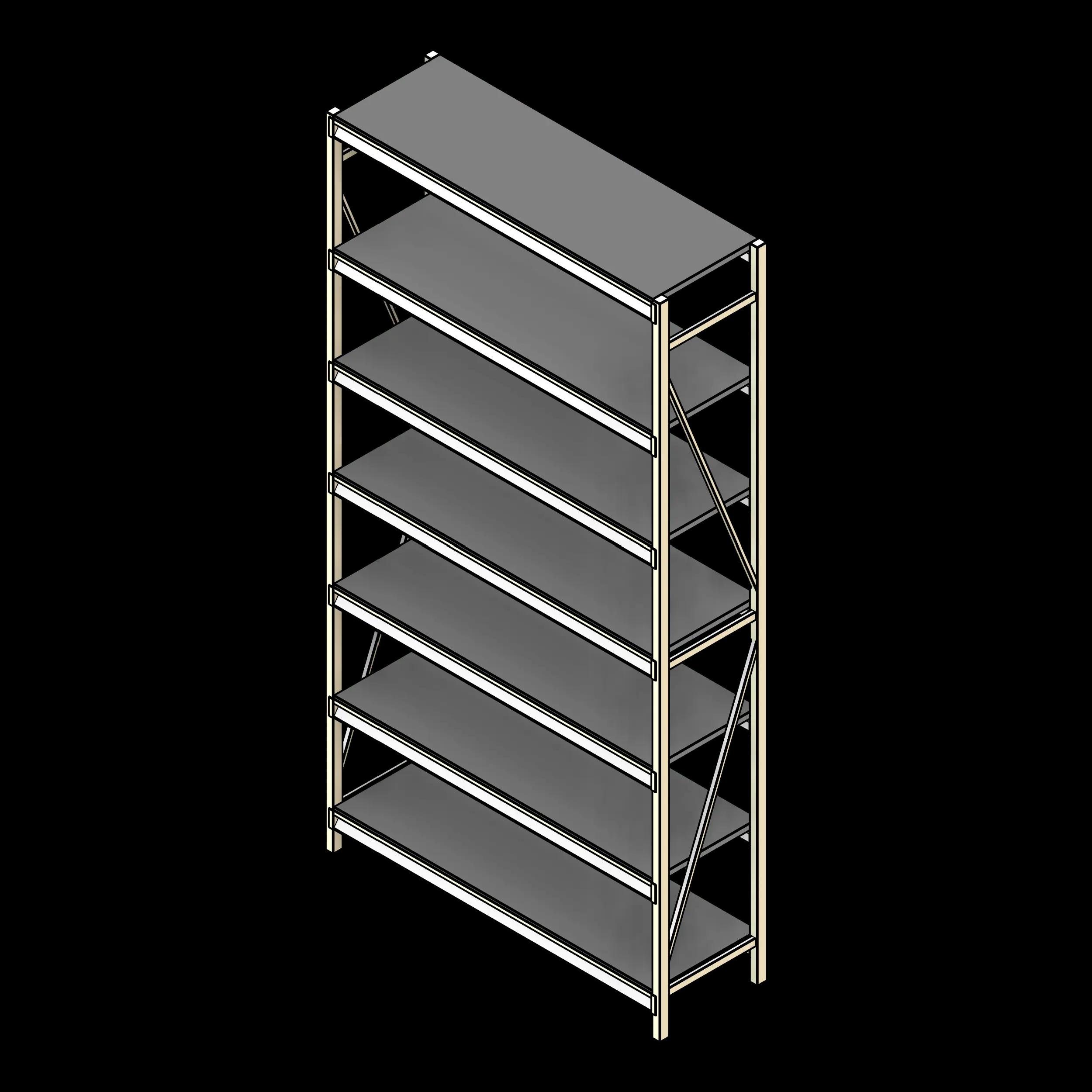

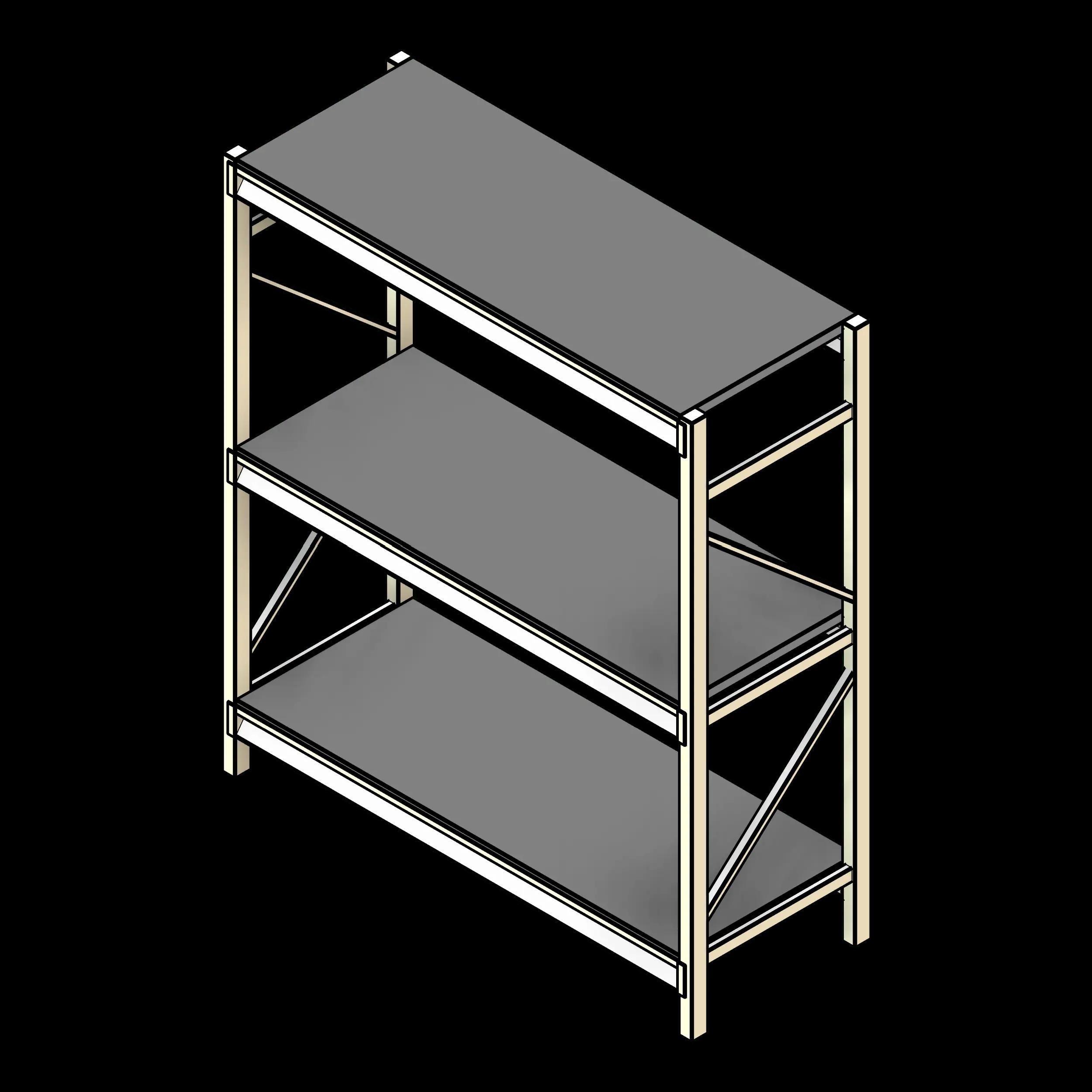

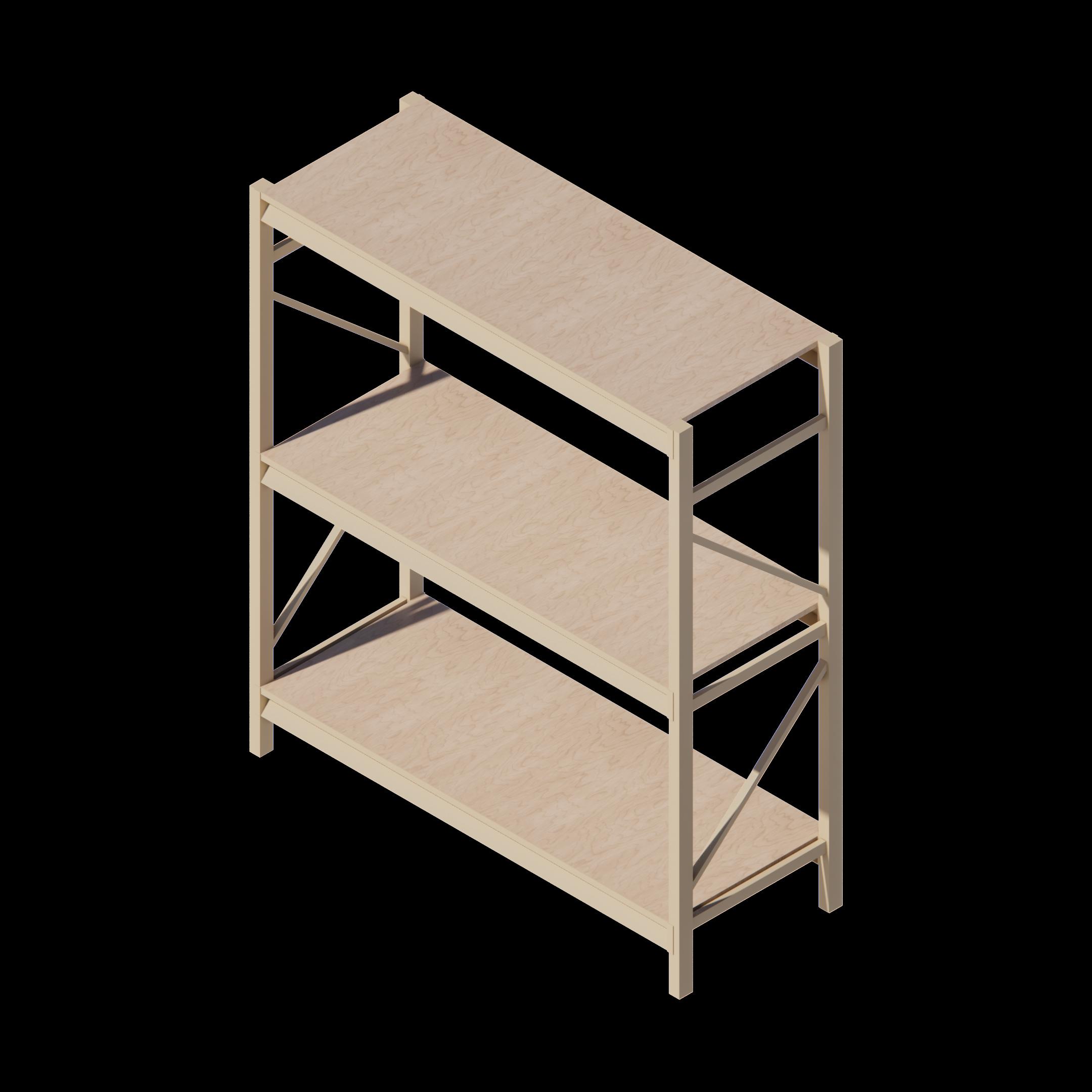

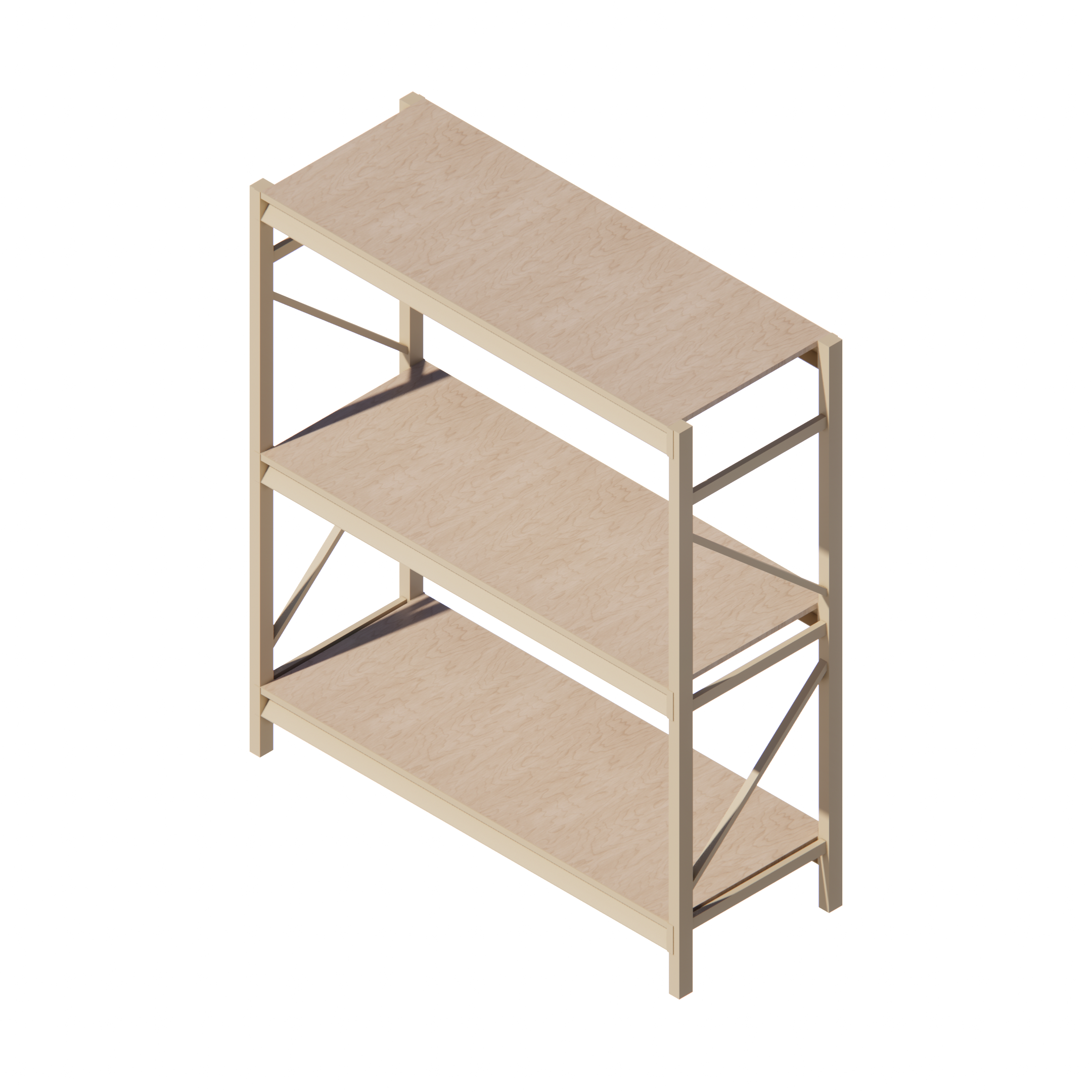

This wide span shelving system is designed to be highly flexible and adaptable with every Revit model built to reflect its real world counterparts as closely as possible. Use the prebuilt shelving family to visualize your storage solutions or use the sub-component families to build your own custom solution right down to the last shelf.

Our 4-Post shelving incorporates both starter and adder options, allowing for a variety of shelving configurations. All shelf units are assembled without the use of nuts, bolts, or clips and are available for both single entry (wall unit) and double entry (back to back storage) allowing for maximum filing/storage capacity with minimal floor intrusion. Shelves are available in steel, plywood, corrugated metal, and wire mesh. All shelf units are designed for expansion and are available as mobile-ready for easy conversion.

Specifications
Dimensions
Width	48", 60", 72", 84", 96"
Depth	15", 18", 24", 30", 36", 48"
Height	60", 72", 84", 96", 120", 144"
Product
Manufacturer	Southwest Solutions Group_SPA
Lead Time	4-6 Weeks
Model	WS
Primary Material	Powder coated steel
Secondary Material	Plywood
Classification
MasterFormat	10 56 13.16 – Post-and-Shelf Metal Storage Shelving
UniFormat	E2010 – Fixed Furnishings
OmniClass	23-21 11 11 11
IFC	Furniture
Purchasing
Contracts	Omnia, Sourcewell, Equalis, Vizient, Systec
Revit family
Includes Pricing	Yes
ADA Compliant	No
Has MEP Connectors	No
Includes Sustainability	Yes

Model	Width	Depth	Height
SSG-WSWUSPB481560S	4' 0" (48")	1' 3" (15")	5' 0" (60")
SSG-WSWUSPB481572S	4' 0" (48")	1' 3" (15")	6' 0" (72")
SSG-WSWUSPB481860S	4' 0" (48")	1' 6" (18")	5' 0" (60")
SSG-WSWUSPB481872S	4' 0" (48")	1' 6" (18")	6' 0" (72")
SSG-WSWUSPB482460S	4' 0" (48")	2' 0" (24")	5' 0" (60")
SSG-WSWUSPB483060S	4' 0" (48")	2' 6" (30")	5' 0" (60")
SSG-WSWUSPB483660S	4' 0" (48")	3' 0" (36")	5' 0" (60")
SSG-WSWUSPB484860S	4' 0" (48")	4' 0" (48")	5' 0" (60")
SSG-WSWUSPB601560S	5' 0" (60")	1' 3" (15")	5' 0" (60")
SSG-WSWUSPB601572S	5' 0" (60")	1' 3" (15")	6' 0" (72")
SSG-WSWUSPB601860S	5' 0" (60")	1' 6" (18")	5' 0" (60")
SSG-WSWUSPB601872S	5' 0" (60")	1' 6" (18")	6' 0" (72")
SSG-WSWUSPB602460S	5' 0" (60")	2' 0" (24")	5' 0" (60")
SSG-WSWUSPB603060S	5' 0" (60")	2' 6" (30")	5' 0" (60")
SSG-WSWUSPB603660S	5' 0" (60")	3' 0" (36")	5' 0" (60")
SSG-WSWUSPB604860S	5' 0" (60")	4' 0" (48")	5' 0" (60")
SSG-WSWUSPB721560S	6' 0" (72")	1' 3" (15")	5' 0" (60")
SSG-WSWUSPB721572S	6' 0" (72")	1' 3" (15")	6' 0" (72")
SSG-WSWUSPB721860S	6' 0" (72")	1' 6" (18")	5' 0" (60")
SSG-WSWUSPB721872S	6' 0" (72")	1' 6" (18")	6' 0" (72")
SSG-WSWUSPB722460S	6' 0" (72")	2' 0" (24")	5' 0" (60")
SSG-WSWUSPB723060S	6' 0" (72")	2' 6" (30")	5' 0" (60")
SSG-WSWUSPB723660S	6' 0" (72")	3' 0" (36")	5' 0" (60")
SSG-WSWUSPB724860S	6' 0" (72")	4' 0" (48")	5' 0" (60")
SSG-WSWUSPB841560S	7' 0" (84")	1' 3" (15")	5' 0" (60")
SSG-WSWUSPB841572S	7' 0" (84")	1' 3" (15")	6' 0" (72")
SSG-WSWUSPB841860S	7' 0" (84")	1' 6" (18")	5' 0" (60")
SSG-WSWUSPB842460S	7' 0" (84")	2' 0" (24")	5' 0" (60")
SSG-WSWUSPB843060S	7' 0" (84")	2' 6" (30")	5' 0" (60")
SSG-WSWUSPB843660S	7' 0" (84")	3' 0" (36")	5' 0" (60")
SSG-WSWUSPB844860S	7' 0" (84")	4' 0" (48")	5' 0" (60")
SSG-WSWUSPB961560S	8' 0" (96")	1' 3" (15")	5' 0" (60")
SSG-WSWUSPB961572S	8' 0" (96")	1' 3" (15")	6' 0" (72")
SSG-WSWUSPB961860S	8' 0" (96")	1' 6" (18")	5' 0" (60")
SSG-WSWUSPB962460S	8' 0" (96")	2' 0" (24")	5' 0" (60")
SSG-WSWUSPB963060S	8' 0" (96")	2' 6" (30")	5' 0" (60")
SSG-WSWUSPB963660S	8' 0" (96")	3' 0" (36")	5' 0" (60")
SSG-WSWUSPB964860S	8' 0" (96")	4' 0" (48")	5' 0" (60")
SSG-WSWUSPB481584S	4' 0" (48")	1' 3" (15")	7' 0" (84")
SSG-WSWUSPB481596S	4' 0" (48")	1' 3" (15")	8' 0" (96")
SSG-WSWUSPB481884S	4' 0" (48")	1' 6" (18")	7' 0" (84")
SSG-WSWUSPB481896S	4' 0" (48")	1' 6" (18")	8' 0" (96")
SSG-WSWUSPB482472S	4' 0" (48")	2' 0" (24")	6' 0" (72")
SSG-WSWUSPB482484S	4' 0" (48")	2' 0" (24")	7' 0" (84")
SSG-WSWUSPB482496S	4' 0" (48")	2' 0" (24")	8' 0" (96")
SSG-WSWUSPB483072S	4' 0" (48")	2' 6" (30")	6' 0" (72")
SSG-WSWUSPB483084S	4' 0" (48")	2' 6" (30")	7' 0" (84")
SSG-WSWUSPB483096S	4' 0" (48")	2' 6" (30")	8' 0" (96")
SSG-WSWUSPB483672S	4' 0" (48")	3' 0" (36")	6' 0" (72")
SSG-WSWUSPB483684S	4' 0" (48")	3' 0" (36")	7' 0" (84")
SSG-WSWUSPB483696S	4' 0" (48")	3' 0" (36")	8' 0" (96")
SSG-WSWUSPB484872S	4' 0" (48")	4' 0" (48")	6' 0" (72")
SSG-WSWUSPB484884S	4' 0" (48")	4' 0" (48")	7' 0" (84")
SSG-WSWUSPB484896S	4' 0" (48")	4' 0" (48")	8' 0" (96")
SSG-WSWUSPB601584S	5' 0" (60")	1' 3" (15")	7' 0" (84")
SSG-WSWUSPB601596S	5' 0" (60")	1' 3" (15")	8' 0" (96")
SSG-WSWUSPB601884S	5' 0" (60")	1' 6" (18")	7' 0" (84")
SSG-WSWUSPB601896S	5' 0" (60")	1' 6" (18")	8' 0" (96")
SSG-WSWUSPB602472S	5' 0" (60")	2' 0" (24")	6' 0" (72")
SSG-WSWUSPB602484S	5' 0" (60")	2' 0" (24")	7' 0" (84")
SSG-WSWUSPB602496S	5' 0" (60")	2' 0" (24")	8' 0" (96")
SSG-WSWUSPB603072S	5' 0" (60")	2' 6" (30")	6' 0" (72")
SSG-WSWUSPB603084S	5' 0" (60")	2' 6" (30")	7' 0" (84")
SSG-WSWUSPB603096S	5' 0" (60")	2' 6" (30")	8' 0" (96")
SSG-WSWUSPB603672S	5' 0" (60")	3' 0" (36")	6' 0" (72")
SSG-WSWUSPB603684S	5' 0" (60")	3' 0" (36")	7' 0" (84")
SSG-WSWUSPB603696S	5' 0" (60")	3' 0" (36")	8' 0" (96")
SSG-WSWUSPB604872S	5' 0" (60")	4' 0" (48")	6' 0" (72")
SSG-WSWUSPB604884S	5' 0" (60")	4' 0" (48")	7' 0" (84")
SSG-WSWUSPB604896S	5' 0" (60")	4' 0" (48")	8' 0" (96")
SSG-WSWUSPB721584S	6' 0" (72")	1' 3" (15")	7' 0" (84")
SSG-WSWUSPB721596S	6' 0" (72")	1' 3" (15")	8' 0" (96")
SSG-WSWUSPB721884S	6' 0" (72")	1' 6" (18")	7' 0" (84")
SSG-WSWUSPB721896S	6' 0" (72")	1' 6" (18")	8' 0" (96")
SSG-WSWUSPB722472S	6' 0" (72")	2' 0" (24")	6' 0" (72")
SSG-WSWUSPB722484S	6' 0" (72")	2' 0" (24")	7' 0" (84")
SSG-WSWUSPB722496S	6' 0" (72")	2' 0" (24")	8' 0" (96")
SSG-WSWUSPB723072S	6' 0" (72")	2' 6" (30")	6' 0" (72")
SSG-WSWUSPB723084S	6' 0" (72")	2' 6" (30")	7' 0" (84")
SSG-WSWUSPB723096S	6' 0" (72")	2' 6" (30")	8' 0" (96")
SSG-WSWUSPB723672S	6' 0" (72")	3' 0" (36")	6' 0" (72")
SSG-WSWUSPB723684S	6' 0" (72")	3' 0" (36")	7' 0" (84")
SSG-WSWUSPB723696S	6' 0" (72")	3' 0" (36")	8' 0" (96")
SSG-WSWUSPB724872S	6' 0" (72")	4' 0" (48")	6' 0" (72")
SSG-WSWUSPB724884S	6' 0" (72")	4' 0" (48")	7' 0" (84")
SSG-WSWUSPB724896S	6' 0" (72")	4' 0" (48")	8' 0" (96")
SSG-WSWUSPB841584S	7' 0" (84")	1' 3" (15")	7' 0" (84")
SSG-WSWUSPB841596S	7' 0" (84")	1' 3" (15")	8' 0" (96")
SSG-WSWUSPB841872S	7' 0" (84")	1' 6" (18")	6' 0" (72")
SSG-WSWUSPB841884S	7' 0" (84")	1' 6" (18")	7' 0" (84")
SSG-WSWUSPB841896S	7' 0" (84")	1' 6" (18")	8' 0" (96")
SSG-WSWUSPB842472S	7' 0" (84")	2' 0" (24")	6' 0" (72")
SSG-WSWUSPB842484S	7' 0" (84")	2' 0" (24")	7' 0" (84")
SSG-WSWUSPB842496S	7' 0" (84")	2' 0" (24")	8' 0" (96")
SSG-WSWUSPB843072S	7' 0" (84")	2' 6" (30")	6' 0" (72")
SSG-WSWUSPB843084S	7' 0" (84")	2' 6" (30")	7' 0" (84")
SSG-WSWUSPB843096S	7' 0" (84")	2' 6" (30")	8' 0" (96")
SSG-WSWUSPB843672S	7' 0" (84")	3' 0" (36")	6' 0" (72")
SSG-WSWUSPB843684S	7' 0" (84")	3' 0" (36")	7' 0" (84")
SSG-WSWUSPB843696S	7' 0" (84")	3' 0" (36")	8' 0" (96")
SSG-WSWUSPB844872S	7' 0" (84")	4' 0" (48")	6' 0" (72")
SSG-WSWUSPB844884S	7' 0" (84")	4' 0" (48")	7' 0" (84")
SSG-WSWUSPB844896S	7' 0" (84")	4' 0" (48")	8' 0" (96")
SSG-WSWUSPB961584S	8' 0" (96")	1' 3" (15")	7' 0" (84")
SSG-WSWUSPB961596S	8' 0" (96")	1' 3" (15")	8' 0" (96")
SSG-WSWUSPB961872S	8' 0" (96")	1' 6" (18")	6' 0" (72")
SSG-WSWUSPB961884S	8' 0" (96")	1' 6" (18")	7' 0" (84")
SSG-WSWUSPB961896S	8' 0" (96")	1' 6" (18")	8' 0" (96")
SSG-WSWUSPB962472S	8' 0" (96")	2' 0" (24")	6' 0" (72")
SSG-WSWUSPB962484S	8' 0" (96")	2' 0" (24")	7' 0" (84")
SSG-WSWUSPB962496S	8' 0" (96")	2' 0" (24")	8' 0" (96")
SSG-WSWUSPB963072S	8' 0" (96")	2' 6" (30")	6' 0" (72")
SSG-WSWUSPB963084S	8' 0" (96")	2' 6" (30")	7' 0" (84")
SSG-WSWUSPB963096S	8' 0" (96")	2' 6" (30")	8' 0" (96")
SSG-WSWUSPB963672S	8' 0" (96")	3' 0" (36")	6' 0" (72")
SSG-WSWUSPB963684S	8' 0" (96")	3' 0" (36")	7' 0" (84")
SSG-WSWUSPB963696S	8' 0" (96")	3' 0" (36")	8' 0" (96")
SSG-WSWUSPB964872S	8' 0" (96")	4' 0" (48")	6' 0" (72")
SSG-WSWUSPB964884S	8' 0" (96")	4' 0" (48")	7' 0" (84")
SSG-WSWUSPB964896S	8' 0" (96")	4' 0" (48")	8' 0" (96")
SSG-WSWUSPB4815120S	4' 0" (48")	1' 3" (15")	10' 0" (120")
SSG-WSWUSPB4818120S	4' 0" (48")	1' 6" (18")	10' 0" (120")
SSG-WSWUSPB4824120S	4' 0" (48")	2' 0" (24")	10' 0" (120")
SSG-WSWUSPB4830120S	4' 0" (48")	2' 6" (30")	10' 0" (120")
SSG-WSWUSPB4836120S	4' 0" (48")	3' 0" (36")	10' 0" (120")
SSG-WSWUSPB4848120S	4' 0" (48")	4' 0" (48")	10' 0" (120")
SSG-WSWUSPB6015120S	5' 0" (60")	1' 3" (15")	10' 0" (120")
SSG-WSWUSPB6018120S	5' 0" (60")	1' 6" (18")	10' 0" (120")
SSG-WSWUSPB6024120S	5' 0" (60")	2' 0" (24")	10' 0" (120")
SSG-WSWUSPB6030120S	5' 0" (60")	2' 6" (30")	10' 0" (120")
SSG-WSWUSPB6036120S	5' 0" (60")	3' 0" (36")	10' 0" (120")
SSG-WSWUSPB6048120S	5' 0" (60")	4' 0" (48")	10' 0" (120")
SSG-WSWUSPB7215120S	6' 0" (72")	1' 3" (15")	10' 0" (120")
SSG-WSWUSPB7218120S	6' 0" (72")	1' 6" (18")	10' 0" (120")
SSG-WSWUSPB7224120S	6' 0" (72")	2' 0" (24")	10' 0" (120")
SSG-WSWUSPB7230120S	6' 0" (72")	2' 6" (30")	10' 0" (120")
SSG-WSWUSPB7236120S	6' 0" (72")	3' 0" (36")	10' 0" (120")
SSG-WSWUSPB7248120S	6' 0" (72")	4' 0" (48")	10' 0" (120")

SSG-WSWUSPB481560S
48" W × 15" D × 60" H · Weight 0
SSG-WSWUSPB481572S
48" W × 15" D × 72" H · Weight 0
SSG-WSWUSPB481860S
48" W × 18" D × 60" H · Weight 0
SSG-WSWUSPB481872S
48" W × 18" D × 72" H · Weight 0
SSG-WSWUSPB482460S
48" W × 24" D × 60" H · Weight 0
SSG-WSWUSPB483060S
48" W × 30" D × 60" H · Weight 0
SSG-WSWUSPB483660S
48" W × 36" D × 60" H · Weight 0
SSG-WSWUSPB484860S
48" W × 48" D × 60" H · Weight 0
SSG-WSWUSPB601560S
60" W × 15" D × 60" H · Weight 0
SSG-WSWUSPB601572S
60" W × 15" D × 72" H · Weight 0
SSG-WSWUSPB601860S
60" W × 18" D × 60" H · Weight 0
SSG-WSWUSPB601872S
60" W × 18" D × 72" H · Weight 0
