Lateral Sliding Wire Shelving
Product SKU
Description
- Sliding sanitary shelving is fit for use in food service, retail, hospitality, and laboratory industries
- Improves productivity by reducing retrieval time
- Easily expandable system with simple installation and no false floor required

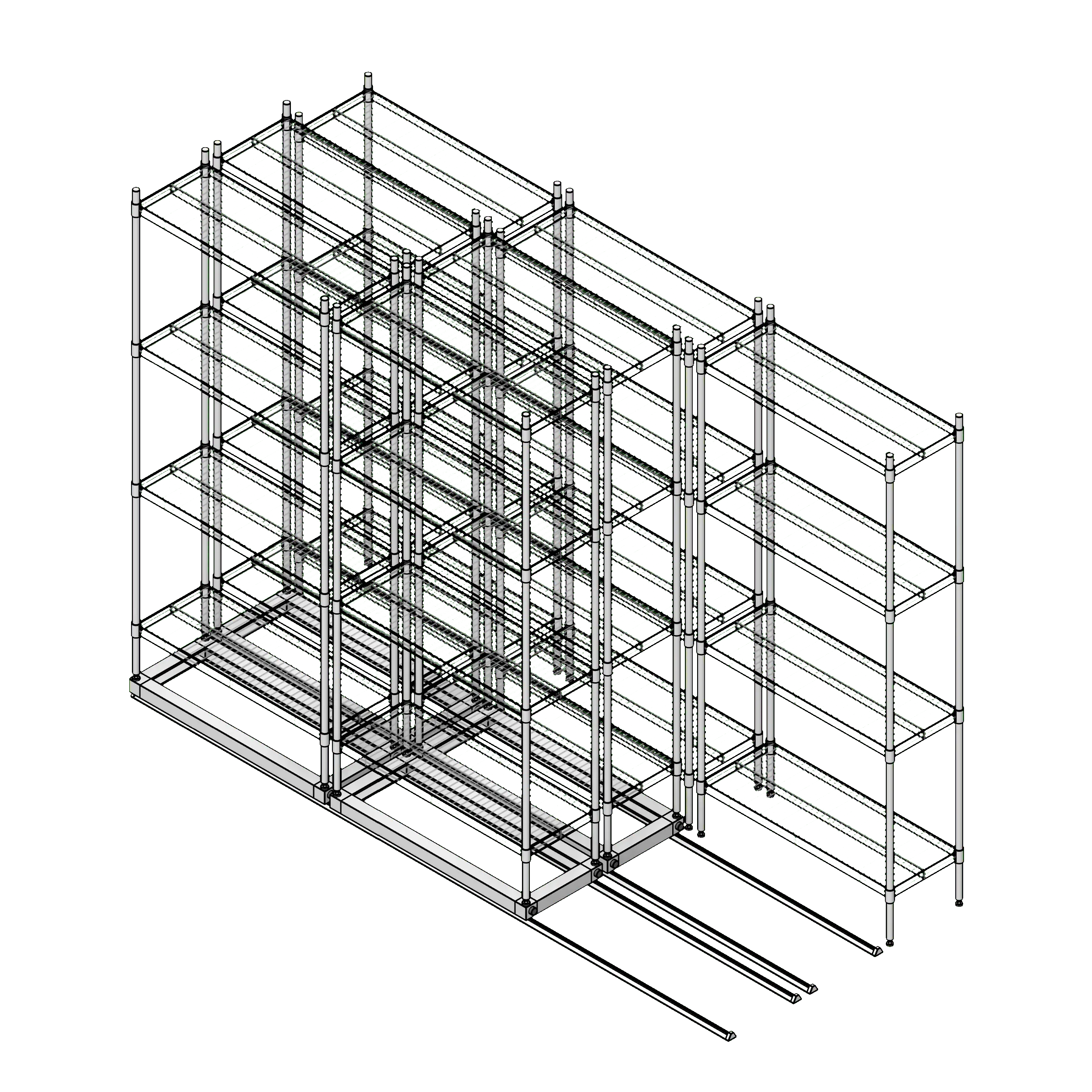

Lateral Sliding Wire Shelving
Lateral sliding wire shelving is a great solution for sanitary storage when space is tight. Use this family to reduce retrieval time and improve productivity.
To use this family, insert it into your project and set the shelf sizes in the dimensions section of the properties browser. When the appropriate shelf size has been set, navigate to the construction category and input the desired number of shelves wide (up to 8) and deep (up to 3). The number of shelves per unit can also be adjusted for your personal use case.
| Parameter | Value |
|---|---|
| Minimum Number of Shelves per Unit | 4 |
| Maximum Number of Shelves per Unit | 7 |
| Minimum Number of Units Deep | 2 |
| Maximum Number of Units Deep | 4 |
| Minimum Number of Units Wide | 2 |
| Maximum Number of Units Wide | 8 |
| Standard Widths | 72" - 583" |
| Minimum Width | 6 |
| Maximum Width | 48.5833333333333 |
| Standard Depths | 29" - 74" |
| Minimum Depth | 2.41666666666667 |
| Maximum Depth | 6.16666666666667 |
| Standard Heights | 57", 66", 77", 89" |
| Minimum Height | 4.75 |
| Maximum Height | 7.41666666666667 |
| Standard Shelf Widths | 36", 42", 48", 54", 60", 66", 72" |
| Minimum Shelf Width | 3 |
| Maximum Shelf Width | 6 |
| Standard Shelf Depths | 14", 18", 21", 24" |
| Minimum Shelf Depth | 1.16666666666667 |
| Maximum Shelf Depth | 2 |
| Standard Shelf Heights | 54", 63", 74", 86" |
| Minimum Shelf Height | 4.5 |
| Maximum Shelf Height | 7.16666666666667 |
| Manufacturer | Southwest Solutions Group_TAR |
| Lead Time | Contact SSG for more information |
| Model | LCC |
| Keynote | 10 56 26 |
| Assembly Code | E1030 |
| Author | AWright |
| Toll Free Number | 1-800-803-1083 |
| Property | Value |
|---|---|
| Includes Pricing | No |
| ADA Compliant | No |
| Has MEP Connectors | No |
| Primary Material | Chrome |
| BIMobject Category | Furniture: Shelving & Storage |
| IFC | Furniture |
| Omniclass | 23-21-25 11 13 |
