Vinyl Roll Vertical Carousel
Product SKU
Description
- Vertical storage solution frees additional floor space that would otherwise be covered in shelving.
- Safe operation reduces worker bending, lifting, walking, and pushing.
- Spindle may be configured to work directly with the feeds of manufacturing equipment.

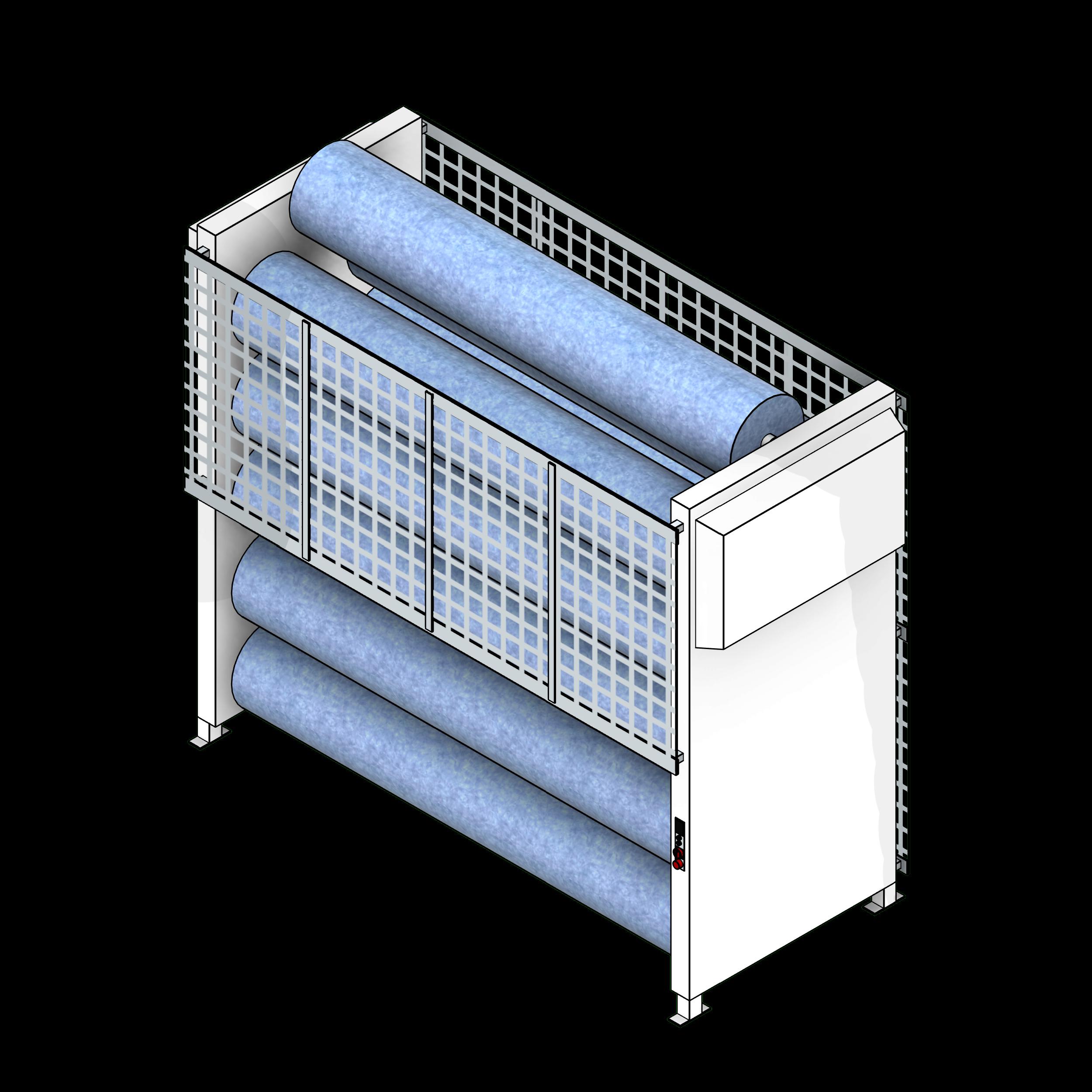

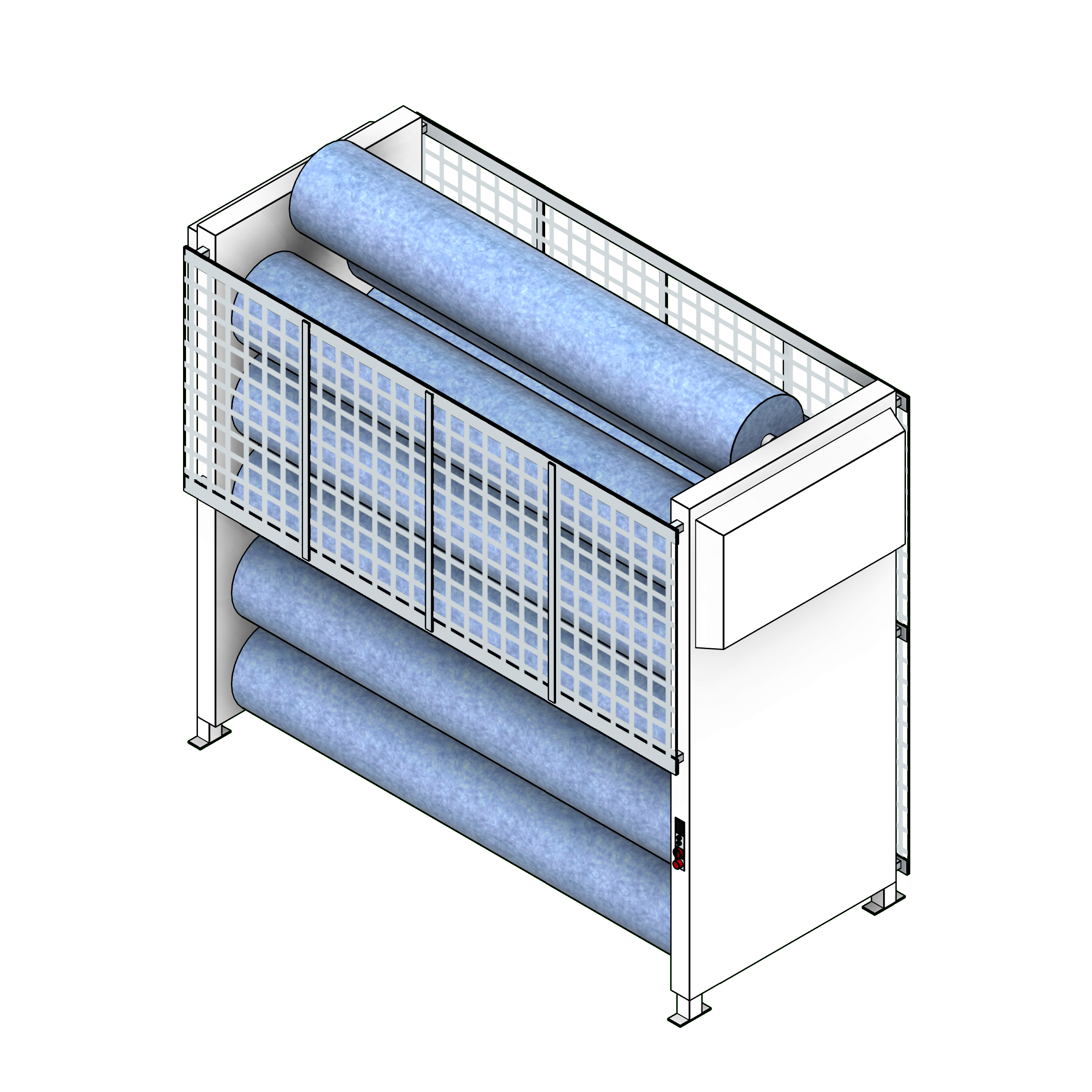

Vinyl Roll Vertical Carousel
Take control of your workshop's inventory management and efficiency with the vinyl vertical carousel. This model stores vinyl rolls in a vertical stack, clearing up floor space and increasing the health and safety of workers through ergonomics.
This family is designed to quickly and easily configure to fit your needs. To use this model, simply insert it into your project from the Fetch app. Under the Construction category, input your desired maximum roll length and diameter and the total number of carriers in the system. Click apply and the model will automatically size and price itself. This model also includes the base electrical package with info on voltage, apparent loads, and more.
| Parameter | Value |
|---|---|
| Standard Widths | 8' 9", 14' 7", 15' 9", 17' 7" |
| Minimum Width | 8.75 |
| Maximum Width | 17.5833333333333 |
| Standard Depths | 43", 47", 77", 89" |
| Minimum Depth | 2.66666666666667 |
| Maximum Depth | 7.41666666666667 |
| Standard Heights | 7' 6" - 21' 6" |
| Minimum Height | 7.5 |
| Maximum Height | 21.5 |
| Standard Roll Lengths | 6' 7", 12' 0", 13' 2", 15' 0" |
| Minimum Roll Length | 6.58333333333333 |
| Maximum Roll Length | 15 |
| Minimum Roll Diameter | 1 |
| Maximum Roll Diameter | 3.16666666666667 |
| Standard Roll Diameters | 12", 18", 24", 32", 38" |
| Manufacturer | Southwest Solutions Group_VID |
| Lead Time | 10-12 Weeks |
| Model | R |
| Keynote | 14 46 00 |
| Assembly Code | E10 |
| Author | AWright |
| Toll Free Number | 1-800-803-1083 |
| Property | Value |
|---|---|
| Includes Pricing | Yes |
| ADA Compliant | No |
| Has MEP Connectors | Yes |
| Primary Material | Powder coated steel |
| BIMobject Category | Furniture: Shelving & Storage |
| IFC | Furniture |
| Omniclass | 23.50.05.14 |
