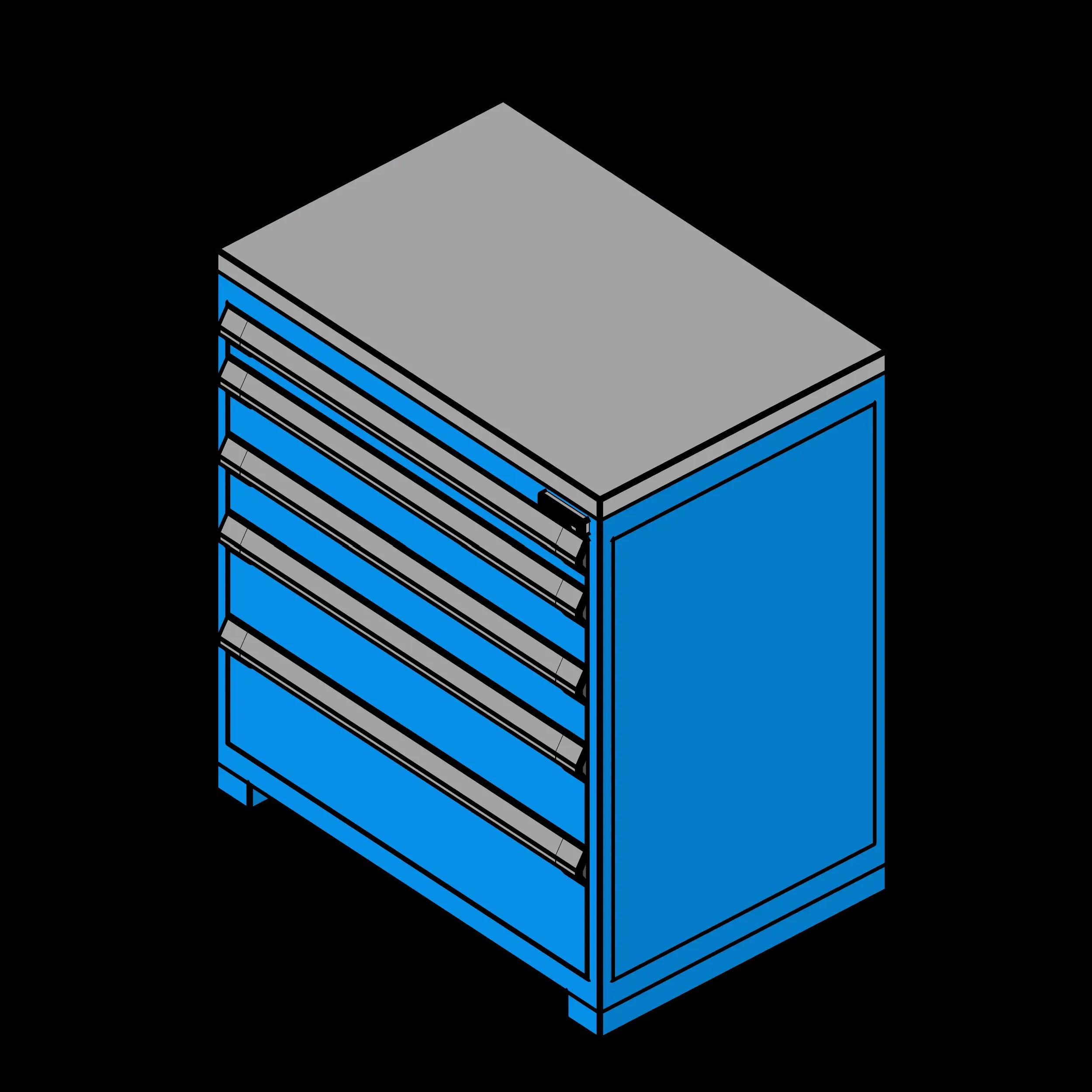

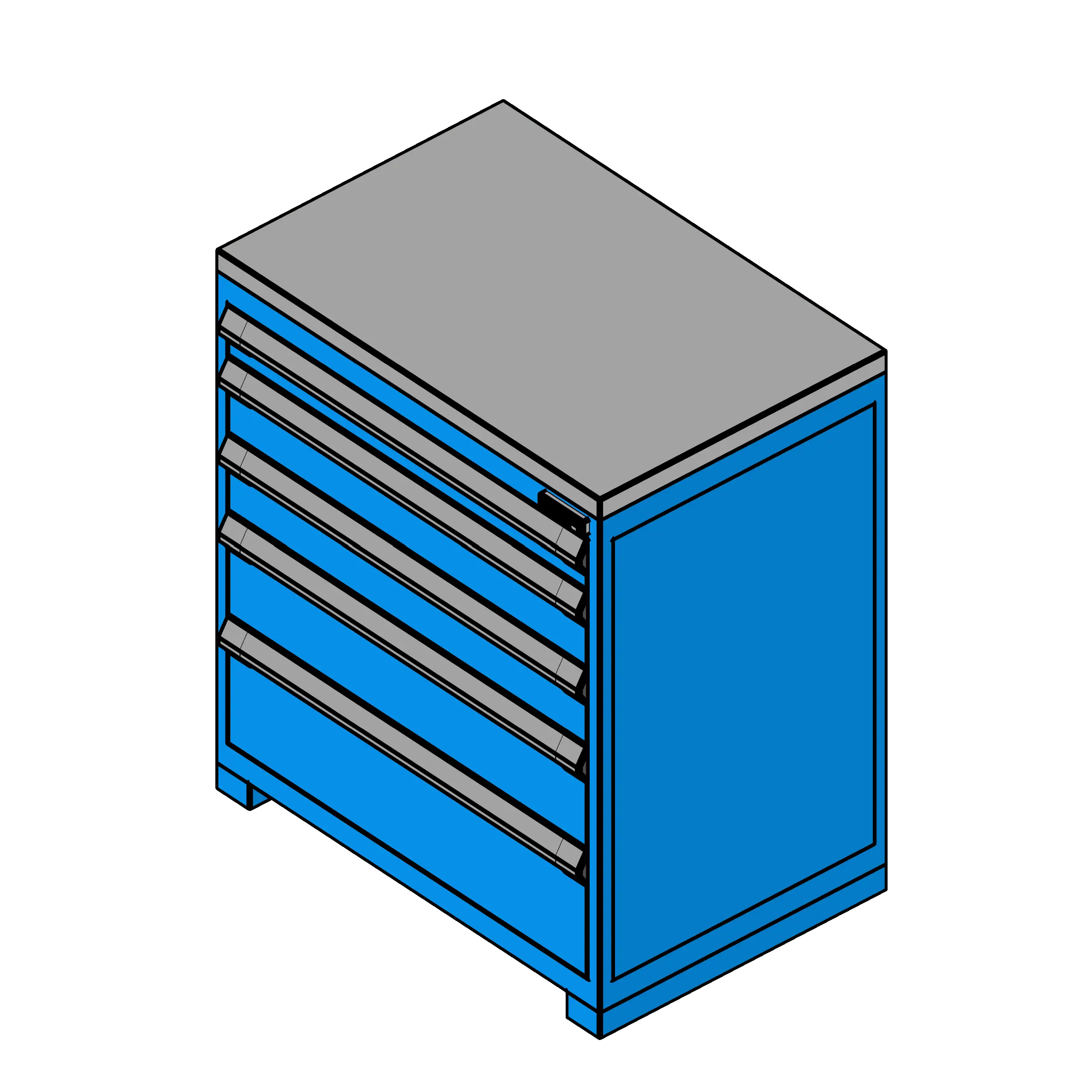

Drawers Heavy Duty Cabinet

This drawer cabinet family includes up to 18 drawers with fully customizable sizes that allow you to build the best drawer configuration for your needs. To use this family, insert it into your project from the Fetch app, then click on the model. In the properties browser under Construction, you will find configuration options such as base type, countertop material, and an option to add a divider for split drawers. The Dimensions category contains parameters for adjusting the cabinet's overall width, depth, and height.

The drawer configuration options can be found under Model Properties. Use ENTER_Number of Drawers to specify the number of drawers desired from no drawers up to eighteen. TOTAL_Drawer Space will tell you how much space is available for drawers, and REMAINING_Drawer Space calculates how much space is remaining, or not remaining, for additional drawers. A negative value in this parameter indicates that too many drawers are selected. Finally, use the ENTER_Drawer # Height parameters to assign the individual drawer heights. Drawer 1 indicates the bottom drawer. The maximum number of drawers possible is eighteen drawers at 3" each in a 58" tall cabinet.
